Heavy Duty CTY-W Pump-Up Manual Straddle Truck with Adjustable Forks

Heavy Duty CTY-W Pump-Up Manual Straddle Truck with Adjustable Forks

CTY-W
Quantity:
Contact Now
add to cart
All Products

SINOLIFT CTY-W Pump-Up Manual Straddle Truck provides easy Lifting of Lighter Loads in Small Warehouses and Light Industrial Environments. It is an economical and durable option to Powered Lift Trucks providing a simple, easy way to lift, lower and transport materials with minimum effort.

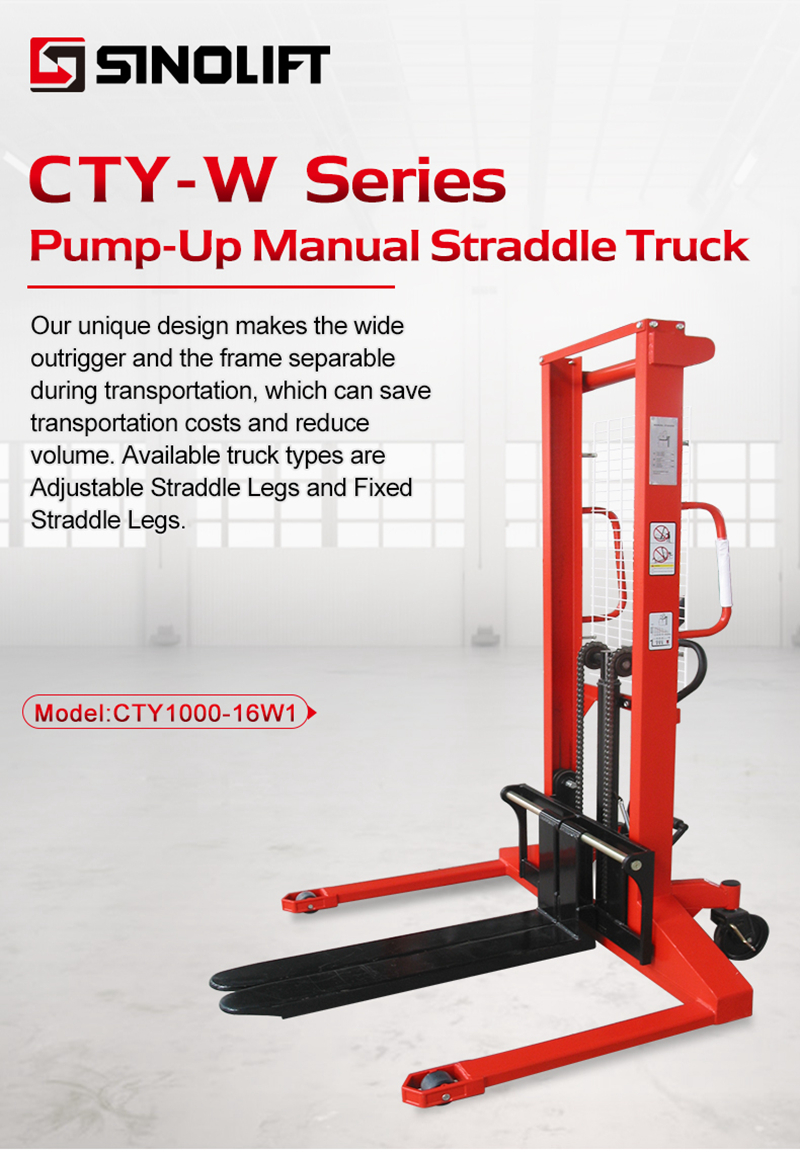

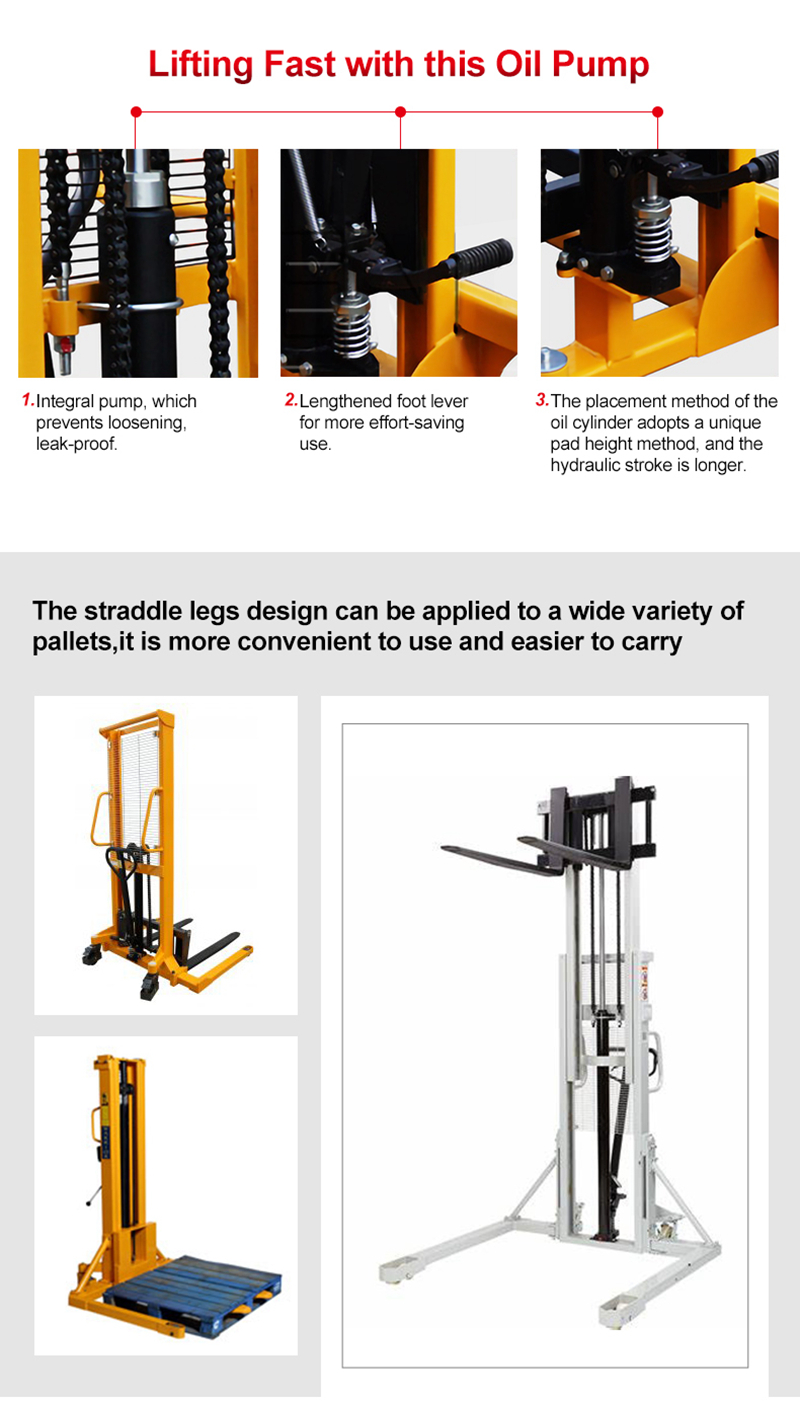

Hand Pump Operated Lift Trucks Allow Ergonomic Handling and Lifting of Lighter Loads in Small Warehouses and Light Industrial Environments. Our unique design makes the wide outrigger and the frame separable during transportation, which can save transportation costs and reduce volume.

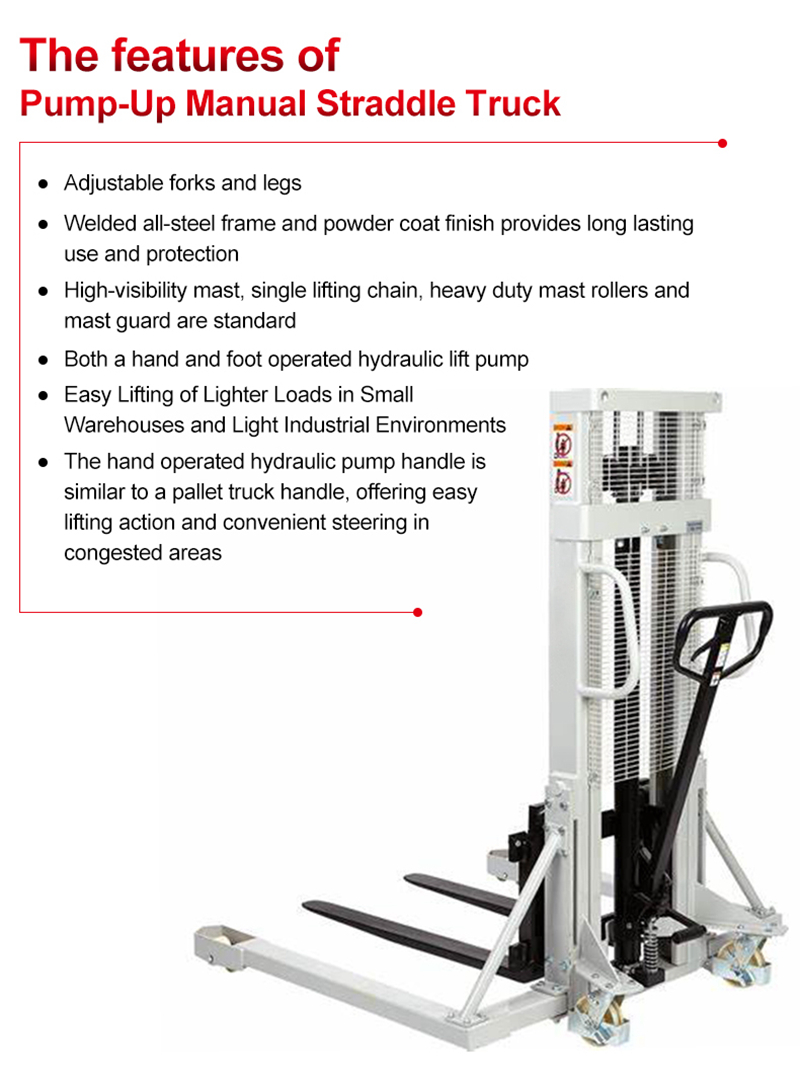

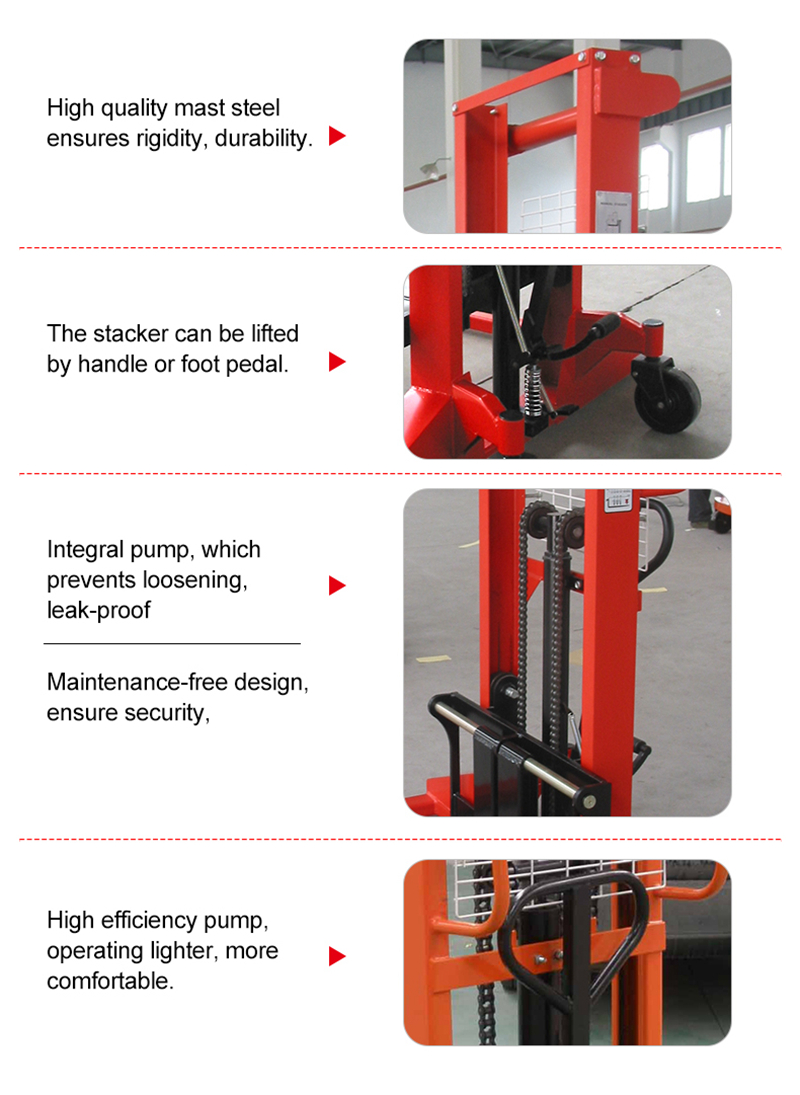

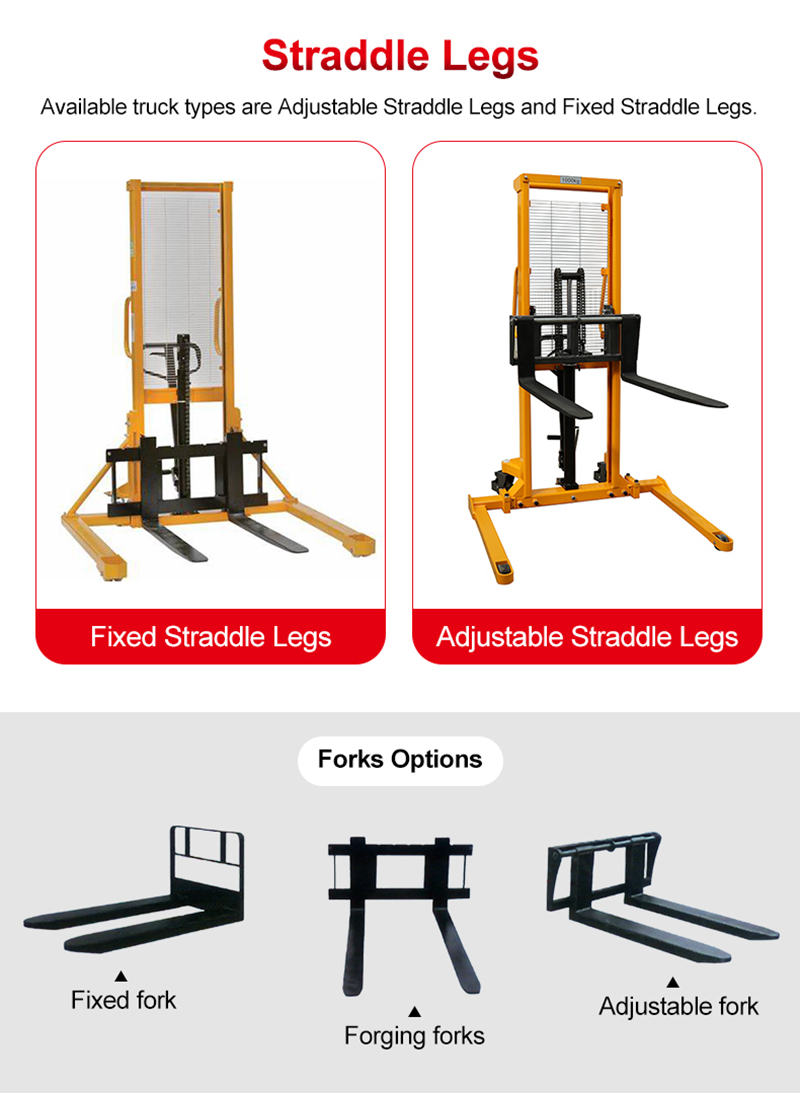

Warehouse stackers are an economical and durable option to powered lift trucks providing a simple, easy way to lift, lower and transport materials with minimum effort. Welded all-steel frame and powder coat finish provides long lasting use and protection. The hand operated hydraulic pump handle is similar to a pallet truck handle, offering easy lifting action and convenient steering in congested areas. Available truck types are Adjustable Straddle Legs and Fixed Straddle Legs. Load capacity is 2200 lbs.

Note: Fixed Straddle Legs style are for use with Single Faced Pallets, Skids and Bulk Containers only.

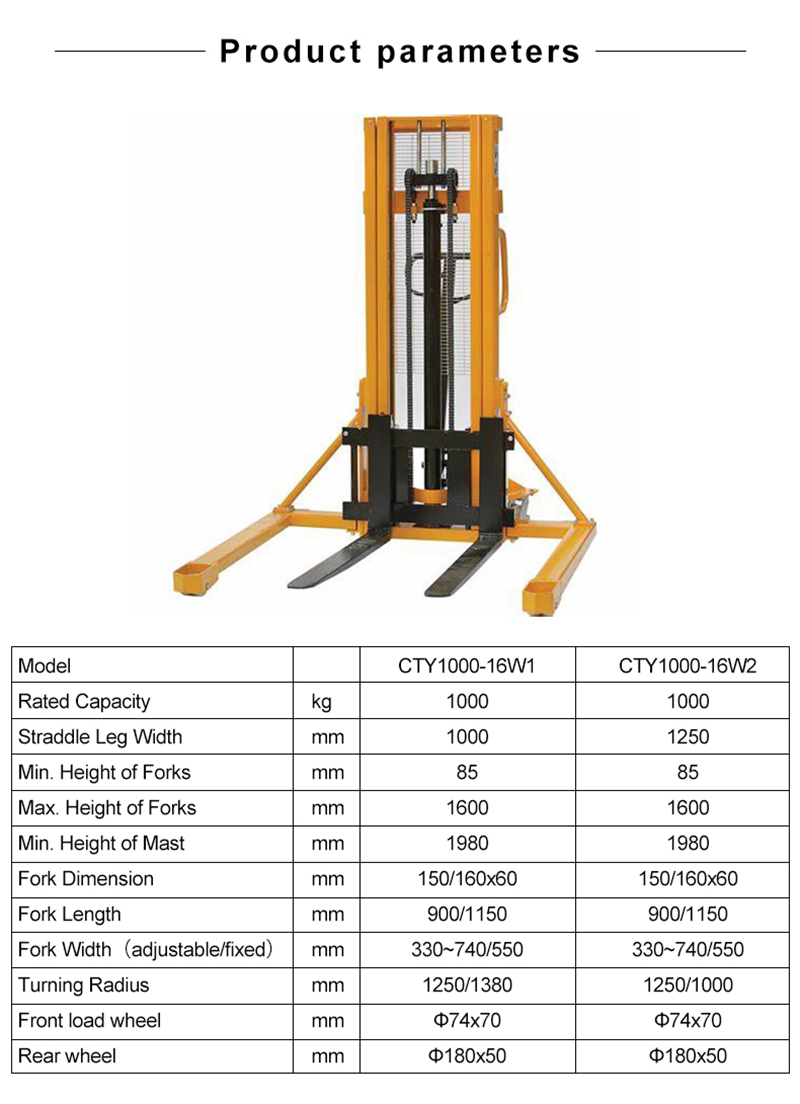

Model No.CTY1000-16W1CTY1000-16W2
Rated Capacity       Qkg10001000
Straddle Leg Widthmm10001250
Min. Height of Forks hmm8585
Max. Height of Forks h1mm16001600
Min. Height of Mast h1mm19801980
Fork Dimension  e*smm150/160x60150/160x60
Fork Length lmm900/1150900/1150
Fork Width(adjustable/fixed)b5mm330~740/550330~740/550
Turning Radiusmm1250/13801250/1000
Front load wheelmmΦ74x70Φ74x70
Rear wheelmmΦ180x50Φ180x50
