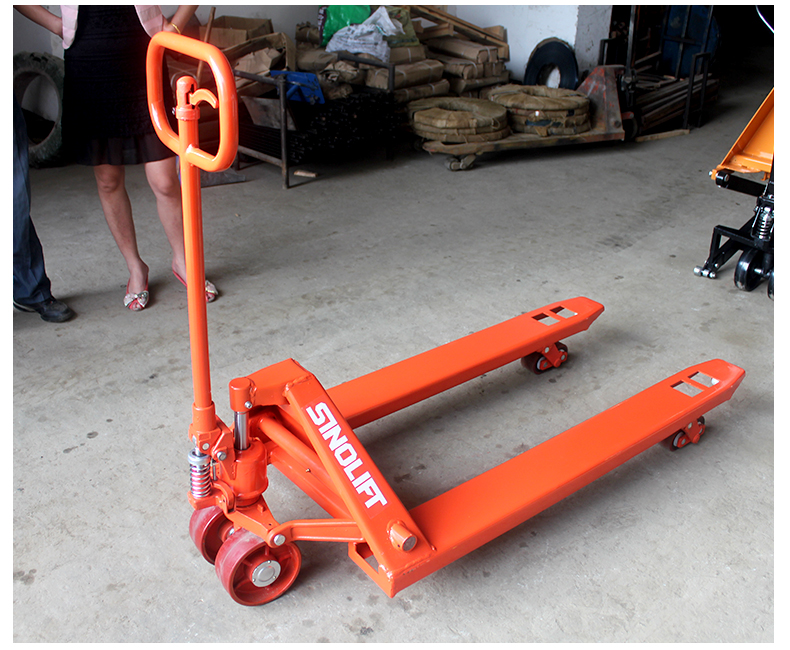

High Quality Welded Steel BL Hand Pallet Truck

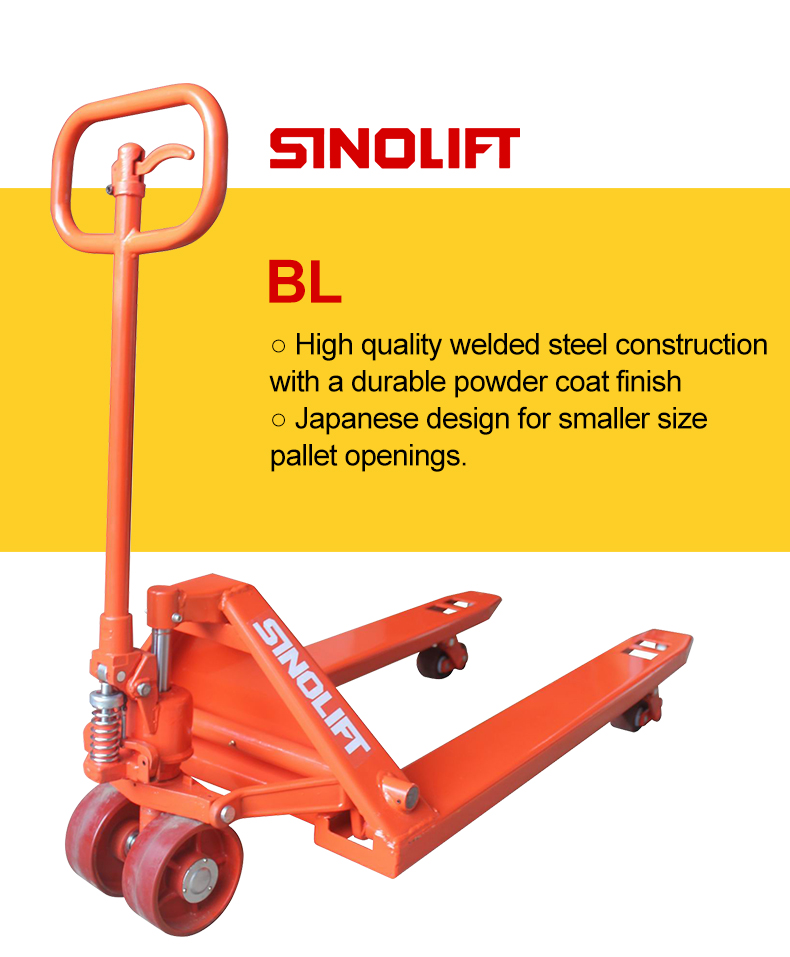

Japanese Design High Quality Welded Steel BL Hand Pallet Truck

BL
Quantity:
Contact Now
add to cart
All Products

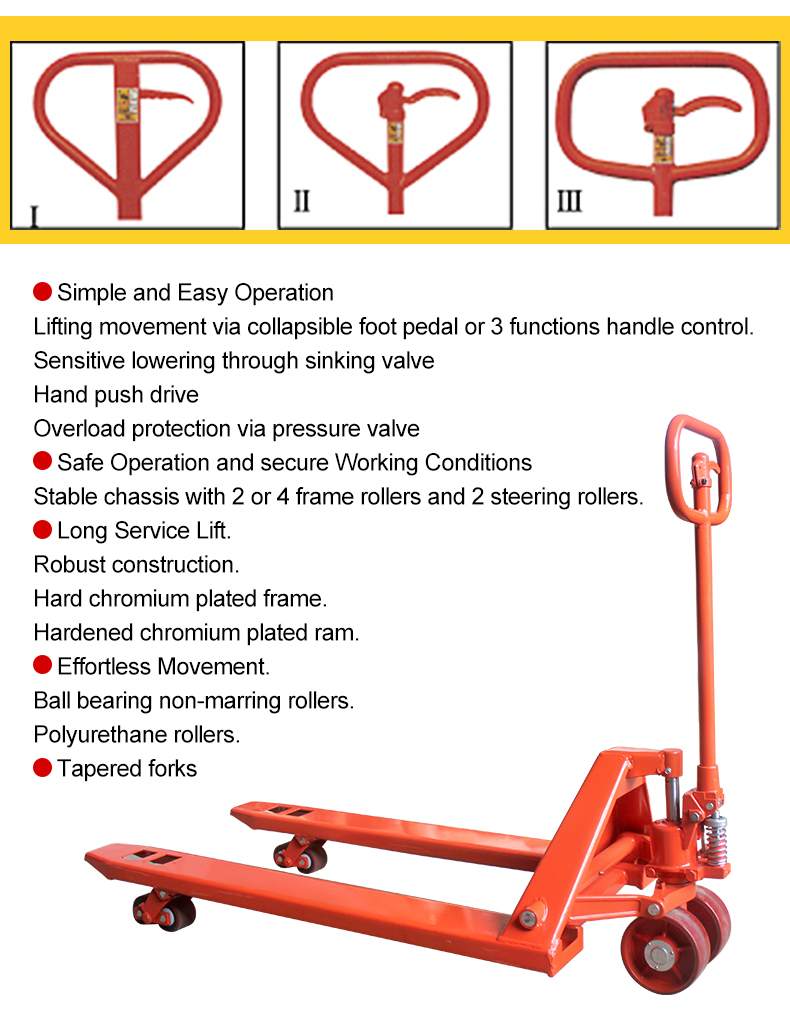

  • Simple and Easy Operation
         Lifting movement via collapsible foot pedal or 3 functions handle control.
         Sensitive lowering through sinking valve
         Hand push drive

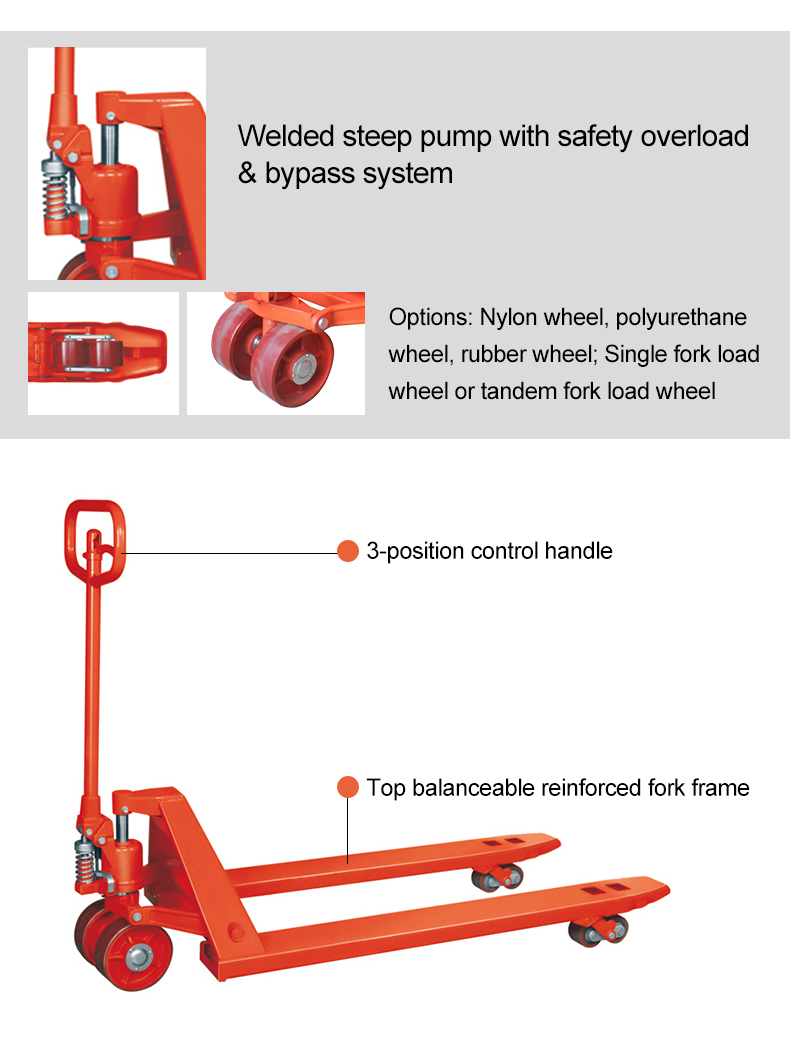

         Overload protection via pressure valve

  • Safe Operation and secure Working Conditions
         Stable chassis with 2 or 4 frame rollers and 2 steering rollers.

  • Long Service Lift.
         Robust construction.
         Hard chromium plated frame.
         Hardened chromium plated ram.

  • Effortless Movement.
         Ball bearing non-marring rollers.
         Polyurethane rollers.

  • Tapered forks

  • MODELBL20/BL25/BL30
    Capacity2000kg   2500kg 3000kg4500lbs   5500lbs 6600lbs
    Fork width520mm   550mm 685mm21"  27"
    Fork length1100mm   1150mm 1220mm36"  42"48"
    Lowered height64mm   74mm 85mm2.5"  2.9"
    Lifting height200mm7-7/8"
    Load wheelSingle   / Tandem    Nylon / Polyurethane
    Steering wheelNylon / Polyurethane / Rubber
    Weight80kg180lbs
