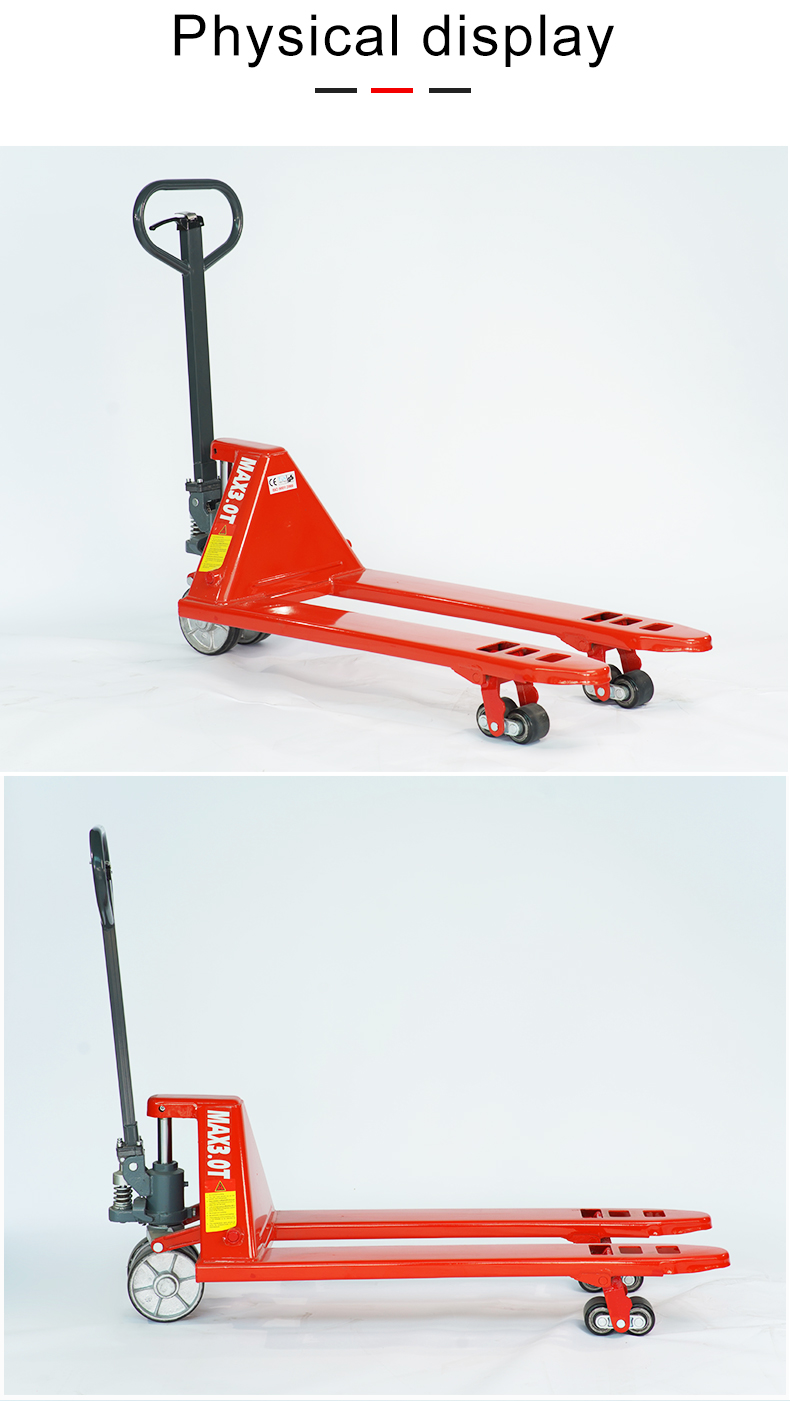

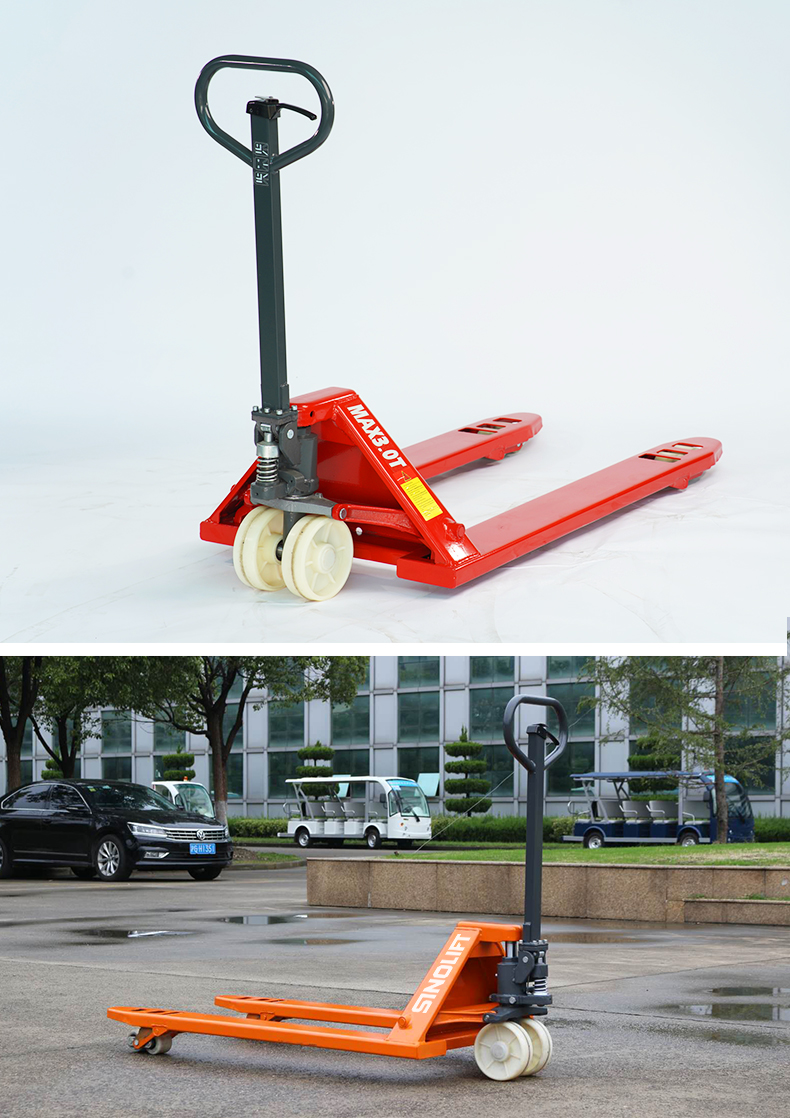

NPL series Low Profile Hand Pallet Truck

NPL series Low Profile Hand Pallet Truck

NPL
Quantity:
Contact Now
add to cart
All Products

One of best sellings in the world.

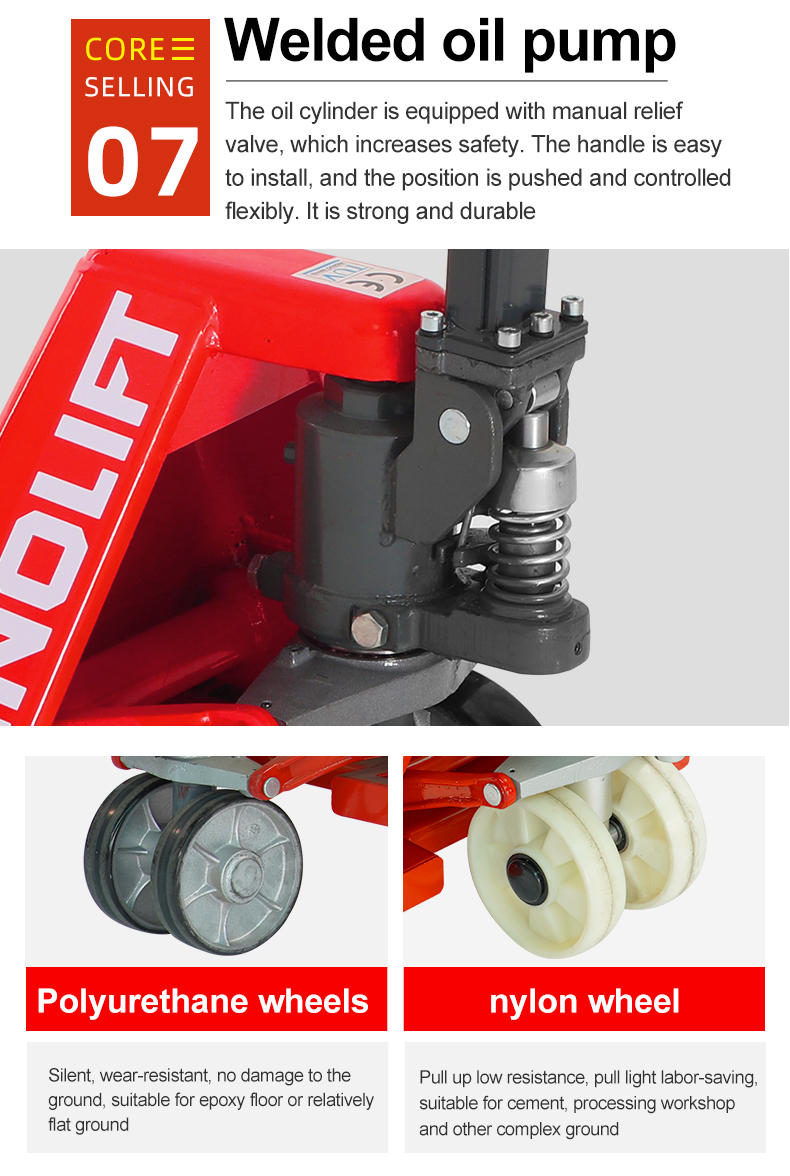

1. A built in overload valve and totally sealed hydraulic pump.

2. Japanese seal kit offers long span life of pump for 3 years warranty.

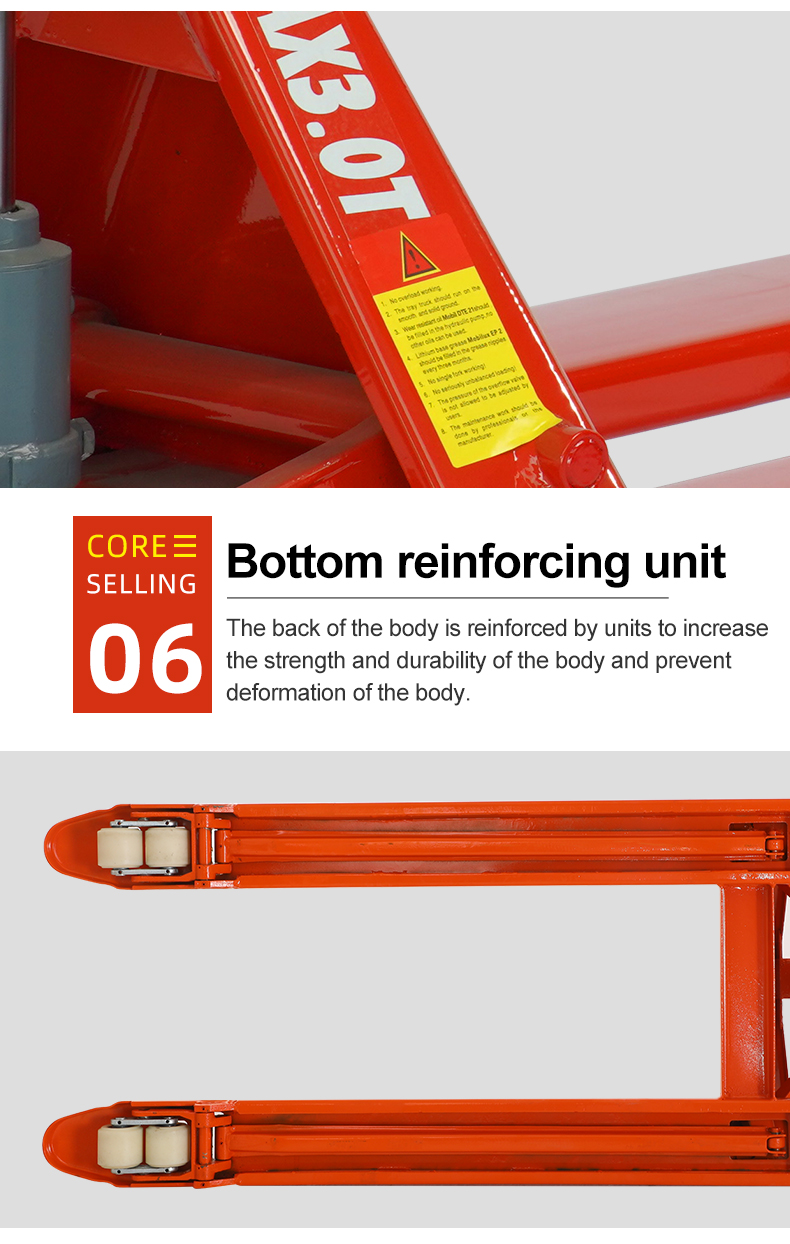

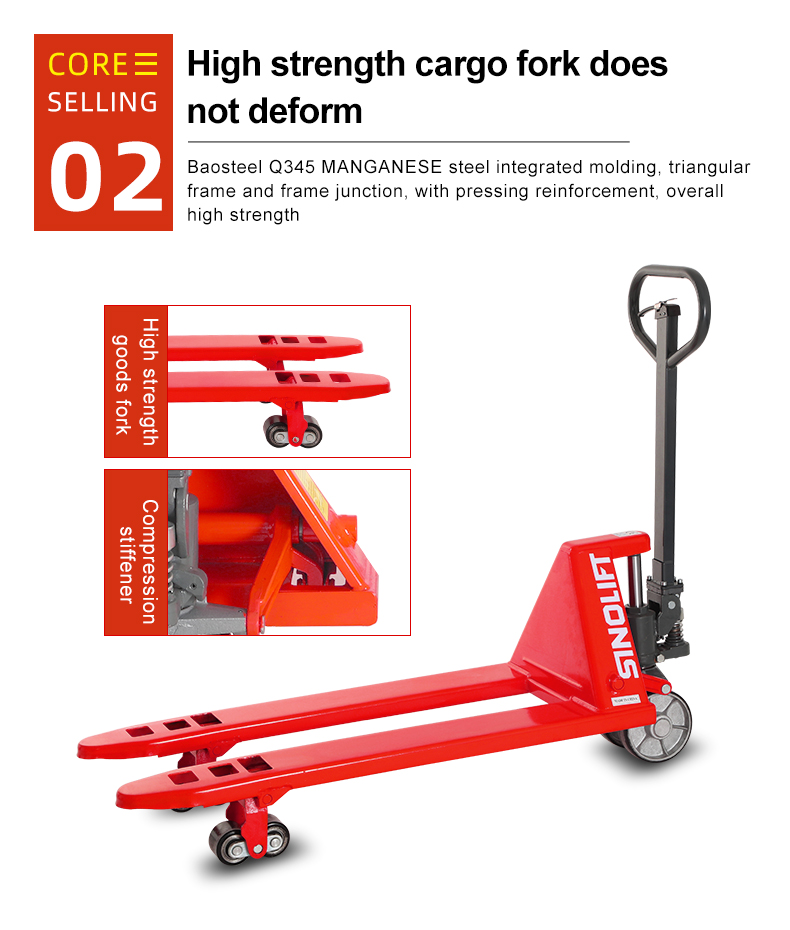

3. Heavy duty and reinforced forks for greatest strength and durability.

4. Entry rollers prevent physical exertion of the operator and protect load rollers and pallet.

5. Maintenance free oil bushings at key points offer you less operating force and longer span life of pallet truck.

6. With 65mm special lowered height this type of pallet truck was originally designed to handle tin plate packs. Now in great demand for container stuffed load handling.

7. Diverse fork sizes on request such as 820, 990, 1080, 1160, 1230, 820, 990, 1080, 1150, 1230mm lengths and 520, 685mm fork widths.

8. Maximum load capacity up to 2500kg

ModelCapacityForkwidthForklengthMin. HeightMax. HeightSteer wheelLoad WheelWeight
(kg)(mm)(mm)(mm)(mm)(mm)(mm)(kg)
NPL15-58150052082065165Ø180*62Ø65*100 (single)66
NPL15-5952099070
NPL15-510520108071
NPL15-511520116073
NPL15-712685123079
NPL25-58250052082065 (75)165(185)Ø180*62Ø65*100 (single)67
NPL25-5952099071
NPL25-510520108072
NPL25-511520115073
NPL25-712685123080
