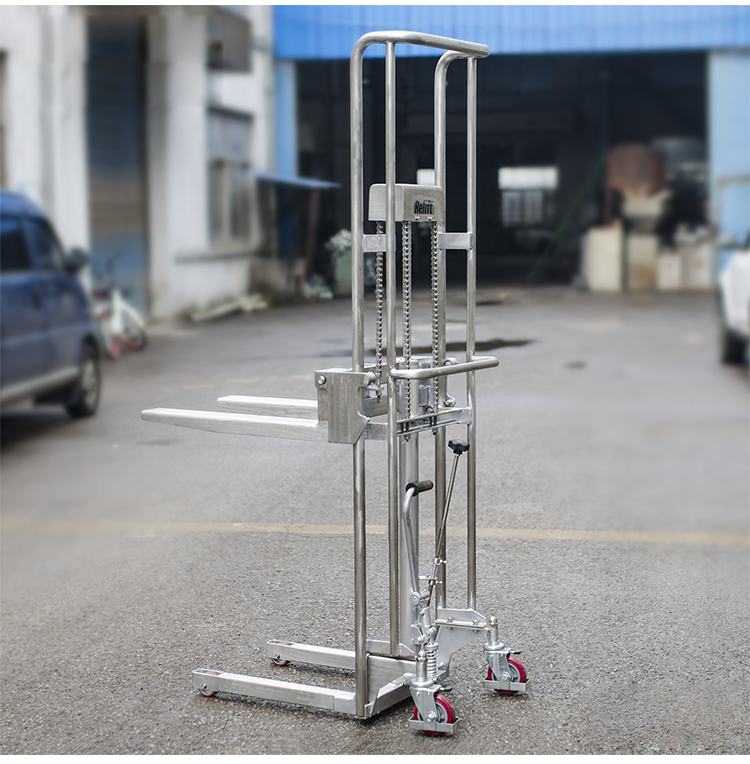

PF PJ PS Stainless Steel Mini Stacker

PF PJ

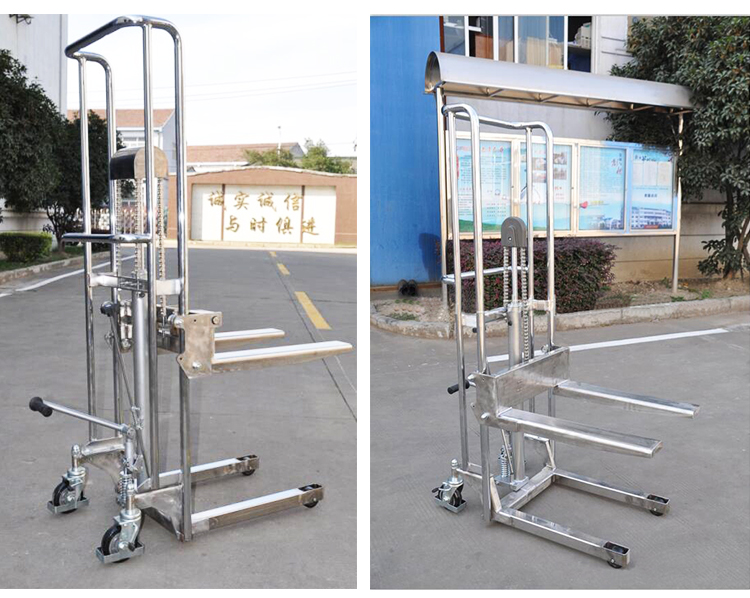

- The hydraulic stacker has fixed forks and a loose chromed platform for multipurpose use.
- You can handle half-size pallets or use the unit as a mobile lifting table.

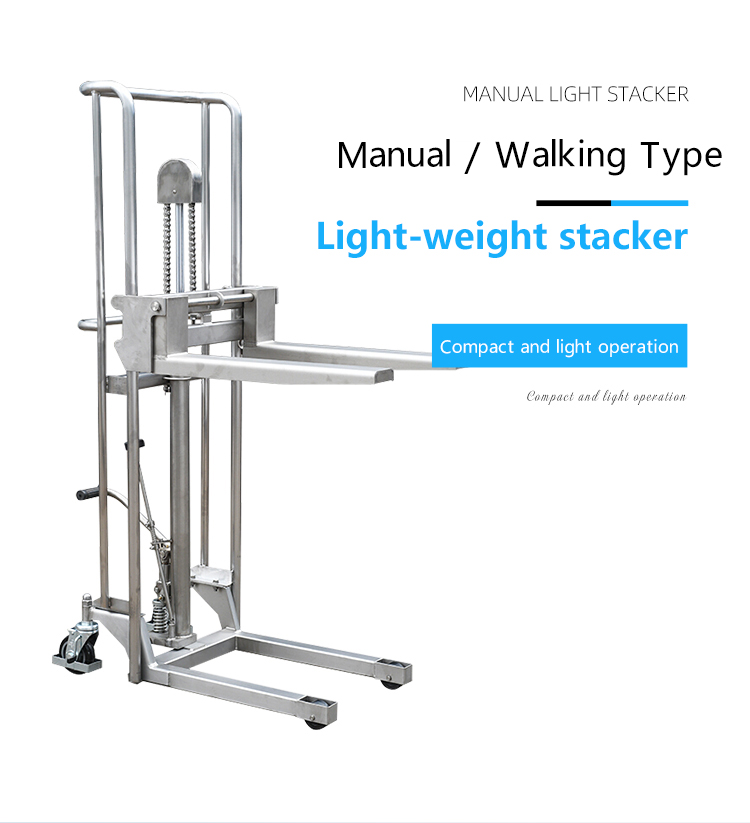

- Manual stackers have a foldable foot pump lever for lifting and a manual turning knob for lowering.

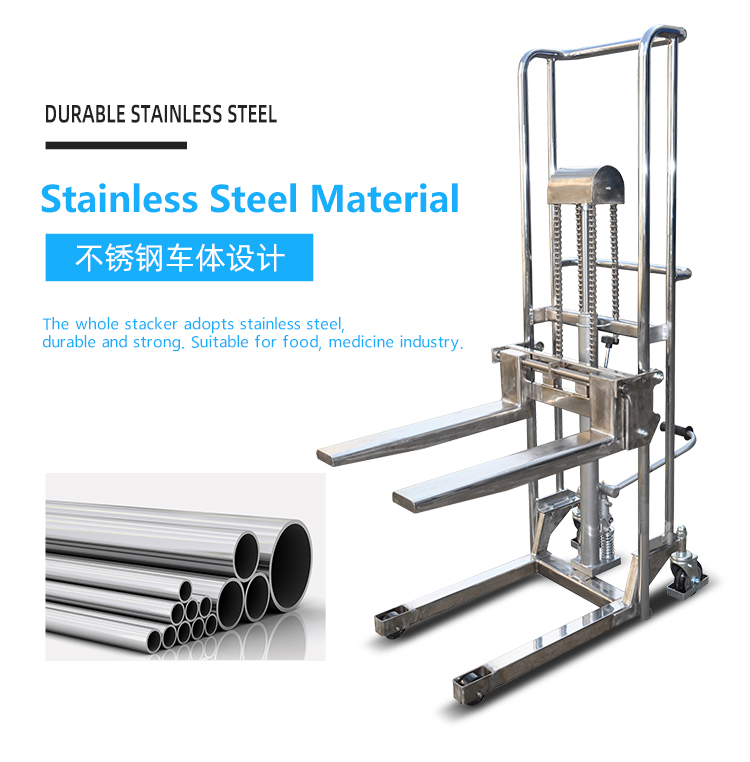

Stainless Steel SINOLIFT is designed for use in clean and washdown environments. This manual platform lift truck provides a solution for transporting, lifting, and positioning materials in a variety of commercial, office, and industrial applications.

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

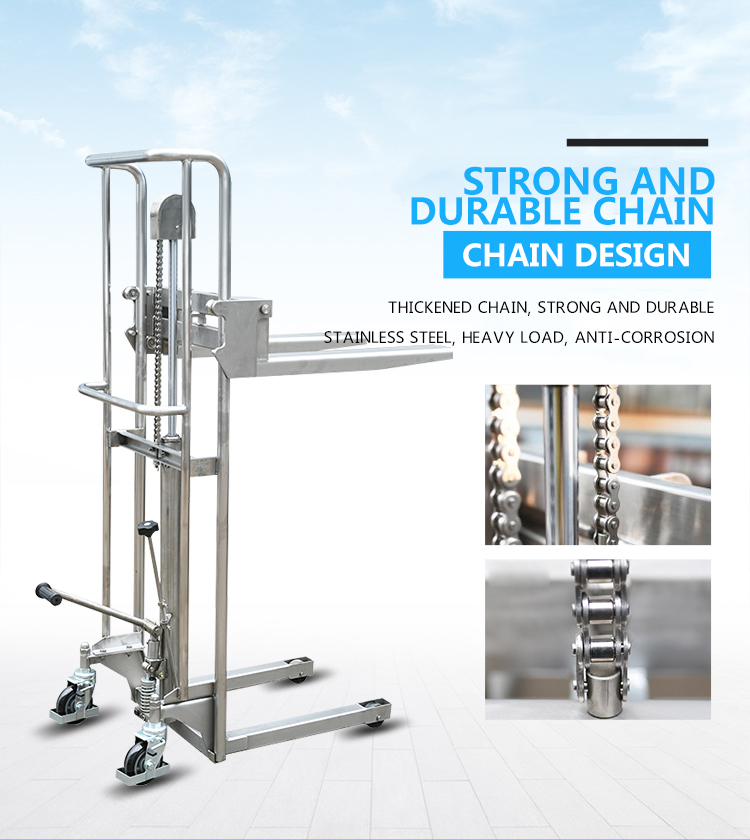

PF PJ PS Stainless Steel Stacker

- The Stainless Steel Stacker has fixed forks and a loose chromed platform for multipurpose use.

- Stainless Steel Stacker have a foldable foot pump lever for lifting and a manual turning knob for lowering.

Stainless Steel Stacker SINOLIFT is designed for use in clean and washdown environments. This manual Stainless Steel Stacker provides a solution for transporting, lifting, and positioning materials in a variety of commercial, office, and industrial applications.

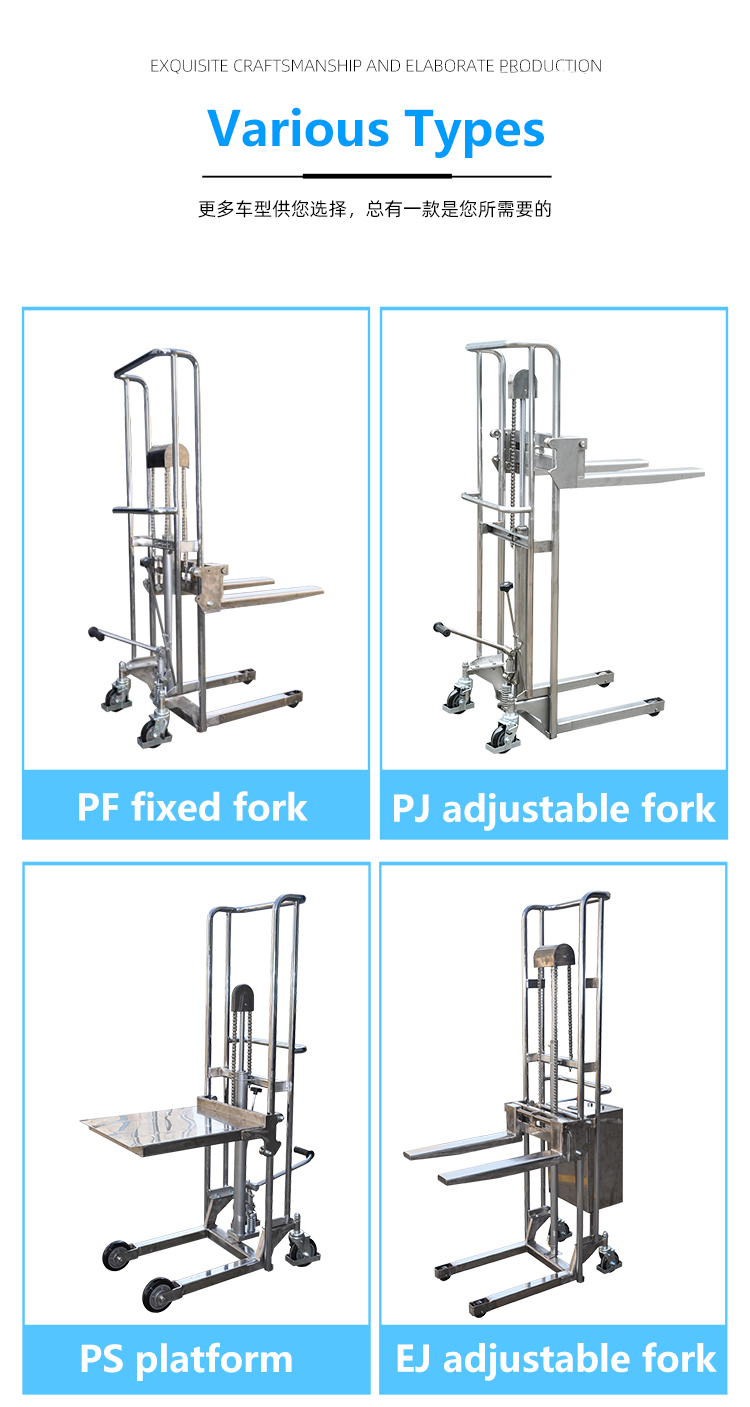

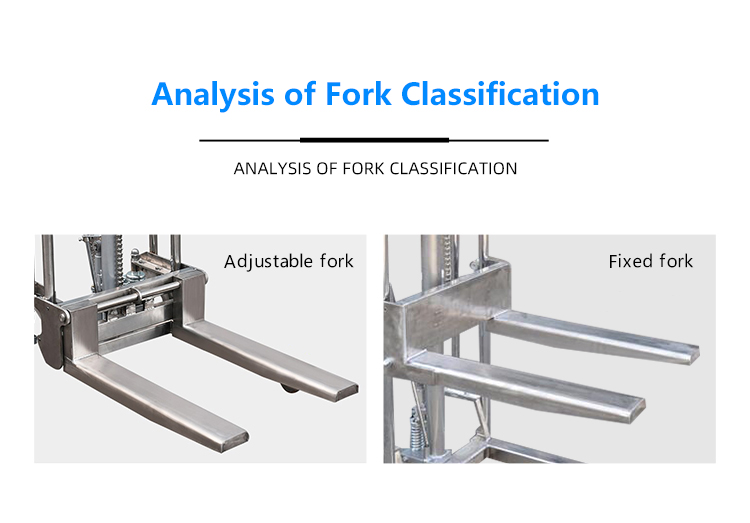

Model (Adjustable Fork)		PJ4085S	PJ4120S	PJ4150S	PJ4180S	PJ4200S
Model (Fixed Fork)		PF4085S	PF4120S	PF4150S	PF4180S	PF4200S
Platform		PS4085S	PS4120S	PS4150S	PS4180S	PS4200S
Capacity	kg	400	400	400	200-400	200-300
Max.Fork Height	(mm)	850	1200	1500	1800	2000

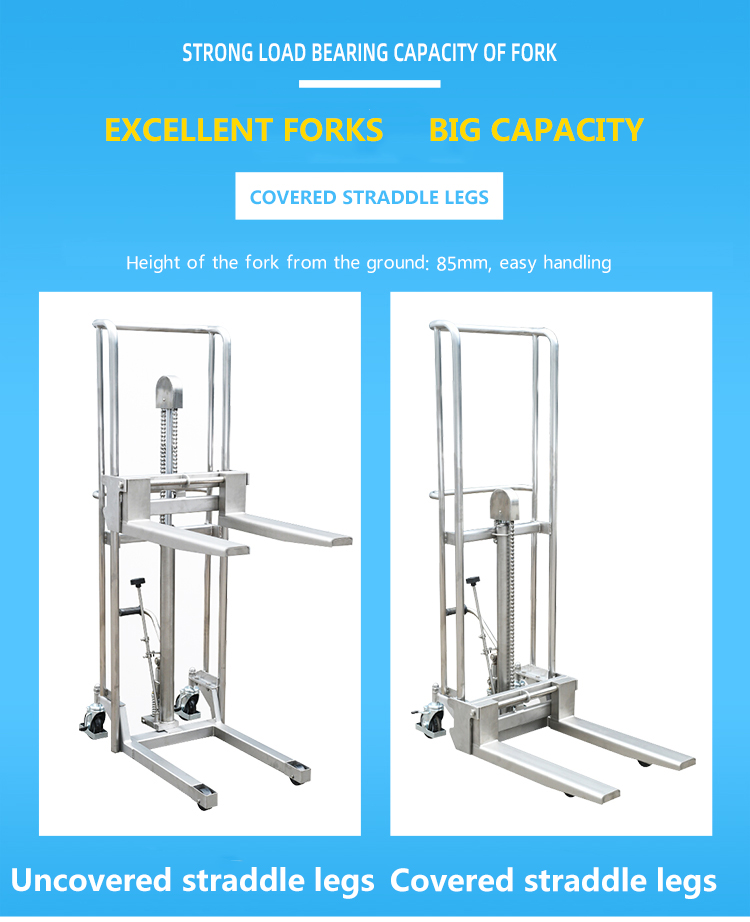

Min.Fork Height	(mm)	85
Fork Size LxW	(mm)	650x100
Fixed Fork Width	PF (mm)	550
Adjustable Fork Width	PJ (mm)	215-500

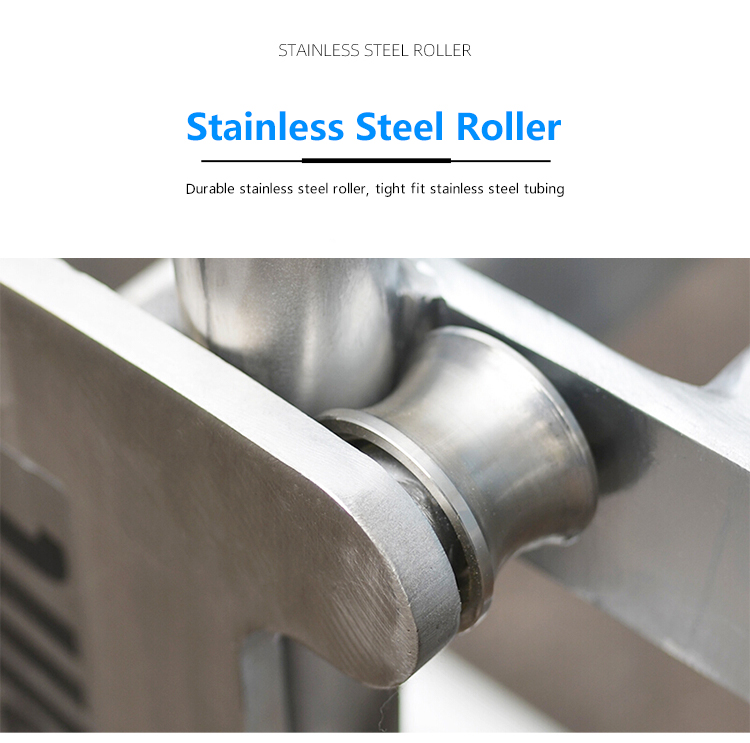

Load Roller	(mm)	Ф75x30
Steering Wheel	(mm)	Ф125x40
Pump strokes to Max.Height		35	50	65	75	85
Overall Height	(mm)	1410	1410	1710	2010	2210
Overall Width	(mm)	590
Overall Length	PF/PJ(mm)	1040
Net Weight	PF (kg)	63	68	73	80	85
Net Weight	PJ (kg)	61	71	73	82	87
