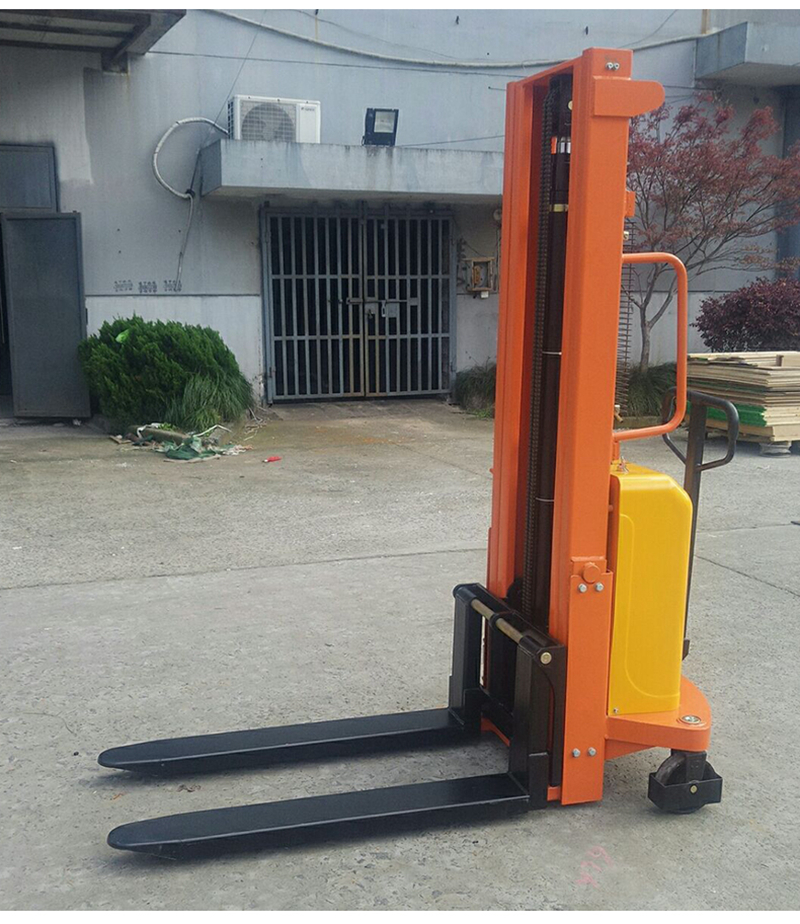

Powered High Lift Pallet CTD Series Economic Semi-electric Stacker
CTD
Quantity:

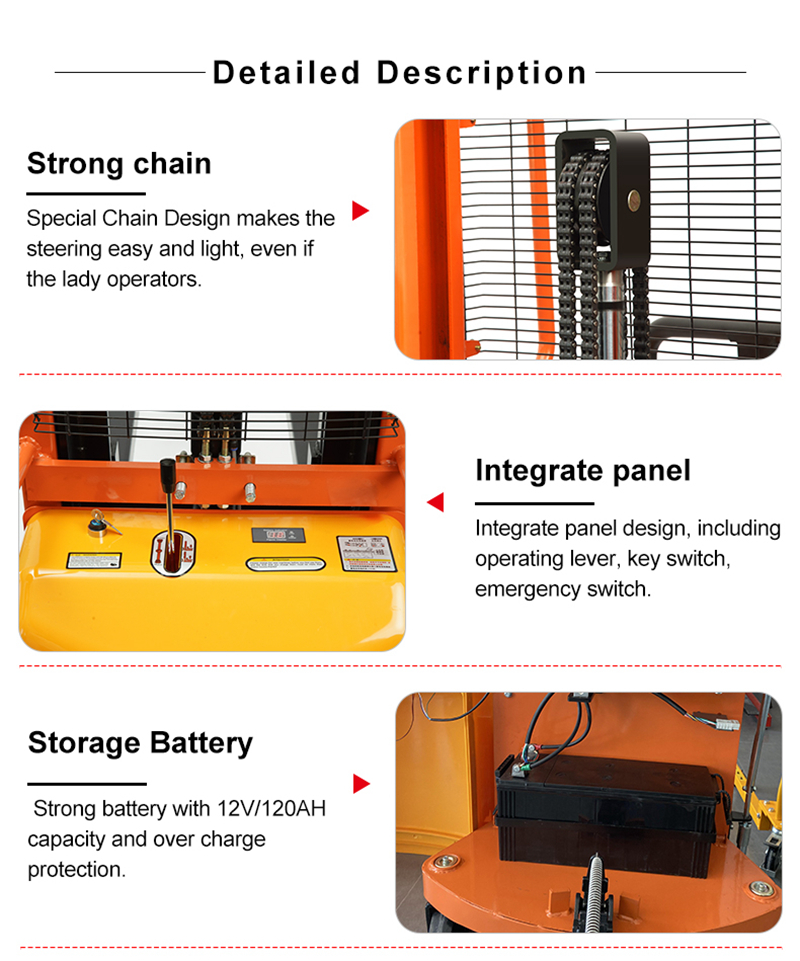

This Stacker is perfect for efficiently loading and unloading trucks, positioning dies, or feeding materials to presses. With a remote control, three light LED charge status indicator, and easy-to-read illuminated battery status voltmeter, this unit is both user-friendly and safe. Equipped with a safety screen and floor lock, safety is a top priority. The stacker can also be used with a minimally charged battery, even while plugged in and recharging.

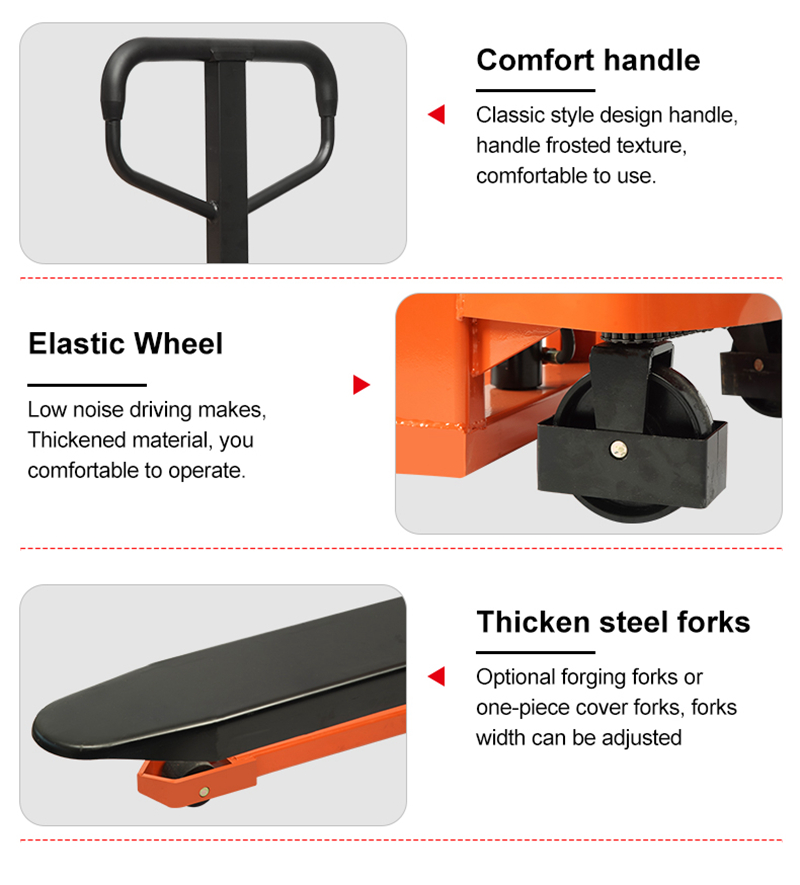

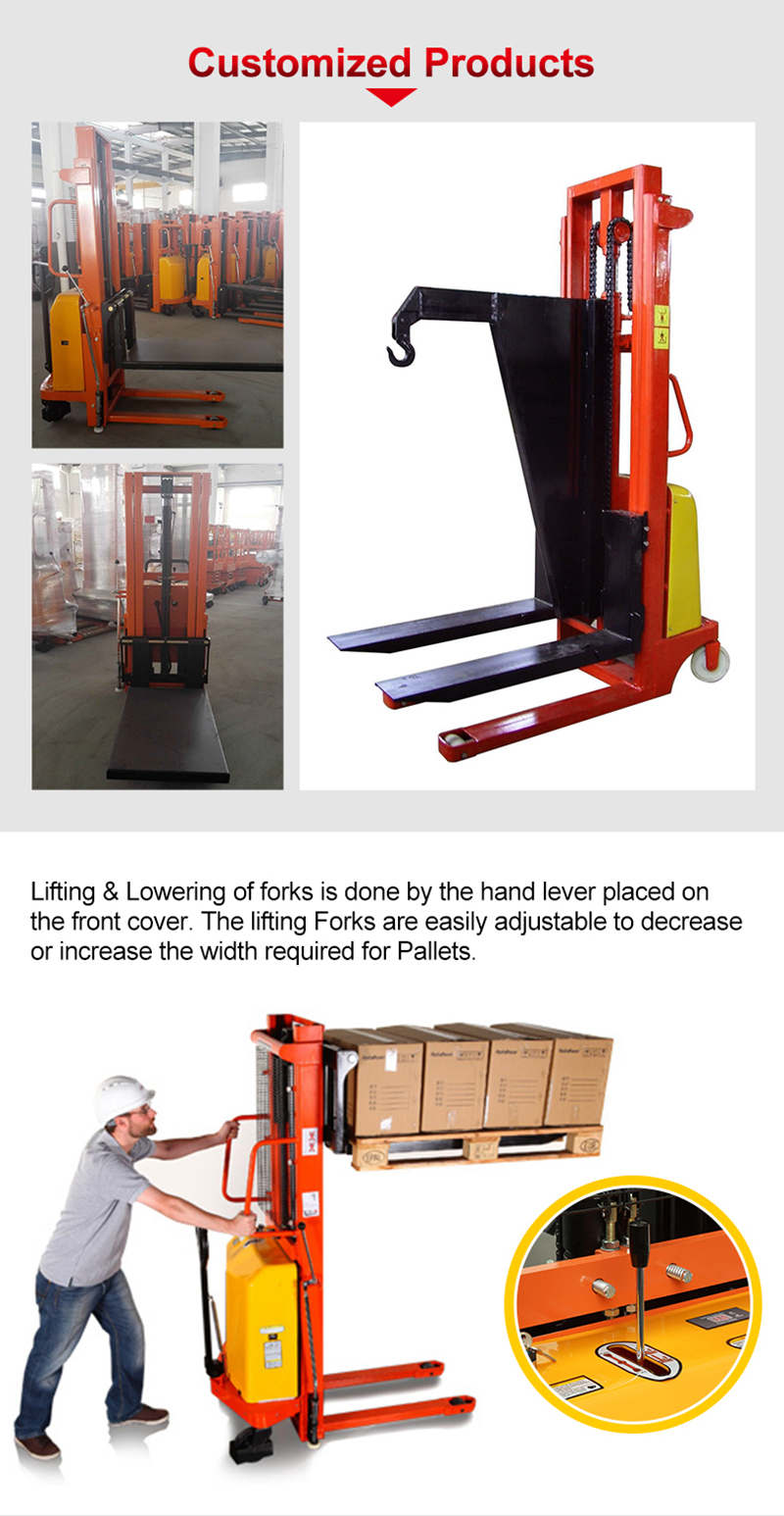

Designed for mobility, this stacker can be easily pushed or pulled by hand, thanks to its wheels equipped with double ball bearings with dust covers. Lifting and lowering of its forks are easily controlled by the hand lever on the front cover. These forks can also be easily adjusted for pallets of varying widths. The high-quality power pack is designed for easy maintenance and meets international standards. To charge the battery, a digital display on the front cover shows the battery's charging position for easy monitoring during use or charging.
Designed for mobility, this stacker can be easily pushed or pulled by hand, thanks to its wheels equipped with double ball bearings with dust covers. Lifting and lowering of its forks are easily controlled by the hand lever on the front cover. These forks can also be easily adjusted for pallets of varying widths. The high-quality power pack is designed for easy maintenance and meets international standards. To charge the battery, a digital display on the front cover shows the battery's charging position for easy monitoring during use or charging.
| Model No. | CTD1000-16 | CTD1500-16 | CTD2000-16 | CTD1000-20 | CTD1000-25 | |

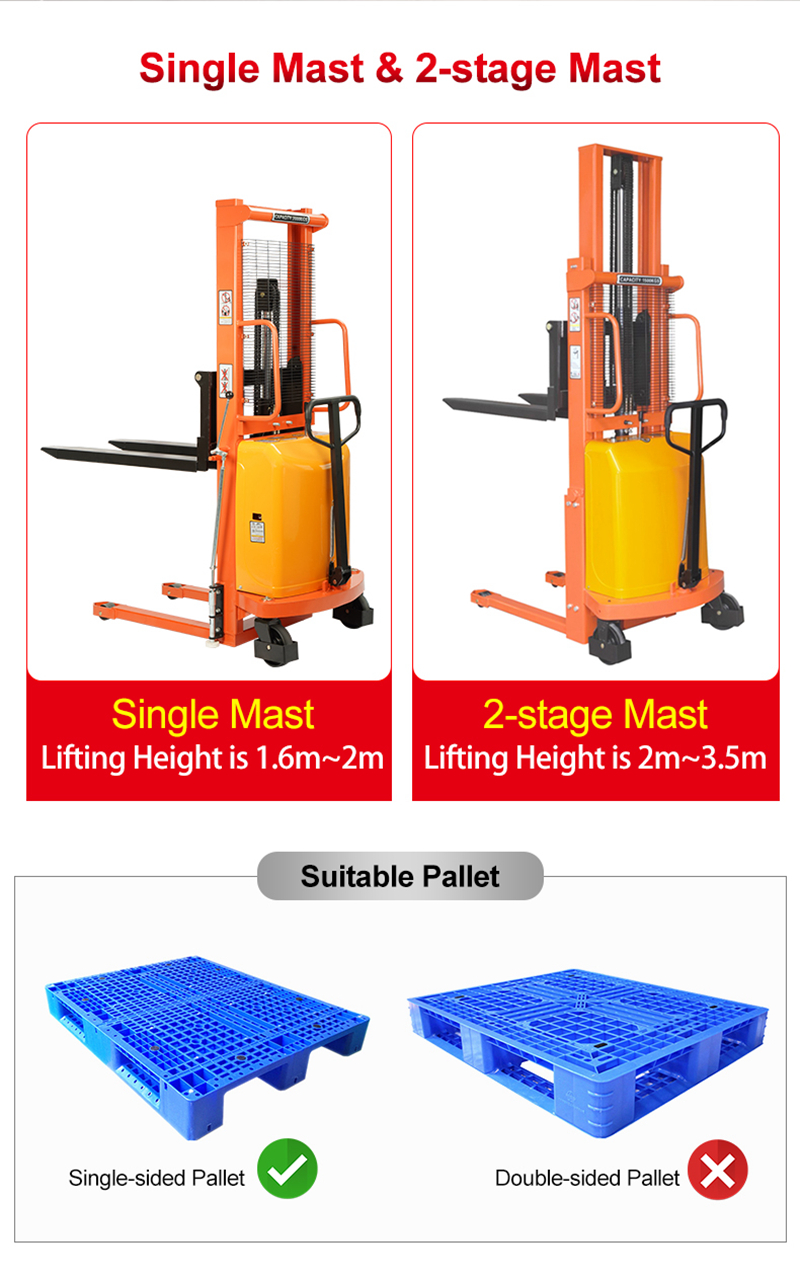

| Mast | Single Mast | 2-stage Mast | ||||
| Rated Capacity(Q) | Kg | 1000 | 1500 | 2000 | 1000 | 1000 |
| Lifting Height(H) | Mm | 1000 | 1600 | 2000 | 2000 | 2500 |
| Fork Length(L) | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Fork Width(E) | 1600 | 1600 | 1600 | 310-820 | 310-820 | |
| Load Center(C) | 400 | 400 | 400 | 400 | 400 | |
| Minimum Turning Radius® | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Lifting Motor | V/Kw | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 |
| Battery | V/Ah | 12/120 | 12/120 | 12/120 | 12/120 | 12/120 |
| Charger | V/A | 12/15 | 12/15 | 12/15 | 12/15 | 12/15 |
| Overall Length(A) | Mm | 1670 | 1670 | 1670 | 1670 | 1670 |
| Overall Width(B) | 865 | 865 | 865 | 810 | 810 | |
| Overall Height(H1) | 2060 | 2060 | 2060 | 1580 | 1830 | |
| Net Weight | Kg | 340 | 362 | 388 | 424 | 446 |
| Model No. | CTD1000-30 | CTD1000-35 | CTD1500-20 | CTD1500-25 | CTD1500-30 | CTD1500-35 | |
| Mast | 2-stage Mast | ||||||
| Rated Capacity(Q) | Kg | 1000 | 1000 | 1500 | 1500 | 1500 | 1500 |
| Lifting Height(H) | Mm | 3000 | 3500 | 2000 | 2500 | 3000 | 3500 |
| Fork Length(L) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Fork Width(E) | 310-820 | 310-820 | 310-820 | 310-820 | 310-820 | 310-820 | |
| Load Center(C) | 400 | 400 | 400 | 400 | 400 | 400 | |
| Minimum Turning Radius(R) | 1450 | 1450 | 1350 | 1350 | 1450 | 1450 | |
| Lifting Motor | V/Kw | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 | 12/1.5-1.6 |
| Battery | V/Ah | 12/120 | 12/120 | 12/150 | 12/150 | 12/150 | 12/150 |
| Charger | V/A | 12/15 | 12/15 | 12/15 | 12/15 | 12/15 | 12/15 |
| Overall Length(A) | Mm | 1700 | 1700 | 1670 | 1670 | 1700 | 1700 |
| Overall Width(B) | 930 | 930 | 810 | 810 | 930 | 930 | |
| Overall Height(H1) | 2080 | 2330 | 1580 | 1830 | 2080 | 2330 | |
| Net Weight | Kg | 468 | 490 | 448 | 470 | 492 | 515 |
