Electric Counterbalanced Quartz Glass Handling Stacker: A Safer Way to Move Fragile Quartz Components

Quartz glass is built to withstand extreme conditions. It resists high temperatures. It offers excellent optical performance. Yet it remains highly vulnerable during material handling.

One sudden impact can chip an edge. Excessive clamping force can damage the surface. An unstable lift can destroy a high-value component in seconds.

This was the central challenge behind a recent SINOLIFT customization project.

The customer needed to transport and lift large circular quartz glass components. The workpieces varied considerably in diameter. Some measured only 300 mm. Others reached 1,000 mm. Individual loads could weigh up to 200 kg.

Manual handling was neither practical nor safe. Standard pallet stackers were also unsuitable because their forks could not securely hold the round, smooth and fragile workpieces.

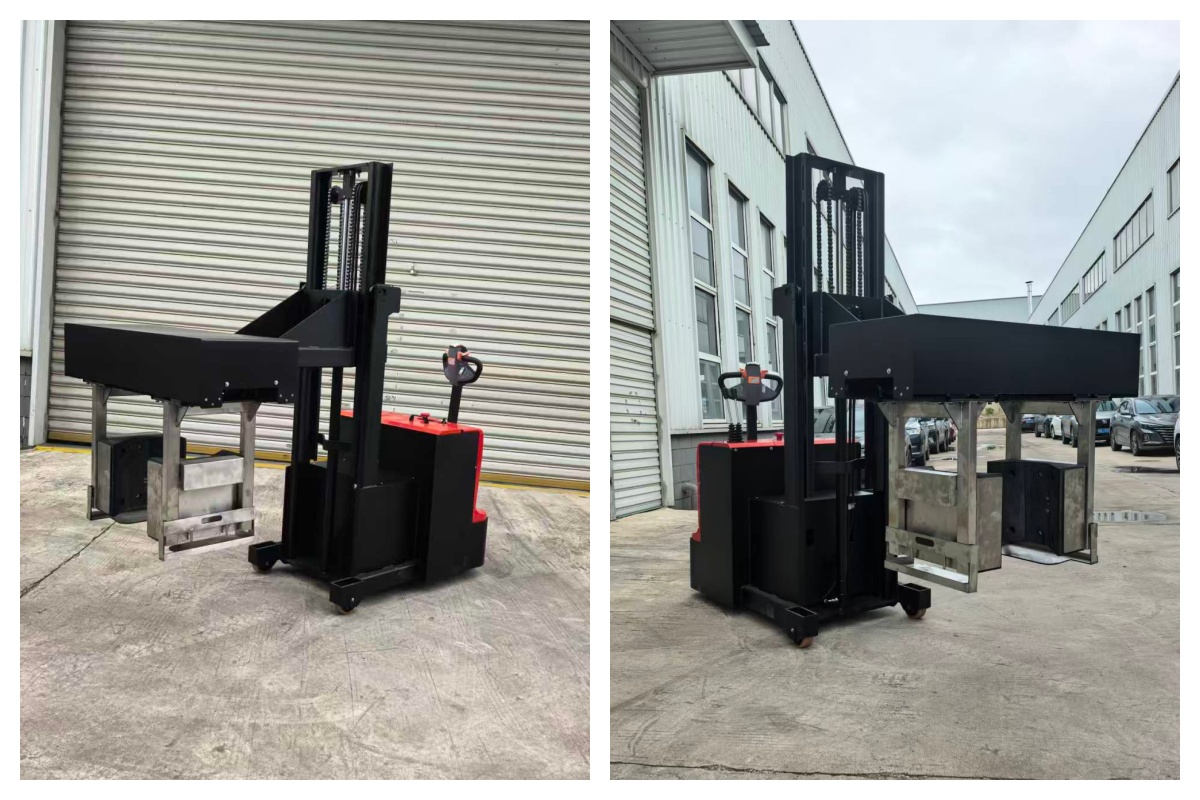

The solution was a purpose-built Electric Counterbalanced Quartz Glass Handling Stacker.

This customized machine combines powered travel, electric lifting, hydraulic clamping and interchangeable clamps. It supports quartz glass during every stage of the move. It also minimizes direct contact with sensitive surfaces.

The result is a more controlled handling process. It reduces labor demand. More importantly, it helps protect the value already invested in every quartz glass component.

When a 200 kg Quartz Workpiece Cannot Be Treated Like a Pallet

The customer’s problem involved more than lifting capacity.

Quartz glass components are not uniform palletized loads. They are often round. Their surfaces are smooth. Their edges can be especially vulnerable. Conventional forks provide little lateral restraint, while rigid metal clamps can create concentrated pressure and surface damage.

The customer therefore presented several connected challenges.

First, one truck had to handle components with diameters ranging from Ø300 mm to Ø1,000 mm. A fixed clamp would not cover this range effectively. A large clamp could not securely hold the smallest workpiece, while a small clamp could not accommodate the largest one.

Second, the load had to be lifted to a practical working height. The bottom of the clamp needed to reach at least 1,600 mm above the floor. This height was required for production-line transfer, process-machine loading and elevated positioning.

Third, every movement had to be smooth. Quartz glass cannot tolerate rough starts or abrupt stops. Travel speed, lifting speed and clamping speed all needed to remain controllable.

Fourth, direct metal-to-glass contact had to be avoided. The contact surface needed enough strength to secure the load, but it also had to protect the quartz glass from scratches and localized pressure.

Finally, the customer wanted safety redundancy. The workpiece could not depend on clamping force alone. A mechanical bottom support was necessary to help prevent accidental dropping during transport and lifting.

These requirements ruled out a standard warehouse stacker. They called for a specialized Quartz Glass Handling Stacker designed around the workpiece itself.

Where the Quartz Glass Handling Stacker Fits Best

This custom Quartz Glass Handling Stacker is suitable for operations where circular quartz components must be moved without direct fork handling.

Quartz Glass Production Facilities

The truck can move quartz glass between forming, cutting, grinding and polishing processes.

It is particularly useful when workpieces differ in diameter but share similar handling requirements.

Semiconductor Material Production

Quartz glass components are widely used around semiconductor production equipment.

The stacker can support internal transfers between machining, inspection, cleaning and staging areas, subject to the cleanliness requirements of the specific facility.

Photovoltaic and Optical Manufacturing

Large quartz components may be used in thermal, optical or process applications.

The protective nylon clamp plates and controlled hydraulic movements make the machine suitable for transferring delicate round components between production stages.

Loading and Unloading Processing Machines

The counterbalanced structure allows the attachment to approach machine-side transfer positions.

The 1,600 mm lifting capability supports loading heights that cannot be reached through floor-level handling alone.

Inspection and Quality-Control Stations

Large quartz glass parts often require surface, dimensional or optical inspection.

The Quartz Glass Handling Stacker can transport the component to a suitable inspection height and hold it securely during controlled positioning.

Cleaning and Preparation Areas

The 304 stainless steel clamp arms and bottom support are practical for areas where equipment cleanliness matters.

The truck can move workpieces into or away from washing, surface preparation and controlled processing zones, provided the complete truck remains outside any environment requiring a fully stainless or washdown-rated design.

Packaging and Shipping Preparation

Finished quartz glass can be highly valuable.

The stacker can move the component from the final inspection area to a protective crate, transport fixture or packaging station. Controlled movement helps reduce the handling risk at the last stage before shipment.

Temporary Storage and Work-in-Process Transfer

Production does not always move directly from one machine to another.

The truck can transfer workpieces to designated staging stands or storage fixtures while keeping manual handling to a minimum.

Why the Counterbalanced Design Matters

A conventional stacker normally depends on front support legs. Those legs work well with pallets. They can become an obstacle when handling a large circular workpiece or approaching equipment with a closed base.

The counterbalanced Quartz Glass Handling Stacker solves this problem differently.

Its rear counterweight balances the forward load. The front handling zone remains more open. This improves access to machines, stands and process stations.

The design also gives the operator a clearer approach path. There is less need to position support legs around the workpiece. That matters when the quartz glass is large, fragile and difficult to realign manually.

Counterbalance alone does not guarantee safe handling. Correct load-center calculations remain essential. The clamp size must match the workpiece. The rated capacity must never be exceeded.

For this reason, SINOLIFT confirms the final dimensions and structural calculations according to the customer’s actual quartz glass data.

A Safer Handling Cycle from Start to Finish

The operating sequence is straightforward.

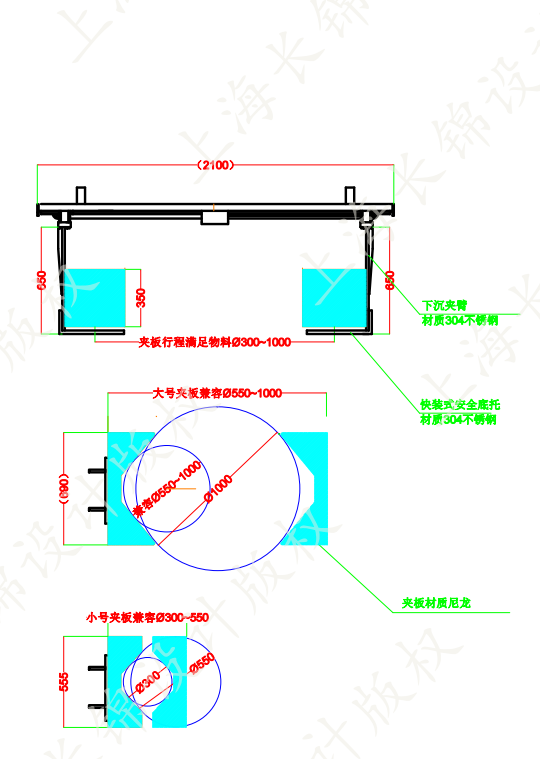

The operator first selects the correct clamp. The small clamp is used for diameters from Ø300 mm to Ø550 mm. The large clamp is used for diameters from Ø550 mm to Ø1,000 mm.

The truck then approaches the quartz glass at low speed. The clamp is aligned with the workpiece. Hydraulic clamping is applied gradually.

Once the load is secure, the quick-release bottom support is installed. This creates secondary protection beneath the quartz glass.

The operator raises the workpiece to a safe travel height. The truck can then transport it to the next workstation.

At the destination, the load is positioned carefully. The lifting height is adjusted. The workpiece is lowered onto its stand, machine interface or protective support.

The bottom support is removed. The clamp is released slowly. The truck can then reverse away.

This controlled sequence is easier to standardize than manual handling. It also gives supervisors a clear process for operator training and risk management.

Protect the Glass and Simplify the Move

Quartz glass handling leaves little room for error.

The workpiece may be heavy. Its surface may be finished. Its value may already include several demanding production stages. A handling accident at this point can waste materials, machine time and skilled labor.

The SINOLIFT Electric Counterbalanced Quartz Glass Handling Stacker addresses that risk directly.

It handles loads up to 200 kg. It supports diameters from Ø300 mm to Ø1,000 mm. It lifts material to 1,600 mm. It also combines electric travel, powered lifting, hydraulic clamping, protective nylon contact surfaces and a stainless steel safety bottom support in one customized machine.

Each feature serves a practical purpose. The counterbalanced structure improves access. The interchangeable clamps expand the operating range. Adjustable hydraulic control supports delicate positioning. The manual brake release provides a recovery option when equipment faults occur.

Most importantly, the Quartz Glass Handling Stacker turns an awkward and hazardous task into a controlled material-handling process.

For a customized proposal, customers can provide SINOLIFT with the workpiece diameter, maximum weight, contact-surface requirements, required lifting height, machine-interface dimensions and operating-aisle information. The engineering team can then confirm the clamp geometry, load center and final three-dimensional design.

Protect the quartz glass. Reduce unnecessary manual handling. Give every high-value workpiece a handling solution designed around its shape.

---
