Custom Semi-Electric Pallet Stacker with Adjustable Forks: A Practical Application Case

Standard material handling equipment is usually designed around common pallet dimensions and predictable warehouse operations. However, many factories, workshops and specialized warehouses handle loads that do not fit standard pallets. Different load widths, custom fixtures, skids and fabricated components can make a fixed-fork stacker difficult or even impossible to use efficiently.

This project required a more flexible solution. SINOLIFT developed a custom semi-electric pallet stacker with adjustable forks, combining powered lifting, manual travel and a screw-driven fork adjustment system.

The result was an economical and practical stacker designed around the customer’s actual loads and working environment.

The Customer’s Material Handling Challenge

The customer needed to lift, move and position several types of loads within a production and storage area. These loads did not share one standard width, and some were supported by skids or custom fixtures rather than conventional pallets.

A standard stacker with fixed fork spacing could only handle part of the customer’s workload. When the load width changed, the forks could not be positioned correctly underneath it. Operators either had to adjust the load manually, use additional handling equipment or find another temporary solution.

These extra steps reduced efficiency and made everyday material handling more complicated.

A fully electric stacker was also more equipment than the application required. The customer primarily needed powered lifting to reduce physical effort, while travel distances inside the facility were relatively short. Manual travel was therefore sufficient and offered a more economical solution.

The main requirements were clear:

• Powered lifting and lowering
• Simple manual travel
• Independently adjustable forks
• Precise fork positioning
• Compatibility with different load widths
• Practical operation in warehouses and production areas
• A cost-effective alternative to fully electric equipment

The SINOLIFT Custom Solution

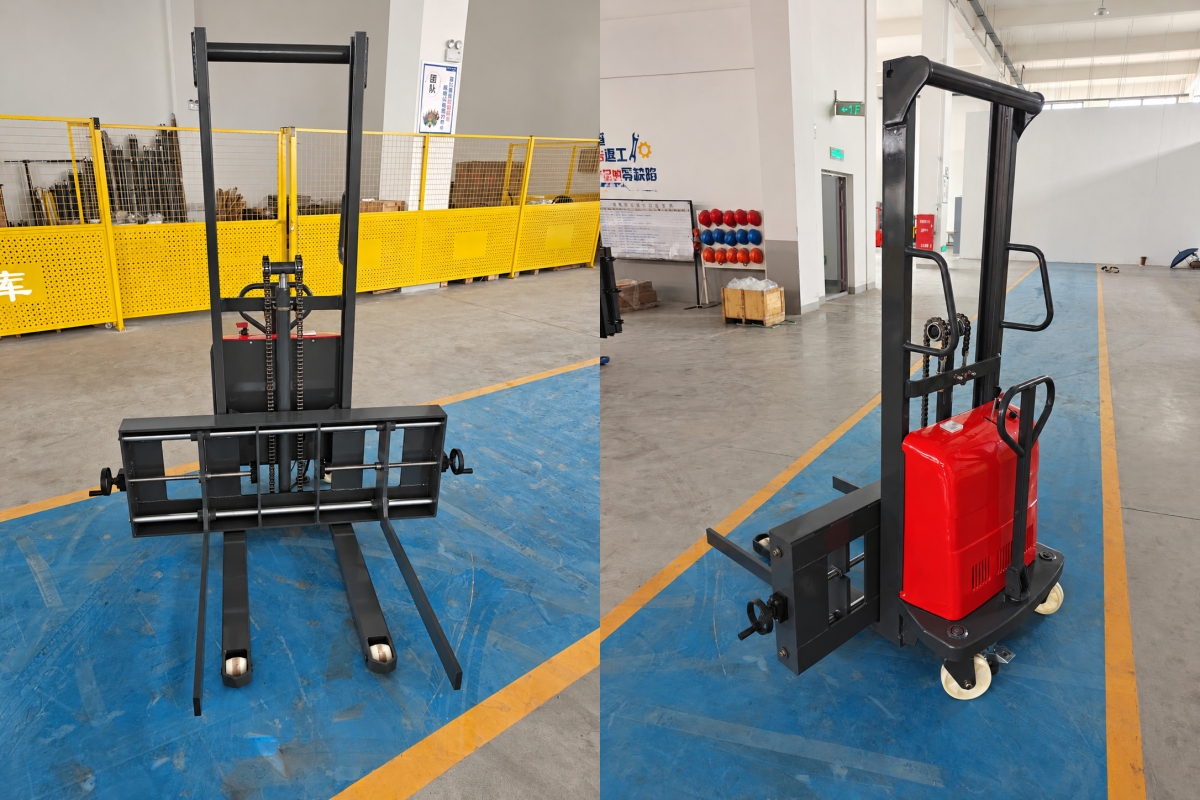

Based on the customer’s requirements, SINOLIFT designed a semi-electric pallet stacker with adjustable forks.

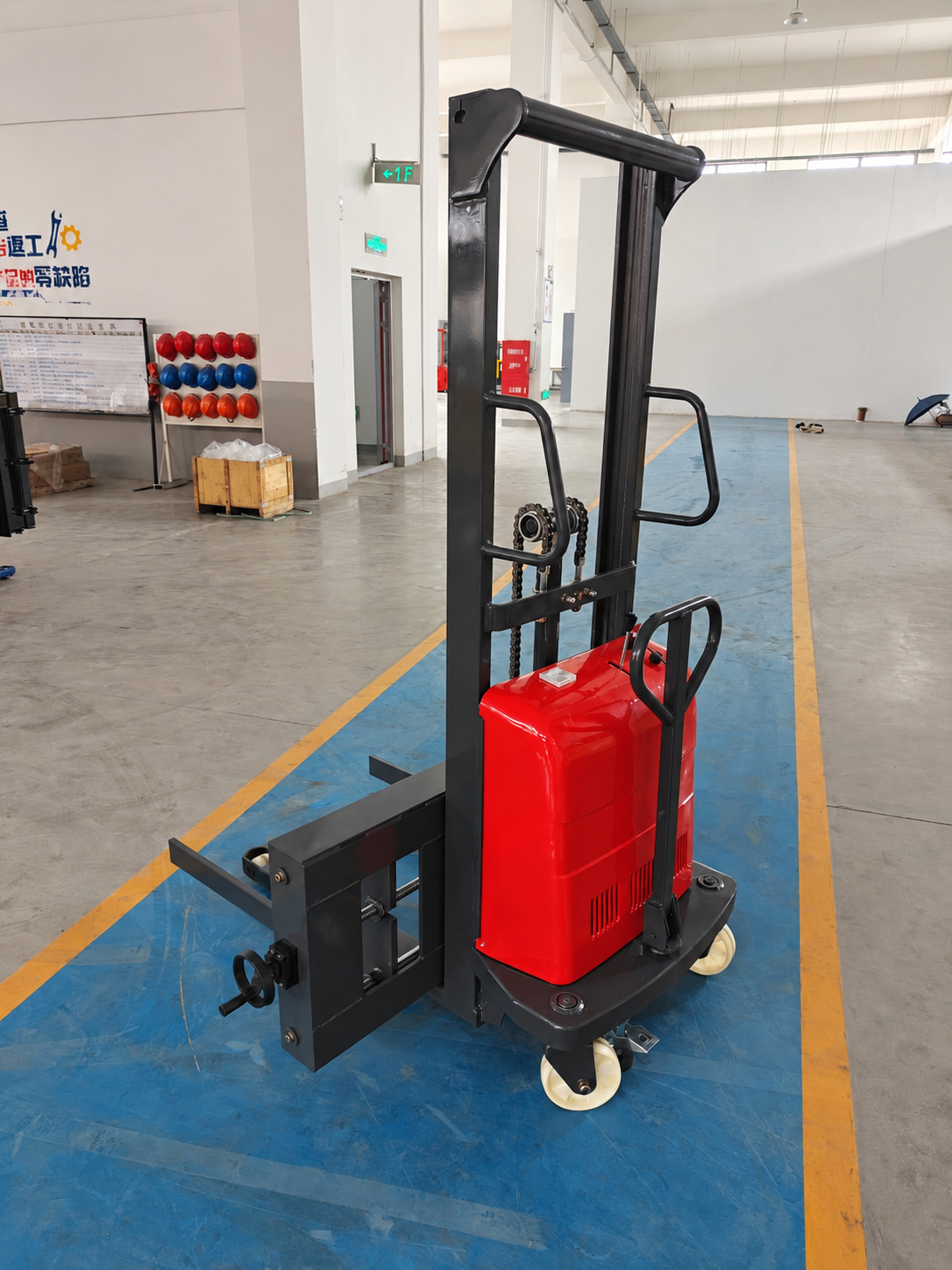

The stacker uses an electric lifting system to raise and lower the fork carriage. This reduces the effort required during repetitive lifting and positioning tasks. The operator moves the stacker manually using the control handle, providing direct control when travelling over short distances or positioning a load.

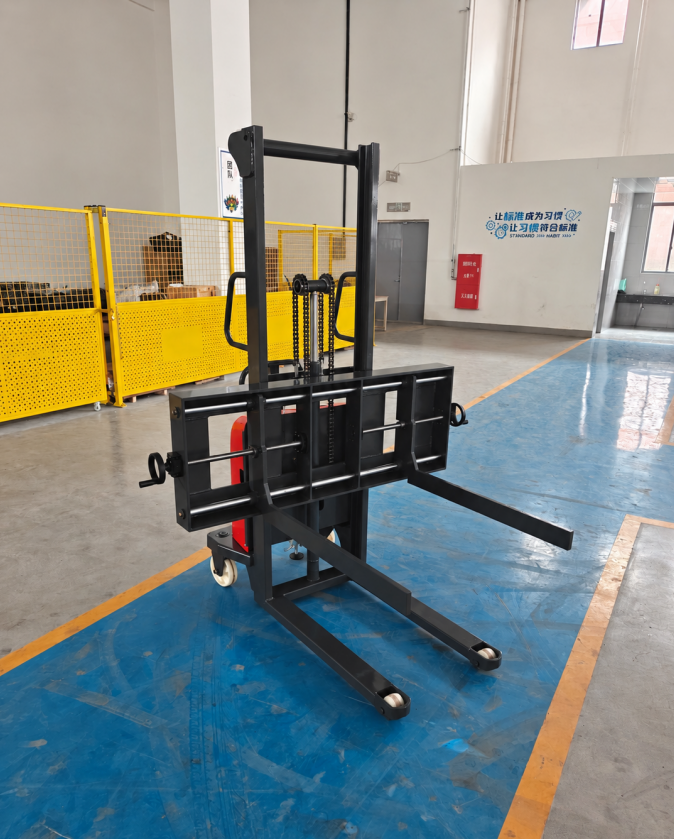

The most important customized feature is the screw-driven fork adjustment mechanism.

Instead of requiring the operator to loosen and slide the forks manually, each fork can be adjusted using a hand crank. Turning the crank moves the fork gradually along the carriage, allowing the operator to set the required fork spacing more accurately.

Because the forks can be adjusted independently, the stacker can be configured for symmetrical or application-specific fork positions. This is especially useful when the load shape, support points or centerline differ from those of a standard pallet.

How the Hand-Crank Fork Adjustment Works

The adjustment system converts the rotation of the hand crank into controlled horizontal fork movement.

The operator turns the crank to move one fork inward or outward. The opposite fork can then be adjusted separately until the required spacing is reached. This provides stepless adjustment within the machine’s designed range.

The mechanism offers several practical advantages:

1. Precise positioning

   The screw-driven movement allows smaller and more controlled adjustments than manually sliding a loose fork.

2. Independent adjustment

   Each fork can be positioned separately to match unusual load geometries or offset support points.

3. Simple operation

   The system is mechanical and intuitive. Operators can adjust the fork spacing without complicated electronic controls.

4. Improved flexibility

   One stacker can serve different pallets, skids, fixtures and non-standard loads.

The design therefore increases versatility without making the equipment unnecessarily complex.

Why a Semi-Electric Design Was Selected

A semi-electric stacker provides a practical balance between manual equipment and a fully powered truck.

Lifting is usually the most physically demanding part of a stacking operation. By using an electric lifting system, the machine helps reduce operator effort when raising or lowering the load. Manual travel remains suitable for shorter movements, careful positioning and occasional material handling.

This combination also helps control equipment investment.

A fully electric stacker includes powered lifting and powered travel, together with the related drive components and controls. Those features are valuable in high-throughput operations or applications involving long travel distances, but they are not essential for every workplace.

For this project, the semi-electric configuration delivered the required lifting assistance while keeping the machine economical, straightforward and easy to maintain.

Suitable Applications

The custom semi-electric pallet stacker with adjustable forks is suitable for operations where load dimensions change regularly or standard fork spacing cannot meet every requirement.

Typical applications include:

• Warehouses handling several pallet or skid sizes
• Workshops moving fabricated components
• Production lines using custom fixtures
• Machine loading and unloading
• Material positioning beside workstations
• Handling open-bottom pallets and suitable skids
• Low- to medium-frequency stacking operations
• Short-distance indoor transportation

Before specifying the equipment, the pallet structure, load dimensions, load center, lifting height and operating environment should always be evaluated. This ensures that the stacker is configured correctly for the intended application.

Project Outcome

The completed machine gave the customer one flexible handling solution for several types of loads.

Operators could adjust the forks to suit the load instead of forcing different loads to fit one fixed fork position. Powered lifting reduced the physical effort associated with raising and lowering, while manual travel kept movement and positioning simple.

The customer also avoided purchasing several different stackers for different load widths. By combining electric lifting with independently adjustable forks, the customized unit expanded the range of tasks that could be completed with one machine.

Most importantly, the solution was developed around the customer’s real workflow rather than requiring the customer to adapt the workflow to standard equipment.

The Value of Custom Material Handling Equipment

Non-standard material handling does not always require a completely new machine concept. In many cases, the most effective solution is a proven standard platform combined with carefully selected custom features.

For this project, the basic semi-electric stacker provided reliable lifting and manual movement. The customized screw-driven fork adjustment system solved the specific problem of changing load widths.

This approach offers several benefits:

• Lower complexity than a completely new machine
• Greater flexibility than fixed-fork equipment
• Reduced investment compared with fully electric alternatives
• Easier adaptation to existing workflows
• A solution designed for the actual load

SINOLIFT can customize fork dimensions, fork spacing, lifting height, load-handling attachments and other structural features according to the customer’s application.

Conclusion

The SINOLIFT semi-electric pallet stacker with adjustable forks demonstrates how targeted customization can improve material handling without adding unnecessary cost or complexity.

Powered lifting helps reduce effort. Manual travel offers simple control. The hand-crank adjustment system provides accurate, stepless and independent fork positioning for different pallets, skids, fixtures and non-standard loads.

For warehouses, workshops and production facilities that need greater flexibility than a fixed-fork stacker can provide, this customized solution offers a practical balance of performance, versatility and economy.
