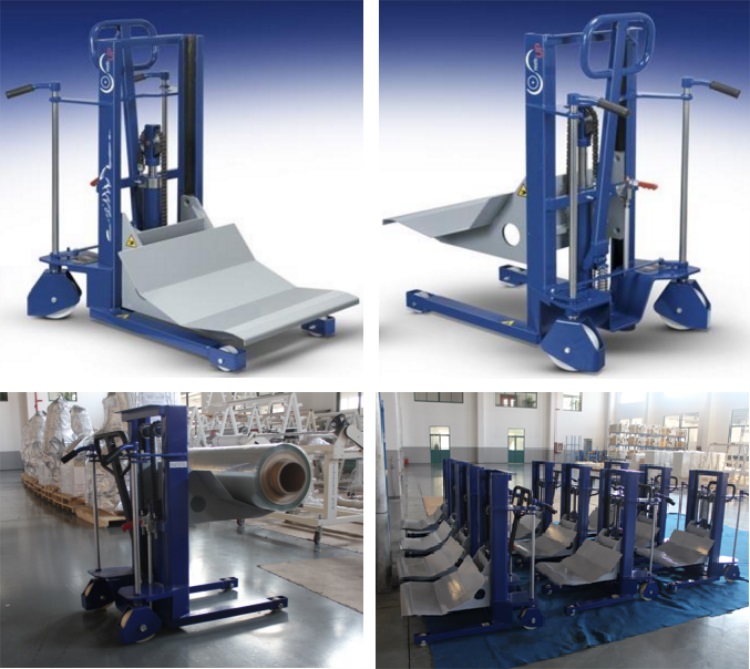

CTY1000-M700 Manual Hydraulic Roll Lifter paper roll lifter
CTY1000-M700
Simplex telescopic Design Single/Two Mast Structure Made From ‘C’ Channel Section, Supported by Heavy-Duty deep grooved guide rollers. Forks lifted by means Of 2 Nos. Duplex/Simplex Chain & Pulley Design
Quantity:
Name:paper roll lifter

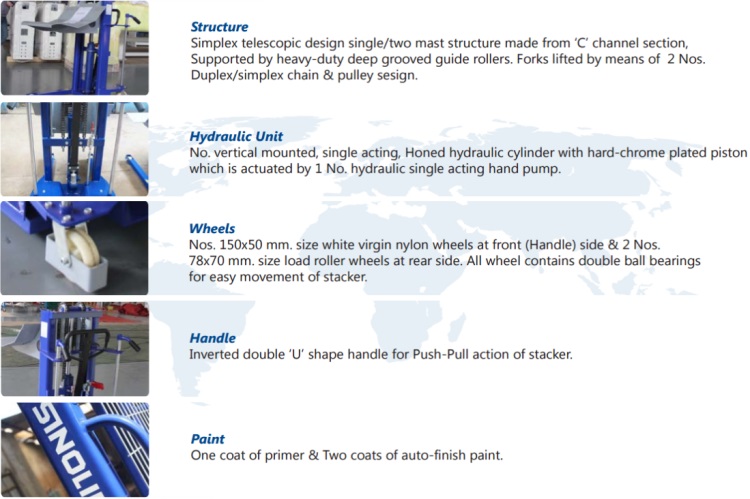

Features of paper roll lifter
Paper roll lifter has Simplex telescopic Design Single/Two Mast Structure Made From ‘C’ Channel Section, Supported by Heavy-Duty deep grooved guide rollers. Forks lifted by means Of 2 Nos. Duplex/Simplex Chain & Pulley Design
Hydraulic Unit of paper roll lifter:
1 No. vertical mounted, single acting, Honed hydraulic cylinder with hard-chrome plated piston which is actuated by 1 No. hydraulic single acting hand pump.
Wheels :
2 Nos. 150x50 mm. size white virgin Nylon wheels at front (Handle) side & 2 Nos. 78 X 70 mm. size load roller wheels at rear Side. All wheel contains double ball bearings for easy movement of stacker.
Handle : Inverted double ‘U’ shape handle ror Push-Pull action of Stacker.
Paint of paper roll lifter: One coat of primer & Two coats Of auto-finish Paint.
| Model | paper roll lifter CTY1000-M700 | |
| Load Capacity | kg | 1000 |
| Frame Length | mm | 1108 |
| Frame Height | mm | 1180 |
| Frame Width | mm | 660 |
| Weight | kg | 208 |
| Real Max. Width: | mm | 1400 |
| Real Max. Diameter | mm | 800 |
| Max. Weight of real | kg | 1000 |
| Platform Max. Elevation | mm | 854 |
| Min.Steering Angle. | mm | 880 |
| Service weight | kg | 165 |
