3.0 Ton Lpg & Gasoline Forklift
WIDE-VIEW MAST
Wide-view mast gives the operator an enhanced forward visibility, which adds great to the efficiency and safety of operator.
SOLID OVERHEAD GUARD
Specially designed solid overhead guard provides security for the operator.

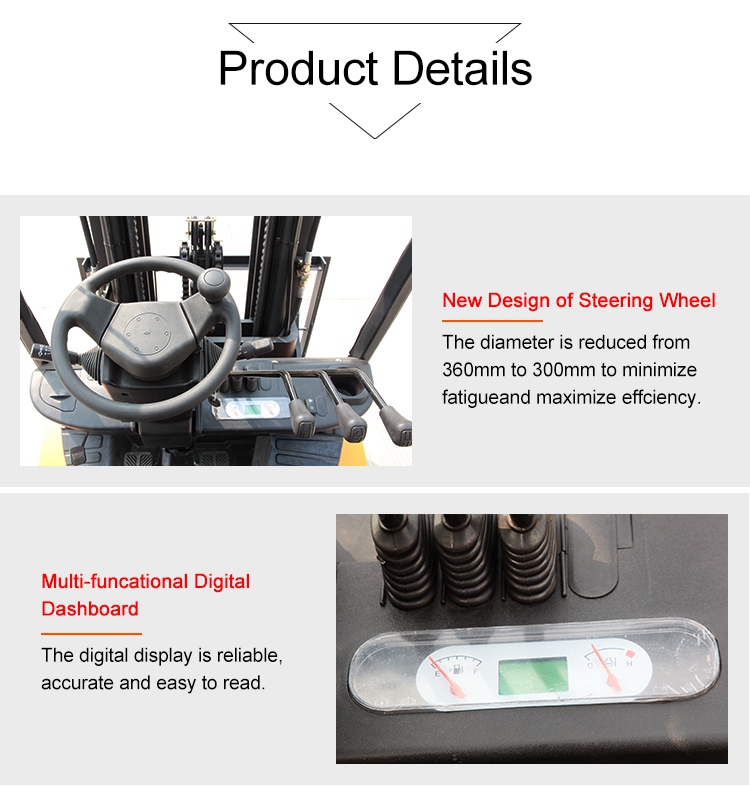

RELIABLE INSTRUMENTS
The instruments offer an easy accesss to the working condition of the truck, thus making the handling process more efficient and safe.
Built to last, this ergonomically designed 3 Ton LPG forklift has a spacious operator's compartment and access from both sides. The LPG version is a dual fuel forklift and comes with a swing down LPG bottle bracket to allow safe and efficient bottle changes.
Awarded with the innovation by the economic affairs for its exquisite design and super performance.
Providing different accessories to satisfy the customer's need.
The attachments come out differently due to the different need for the different operation places.
Special equipment like vertically standing exhaust pipe, warning light, rear light, wet-type air filter and fork attachment , etc.
| Model | CPYD30G-H2 | |||
| 1 | Power Type | Gasoline/LPG | ||
| 2 | Rated Capacity | kg | 3000 | |
| 3 | Load Centre | mm | 500 | |
| 4 | Lift Height | mm | 3000 | |
| 5 | Fork Size (L×W×T ) | mm | 1070×125×45 | |
| 6 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |
| 7 | Front Overhang (Wheel center to fork face) | mm | 475 | |
| 8 | Ground Clearance(Bottom of mast) | mm | 120 | |
| 9 | Turning Radius (outside) | mm | 2440 | |
| 10 | Min. Intersecting aisle | mm | 2110 | |
| 11 | Max.Gradeability (No load/Full load) | % | 20 | |
| 12 | Wheelbase | mm | 1700 | |
| 13 | Service weight | kg | 4390 | |
| 14 | Battery (Voltage/Capacity) | V/Ah | 12/90 | |
| 15 | Overall Dimension | Length to face of fork(Without fork) | mm | 2670 |
| 16 | Overall Width | mm | 1225 | |
| 17 | Mast Lowered Height | mm | 2065 | |
| 18 | Mast Extended Height(With backrest) | mm | 4150 | |
| 19 | Overhead Guard Height | mm | 2090 | |
| 20 | Speed | Travel (No load) | km/h | 19 |
| 21 | Lifting(Full load) | mm/s | 440 | |
| 22 | Tire | Front | mm | 28×9-15-12PR |
| 23 | Rear | mm | 6.50-10-10PR | |

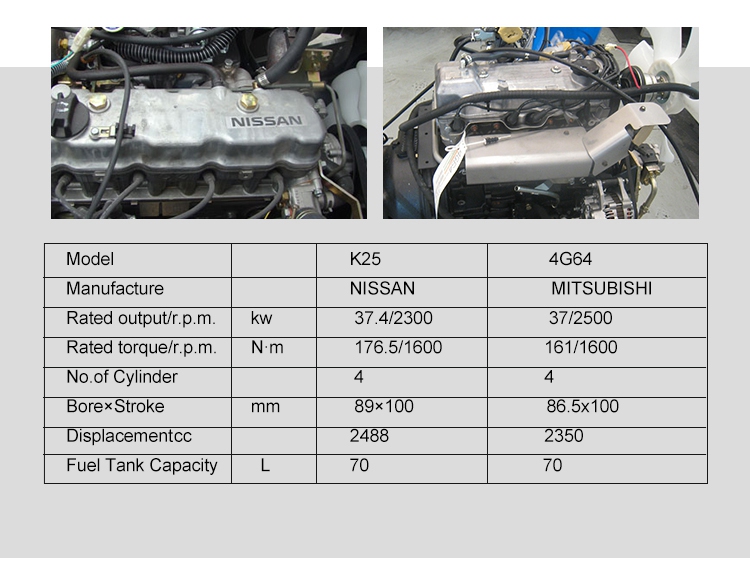

| 24 | Engine | Model | K25 | |
| 25 | Manufacture | NISSAN | ||
| 26 | Rated output/r.p.m. | kw | 37.4/2300 | |
| 27 | Rated torque/r.p.m. | N·m | 176.5/1600 | |
| 28 | No.of Cylinder | 4 | ||
| 29 | Bore×Stroke | mm | 89×100 | |
| 30 | Displacement | cc | 2488 | |
| 31 | Fuel Tank Capacity | L | 70 | |
| 32 | Transmission | Type | Powershift (Manual) | |
| 33 | Stage FWD/RVS | 1/1(2/2) | ||
| 34 | Operating Pressure for Attachment | Mpa | 17.5 | |
