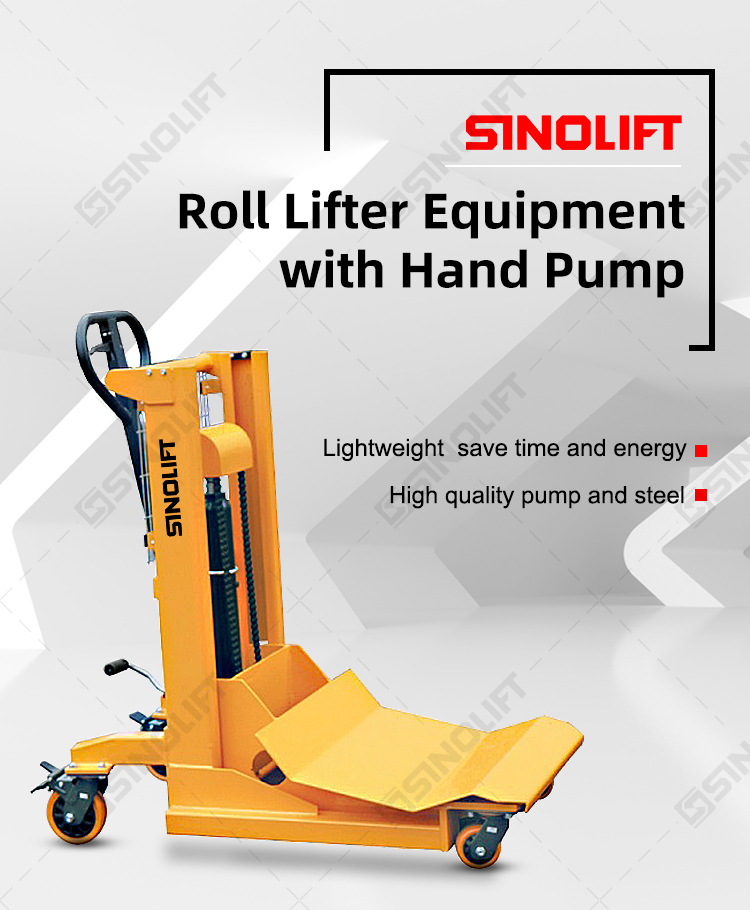

MRL0786 MRL1086 MRL1015 Roll and Reel Hydraulic Stacker
MRL0786 MRL1086 MRL1015
Rugged construction
Long functional life
Low maintenance costs
Long functional life
Low maintenance costs
Quantity:
Name:Roll and Reel Hydraulic Stacker

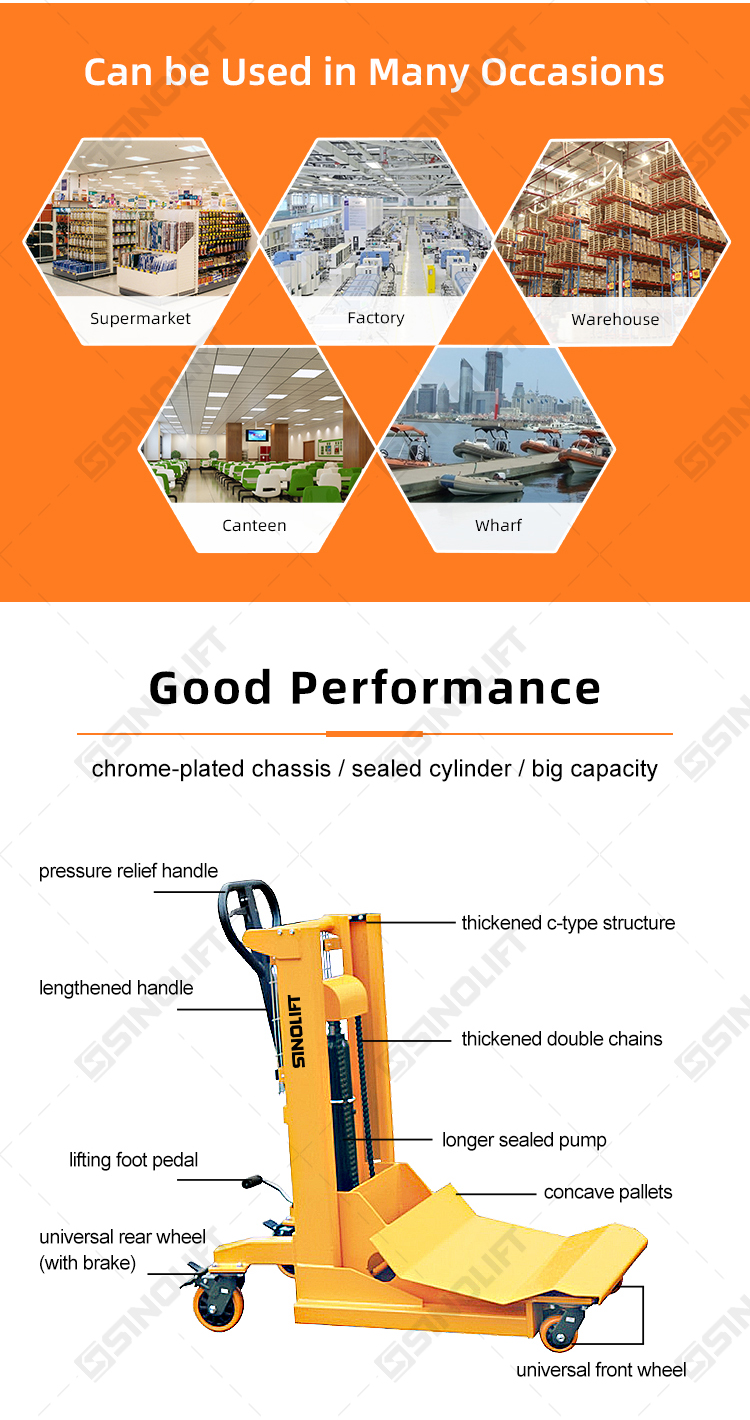

Features of Roll and Reel Hydraulic Stacker
1.Suitable for narrow passages and edge areas.
2.The low center of gravity design makes the stacker more stable and reliable during use.

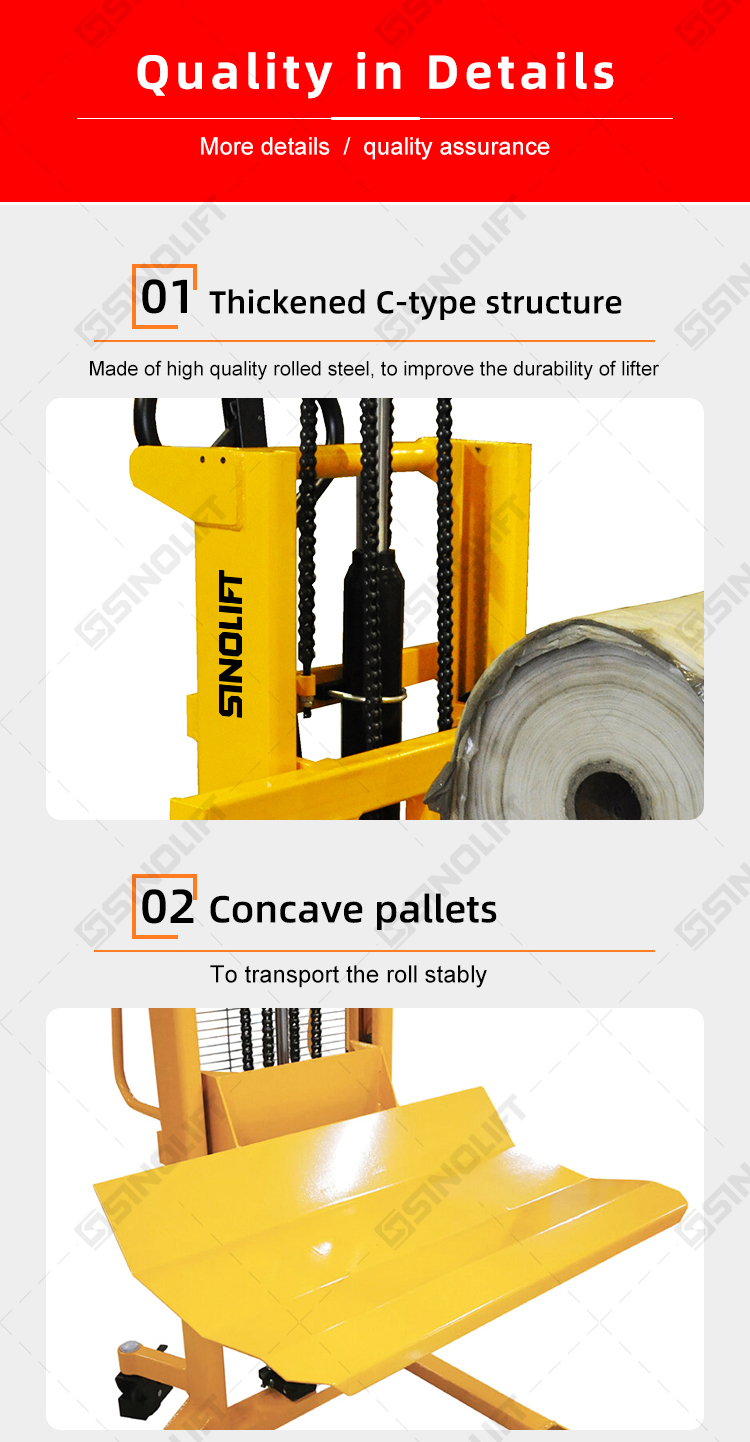

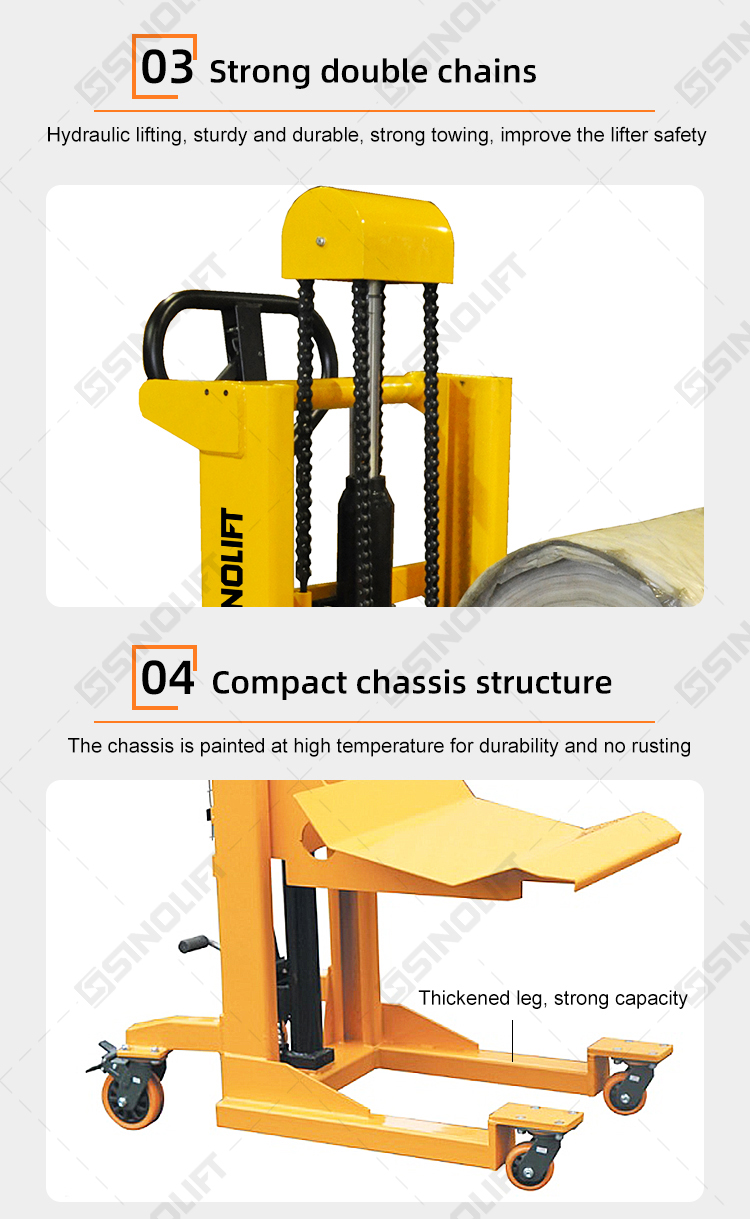

3.Sturdy, lightweight, steel construction

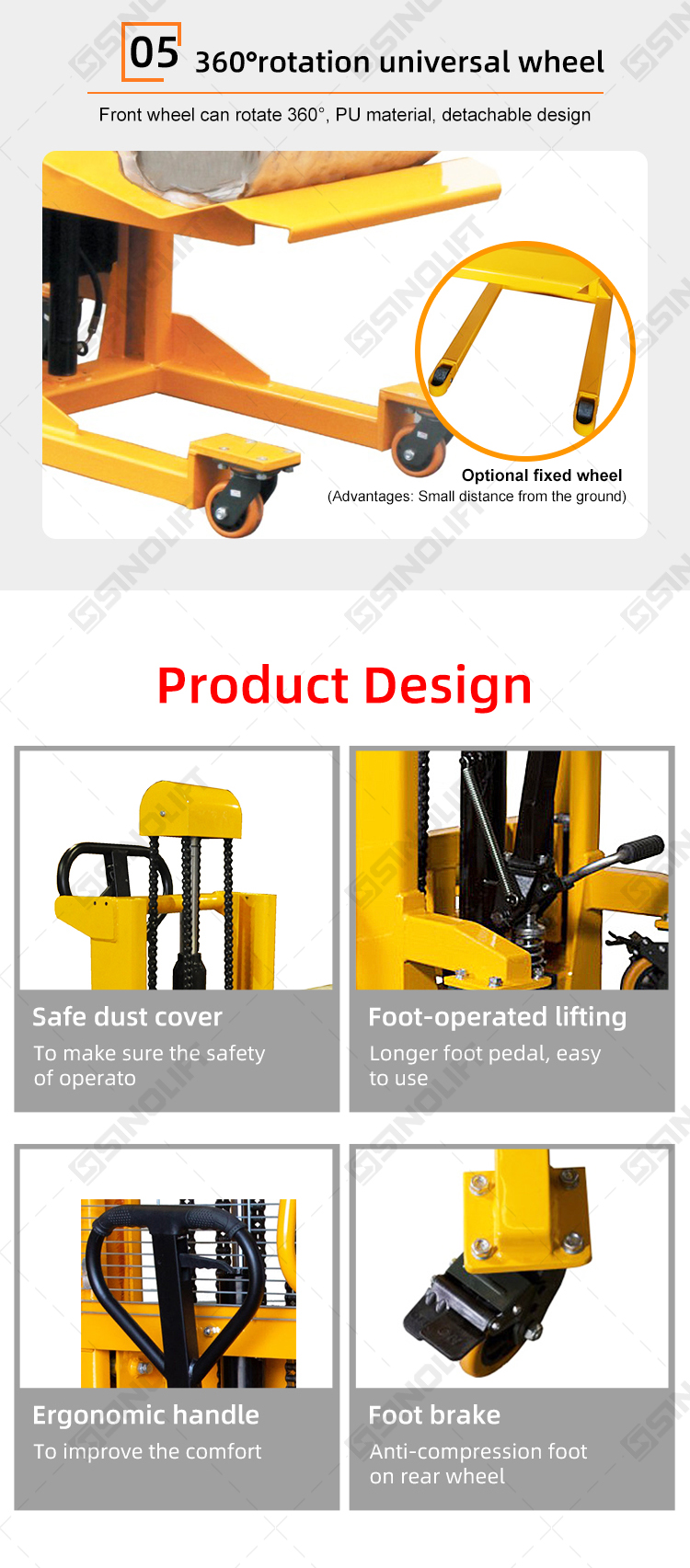

4.Foot pedal brakes.
5.High sensitivity, easy to operate
| Model | Roll and Reel Hydraulic Stacker MRL0786 | Roll and Reel Hydraulic Stacker MRL1086 | Roll and Reel Hydraulic Stacker MRL1015 | |
| Operation | Manual | |||
| Load capacity | (kg) | 700 | 1000 | 1000 |
| Lifting Height | (mm) | 865 | 865 | 1500 |

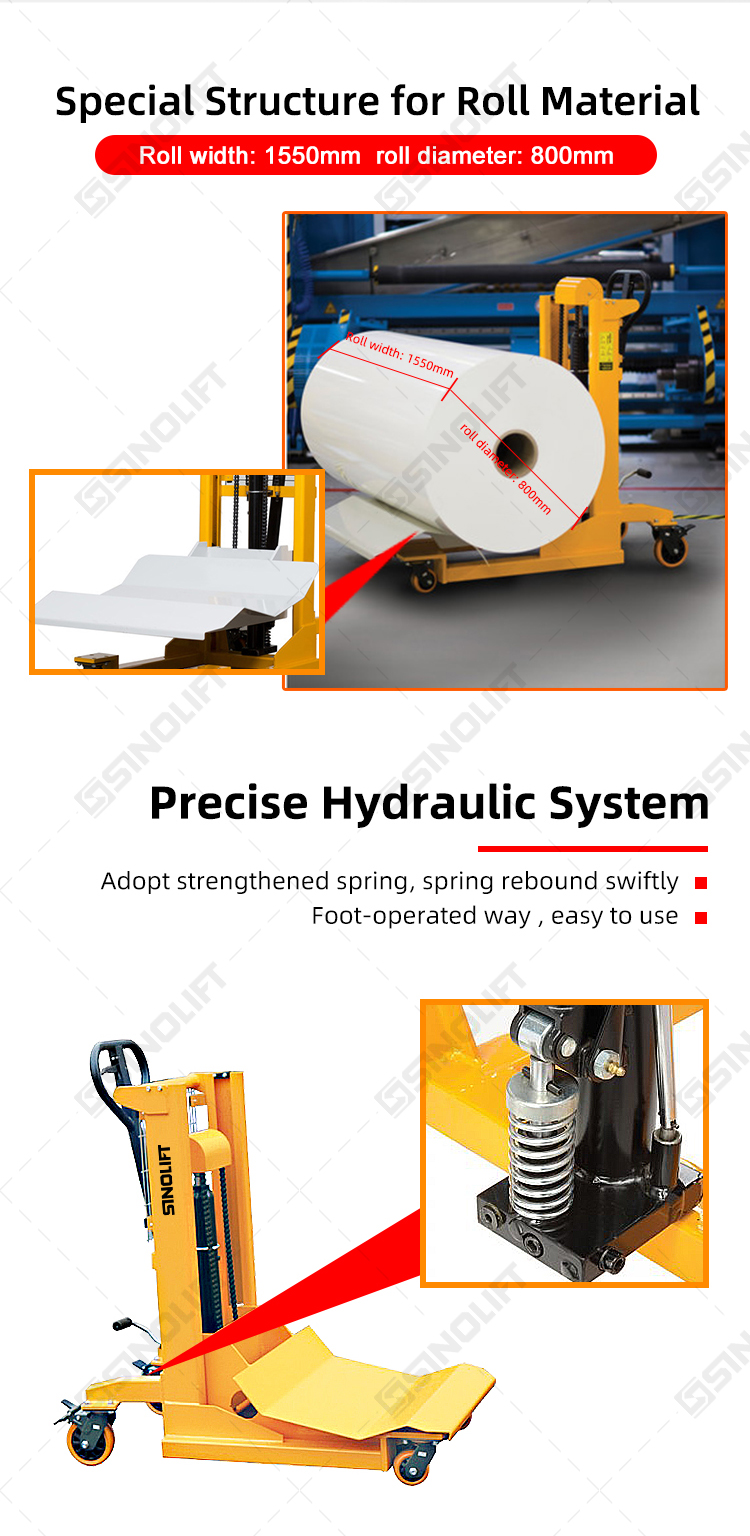

| Max.width of reel/roll | (mm) | 1550 | 1550 | 1550 |
| Max.diameter of reel/roll | (mm) | 800 | 800 | 800 |
| Reel Tray Wdith | (mm) | 700 | 700 | 700 |
| Overall Length | (mm) | 1165 | 1165 | 1350 |
| Overall Wdith | (mm) | 700 | 700 | 800 |
| Overall Height | (mm) | 1130 | 1130 | 2060 |
| Net Weight | (kg) | 150 | 160 | 220 |
