gasoline forklift

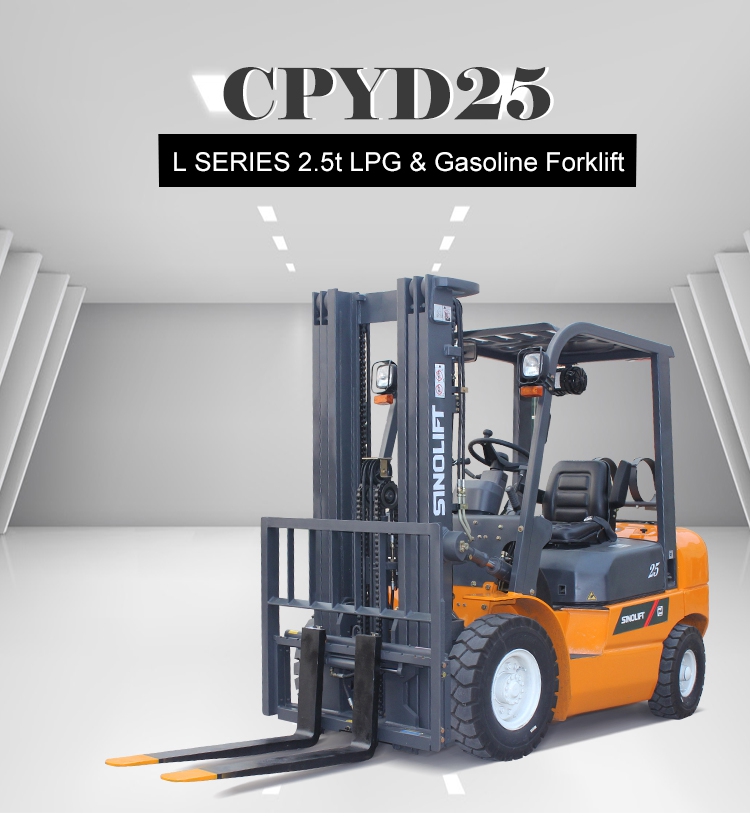

2.5 Ton LPG and Gasoline Forklift

CPYD25-N
Quantity:
Contact Now
add to cart
All Products

PRODUCT DETAILS

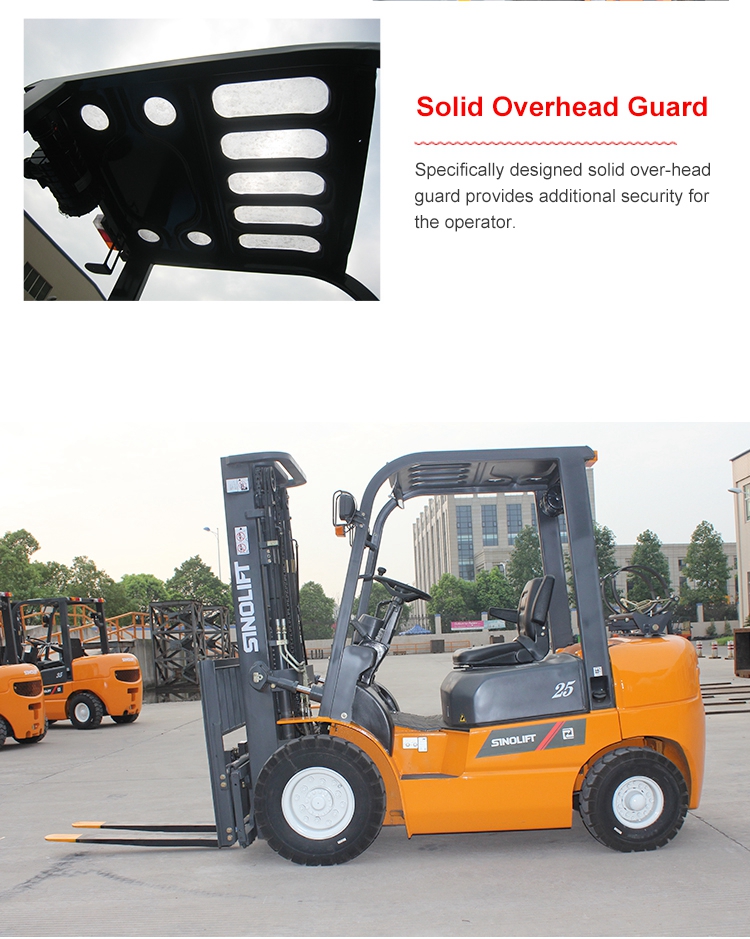

The saving and sustained SINOLIFT2.5 ton LPG forklift trucks are designed for high driving and lifting performance in association with excellent handling features. They are particularly potent when reversing while loading and unloading trucks, bonding dynamic driving with fast changes of direction. Profit from a coincidentally high handling capacity with maximum driving comfort and maximum firmness. The steel overhead guard offers protection against weather and falling small parts. In the enclosed cabin, the bountifully sized working space, the driver only senses low vibrations when they are driving 2.5 ton LPG Forklift.

FEATURES

Performance and drive features

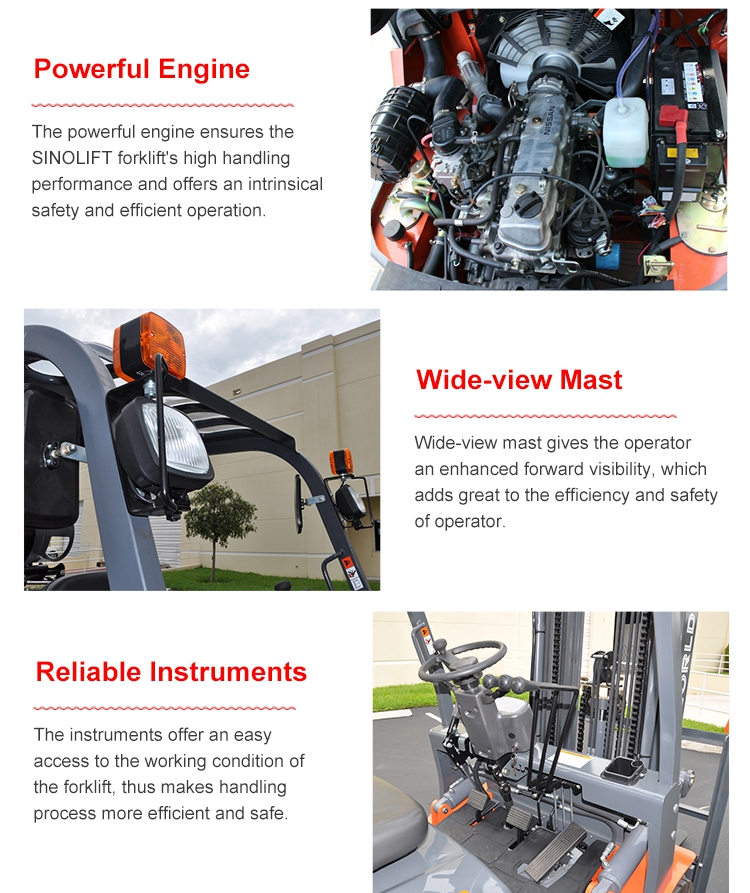

Powerful low consumption engines GCT K25

Hydrostatic drive offers the best energy efficiency coupled with maximum productivity performance – specifically when reversing.

Continuous power driving device.

Hydraulic control for accurate adjustment of drive and load functions.

Performance arguments for every application.

Automatic engine speed increase during lifting and lowering.

Very accurate control of travel speed.

Low maintenance costs.

Intelligent controls and electronics

Software and hardware for controls developed and produced internally.

Sensitive adjustment of hydraulic functions through galvanomagnetic valves.

Water-proof electronic drive and hydraulic controls in CAN-Bus design.

Standard safety equipment

General safety equipment for high drive mechanics and performance.

Deactivation of the hydraulic functions if the operator is not seated on the sear.

No unbounded roll-back on slopes because of the automatic parking brake.

Excellent firmness because of low mass centre.

High performance filter system

Full-flow hydraulic oil filtration with suction and return filter for maximum oil purity and long life span of all components.

Hydraulic tank integrated in chassis.

Ergonomic operator working station

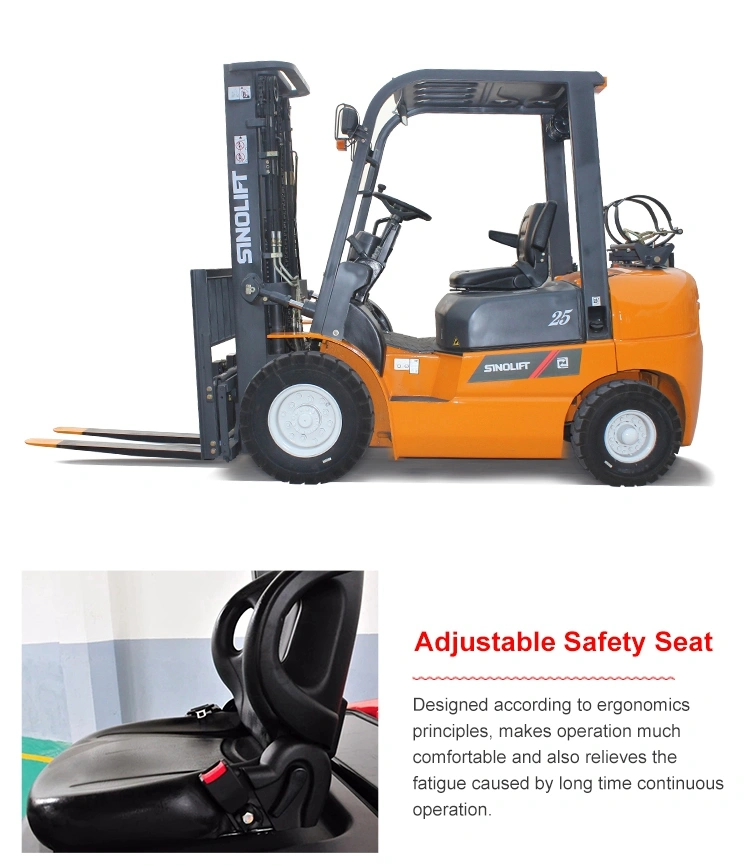

Comfortable operator seat with excellent suspension and you can choose optional GRAMMER brand.

Compact design mast with excellent visibility.

Entry and exit through a deep, broad step, which is clearly obvious from the operator seat.

Large, strong front and optional rear grab handle welded to the overhead guard.

Large, level footwell with vibration-absorbing floor mat.

Robust hydraulic levers placed for easy use even when wearing gloves.

Hot Tags: 2.5 ton LPG forklift, suppliers, manufacturers, factory, customized, in stock, made in China

ModelCPYD25-NCPYD25-M
1Power TypeGasoline/LPGGasoline/LPG
2Rated Capacitykg25002500
3Load Centremm500500
4Lift Heightmm30003000
5Fork Size (L×W×T )mm1070×120×401070×122×40
6Mast Tilt Angle (F/R)Deg6°/12°6°/12°
7Front Overhang (Wheel center to fork face)mm470470
8Ground Clearance(Bottom of mast)mm120120
9Turning Radius (outside)mm23102310
10Min. Intersecting aislemm23802380
11Max.Gradeability (No load/Full load)%2020
12Wheelbasemm16001600
13Service weightkg37003700
14Battery (Voltage/Capacity)V/Ah12/8012/80
15Overall DimensionLength to face of fork(Without fork)mm26002600
16Overall Widthmm11501150
17Mast Lowered Heightmm20552055
18Mast Extended Height(With backrest)mm40504050
19Overhead Guard Heightmm20702070
20SpeedTravel (No load)km/h1919
21Lifting(Full load)mm/s530530
22TireFrontmm7.00-12-12PR7.00-12-12PR
23Rearmm6.00-9-10PR6.00-9-10PR
24EngineModelK254G64
25ManufactureNissanMitsubishi
26Rated output/r.p.m.kw37.4/230037/2500
27Rated torque/r.p.m.N·m176.5/1600161/1600
28No.of Cylinder44
29Bore×Strokemm89×10086.5×100
30Displacementcc24881982
31Fuel Tank CapacityL6060
32TransmissionTypeHydraulicPowershift (Manual)
33Stage FWD/RVS1/11/1(2/2)
34Operating Pressure for AttachmentMpa17.517.5
