3.5 Ton Lpg & Gasoline Forklift
CPYD35G
Quantity:
The G series is built to international standards, And to boost your productivity, Consider this, The Drive train is powered by an indigenous, powerful engine that is environment friendly. And an indigenous powershift automatic torque converter transmission with soft touch electric gear shift and inching control for precise load and truck movements. With travel speeds of up to 20km/h and lift/lower speeds of 0.5m/set; with grade ability of up to 28%, few forklifts can match the G series in performance. You also have lifting height options up to 6 meters and a range of fitments and attachments such as clamps for paper reels, drums,bales, etc.
| Model | CPYD35G-H2 | |||
| 1 | Power Type | Gasoline/LPG | ||
| 2 | Rated Capacity | kg | 3500 | |
| 3 | Load Centre | mm | 500 | |
| 4 | Lift Height | mm | 3000 | |
| 5 | Fork Size (L×W×T ) | mm | 1070×125×50 | |
| 6 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |
| 7 | Front Overhang (Wheel center to fork face) | mm | 490 | |
| 8 | Ground Clearance(Bottom of mast) | mm | 120 | |
| 9 | Turning Radius (outside) | mm | 2445 | |
| 10 | Min. Intersecting aisle | mm | 2235 | |
| 11 | Max.Gradeability (No load/Full load) | % | 20 | |
| 12 | Wheelbase | mm | 1700 | |
| 13 | Service weight | kg | 4675 | |
| 14 | Battery (Voltage/Capacity) | V/Ah | 12/90 | |
| 15 | Overall Dimension | Length to face of fork(Without fork) | mm | 2700 |
| 16 | Overall Width | mm | 1225 | |
| 17 | Mast Lowered Height | mm | 2125 | |
| 18 | Mast Extended Height(With backrest) | mm | 4150 | |
| 19 | Overhead Guard Height | mm | 2090 | |
| 20 | Speed | Travel (No load) | km/h | 19 |
| 21 | Lifting(Full load) | mm/s | 410 | |
| 22 | Tire | Front | mm | 28×9-15* |
| 23 | Rear | mm | 6.50-10-10PR | |

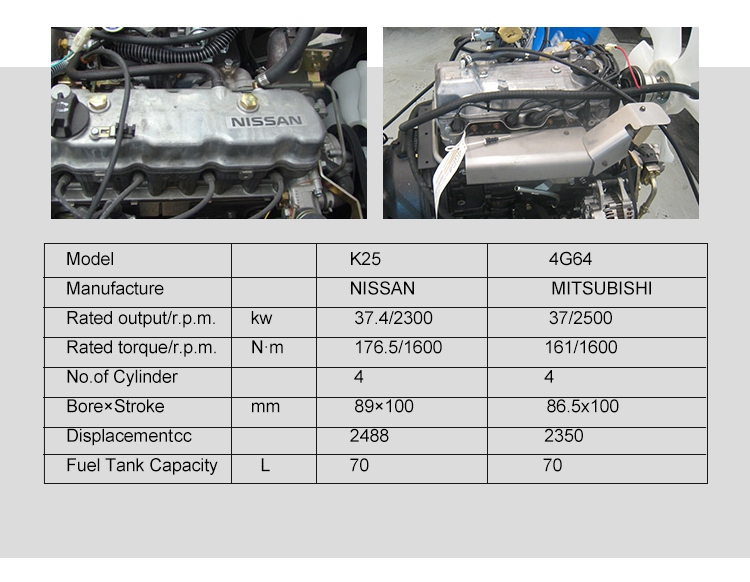

| 24 | Engine | Model | K25 | |
| 25 | Manufacture | NISSAN | ||
| 26 | Rated output/r.p.m. | kw | 37.4/2300 | |
| 27 | Rated torque/r.p.m. | N·m | 176.5/1600 | |
| 28 | No.of Cylinder | 4 | ||
| 29 | Bore×Stroke | mm | 89×100 | |
| 30 | Displacement | cc | 2488 | |
| 31 | Fuel Tank Capacity | L | 70 | |
| 32 | Transmission | Type | Powershift (Manual) | |
| 33 | Stage FWD/RVS | 1/1(2/2) | ||
| 34 | Operating Pressure for Attachment | Mpa | 17.5 | |
