gasoline forklift

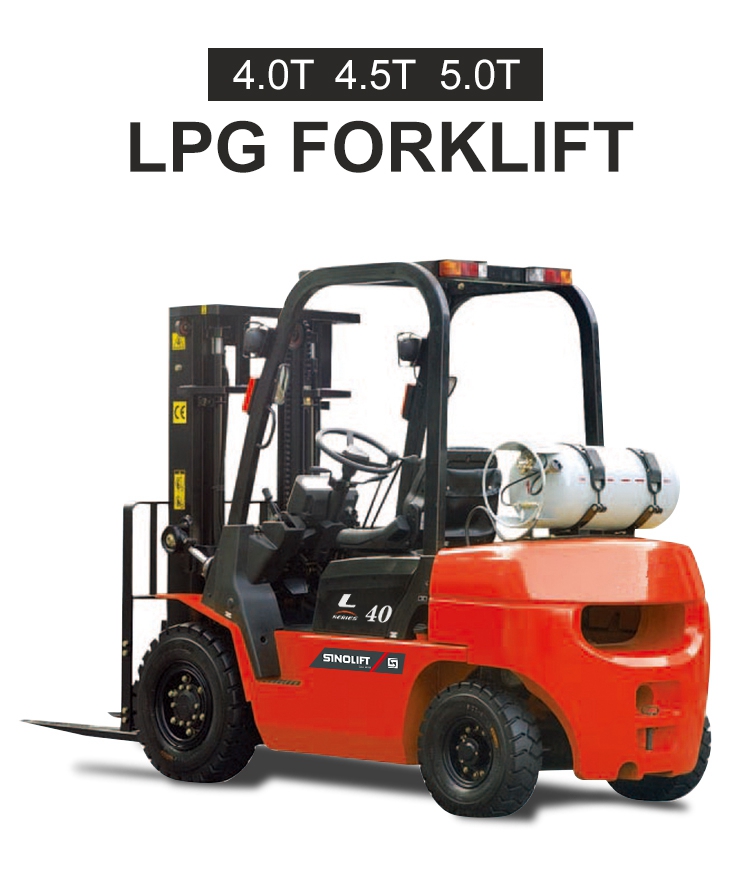

4.0 4.5 5.0 Ton LPG & Gasoline Forklift

CPYD40S
Quantity:
Contact Now
add to cart
All Products

1. Liquefied gas defeats diesel with absolute advantage in fuel cost. Liquefied gas forklifts are suitable for indoor and outdoor use, even in environments where environmental protection is particularly demanding. Unlike diesel fuel, liquefied gas does not overflow with pollutants during vaporization, effectively extending engine life.
2. There is almost no harmful particle discharge during the operation of the liquefied gas forklift, thus ensuring the health of the workshop workers. The discharge of a large number of harmful particles in the exhaust of diesel forklifts seriously affects the health of workers' respiratory system. The engine of the liquefied gas forklift has a small vibration amplitude and low noise, which ensures the hearing of workers.
3. Compared with electric forklifts, due to the high price of industrial electricity and battery purchase, the maintenance cost of electric forklifts is high, and liquefied gas forklifts can save the cost of use more than electric forklifts. Even in the case of insufficient fuel, the liquefied gas forklift can maintain power. The power of the electric forklift will decrease as the power is reduced.
4. The liquefied gas forklift can drive on uneven ground or steep slopes. The carbon emissions of liquefied gas forklifts throughout the life of the product, the"carbon footprint” is much smaller than that of electric forklifts. Liquefied gas forklifts are quick and easy to replace fuel, while electric forklifts require 8 hours of charging time and 8 hours of battery cooling time. The battery manufacturers of electric forklifts have seriously affected the local ecological environment and human health.

plier ? We have a wide selection at great prices to help you get creative. All the Environment Protect Forklift are quality guaranteed. We are China Origin Factory of Forklift With Chinese Engine. If you have any question, please feel free to contact us.

· Conveniently behavior with electro-hydraulic direction changing lever and automobile type double joystick combined switch;

· LPG&Gasoline Forklift's power is LPG or both,can be dual fuel or single fuel .Usually it equip The operator`s legroom is twice to other series with optimized construction;

· LPG & Gasoline combustion fully, improve the life of engine three times. It`s more clean than Diesel Forklift,and can work longer than Electric Forklift.

· Small diameter steering wheel reduces driver`s left shoulder`s fatigue and makes driving comfortable;

· Suspension seat with handrail and seat belt ensure the operator`s safety and comfort;

· The dynamic braking system decreases the braking force sharply.

ModelCPYD40S-GMCPYD45S-GMCPCD50S-GM
1Power TypeDieselDieselDiesel
2Rated Capacitykg400045005000
3Load Centremm500500500
4Lift Heightmm300030003000
5Fork Size (L×W×T )mm1070×150×551070×150×551070×150×55
6Mast Tilt Angle (F/R)Deg6°/12°6°/12°6°/12°
7Front Overhang (Wheel center to fork face)mm570570570
8Ground Clearance(Bottom of mast)mm170170170
9Turning Radius (outside)mm291029102910
10Min. Intersecting aislemm292029202920
11Max.Gradeability (No load/Full load)%202020
12Wheelbasemm210021002100
13Service weightkg648064806980
14Battery (Voltage/Capacity)V/Ah12/80 X 212/80 X212/90
15Overall DimensionLength to face of fork(Without fork)mm324532453245
16Overall Widthmm143014301430
17Mast Lowered Heightmm227022702270
18Mast Extended Height(With backrest)mm411041104110
19Overhead Guard Heightmm226522652265
20SpeedTravel (No load)km/h252525
21Lifting(Full load)mm/s440440420
22TireFrontmm300-15-18PR300-15-18PR300-15-18PR
23Rearmm7.00-12-12PR7.00-12-12PR7.00-12-12PR
24Engine 01ModelGM4.3GM4.3GM4.3
25ManufactureGMGMGM
26Rated output/r.p.m.kw75/260075/260075/2600
27Rated torque/r.p.m.N·m280/1700280/1700280/1700
28No.of Cylinder666
29Bore×Strokemm101.6×88.39101.6×88.39101.6×88.39
30Displacementcc429442944294
31Fuel Tank CapacityL130130130
31Emission StandardEPA Tier4 FinaEPA Tier4 FinaEPA Tier4 Fina
32TransmissionTypePowershiftPowershiftPowershift
33Stage FWD/RVS2/12/12/1
34Operating Pressure for AttachmentMpa181818

Optional Engine

Engine 02ModelPSI4.3
ManufacturePSI
Rated output/r.p.m.kw77.6/2300
Rated torque/r.p.m.N·m324/1700
No.of Cylinder6
Bore×Strokemm101.6×88.39
Displacementcc4294
Fuel Tank CapacityL130
Fuel Tank CapacityLEPA Tier4 Fina
