Gasoline Forklift

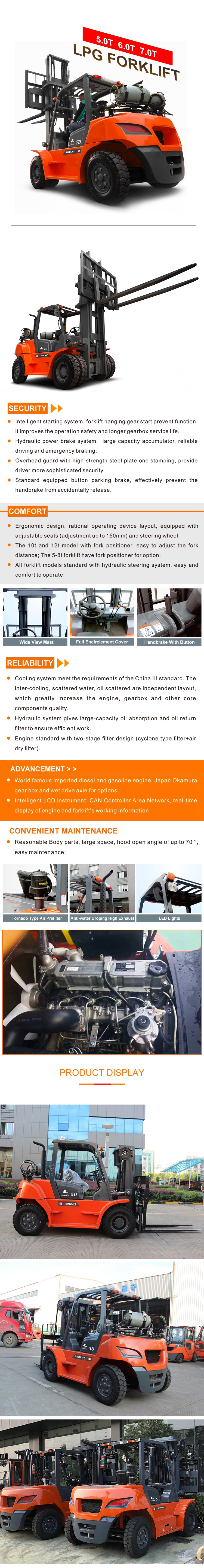

5.0 6.0 7.0 Ton LPG & Gasoline Forklift

CPYD50
Quantity:
Contact Now
add to cart
All Products

Our LPG/Gasoline forklifts engine with Importer or Chinese famous brand .
We can customize all the goods to meet your requirements.

Main Feature:

-Hydrualic system to apply the stable hydraulic system to avoid hydraulic oil leaking happening.

-Strong overhead guard to overhead guard apply the strongest material to protect the user's safety.

-The forward-reverse lever switches through a smaller arc than previous models, to save time and increase operational efficiency.

-Simple but useful design lets operator focus more on the lifting job.

1. body protection: the top frame and the body are integrated into one force to improve stability and safety. The tilting cylinders installed in the high position can use the gantry steel with a more compact cross section to improve the front view of the gantry.
high performance
2. Advanced engine and drive technology combined with Linde's original load control system allows the operator to fully utilize the potential of the forklift for optimum efficiency. The comfortable, precise Linde fingertip control handle makes it easy to master all the movements of the gantry.
Comfort
3. The spacious and comfortable cab gives the operator a car-class comfort. The vehicle design reflects the perfect application of ergonomics. Large cab, adjustable armrests, suspended seats and easy-to-control controls: easy and easy to operate.
reliability
4. Suitable for continuous operation with long time and high load. The suspension cab and springs mounted on the transaxle absorb shock from the ground. Maintenance-free drive axles and high tilt cylinders reduce downtime and operating costs.

Easy to maintain
5. This forklift has high efficiency and low operating cost: Linde's pioneering static pressure transmission eliminates the need for clutches, gearboxes, differentials and drum mechanical brakes.

ModelCPYD50-PSICPYD60-PSICPYD70-PSI
Power TypeLPGLPGLPG
Rated Capacitykg500060007000
Load Centremm600600600
Lift Heightmm300030003000
Fork SizeLxWxTmm1220x150x601220x150x601220x150x70
Mast Titl AngleF/RDeg6/126/126/12
Front Overhang (Wheel center to fork face)mm590590590
Ground Clearance (Bottom of mast)mm200200200
Overall DimensionLength to face of fork(Without fork)mm344034403565
Overall Widthmm201020102010
Mast Lowered Heightmm250025002500
Mast Extended Height(With backrest)mm441544154415
Overhead Guard Heightmm243024302430
Turning Radius(outside)mm325032503350
Min. insecting aislemm296029603040
SpeedTravel(Empty load)km/h303030
Lifting(Full load)mm/s500500460
Max. Gradeability%202020
TireFront8.25-15-14PR8.25-15-14PR8.25-15-14PR
Rear8.25-15-14PR8.25-15-14PR8.25-15-14PR
Wheelbasemm225022502250
Service weightkg815087509750
BatteryVoltage/CapacityV/Ah(12V120AH)x2(12V120AH)x2(12V120AH)x2
Engine 01ModelPSI4.3LPSI4.3LPSI4.3L
ManufacturePSIPSIPSI
Rated output/r.p.mkw76/230076/230076/2300
Rated torque/r.p.mN-m324/1700324/1700324/1700
No.of Cylinder666
Bore x Strokemm101.6x88.4101.6x88.4101.6x88.4
Displacementcc430043004300
Fuel Tank CapacityL125125125
Emission StandardsEPA Tier4 FinaEPA Tier4 FinaEPA Tier4 Fina
TransmissionTypeHydraulicHydraulicHydraulic
Stage(FWD/RVS)2/22/22/2
Operating Pressure for AttachmentMpa191919

Optional Engine

Engine 02ModelGM4.3L
ManufactureGM
Rated output/r.p.mkw56/2200
Rated torque/r.p.mN-m240/750
No.of Cylinder6
Bore x Strokemm101.6x88.39
Displacementcc4300
Fuel Tank CapacityL140
