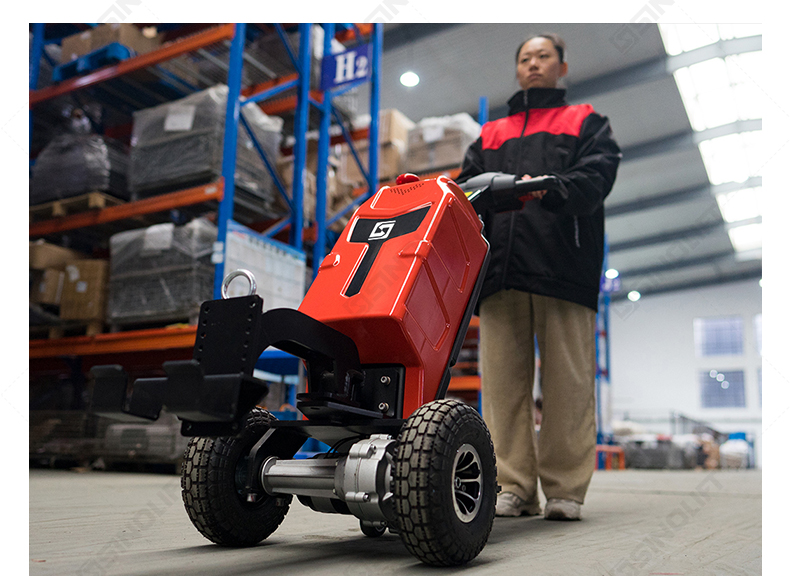

SINOLIFT QDD10 walk-behind tow tractor pulling loaded hand cart in warehouse aisle.

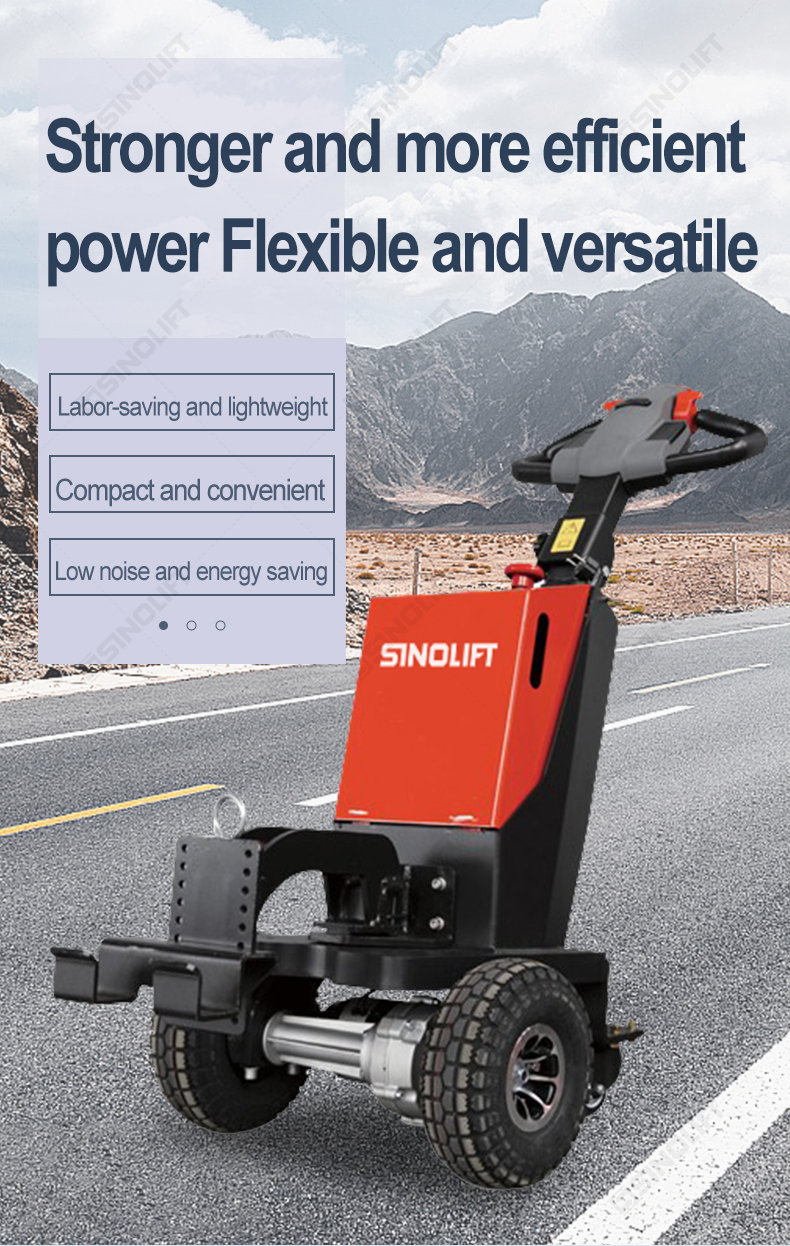

SINOLIFT QDD10 Electric Walk-Behind Tractor - 1500kg Load, Heavy-Duty Industrial Towing for Warehouses, Factories, Airports

QDD10 10L 15L

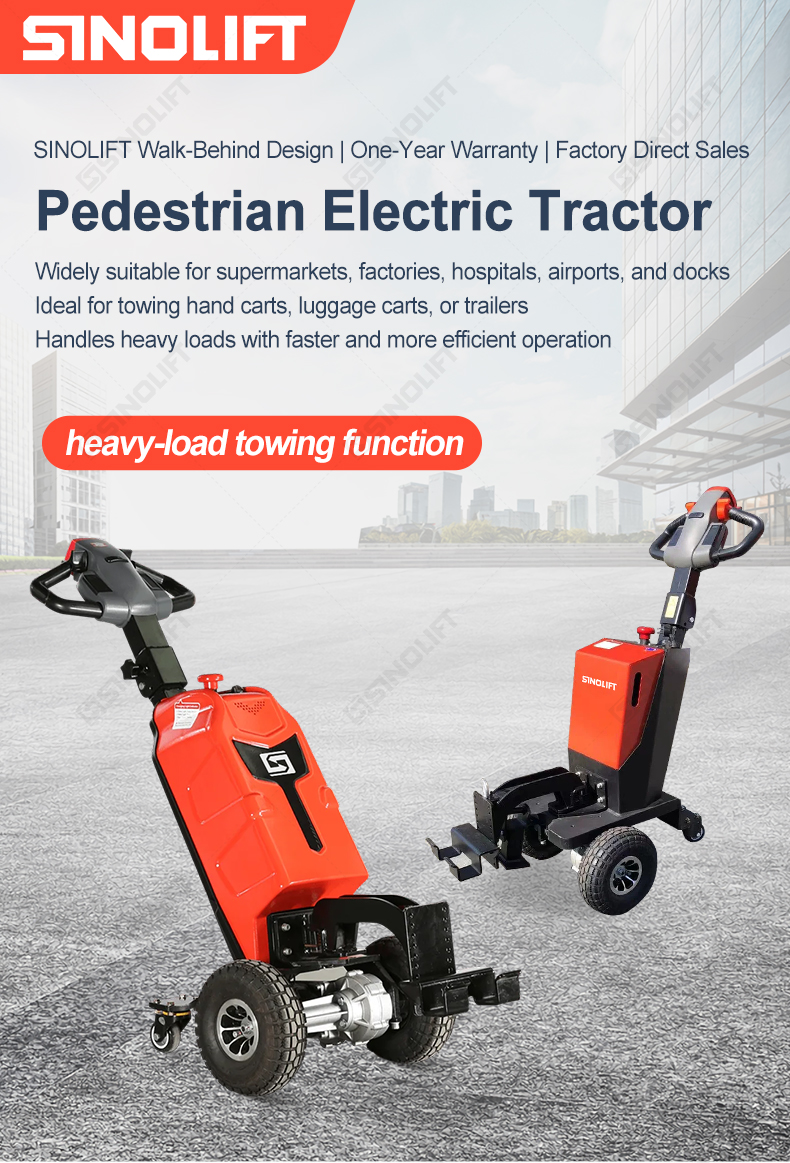

This walk-behind electric tractor is designed for efficient material towing across various venues such as warehouses, factories, airports, and hospitals. It combines a robust build with practical features like a powerful motor, adjustable handle, and stable tires to handle heavy loads with ease. The focus is on delivering reliable, user-friendly operation for streamlined logistics and transport tasks.
Quantity:
Contact Now
add to cart
All Products

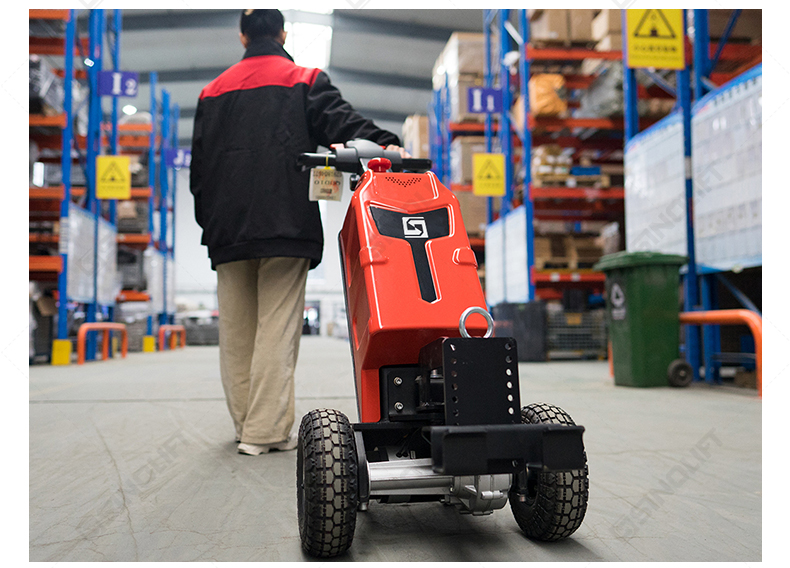

Walk-Behind Electric Design: The tractor features a pedestrian-operated, walk-behind configuration, providing direct control and maneuverability for the operator during towing tasks.

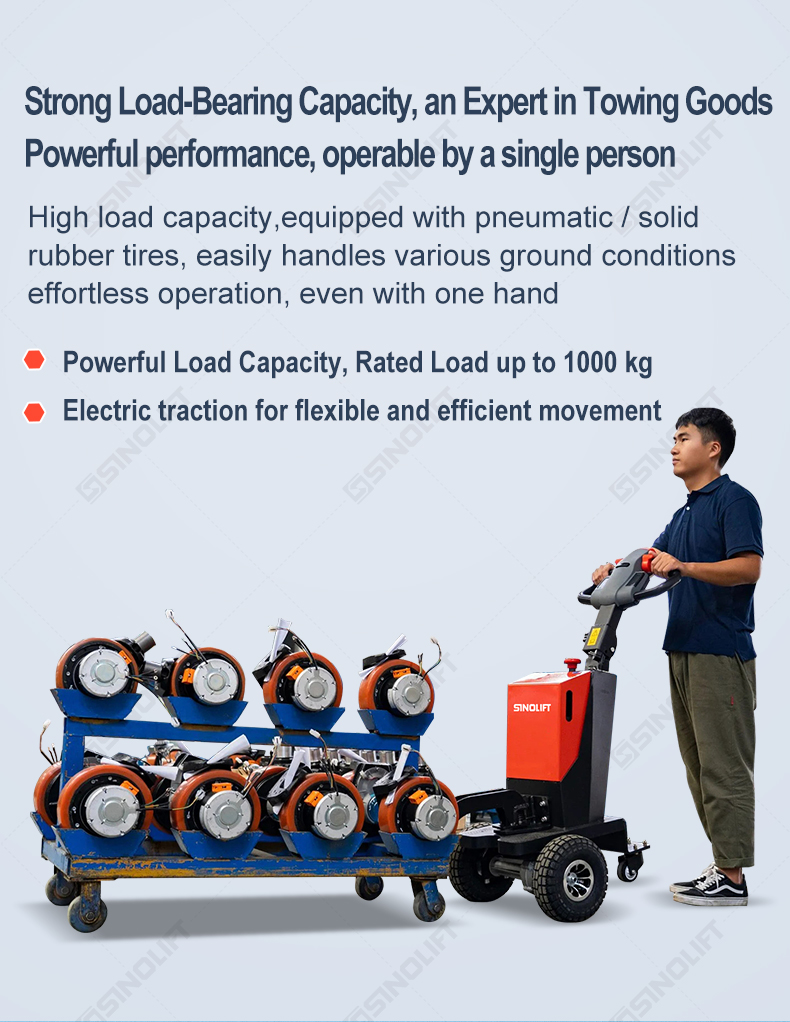

Robust Construction & Towing Capacity: It utilizes high-quality steel in its build and is equipped with a high-power motor, resulting in a strong towing capacity designed for loads up to 1000 kg.

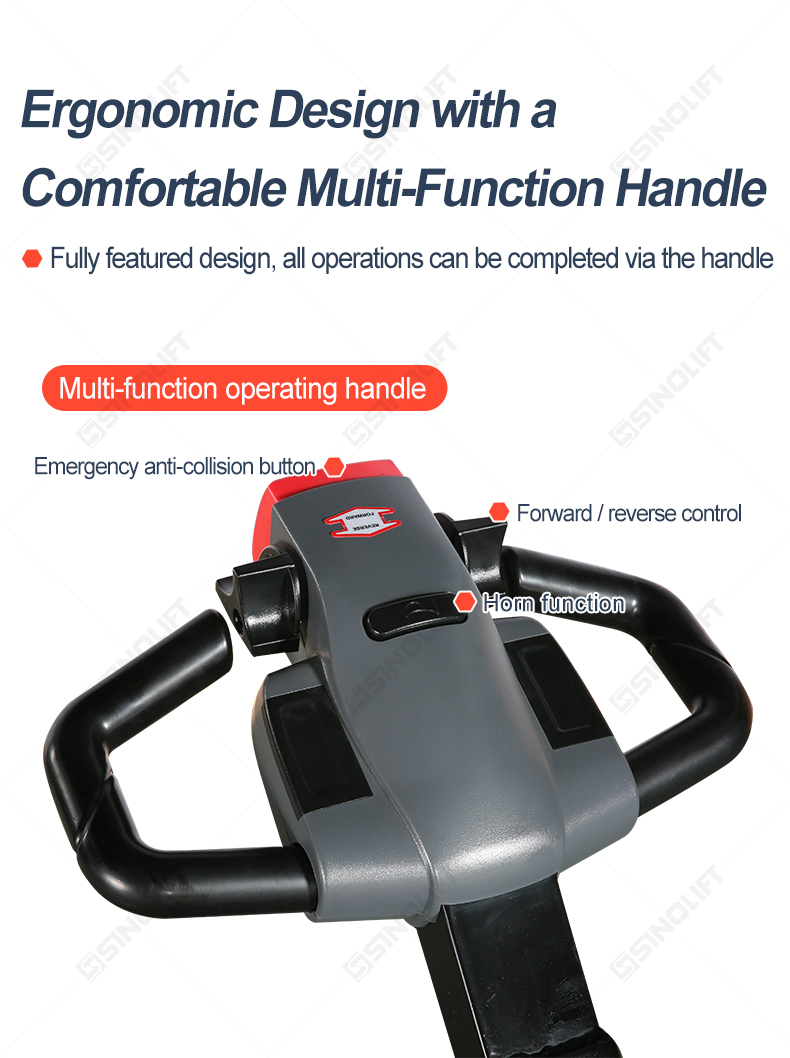

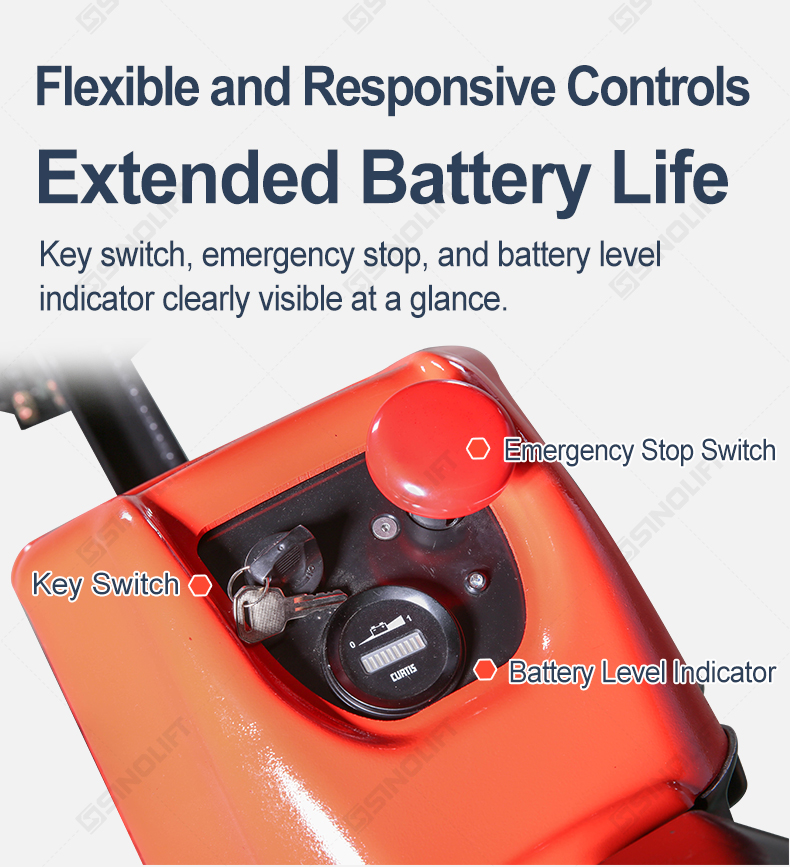

Operator-Centric Controls: Operations are managed through a multi-function handle, which integrates forward/reverse control, a horn, an emergency stop button, and a clear battery level indicator for intuitive use.

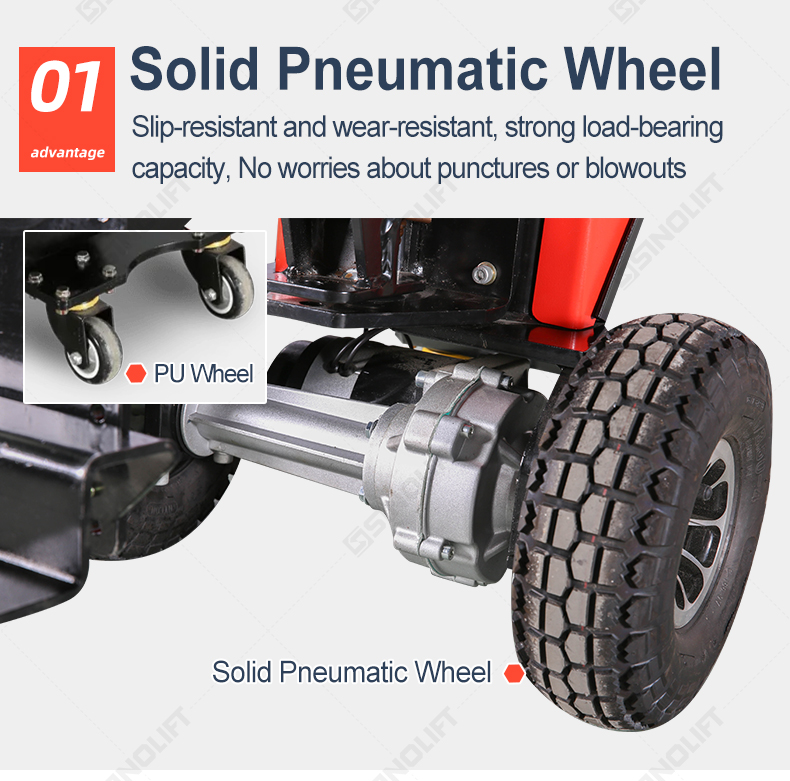

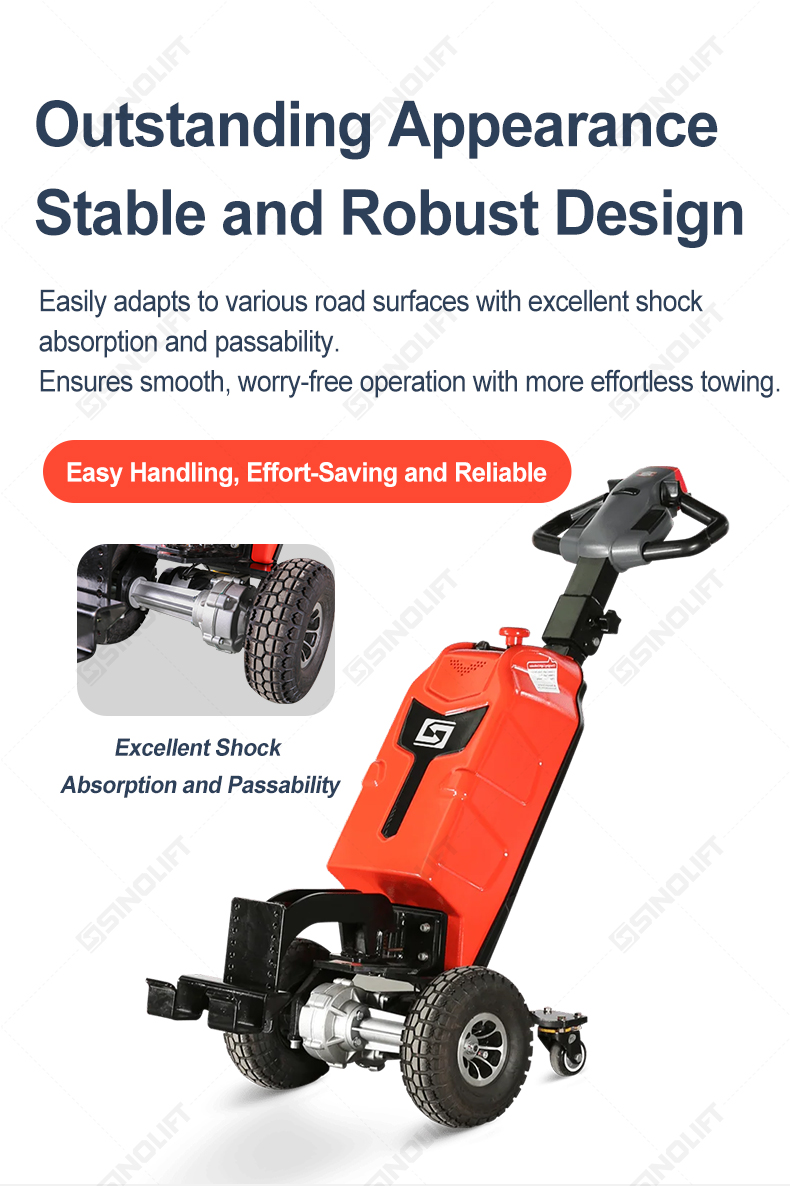

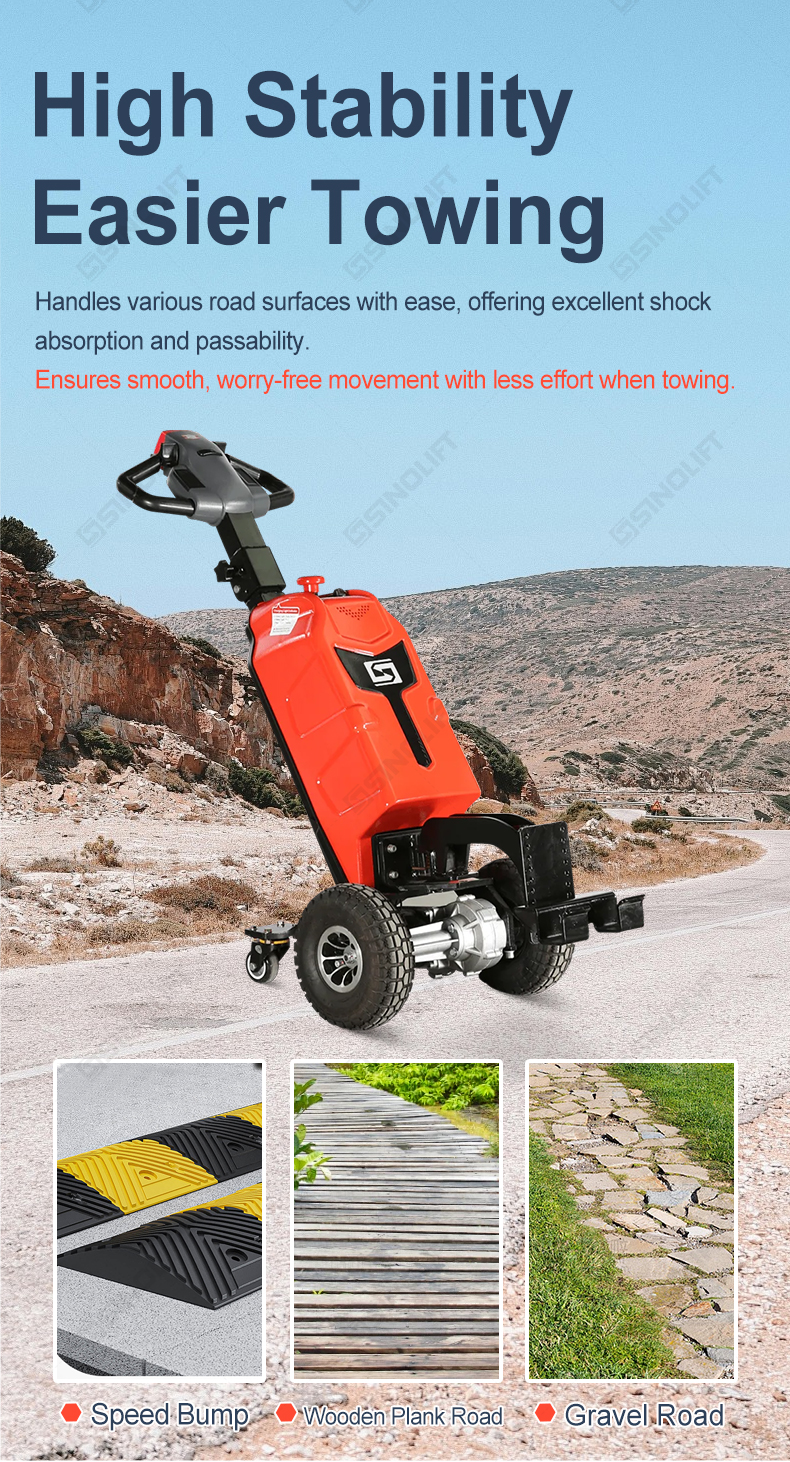

Adaptable to Various Terrains: The tractor is fitted with solid pneumatic tires (PU or solid rubber), which provide good shock absorption and allow it to handle different ground conditions like gravel, wooden planks, and speed bumps.

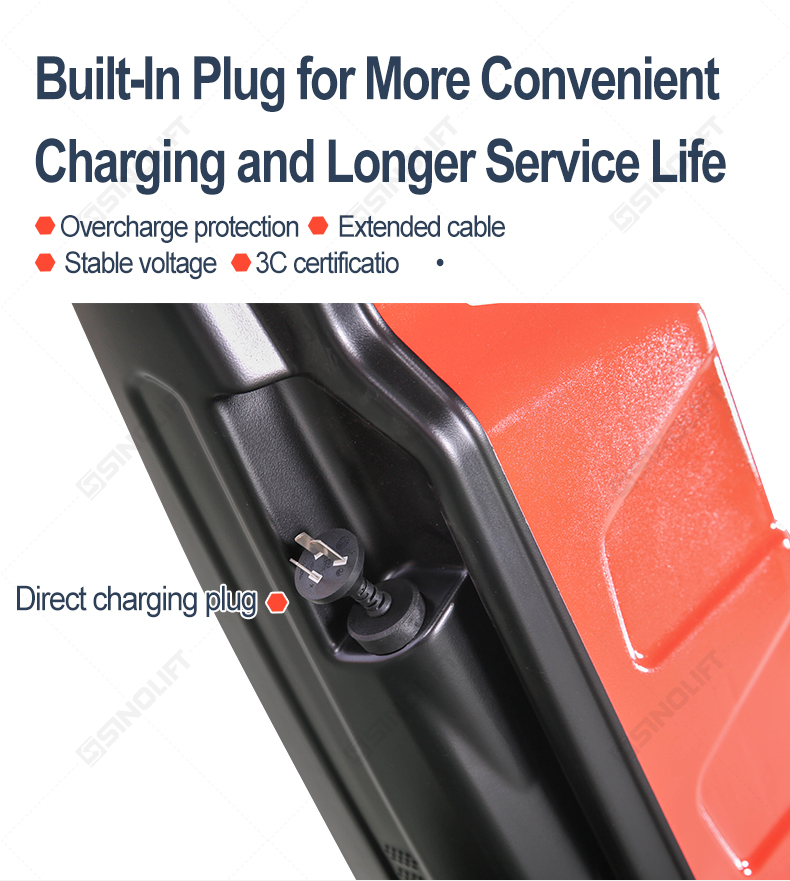

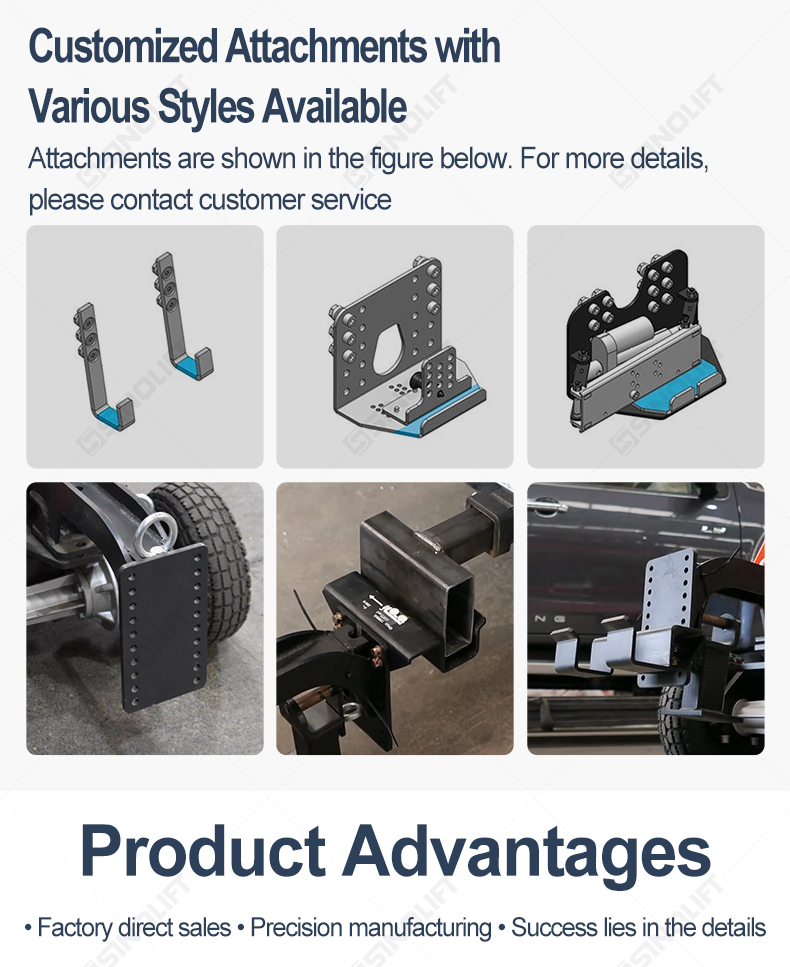

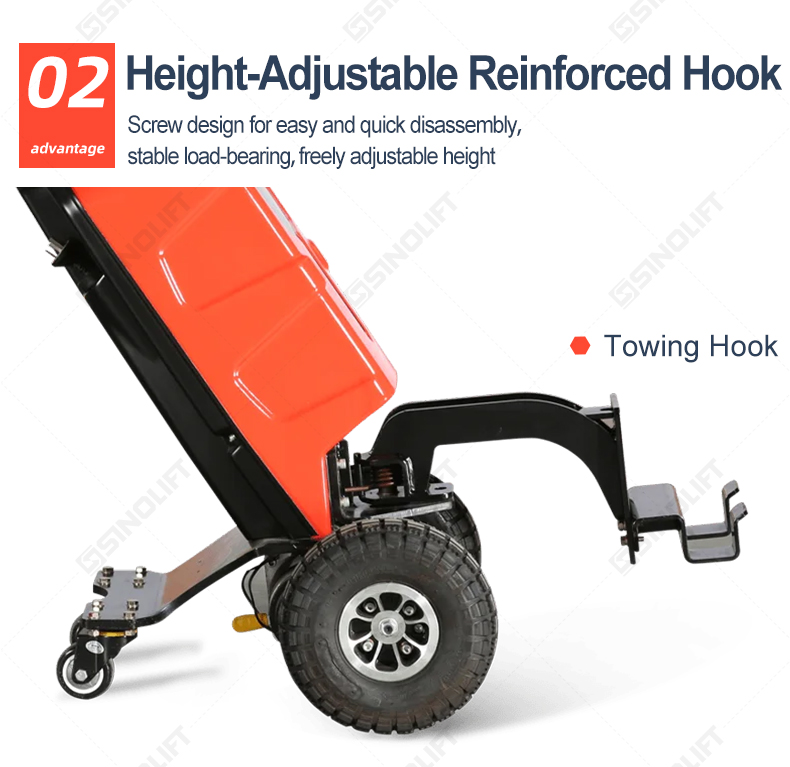

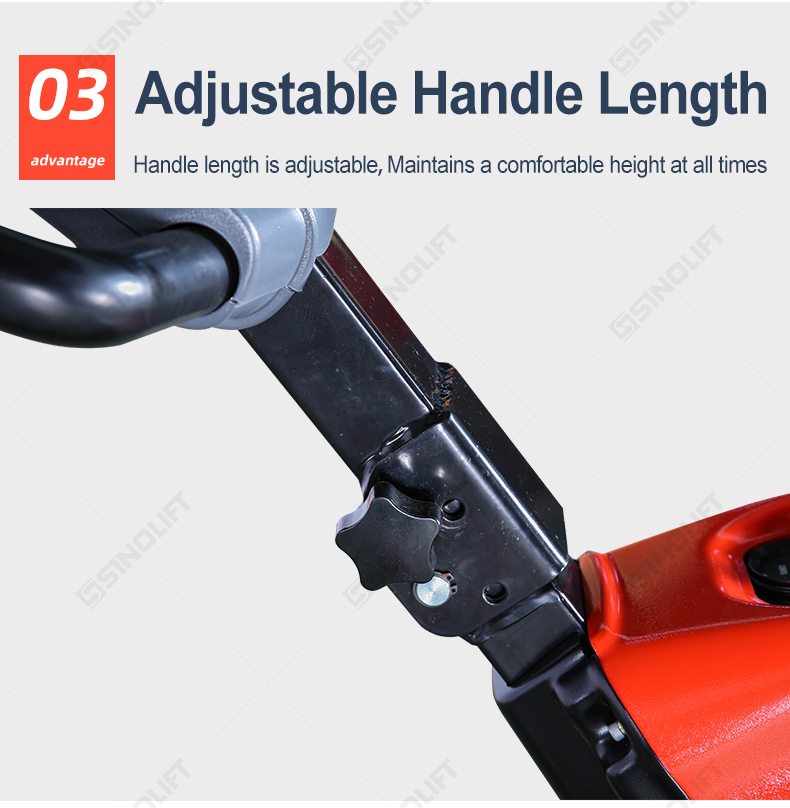

Practical Functional Design: Key practical elements include a height-adjustable towing hook for different carts, an adjustable handle length for operator comfort, and a built-in charging plug with safety certifications for convenience.

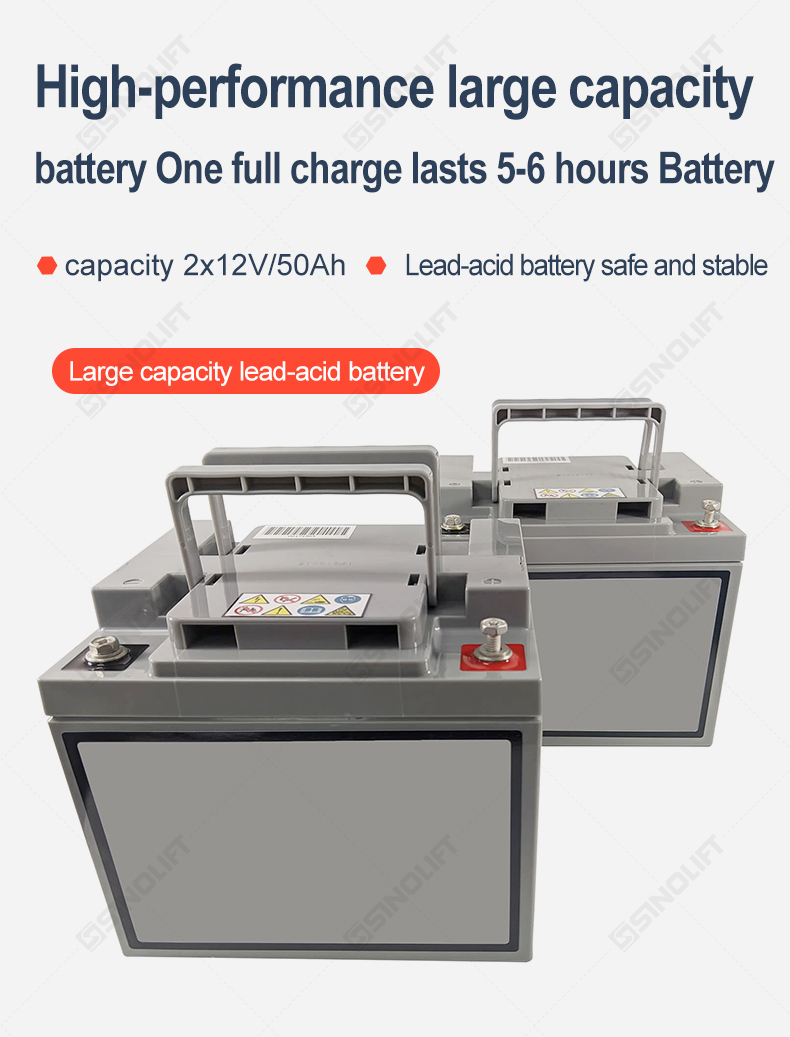

Extended Operation & Stability: It is powered by a large-capacity, safe lead-acid battery system (2x12V/50Ah) offering several hours of operation per charge and is engineered for stable performance under load.

Application Scenarios

Warehouse & Factory Transport: Efficiently tows carts and trailers for internal logistics and material movement in industrial settings.

Airport & Cargo Handling: Used in baggage areas, cargo terminals, and docks for transporting luggage and goods over flat surfaces.

Hospital & Facility Support: Helps staff move equipment, laundry, or supply carts within large buildings like hospitals and hotels.

Retail & Supermarket Operations: Assists with stock handling and moving goods in storerooms or between supermarket sections.

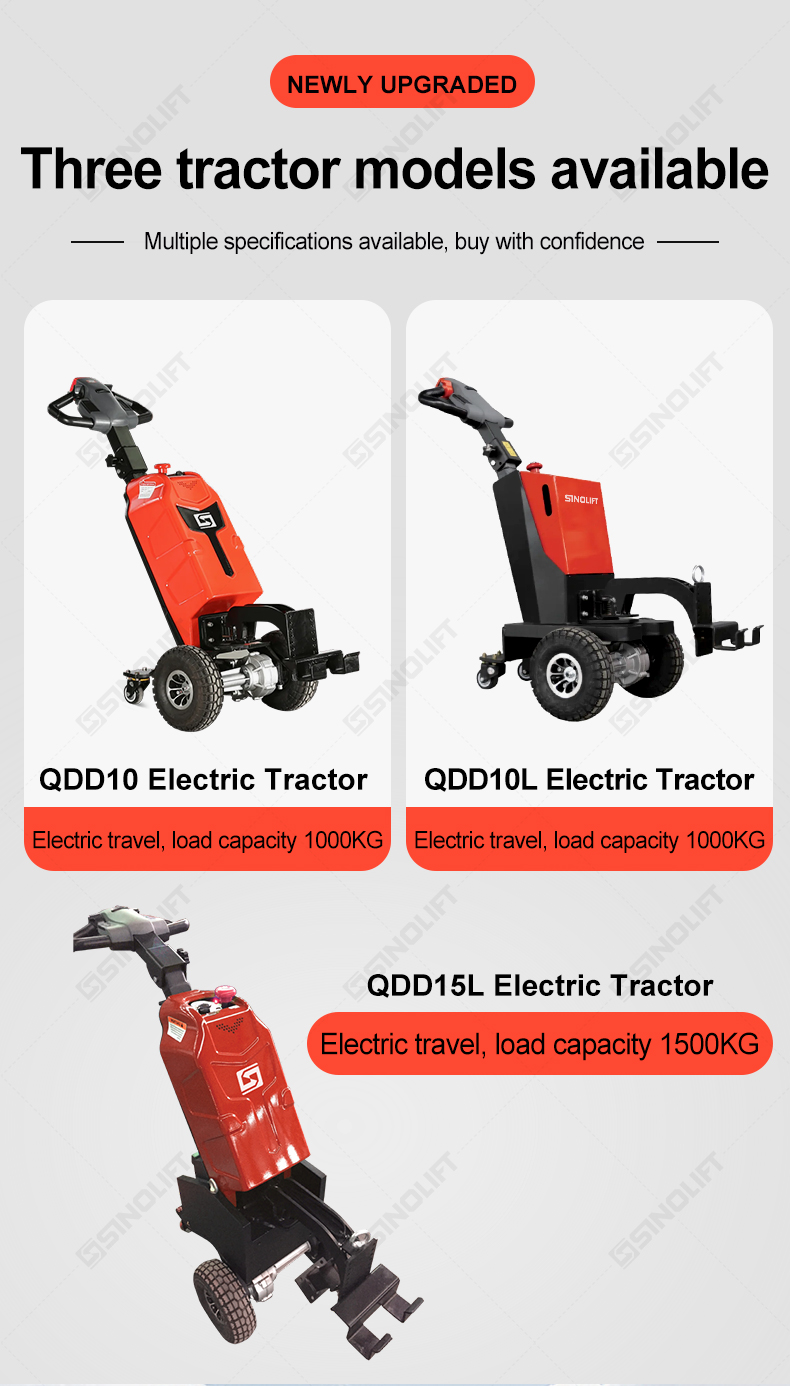

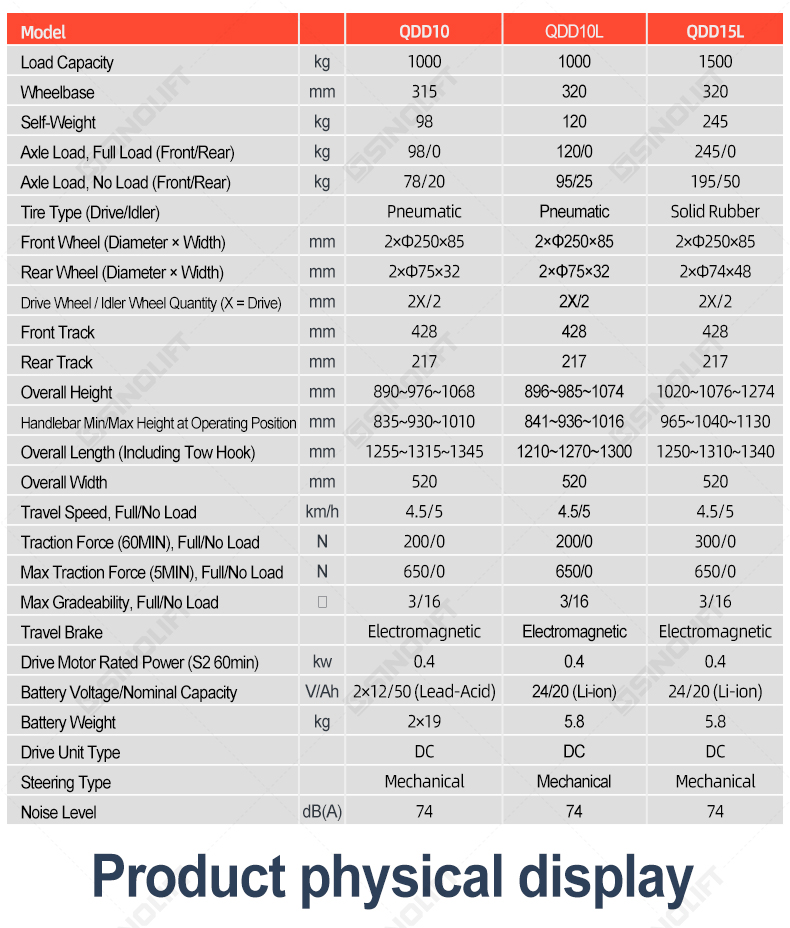

ModelQDD10QDD10LQDD15L
Load Capacitykg100010001500
Wheelbasemm315320320
Self-Weightkg98120245
Axle Load, Full Load (Front/Rear)kg98/0120/0245/0
Axle Load, No Load (Front/Rear)kg78/2095/25195/50
Tire Type (Drive/Idler)PneumaticPneumaticSolid Rubber
Front Wheel (Diameter × Width)mm2×Φ250×852×Φ250×852×Φ250×85
Rear Wheel (Diameter × Width)mm2×Φ75×322×Φ75×322×Φ74×48
Drive Wheel / Idler Wheel Quantity (X = Drive)2X/22X/22X/2
Front Trackmm428428428
Rear Trackmm217217217
Overall Heightmm890~976~1068896~985~10741020~1076~1274
Handlebar Min/Max Height at Operating Positionmm835~930~1010841~936~1016965~1040~1130
Overall Length (Including Tow Hook)mm1255~1315~13451210~1270~13001250~1310~1340
Overall Widthmm520520520
Travel Speed, Full/No Loadkm/h4.5/54.5/54.5/5
Traction Force (60MIN), Full/No LoadN200/0200/0300/0
Max Traction Force (5MIN), Full/No LoadN650/0650/0650/0
Max Gradeability, Full/No Load%3/163/163/16
Travel BrakeElectromagneticElectromagneticElectromagnetic
Drive Motor Rated Power (S2 60min)kw0.40.40.4
Battery Voltage/Nominal CapacityV/Ah2×12/50
(Lead-Acid)
24/20 (Li-ion)24/20 (Li-ion)
Battery Weightkg2×195.85.8
Drive Unit TypeDCDCDC
Steering TypeMechanicalMechanicalMechanical
Noise LeveldB(A)747474
