The T Series 3.0-4.0T internal combustion forklift delivers powerful performance, superior comfort, and reliable efficiency for demanding material handling operations.

SINOLIFT T1 Series CP(C)D3.0-4.0T Internal-Combustion Counter Balanced Forklift

CP(C)D30T1 CP(C)D35T1

The T Series 3.0‑4.0T internal‑combustion counter‑balanced forklift is engineered for demanding material‑handling tasks in diverse indoor and outdoor environments. Designed with global technologies and comprehensive upgrades, it delivers outstanding energy efficiency, operator comfort, and long‑term reliability, enabling efficient and sustainable operations across a wide range of industrial, warehousing, and logistics applications.

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

Key Features

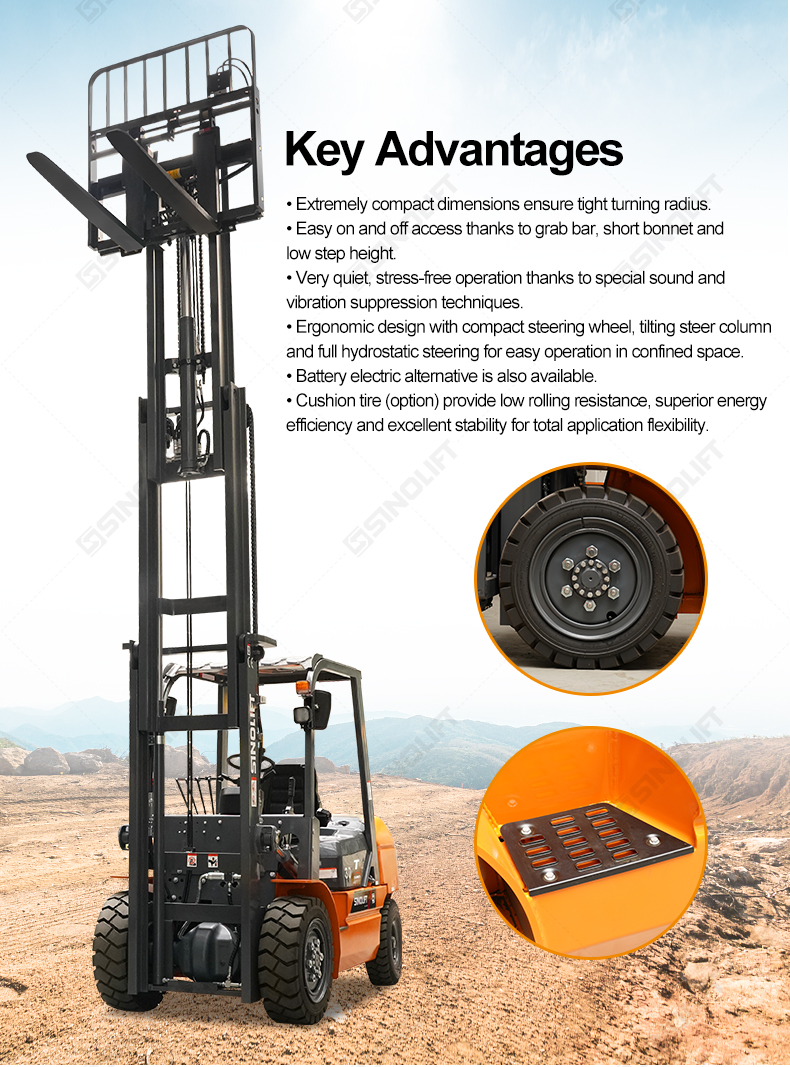

Compact & Maneuverable: Extremely compact dimensions ensure a tight turning radius for easy operation in confined spaces.

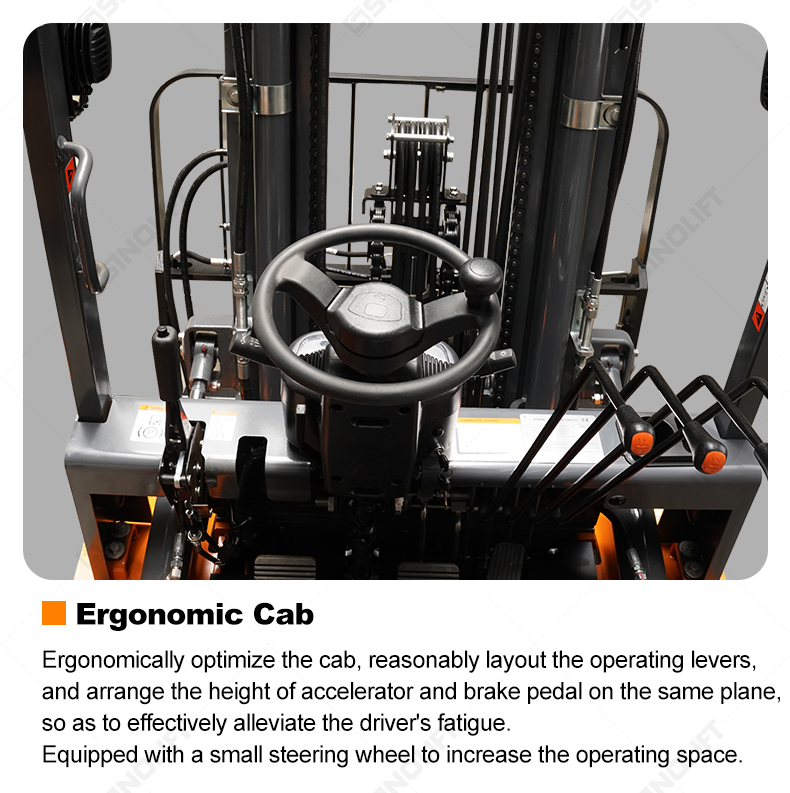

Operator‑Focused Design: Ergonomic cab with compact steering wheel, tilting column, full hydrostatic steering, and easy on/off access reduces fatigue and enhances comfort.
Quiet & Stable Operation: Special sound and vibration suppression techniques provide very quiet, stress‑free performance; optional cushion tires offer low rolling resistance and excellent stability.

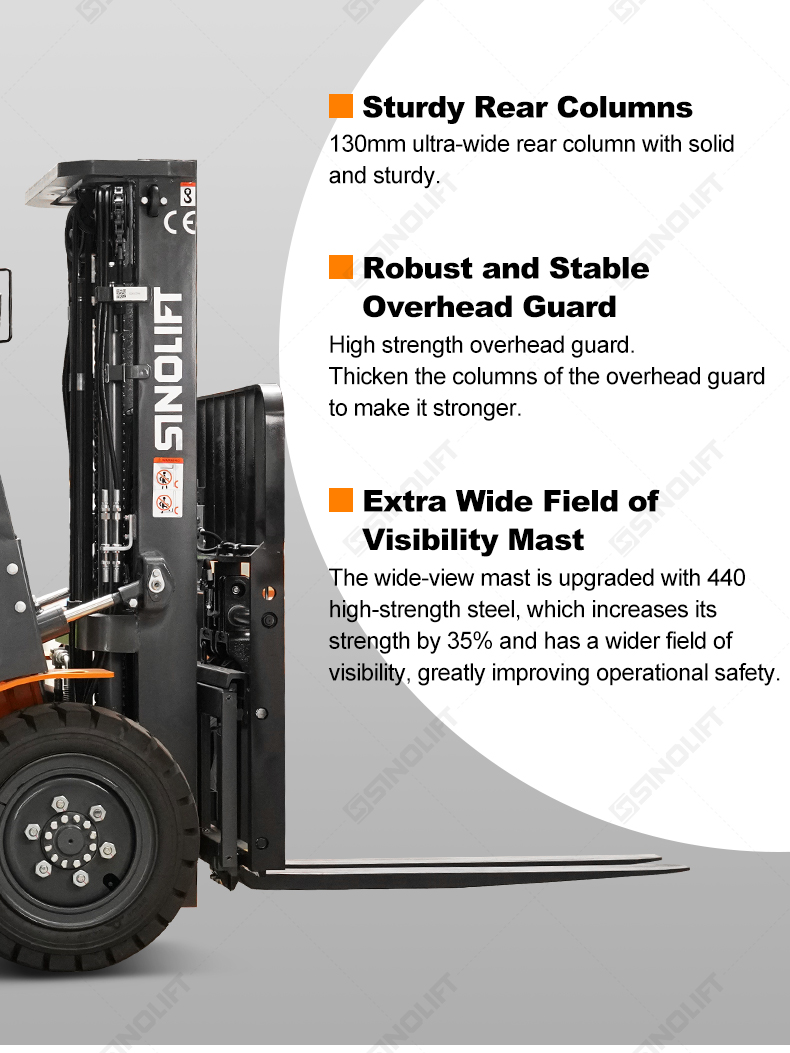

Enhanced Strength & Visibility: Robust overhead guard, 130mm ultra‑wide rear columns, and an extra‑wide‑view mast (made of high‑strength steel for 35% greater strength) improve safety and durability.

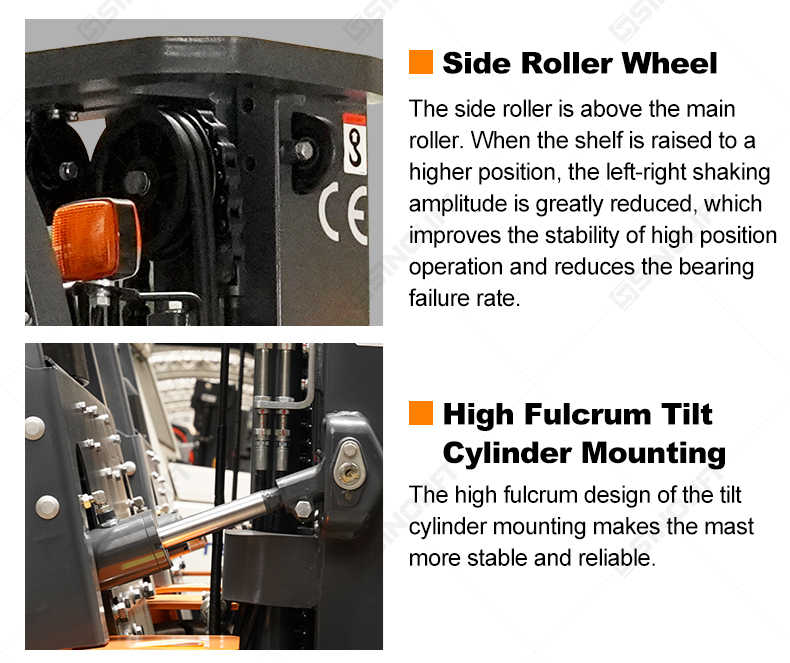

High‑Position Stability: Side‑roller‑wheel design and high‑fulcrum tilt‑cylinder mounting minimize mast sway at height, ensuring stable high‑level operation.

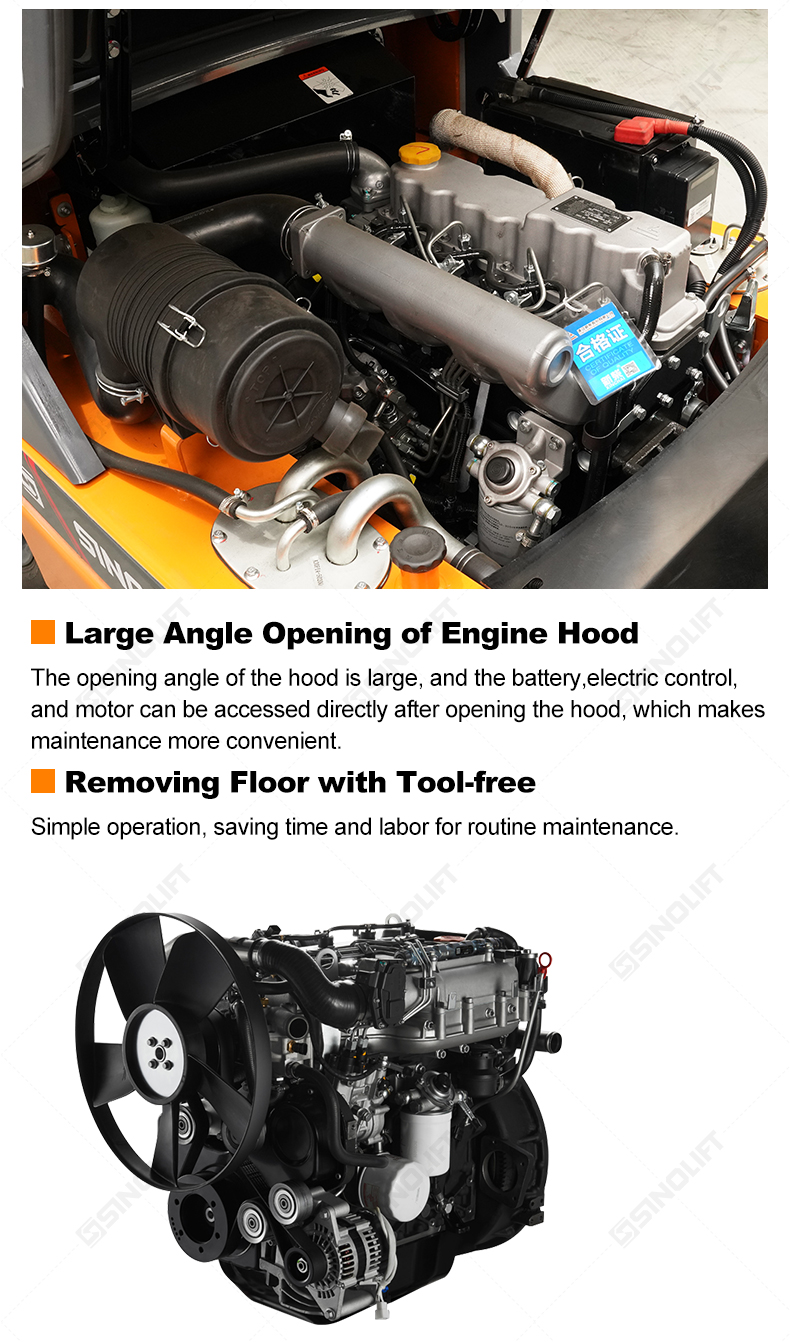

Easy Maintenance: Large‑angle opening engine hood and tool‑free removable floor panels allow quick access to key components, saving time on routine servicing.

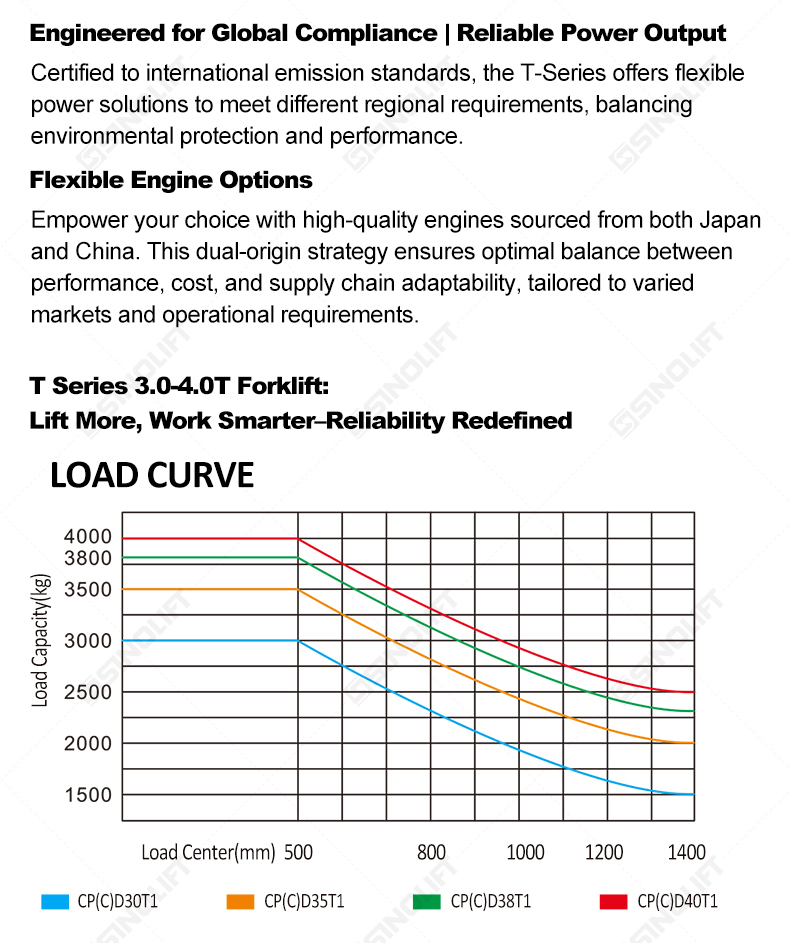

Global Compliance & Flexible Power: Certified to stringent international emissions standards (e.g., EPA Tier 4 Final, EU Stage V); offers dual‑source engine options (Japan/China) to balance performance, cost, and regional requirements.

Primary Applications

Heavy‑duty material handling in warehouses, distribution centers, and manufacturing facilities.
Loading, unloading, and stacking goods in ports, logistics yards, and outdoor industrial sites.
Operations in confined spaces where maneuverability and a small turning radius are critical.
Applications requiring high‑position stability for safe stacking at elevated heights.
Environments that demand low emissions, fuel efficiency, and compliance with international environmental regulations.

Manufacture					SINOLIFT
Model					CP(C)D30T1	CP(C)D35T1	CP(C)D38T1	CP(C)D40T1
Power type					Diesel
Rated capacity				kg	3000	3500	3800	4000
Load center				mm	500
Lift height				mm	3000
Free lift height				mm	125	90	90	90
Fork size				mm	1070x125x45	1070x125x50
Fork spread outside			Min./Max.	mm	244/1060	244/1060	244/1060	244/1060
Mast tilt angle				deg	6/12	6/12	6/12	6/12
Front overhang				mm	480	505	505	505
Rear overhang				mm	500	550	550	495
Overall dimensions	Length to face of fork			mm	2780	2835	2835	2890
	Overall width			mm	1230	1230	1230	1410
	Height of load backrest			mm	1225	1225	1225	1225
	Mast lowered height			mm	2115	2150	2150	2195
	Mast extended height			mm	4180	4180	4180	4180
	Overhead guard height			mm	2110	2110	2110	2120
Turning radius				mm	2520	2570	2570	2700
Min. Intersecting aisle				mm	2580	2650	2650	2700
Min. Right angle stacking aisle width				mm	4270	4320	4320	4400
Laden/Unladen		Travel speed		km/h	19/20	19/20	19/20	19/20
		Lift speed		mm/sec	510/550	440/480	430/480	320/480
		Lowering speed		mm/sec	600/300	600/300	600/300	600/300
Max. gradeability (Laden /Unladen)				%	15/20	15/20	15/20	15/20
Max. drawbar pull				KN	20	20	20	20
Self weight				kg	4150	4650	4850	5100
Tires		Front			28x9-15-12PR	28x9-15-12PR	28x9-15-12PR	250-15-16PR
Tires		Rear			6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
Tread		Front		mm	1000	1000	1000	1000
Tread		Rear		mm	970	970	970	1080
Wheelbase				mm	1800	1800	1800	1900
Min.ground clearance				mm	140	140	140	140
Operating pressure				Mpa	17.5	17.5	17.5	17.5
Battery				V/AH
Engine		Model			Isuzu C240PKJ-30	Xinchai A495BPG	Xinchai A498BPG	Isuzu 4JG2PE-01
		Rated output		kw/rpm	34.6/2500	42/2500	45/2500	46/2450
		Rated torque		N.m/rpm	139.2/1800	174/1800-2000	193/1800	186/1700-1800
		No.of cylinder			4	4	4	4
		Bore×stroke		mm	86x102	95x105	98x105	95.4x107
		Displacement		cc	2369	2977	3170	3059
		Emission Standard			Stage II / EURO IIIA	Stage II	Stage III / EURO IIIA	Stage II / EURO IIIA
Transmissions		Type			Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic	Mechanical/Hydraulic
Hydraulic System Working Pressure				MpA	17.5	17.5	17.5	17.5

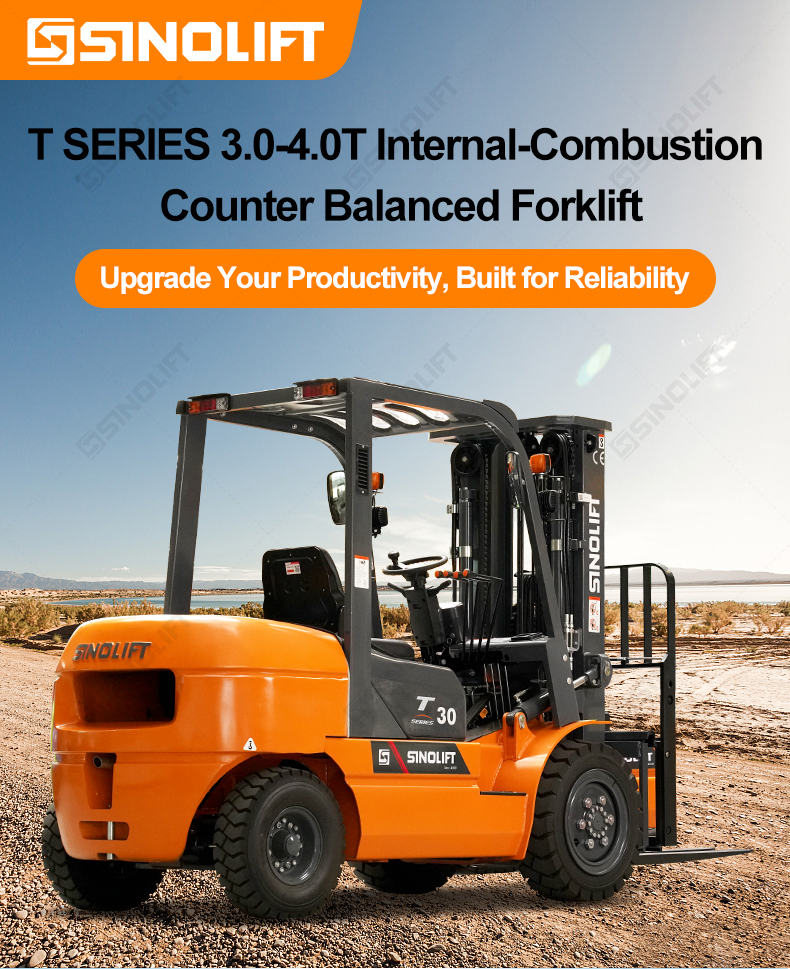

Engineered for both indoor and outdoor use, this 3-4 ton counterbalance forklift offers exceptional maneuverability, operator comfort, and long-term durability.

Achieve high-efficiency material handling with the upgraded T Series internal combustion forklift, featuring a compact design, low emissions, and robust construction.

Designed for productivity, the T Series 3.0-4.0T forklift combines advanced global technology, excellent fuel efficiency, and operator-centric ergonomics.

Built to meet diverse global needs, this 3-4 ton forklift provides flexible engine options, superior stability, and easy maintenance in one reliable package.

Optimize your warehouse or logistics yard with the versatile T Series 3.0-4.0T internal combustion forklift, offering a tight turning radius and quiet operation.

The T Series forklift redefines reliability with its high-strength mast, wide visibility, and ergonomic cab designed for all-day operator comfort.

From manufacturing to distribution, this 3-4 ton counterbalanced forklift handles heavy loads with precision, stability, and excellent energy efficiency.

Featuring dual-source engine options and global emissions compliance, the T Series forklift is a sustainable, high-performance solution for material handling.

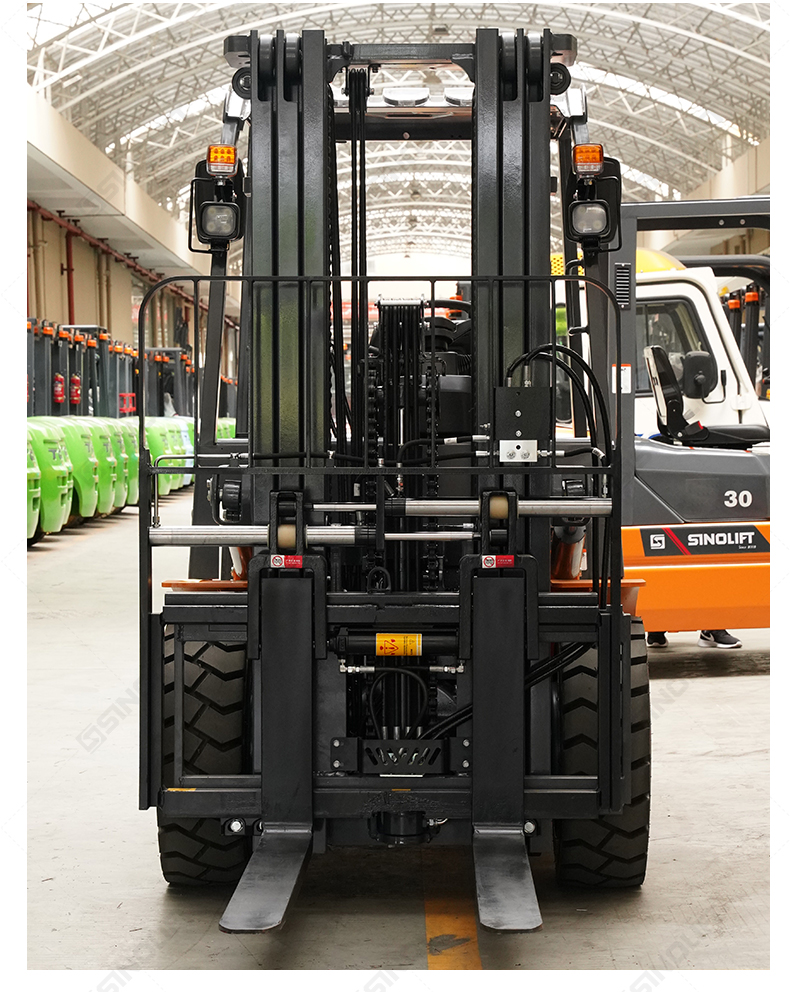

Experience smooth, stress-free operation with the T Series internal combustion forklift, thanks to its vibration suppression, low step height, and intuitive controls.
