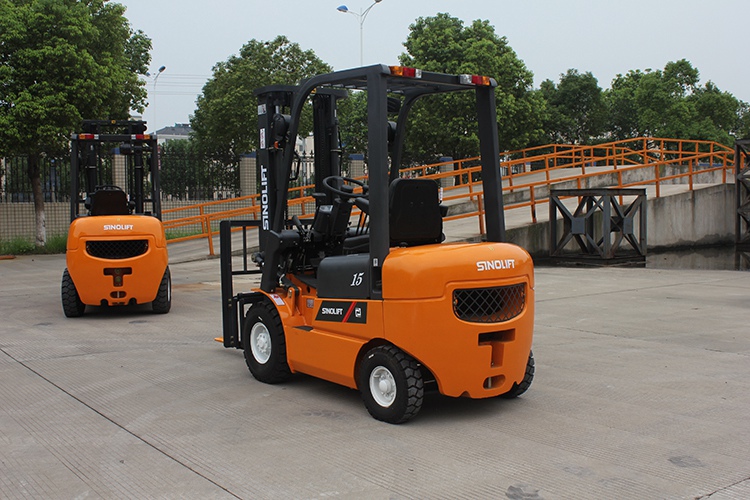

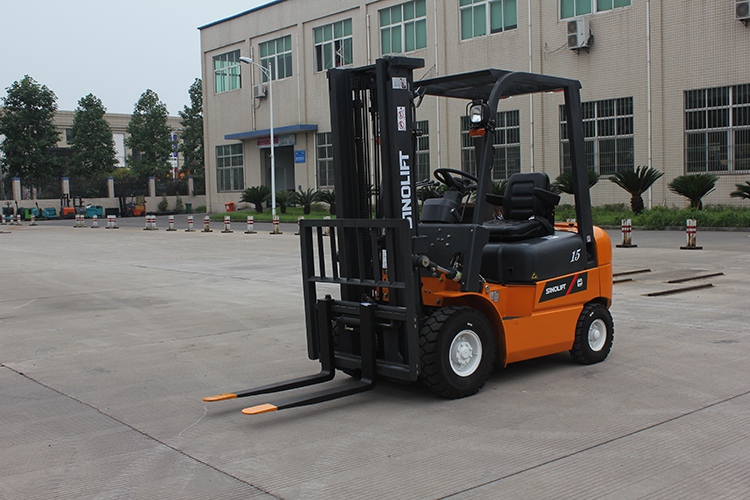

1.5 Ton Diesel Forklift China

CPCD15

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

Appearance
The latest appearance design method was used to create the L series fluent and aesthetic outline, which matches the latest appearance trend.

Efficiency
Thanks to the long wheelbase design, the longitudinal stability of whole truck is much better, the hoisting capacity at same lift height are enhanced by an average of 100KG compared with former truck. At the same time, it prolongs work time of rear wheel as the reduced rear axle’s load.

The travel speed of truck has been raised, for example, the 2-2.5T type comes to 20km/h.

Increasing the hard proportion of hydraulic pipe, adopting right angle connector or straight through connector, that reduce the pressure loss of pipeline, and raise the lifting speed of mast, the speed is increased by an average of 10% compared with former truck.

Service
Dual air spring supporting hood and one-touch removal of the floorboard get you right to service operations, and reduces down-time.

The reasonable arrangement of fuse and installation of instrument, enable the replacing for fuse and maintenance for instrument easier.

Safe
A throttling device is set in pipe system，the mast won’t result in failing control of mast even some pipes broke.
By using a built-in hood lock device, the safe level of the truck has been raised.

Generals	Manufacture				SINOLIFT
	Model				CPCD15-X1
					CPCD15-W1
	Power type				Diesel
	Rated capacity			kg	1500
	Load center			mm	500
Dimensions	Lift height			mm	3000
	Free lift height E			mm	164
	Fork size N×U×L			mm	920×100×40
	Mast tilt angle α / β			deg	6/12
	Front o-verhang A2			mm	436
	Overall dimensions	Length to face of fork A1		mm	2235
		Overall width B1		mm	1095
		Mast lowered height H1		mm	1995
		Mast extended height H3		mm	4030
		Overhead guard height H2		mm	2075
	Turning radius R			mm	1960
	Min. right angle aisle width X			mm	1780
Performance	Travel speed (full load/no load)	Hydraulic		km/h	14.5/13.5
		Mechanical	I		6/5.5
			II		14/13.5
	Lift speed with load			mm/sec	510/450
	Max. gradeability			%	20
	Self weight			kg	2740
Wheel & Tires	Tires	Front			6.50-10-10PR
		Rear			5.00-8-10PR
	Tread	Front B2		mm	890
		Rear B3		mm	920
	Wheelbase A3			MM	1400
	Ground clearance(no load/full load)		Mast M	mm	95/105
			Frame F		105/115
Drive units	Engine	Apply to truck model			CPCD15-X1	CPCD15-W1
		Model			XINCHAI 4N23G31	ISUZU C240NKFC-01
		Rated output		kw/rpm	30/2600	35.4/2500
		Rated torque		N.m/rpm	131/1700-1900	137.7/1800
		No.of cylinder			4	4
		Bore×stroke		mm	85*100	86*102
		Displacement		L	2.27	2.369
