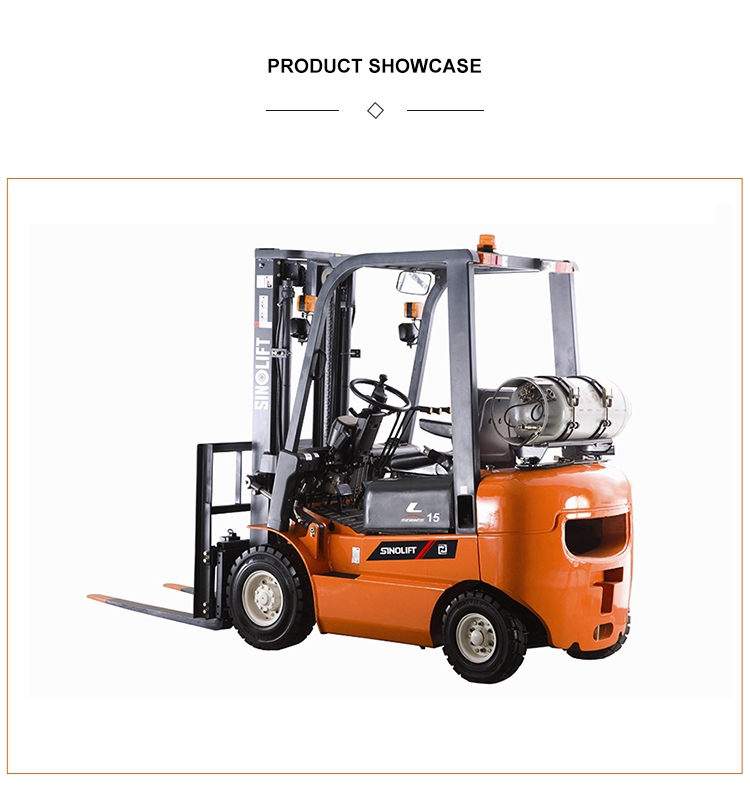

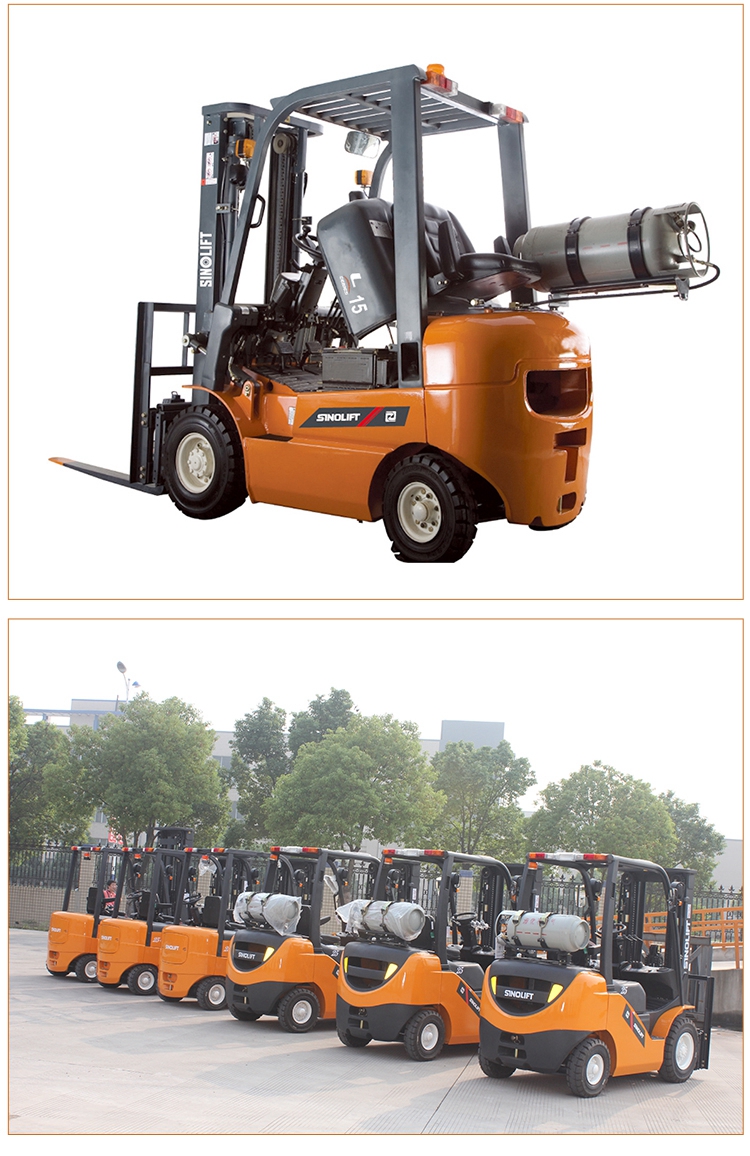

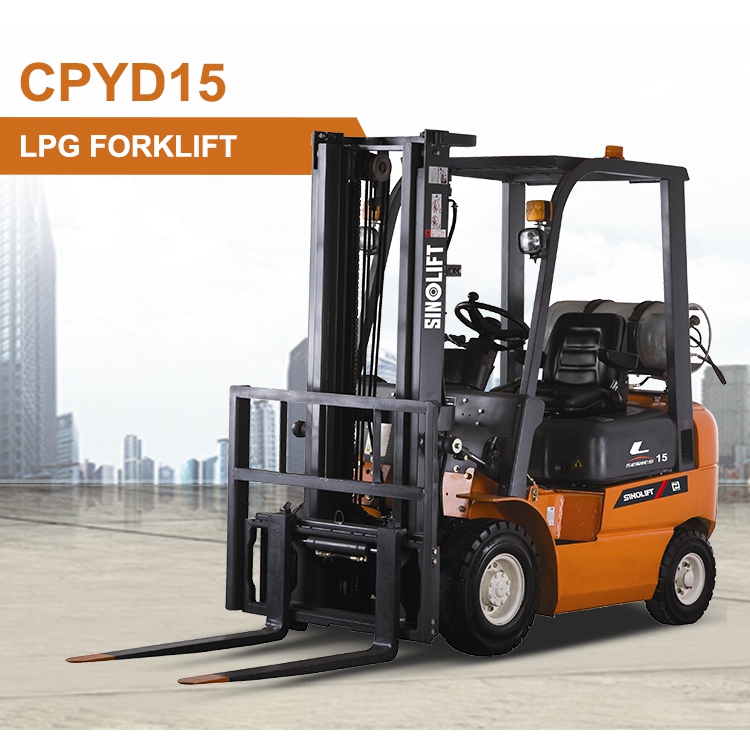

1.5 Ton LPG and Gasoline Forklift

CPYD15

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

Developed to help your operator achieve maximum productivity, while minimum running costs, SINOLIFT L SERIES LPG Forklift 1.5 ton sets the highest standards for IC engine counterbalance forklift trucks.

With its novel fuel economy, sustained components and low-maintenance design, our LPG forklift 1.5 ton Pneumatic Tyres forklift makes perfect business sense. What's more, it comes with a package of advanced features, fitted as standard, that offers true value for money.

Fast, steady and singularly powerful, our LPG Forklift 1.5 ton offer a effective alliance of high potency, low emissions and very low noise levels.

To that, SINOLIFT LPG Forklift 1.5 ton has added a host of ergonomic characteristics to maximise ease, governance and fidelity. The result is a forklift that can be leaned upon to deliver top capability, whatever the adhibition, whatever the situations.

Model: Load Capacity

CPYD15 : 1500kg

POPULAR FEATURE # 1

Operator Presence Sensing System(OPS)

When operator is not present on the seat, the forklift will stop automatically.

POPULAR FEATURE # 2

Vehicle control component

This high-power 'brain' allows multiple engines and electronic actions to happen contemporaneously, continually regulating and optimising property: ensuring industry-leading power and fuel consumption.

POPULAR FEATURE # 3

Tight chassis

Complete sealing of underside reduces risk of damage from foreign objects, such as shrinkwrap, entering engine compartment. It also reduces noise and eliminates safety issues caused by skyborne dust motes.

POPULAR FEATURE # 4

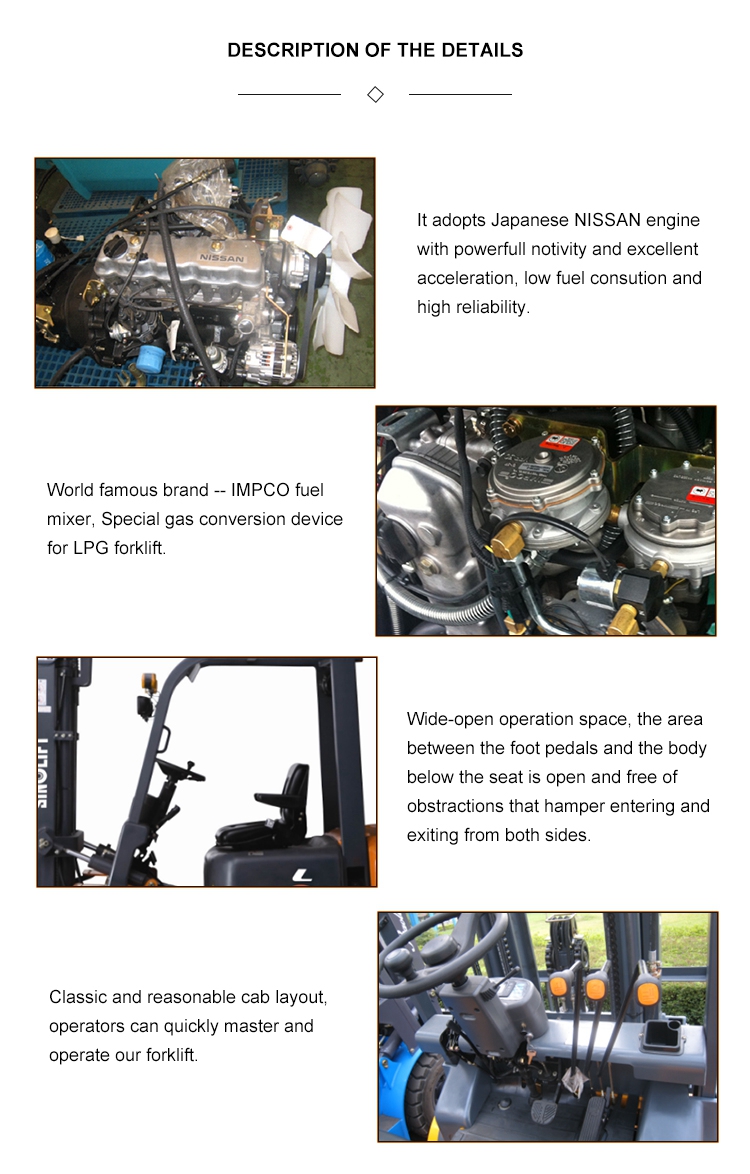

Advanced industrial engine

Industrial-designed engine delivers industry-leading, high torque and power at low revolutions for a long, reliable life. Provides fabulous dependability and lifespan while delivering top performance - combined with the lowest fuel consumption.

POPULAR FEATURE # 5

Engine protection system

To protect the heart of the machine, in an overheat situation, the engine protection system offers two stages of protection. First it slows the machine down, then it shuts it down to protect it.

POPULAR FEATURE # 6

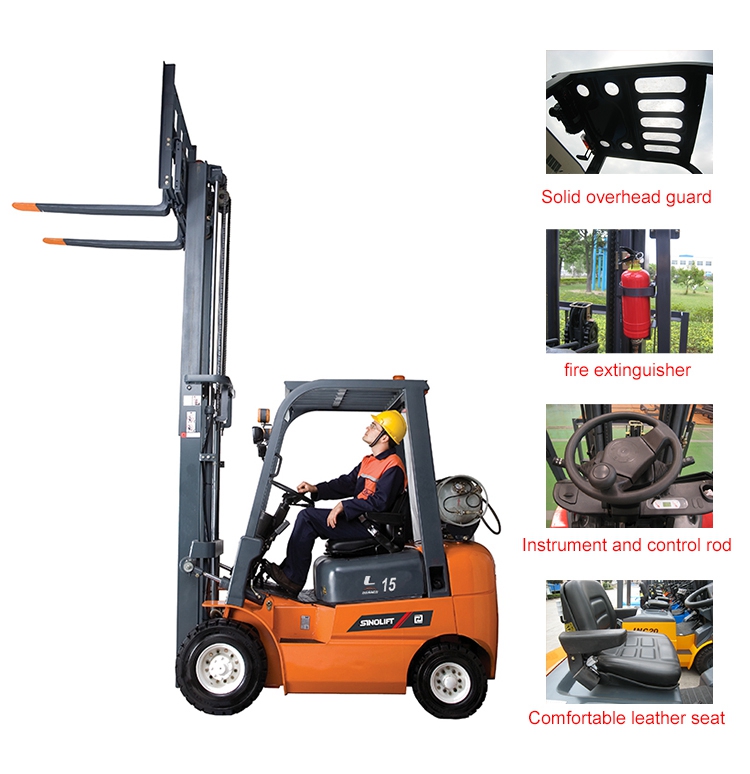

High vision mast

Vision is essential to any safe fork truck operation. Our LPG forklift 1.5 ton offers top visibility through mast for increasing safety and reducing damage costs.

POPULAR FEATURE # 7

Fully floating dynamic system

Separating the chassis from road impact ensure smoother operating conditions, whilst separating the dynamical system protects the transmission and chassis from continued use in difficult applications.

Hot Tags: LPG forklift 1.5 ton, suppliers, manufacturers, factory, customized, in stock, made in China

Model				CPYD15
1	Power Type			Gasoline/LPG
2	Rated Capacity		kg	1500
3	Load Centre		mm	500
4	Lift Height		mm	3000
5	Fork Size (L×W×T )		mm	920×120×35
6	Mast Tilt Angle (F/R)		Deg	6°/12°
7	Front Overhang (Wheel center to fork face)		mm	410
8	Ground Clearance(Bottom of mast)		mm	110
9	Turning Radius (outside)		mm	2055
10	Min. Intersecting aisle			2150
11	Max.Gradeability (No load/Full load)		%	20
12	Wheelbase		mm	1400
13	Service weight		kg	2820
14	Battery (Voltage/Capacity)		V/Ah	12/80
15	Overall Dimension	Length to face of fork(Without fork)	mm	2285
16		Overall Width	mm	1086
17		Mast Lowered Height	mm	1995
18		Mast Extended Height(With backrest)	mm	3940
19		Overhead Guard Height	mm	2040
20	Speed	Travel (No load)	km/h	15
21	Speed	Lifting(Full load)	mm/s	450
22	Tire	Front	mm	6.50-10-10PR
23	Tire	Rear	mm	5.00-8-10PR
24	Engine	Model		K21
25		Manufacture		NISSAN GCT
26		Rated output/r.p.m.	kw	31.2/2250
27		Rated torque/r.p.m.	N·m	143.7/1600
28		No.of Cylinder		4
29		Bore×Stroke	mm	89×83
30		Displacement	cc	2065
31		Fuel Tank Capacity	L	45
32	Transmission	Type		Powershift Hydraulic
33	Transmission	Stage FWD/RVS		1/1
34	Operating Pressure for Attachment		Mpa	14.5
