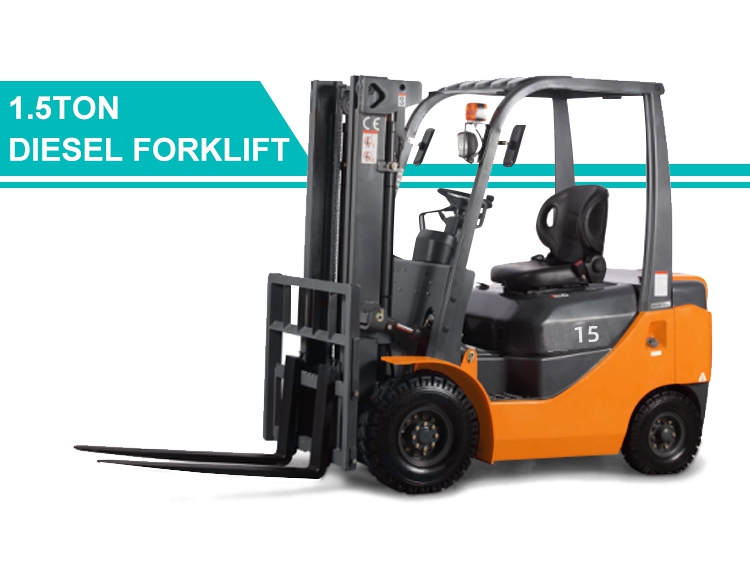

1.5 Ton Diesel Forklift

Applied the advanced outline designing method, the truck is designed with stream, sporty outline, and thanks to the new design, all the exposed parts are metal made, which is firm and reliable.

SINOLIFT forklift new generation diesel counter balance forklift advantages:

1. Strong Power System. We follow the strict environmental design, all engines match the China Ⅲ or even higher emission standards.

2. Super comfortable. SINOLIFT forklifts are all with comfortable driving space, adjustable steering wheel and seats, super low and non-slip step, suspension steering axle, storing space, and convenient LCD panel.

General	Manufacturer			SINOLIFT
	Model			CPCD15G-W1
	Power type			Diesel
	Rated capacity		kg	1500
	Load center		mm	500
Dimension	Lift height H		mm	3000
	Free lift height H4		mm	162
	Fork size LWT		mm	92010040
	Mast tilt angle α/β		deg	6/11
	Front overhang X		mm	408
	Overall dimension	Length to fork face L1	mm	2255
		Overall width B1	mm	1080
		Mast lowered height H1	mm	1995
		Mast extended height H3	mm	4042
		Overhead guard height H2	mm	2100
Performance	Turning radius R		mm	2070
	Travel speed (full load/no load)		km/h	12/14
	Lift speed (full load/no load)		mm/sec	460
	Max. Gradeability		%	20
	Service weight		kg	2740
Chassis	Tyre	Front		6.50-10-10PR
	Tyre	Rear		5.00-8-10PR
	Tread	Front B2	mm	890
	Tread	Rear B3	mm	920
	Wheelbase Y		mm	1450
	Ground clearance (full load/no load)	Mast M		95/110
	Ground clearance (full load/no load)	Frame F	mm	100/110
Drive units & Control	Engine	Apply to truck model		CPCD15G-W1
		Engine type		Diesel
		Engine Name Code		W1
		Model		ISUZU C240PKJ
		Rated output	kw/rpm	34.5/2500
		Rated torque	N.m/rpm	139/1800
		No.of cylinder		4
		Bore*stroke(mm)	mm	86*102
		Displacement	(L)	2.369
