forklift truck

1.5T Electric Balance Weight Forklift Truck

CPD15J
Quantity:
Contact Now
add to cart
All Products

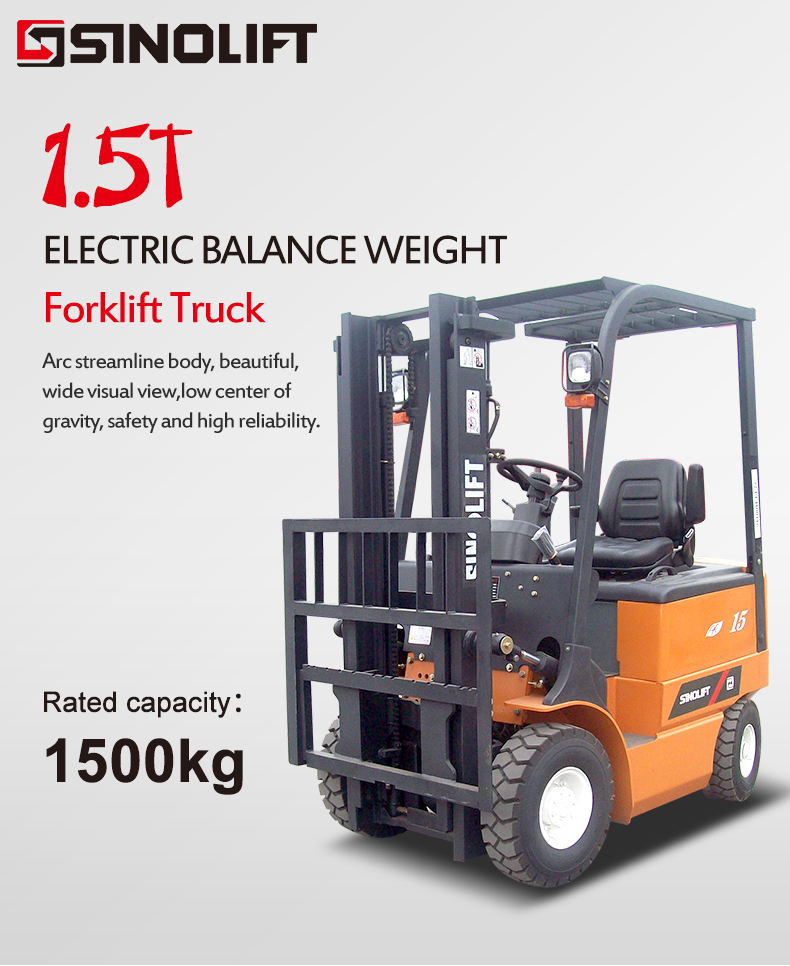

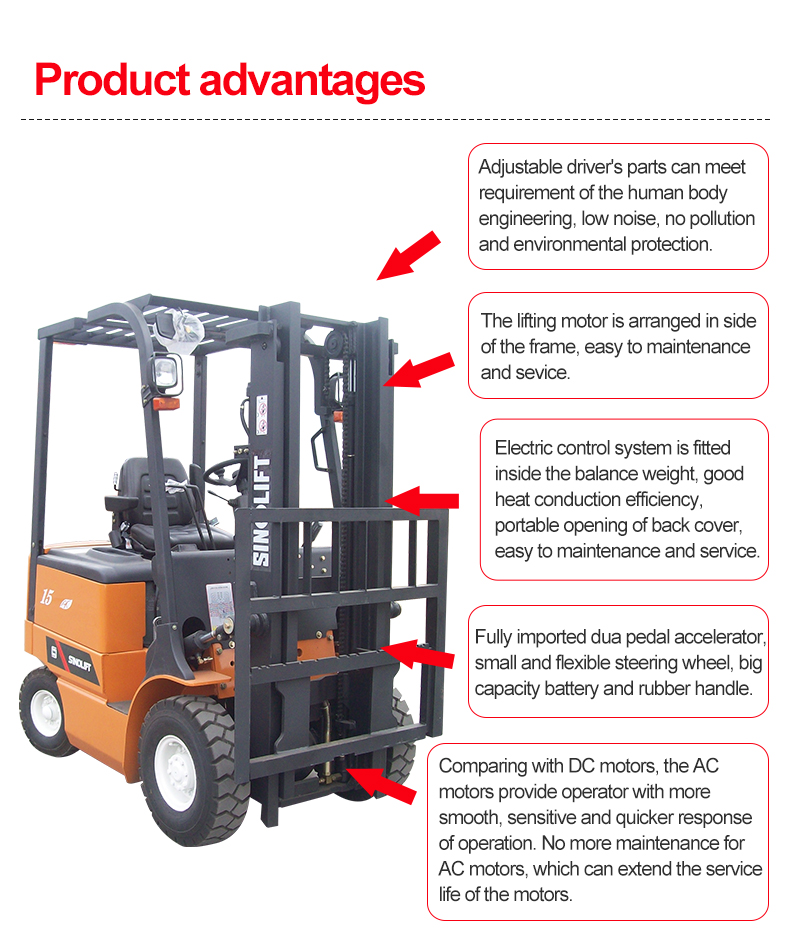

(1) Arc streamline body, beautiful, wide visual view,low center of gravity, safety and high reliability.

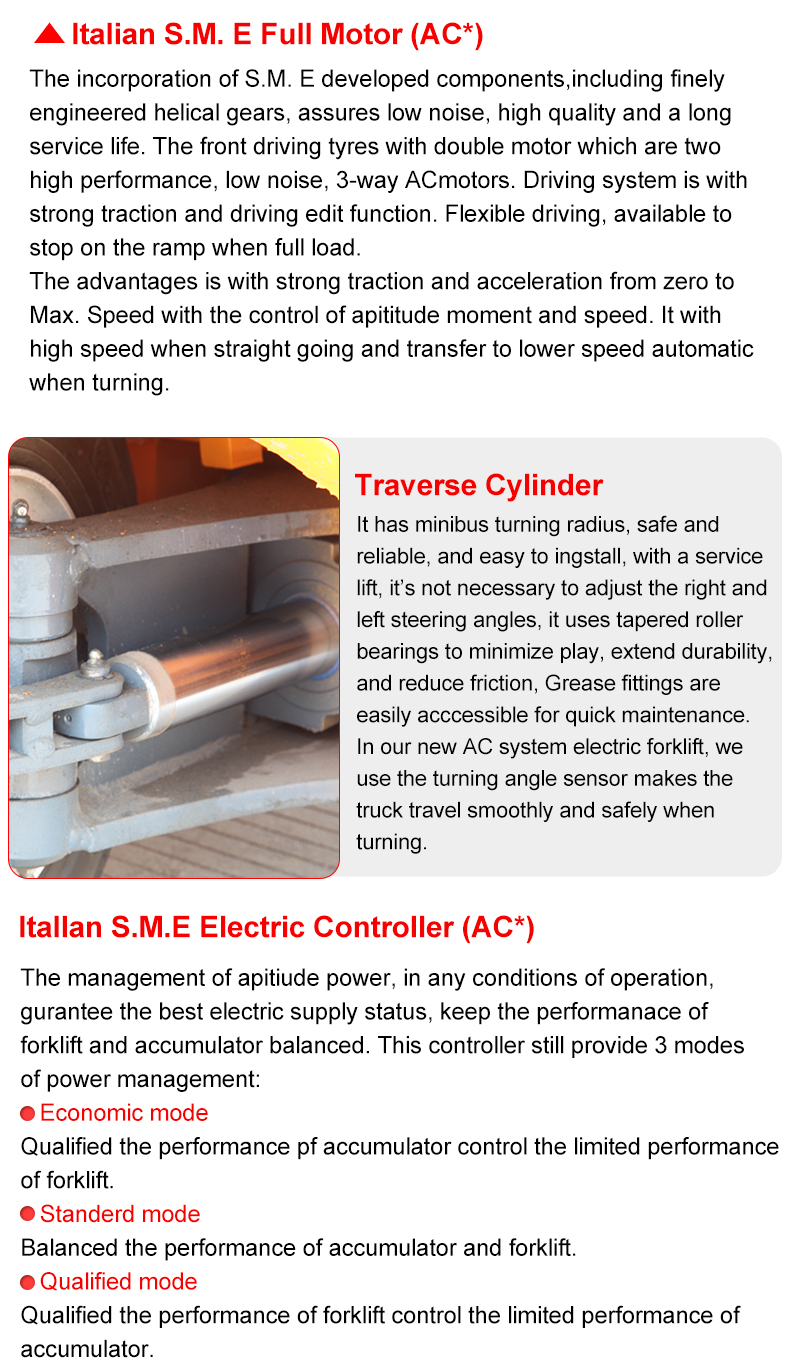

(2) Comparing with DC motors, the AC motors provide operator with more smooth, sensitive and quicker response of operation. No more maintenance for AC motors, which can extend the service life of the motors.

(3) Electric control system is fitted inside the balance weight, good heat conduction efficiency, portable opening of back cover, easy to maintenance and service.

(4) Fully imported dua pedal accelerator, small and flexible steering wheel, big capacity battery and rubber handle.

(5) The lifting motor is arranged in side of the frame, easy to maintenance and sevice.

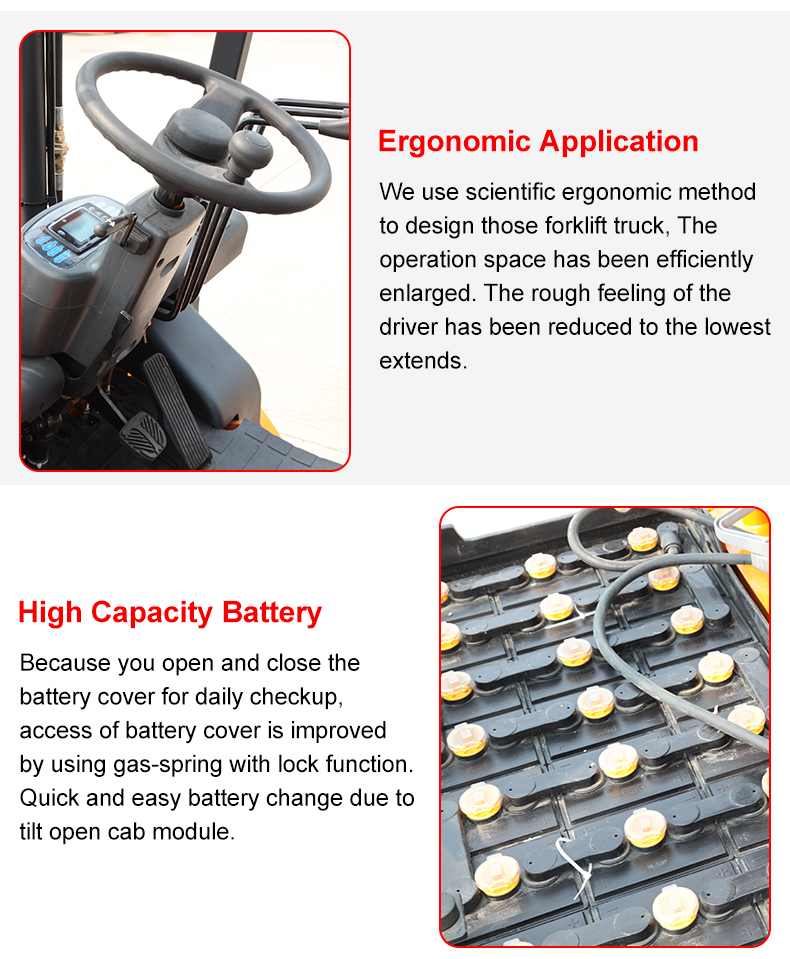

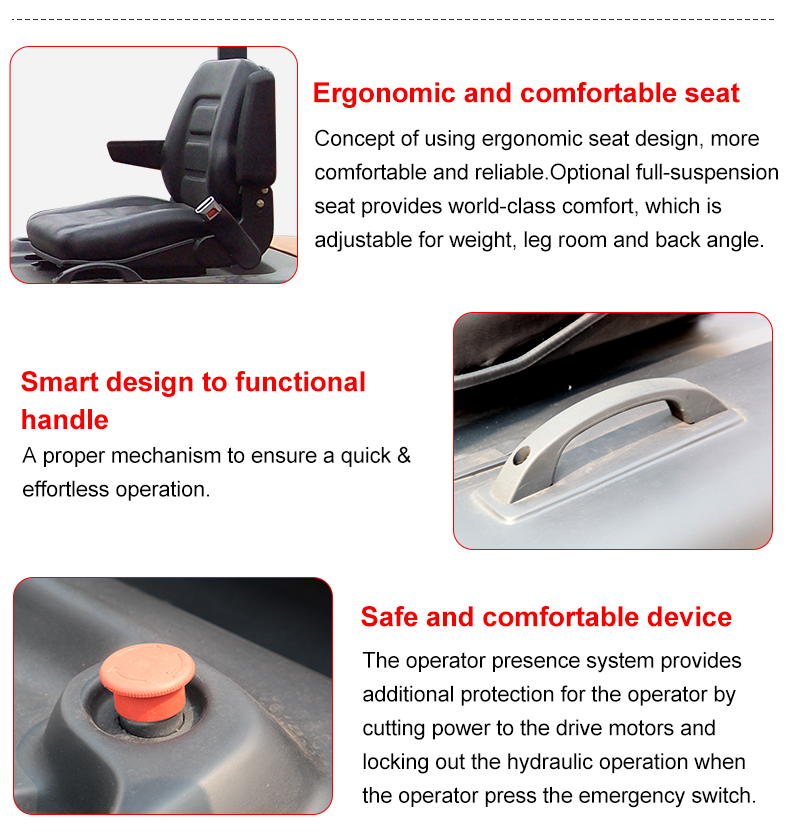

(6) Adjustable driver's parts can meet requirement of the human body engineering, low noise, no pollution and environmental protection.

GeneralManufacturerSINOLIFT J Series 1.5T Battery Forklift Specifications
ModelCPD15J
Power typeBattery
Rated capacitykg1500
Load centermm500
DimensionsLift height                                                    Hmm3000
Free lift                                                       Emm162
Fork size                                                     N×U×Lmm920×120×40
Fork outside spread (Min./Max.)mm200/968
Mast tilt angle (forward/backward)                α / βdeg6/12
Front ovehang                                              A2mm429
Overall dimensionsLength to face of fork                   A1mm2056
Overall width                               B1mm1090
Mast lowered height                      H1mm1995
Mast extended height                    H3mm4042
Overhead guard height                  H2mm2162
Turning radius                                                 Rmm1820
Min. right angle aisle width                                Xmm1810
Min. right angle stacking aisle width           RASAmm3370
PerformanceTravel speed (no load / full load)km/h15/13
Lifting speed (no load / full load)mm/sec400/300
Max. pull force (full load)KN6.5
Services weightkg3120
Max. gradebility%15
Wheel & TireTyreFront6.50-10-10PR
Rear5.00-8-8PR
TreadRont      B2mm890
Rear      B3mm920
Wheelbase                                                   A3mm1250
Ground clearance (no load / full load)Mast       Mmm110/95
Fram      F105/95
Power & ControlBattery ModelD-440B
Voltagev/Ah48/440
Battery Weightkg760
MotorDrive motorModelMT708B
Rated powerkw/rpm8/1600
Lifting MotorModelMT719B
Rated powerkw/rpm10/2450
ControllerJItalian SME AC  controller
