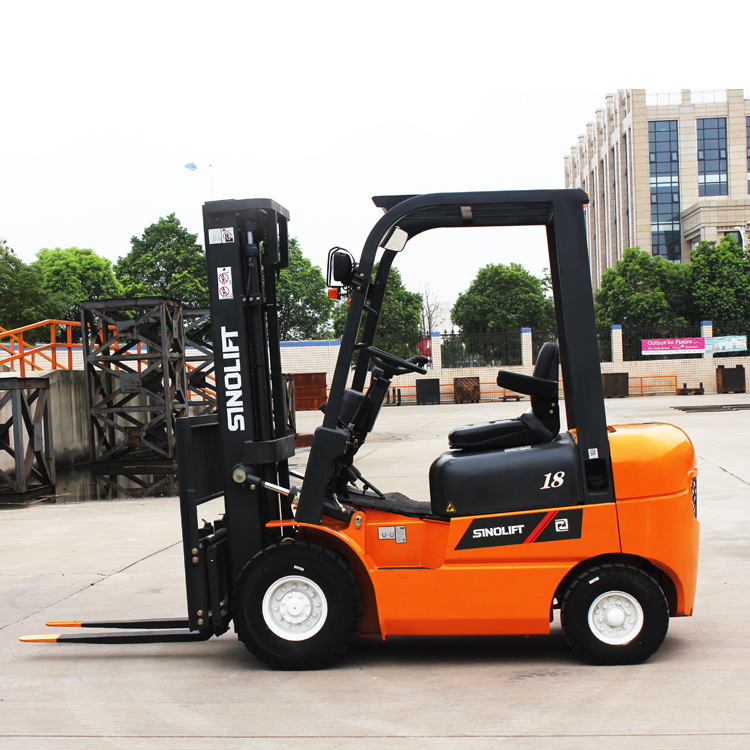

1.8 Ton Diesel Forklift Truck
PRODUCT DETAILS
A COMPACT AND RELIABLE IC FORKLIFT WITH THE POWER TO HANDLE THE TOUGHEST JOBS
The most compact IC forklift truck in SINOLIFT product range, the diesel 1.8 ton forklift is designed for demanding indoor and outdoor applications, providing a low cost of ownership.
Available with a 35.4kw diesel engine, the Diesel 1.8 ton forklift is tough and reliable forklift truck suited to the most stressed 24 hour logistics and distribution operations.
SINOLIFT 1.8 ton diesel Counterbalanced Forklift Truck Highlights:
1.A robust chassis and high strength mast design optimises capacity retention at high lifts with excellent visibility and stiffness
2.The fully isolated power train uses elastometic mounts to minimise noise and vibration in challenging operations, and the full floating design of the drive axle enhances dependability and reliability for a longer service life
3.Hassle-Free hydraulic systems featuring Leak-free O-ring face seal fittings enhance reliability and non-mechanical, Hall-Effect sensors and switches are designed to outlast the life of the truck
4.The maintenance free Hyster Stability Mechanism (HSM) enhances lateral stability without compromising uneven surface travel

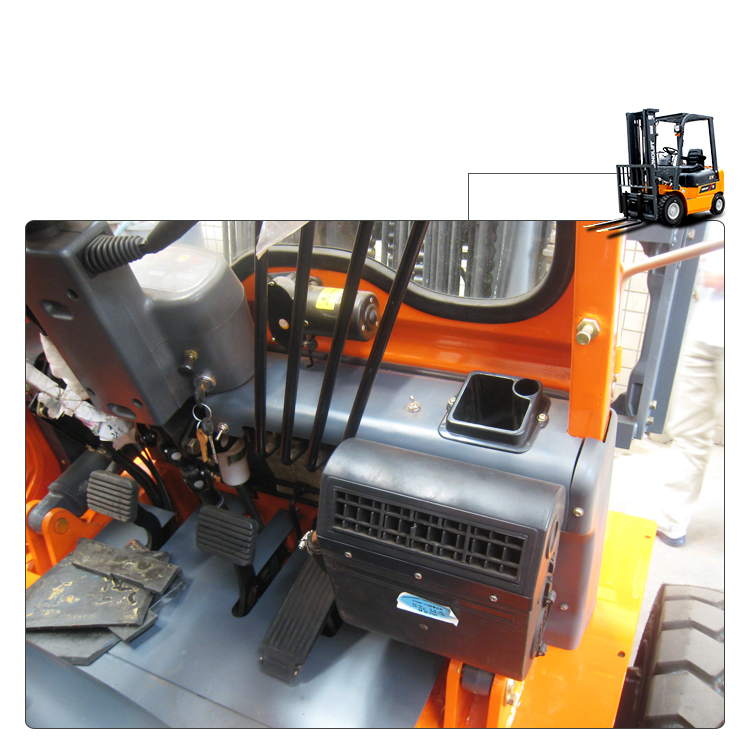

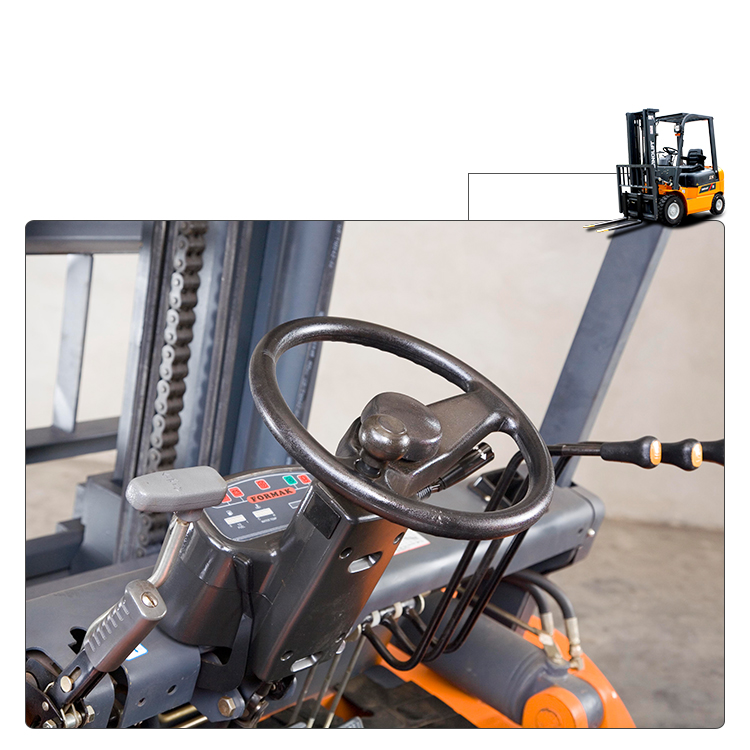

5.An innovative operator compartment design offers easy driver access, excellent all-round visibility and conveniently located controls
6.Complete cowl-to-counterweight service access contributes to rapid, efficient maintenance. Simplified layout of wiring and hydraulics offers greater access to components, which decreases service time for unscheduled repairs and regular maintenance
7.To match the performance to the application there are a number of options including advanced hydraulic and cooling system options
| General | Manufacturer | SINOLIFT | ||||||
| Model | CPCD18-X1 | |||||||
| CPCD18-W1 | ||||||||
| Power type | Diesel | |||||||
| Rated capacity | kg | 1750 | ||||||
| Load center | mm | 500 | ||||||
| Dimensions | Lift height | mm | 3000 | |||||
| Free lift height | mm | 164 | ||||||
| Fork size | mm | 1070×120×40 | ||||||
| Mast tilt angle | deg | 6/12 | ||||||
| Front overhang | mm | 436 | ||||||
| Overall | Overall length | Without fork | mm | 2270 | ||||
| dimensions | With fork | 3356 | ||||||
| Overall width | Wheel width | mm | 1095 | |||||
| Frame width | 1080 | |||||||
| Mast lowered height | mm | 1995 | ||||||
| Mast extended height | mm | 4030 | ||||||
| Overhead guard height | mm | 2075 | ||||||
| Turning radius | mm | 2000 | ||||||
| Min. right angle aisle width | mm | 1820 | ||||||
| Performance | Travel speed | Hydraulic | km/h | 14.5/13.5 | ||||
| (no load/full load) | Mechanical | Shift Ⅰ | 6/5.5 | |||||
| Shift Ⅱ | 14/13.5 | |||||||
| Lift speed (no load/full load) | mm/sec | 510/450 | ||||||
| Max. grade ability | % | 20 | ||||||
| Self weight | kg | 2943 | ||||||
| Wheel & Tires | Tires | Front | 6.50-10-10PR | |||||
| Rear | 5.00-8-10PR | |||||||
| Tread | Front | mm | 890 | |||||
| Rear | mm | 920 | ||||||
| Wheelbase | mm | 1400 | ||||||
| Ground clearance(full load/no load) | Mast | mm | 85/105 | |||||
| Frame | 105/115 | |||||||
| Drive units & control | Engine | Apply to truck model | CPCD18-X1 | CPCD18-W1 | ||||
| Model | XINCHAI 4N23G31 | C240NKFC-01 | ||||||
| Rated output | kw/rpm | 30/2600 | 34.5/2500 | |||||
| Rated torque | N.m/rpm | 131/1700-1900 | 139/1800 | |||||
| No. of cylinder | 4 | 4 | ||||||
| Bore×stroke | mm | 85*100 | 86×102 | |||||
| Displacement | L | 2.27 | 2.369 | |||||
| Lubrication oil capacity | L | 5.2 | 5.2 | |||||
