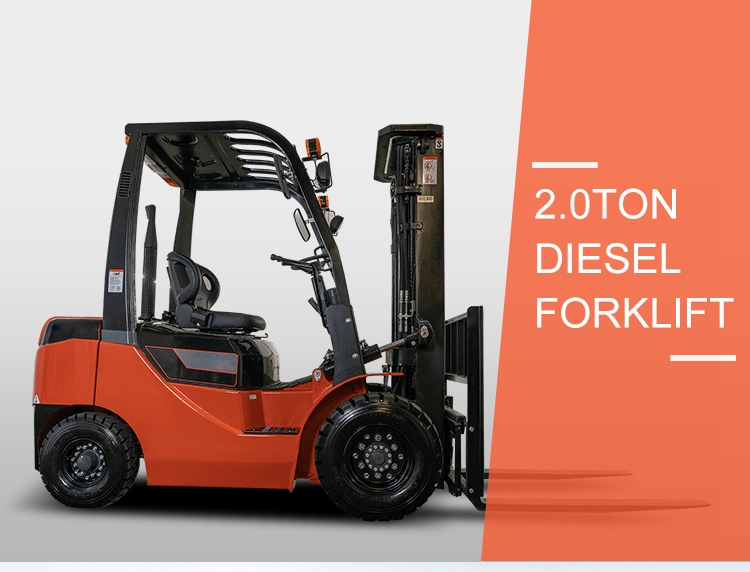

2.0T Diesel Forklift Truck
The SINOLIFT® 2.0 Ton Fork Trucks are designed to exceed expectations in a variety of different work-spaces. Whether your job is indoors or outdoors, these trucks deliver great performance and the best value. These trucks are fitted with the most trusted components in the material handling industry, most notably the powerful Cummins® B3.3-C65 Engine.
1. Three alternatives of engine: Imported Isuzu C240, Yanmar 4TNE92/94/98 engine, and domestic Xinchai 490/495. Economical but powerful enough.
2. Transmission: with TCM technology.
3. Man-machine engineering designs, including the floating shock absorber configured on the engine, the elastic linked steering axle, the redirector providing low tensional moment, the semi-floating bonnet with built-in heat and sound insulation, ensure the comfort of driving.
4. The optional imported engines meet EU stage-III mission control regulation and obtain EPA accreditatio.
| Model | CPCD20G-W1 | |||
| 1 | Power Type | Diesel | ||
| 2 | Rated Capacity | kg | 2000 | |
| 3 | Load Centre | mm | 500 | |
| 4 | Lift Height | mm | 3000 | |
| 5 | Fork Size (L×W×T ) | mm | 1070×120×40 | |
| 6 | Mast Tilt Angle (F/R) | Deg | 6°/12° | |
| 7 | Front Overhang (Wheel center to fork face) | mm | 470 | |
| 8 | Ground Clearance(Bottom of mast) | mm | 120 | |
| 9 | Turning Radius (outside) | mm | 2170 | |
| 10 | Min. Intersecting aisle | mm | 1920 | |
| 11 | Max.Gradeability (No load/Full load) | % | 20 | |
| 12 | Wheelbase | mm | 1600 | |
| 13 | Service weight | kg | 3350 | |
| 14 | Battery (Voltage/Capacity) | V/Ah | 12/80 | |
| 15 | Overall Dimension | Length to face of fork(Without fork) | mm | 2460 |
| 16 | Overall Width | mm | 1150 | |
| 17 | Mast Lowered Height | mm | 1985 | |
| 18 | Mast Extended Height(With backrest) | mm | 4030 | |
| 19 | Overhead Guard Height | mm | 2070 | |
| 20 | Speed | Travel (No load) | km/h | 19 |
| 21 | Lifting(Full load) | mm/s | 490 | |
| 22 | Tire | Front | mm | 7.00-12-12PR |
| 23 | Rear | mm | 6.00-9-10PR | |
| 24 | Engine | Model | C240 PKJ | |
| 25 | Manufacture | ISUZU | ||
| 26 | Rated output/r.p.m. | kw | 35.4/2500 | |
| 27 | Rated torque/r.p.m. | N·m | 139/1800 | |
| 28 | No.of Cylinder | 4 | ||
| 29 | Bore×Stroke | mm | 86×102 | |
| 30 | Displacement | cc | 2369 | |
| 31 | Fuel Tank Capacity | L | 60 | |
| 32 | Transmission | Type | Powershift | |
| 33 | Stage FWD/RVS | 1/1 | ||
| 34 | Operating Pressure for Attachment | Mpa | 17.5 | |
