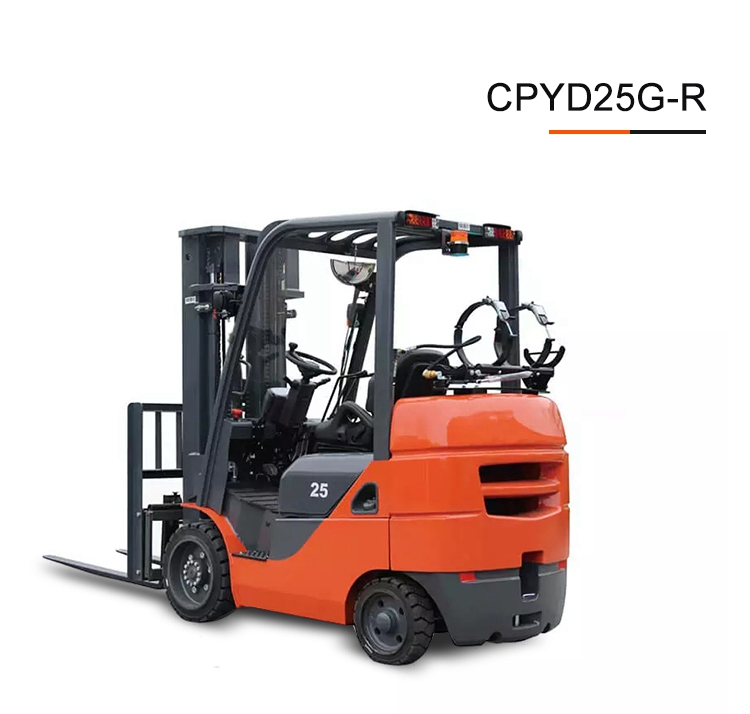

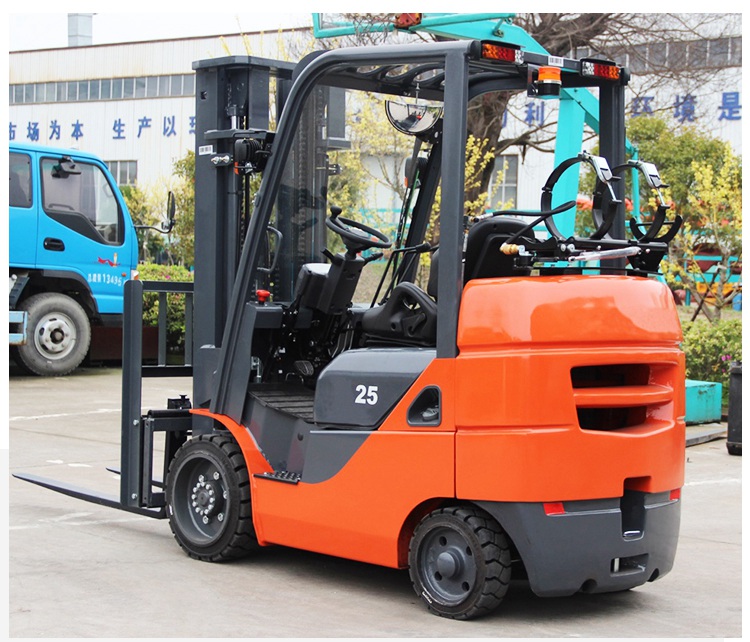

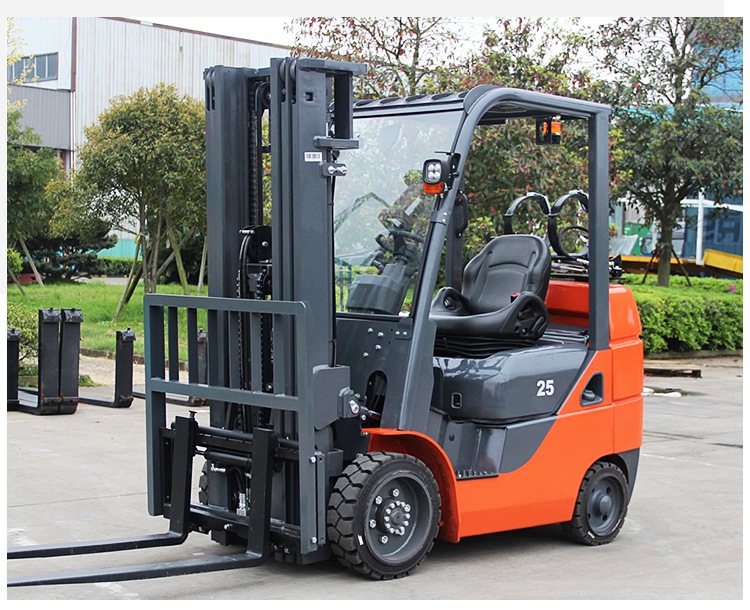

2.5 Ton Engine Gasoline And Propane LPG Cushion Tire Forklift

CPYD25G-R

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

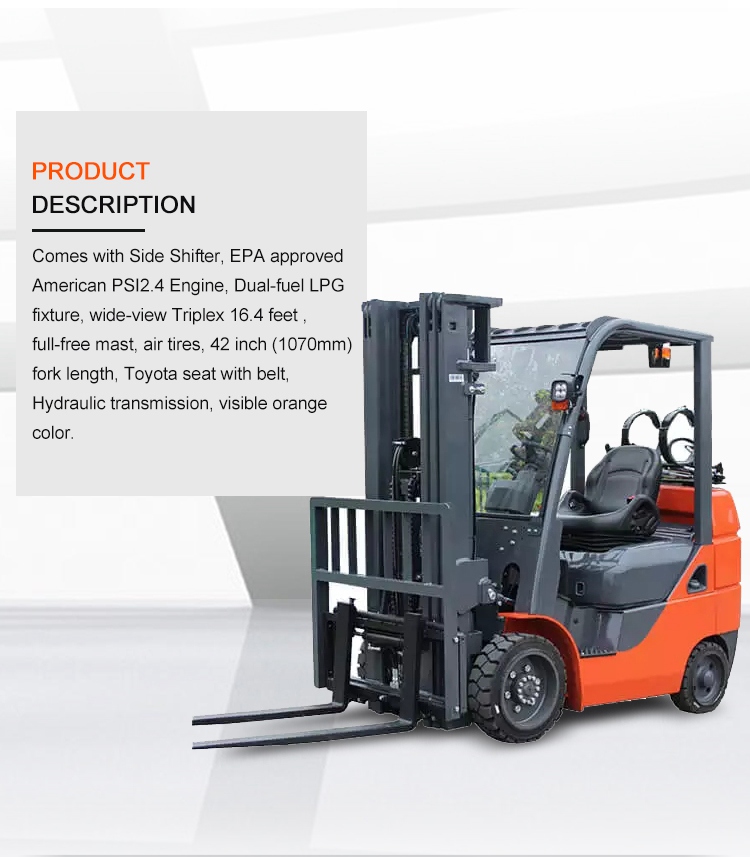

Comes with Side Shifter, EPA approved American PSI2.4 Engine, Dual-fuel LPG fixture, wide-view Triplex 16.4 feet , full-free mast, air tires, 42 inch (1070mm) fork length, Toyota seat with belt, Hydraulic transmission, visible orange color.

5000 lbs 2.5 ton EPA engine gasoline and propane LPG cushion tire forklift
1.Power System. SINOLIFT forklifts are all with reliable power accessories,like Mitsubishi Engine. All accessories are support by domestic and world famous brand, high quality, reliable after-sales.We follow the strict environmental design,all engines match the China or even higher emission standards.

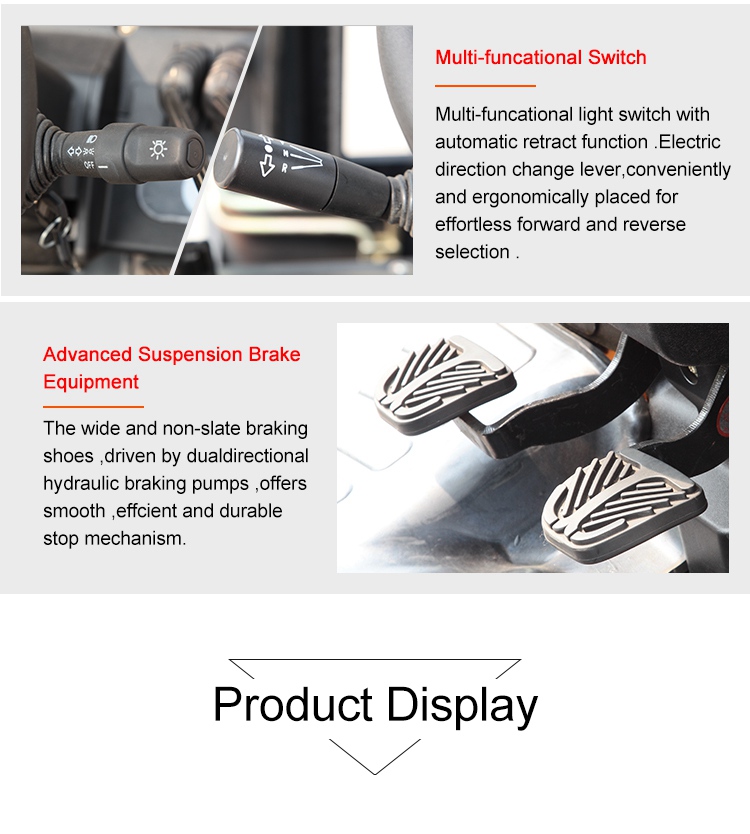

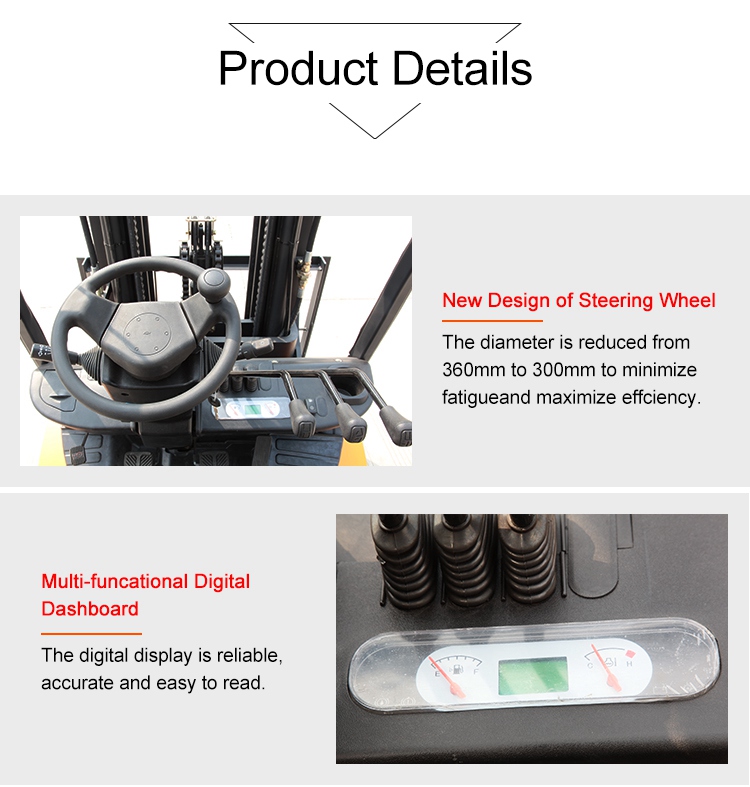

2.Super comfortable. SINOLIFT forklifts are all with comfortable driving space,adjustable steering wheel and seats,super low and non-slip step,suspension steering axle,storing space,and convenient LCD panel.

	Model			CPYD25G-R
1	Power Type			Gasoline/LPG
2	Rated Capacity		kg	2500
3	Load Centre		mm	500
4	Lift Height		mm	3000
5	Fork Size (L×W×T )		mm	1070×122×40
6	Mast Tilt Angle (F/R)		Deg	6°/12°
7	Front Overhang (Wheel center to fork face)		mm	470
8	Ground Clearance(Bottom of mast)		mm	120
9	Turning Radius (outside)		mm	2240
10	Min. Intersecting aisle		mm	2010
11	Max.Gradeability (No load/Full load)		%	20
12	Wheelbase		mm	1600
13	Service weight		kg	3750
14	Battery (Voltage/Capacity)		V/Ah	12/90
15	Overall Dimension	Length to face of fork(Without fork)	mm	2530
16		Overall Width	mm	1150
17		Mast Lowered Height	mm	1985
18		Mast Extended Height(With backrest)	mm	4030
19		Overhead Guard Height	mm	2070
20	Speed	Travel (No load)	km/h	19
21	Speed	Lifting(Full load)	mm/s	490
22	Tire	Front	mm	7.00-12-12PR
23	Tire	Rear	mm	6.00-9-10PR
24	Engine	Model		4G64
25		Manufacture		Mitsubishi
26		Rated output/r.p.m.	kw	37/2500
27		Rated torque/r.p.m.	N·m	161/1600
28		No.of Cylinder		4
29		Bore×Stroke	mm	86.5×100
30		Displacement	cc	1982
31		Fuel Tank Capacity	L	60
32	Transmission	Type		Powershift (Manual)
33	Transmission	Stage FWD/RVS		1/1(2/2)
34	Operating Pressure for Attachment		Mpa	1/1(2/2)
