3.5 Ton LPG and Gasoline Forklift

PRODUCT DETAILS

SINOLIFT 3.5 ton LPG 4-WHEEL engine powered counterbalance forklift is a powerful forklift model. Stacked with world class safety features, superior performance, outstanding productivity and user friendly ergonomics, it's simply first class. Built SINOLIFT tough, the SINOLIFT 3.5 ton LPG FORKLIFT feature: Operator Presence Sensing safety system, Active Mast Function / Automatic Fork Leveling controls, and Wide View Mast for unparalleled visibility.

PRODUCTIVITY

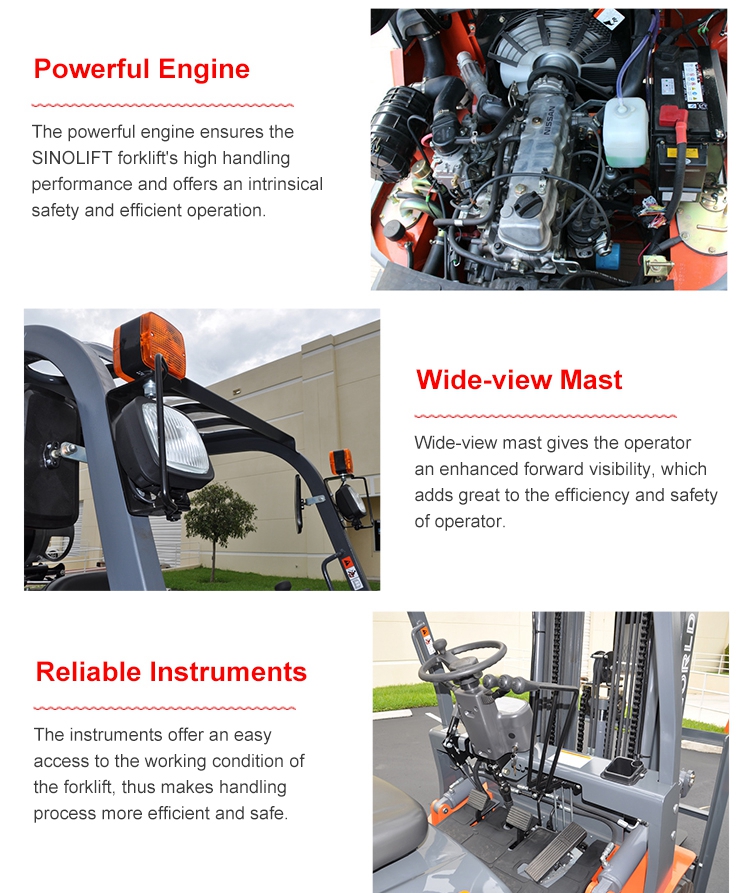

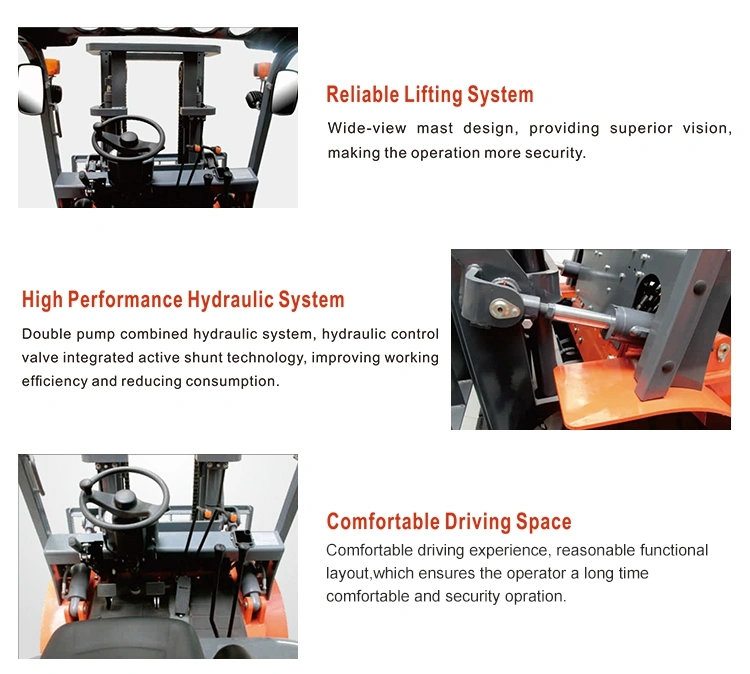

Wide-view Mast offers an incomparable view of the forks in any position.

Optional finger control offers quick, convenient shifting between forward and reverse.

Tight turning radius increases mobility in small areas with synchronizing of the steering wheel and angle of rear wheels.

SAFETY

The Operator Presence Sensing (OPS) system helps to prevent accidental movement of the forklift and forks when the operator is not seated at the controls. The OPS system senses if the operator is properly seated and at the controls by means of the seat switch. When the operator is properly seated at the controls the seat switch will go"on".

If the operator is not seated at the controls the seat switch will turn"off", and the OPS system will disable the ability to lower the forks, or tilt forward or back along with all the other loading and unloading movements.

PERFORMANCE

SINOLIFT 3.5 ton LPG FORKLIFT use GCT K25 engine and Kubota WG2503 engine.

GCT K25 specification

Rated output/r.p.m.: 35.6KW/2100

Rated torque/r.p.m.: 176.5N.m/1600

Number of cylinder: four

Bore*stroke: 89mm*100mm

Displacement: 2488cc

Fuel tank capacity: 60L

Model: WG2503-L-E3

Emission Regulation: EPA Tier 2, CARB Tier 3

Type: Vertical 4-cycle liquid cooled engine LPG use

Number of Cylinders: four

Bore: 88mm

Stroke: 102.4mm

Displacement: 2.491L

Fuel: Commercial LPG

Aspiration: Naturally aspirated

Maximum Speed: 2700rpm

SAE J1995 Gross Power Output: 46.0kW

Direction of Rotation: Counter clockwise viewed from flywheel side

COMFORT/ERGONOMICS

Ergonomically-mounted hydraulic controls allow for comfortable,"eyes forward"operation.

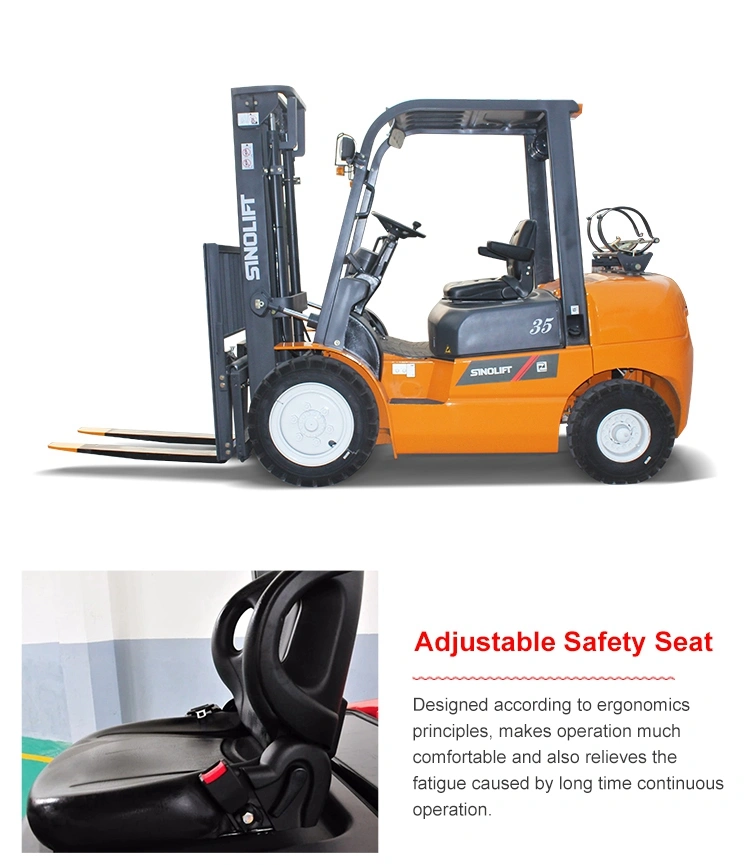

Adjustable, ultra-comfortable Operator Restraint Suspension seat with exclusive lumbar support for comfort and protection

Operator working space with wider foot area helps reduce operator tiredness.

The design of SINOLIFT 3.5 ton LPG 4-WHEEL FORKLIFT is focused on improving the forward, downward, and upward operator's visibility. The lower instrument panel, the relocated display, adjustment of the mast width and other factors ensure outstanding forward visibility on the SINOLIFT 3.5 ton LPG 4-WHEEL FORKLIFT.

EASE OF USE

Integrated monitoring system for quicker, easier troubleshooting diagnosis and servicing.

Easy-lift engine hood with wide-access design and automatic assist damper provide quick access to the engine.

No-tool floorboard removes in seconds for quicker servicing.

Swing-Down LPG tank bracket makes switching tanks safe, quick and reduces lifting distance for the operator.

GREAT FOR THESE INDUSTRIES

Transport / Freight / Distribution

Manufacturing / Construction / Maintenance

Home Improvement / Hardware

Grocery / Markets / Grocery Distributuion

Forestry Products / Timber / Mining

General / Refrigerated Warehouse

Computer / Electronics

Packaging

Third Party Logistics

Paper / Publishing

Landscaping / Nursery

Retail / Department Stores

Furniture

Aviation
