AMWP-1000 Single Mast Self-propelled Aerial Work Platform
:AMWP-1000 Single Mast Self-propelled Aerial Work Platform
The product has passed the CE certification and is mainly applied in power, communication, airport, conference and exhibition center, supermarket, factory, station, subway station, etc. It is only for one person's working.

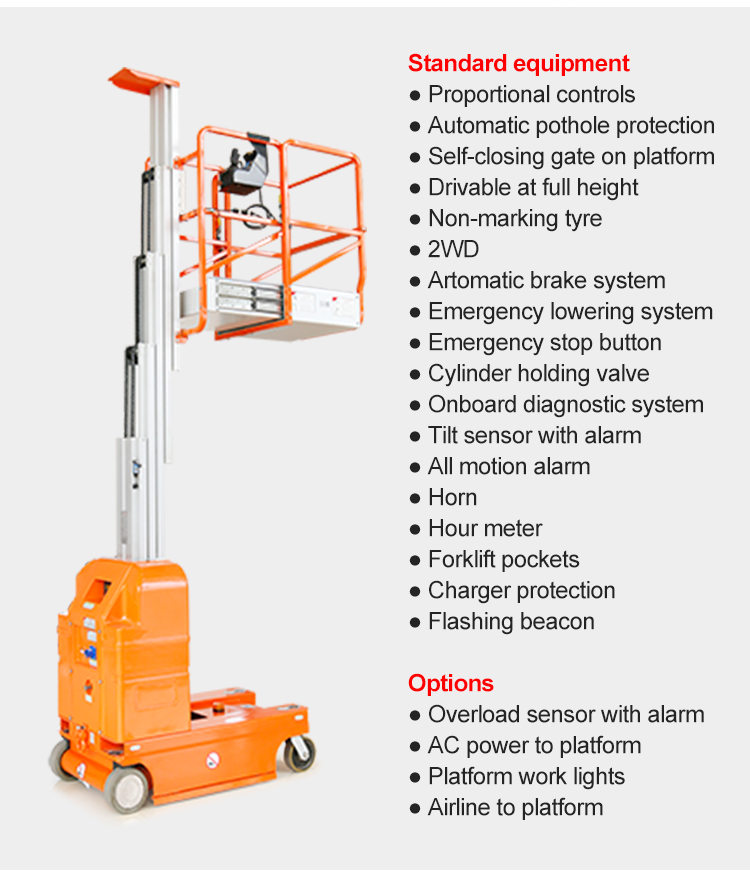

● Standard equipment
● Proportional controls
● Automatic pothole protection
● Self-closing gate on platform
● Drivable at full height
● Non-marking tire
● 2WD
● Automatic brake system
● Emergency lowering system
● Emergency stop button
● Cylinder holding valve
● Onboard diagnostic system
● Tilt sensor with alarm
● All motion alarm
● Horn
● Hour meter
● Forklift pockets
● Charger protection
● Flashing beacon
● Options
● Overload sensor with alarm
● AC power to platform
● Platform work lights
● Airline to platform
| Model No. | AMWP6-1000 | AMWP7.5-1000 | |
| Max. Platform Height | mm | 6000 | 7500 |
| Max. Machine Height | 7600 | 9000 | |
| Min. Platform Height | 510 | ||
| Ground Clearance | 50 | ||
| Lift Rated Capacity | kg | 150 | 125 |
| Platform Extend Capacity | Free Set | ||
| Platform Size | mm | 780×700×1150 | |
| Platform Extend Length | Free Set | ||
| Max. Drive Speed (Platform Stowed) | km/h | 3~4 | |
| Max. Drive Speed (Platform Elevated) | 0.6-1 | ||
| Min. Turning Radius | mm | 1350 | |
| Max. Travel Grade | % | 15-20 | |
| Caster Size | in | 8 | |
| Driving Wheel Size | mm | ф230-250×80 | |
| Driving Motor | v/kw | 2×24/0.4-0.5 | |
| Lifting Motor | 24/ 2 | ||
| Aneroid Battery | v/Ah | 2×12/100 | |
| Charger | v/A | 24/ 12 | |
| Pothole Protection System | Automechanism | ||
| Overall Length | mm | 1360 | |
| Overall Width | 790 | ||
| Overall Height | 1980 | ||
| Overall Net Weight | kg | 850 | 880 |
