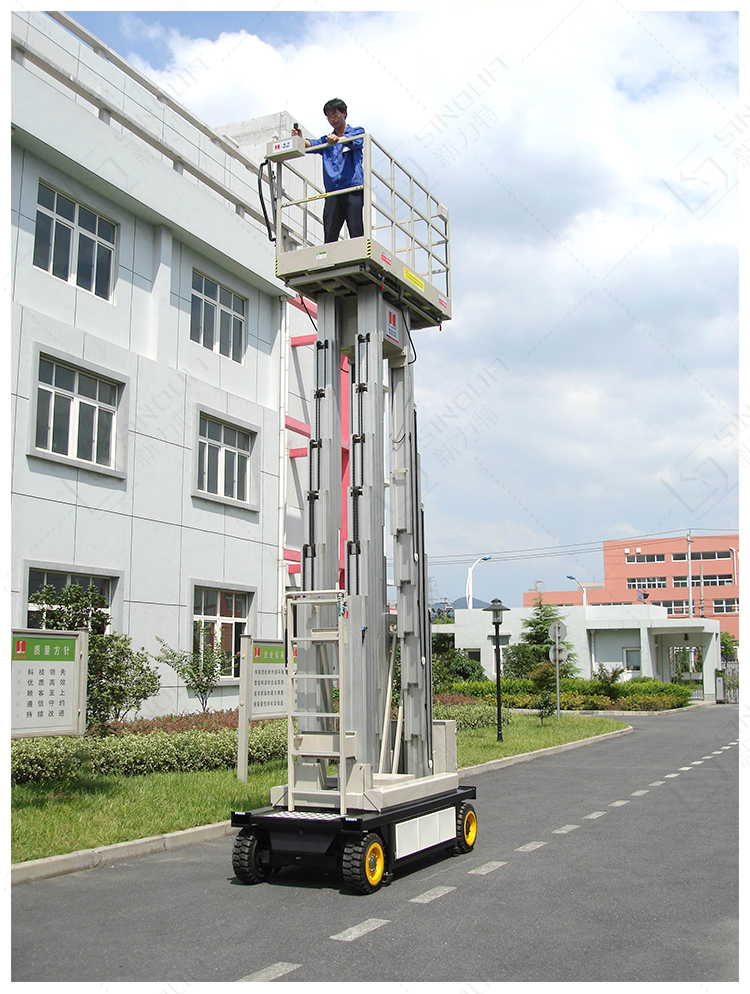

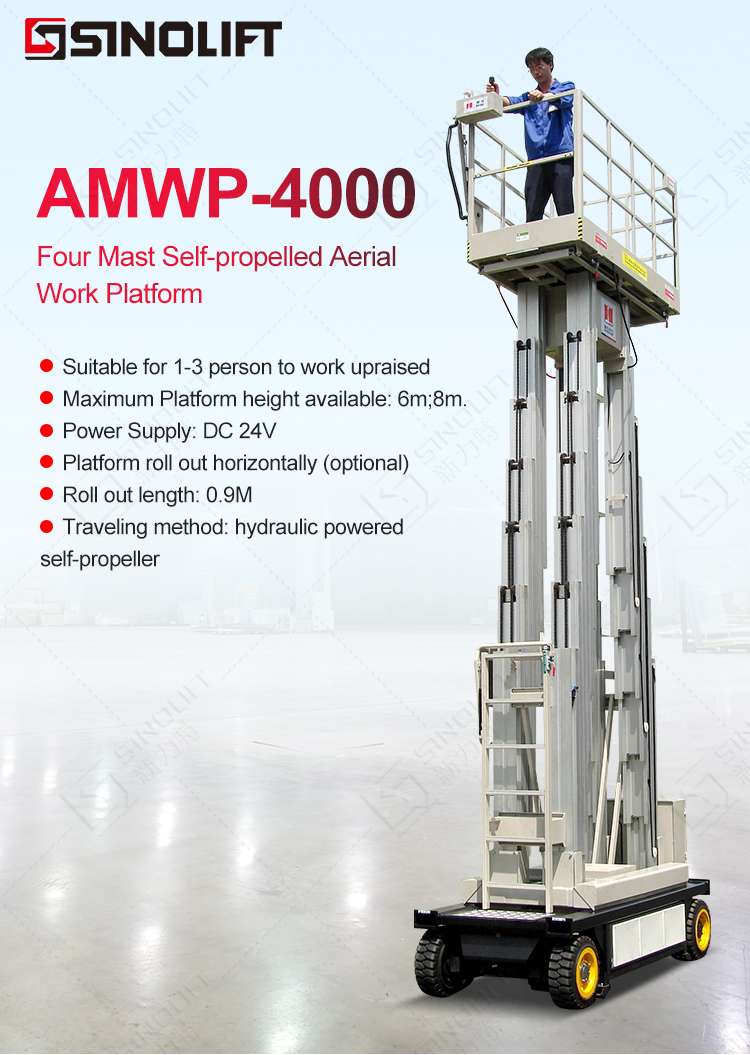

AMWP-4000 Four Mast Self-propelled Aerial Work Platform

AMWP-4000
Quantity:
Contact Now
add to cart
All Products

Aluminum mast lift is an economical solution for vertical aerial works, normally with maximum working height up to 15-16meters. Meanwhile, it’s compact and light weight design takes small space, very easy to transport and stock.

Practical Aluminum mast lift are AC or Battery powered and manually moved. Customer could also chose to add battery power for easy moving, so one person could move and turn the lift freely. Widely used at factory, banks, hotels, restaurants, stations, airports, theaters, construction companies. The vertical mast lifts help to save more labor and time compared with ladders or scaffold, above all, they are more safe.

Model No.AMWP6-4000AMWP8-4000
Max. Platform Heightmm60008000
Max. Machine Heightmm77009700
Min. Platform Heightmm
Ground Clearancemm50
Lift Rated Capacitykg400300
Platform Extend CapacitykgFree Set
Platform Sizemm1720×1040×1150
Platform Extend LengthmmFree Set
Max. Drive Speed             (Platform Stowed)km/h3~4
Max. Drive Speed             (Platform Elevated)km/h0.6-1
Max. Travel Grade%15-20
Roller Out Lengthmm900
Driving Motorv/kw24/ 3
Lifting Motorv/kw24/ 3
Aneroid Batteryv/Ah2×12/100
Chargerv/A24/ 12
Pothole Protection Systemv/AAutomechanism
Overall Lengthmm2230
Overall Widthmm1100
Overall Height mm1960
Overall Net Weightkg20502200
