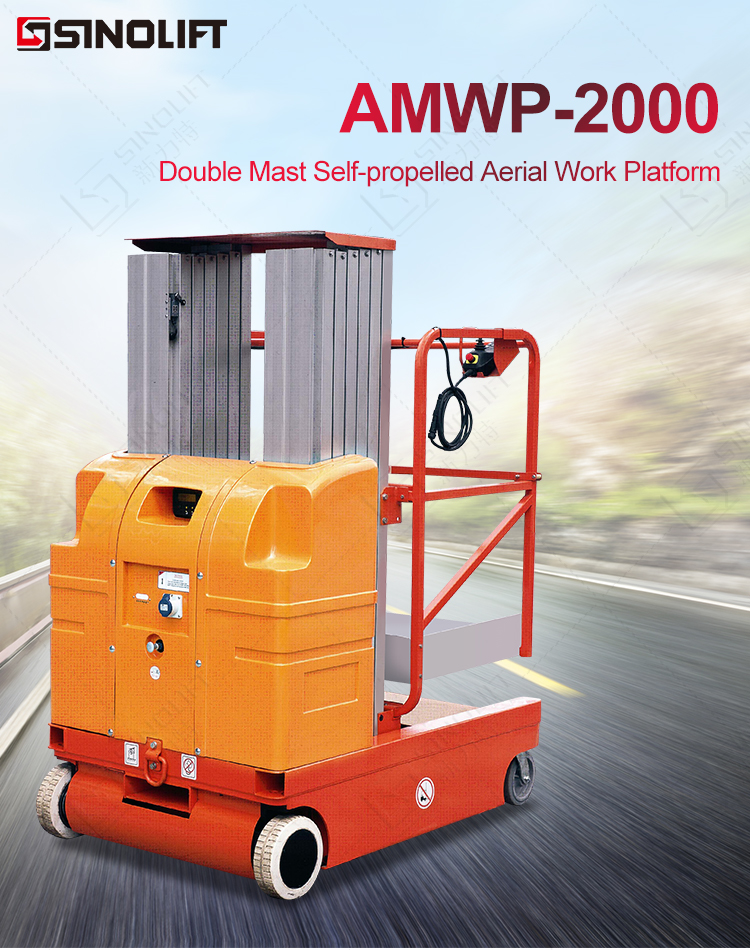

AMWP-2000 Double Mast Self-propelled Aerial Work Platform
Mobile single mast aluminum work platforms are widely used to for the installation and
AMWP-2000 Double Mast Self-propelled Aerial Work Platform
Mobile double mast aluminum work platforms are widely used to for the installation and maintenance of the narrow spaces such as hotels, modern workshops, business halls, lobbies, railway stations etc. Low energy consumption, no pollution, no damage to the grounds. Mainly to be used for indoor maintenance, repair work User can control the lifting operation directly from the platform. The aerial work platform mast structure is made with aluminum material.
We offer a huge array of Single Mast Aerial Work Platform to our clients. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Single Mast Aerial Work Platforms are rigidly tested on various quality parameters to deliver a flawless range at the client’s end.
| Model No. | AMWP7.5-2000 | AMWP9-2000 | |
| Max. Platform Height | mm | 7500 | 9000 |
| Max. Machine Height | mm | 9000 | 10500 |
| Min. Platform Height | mm | 530 | |
| Ground Clearance | mm | 50 | |
| Lift Rated Capacity | kg | 200 | 150 |
| Platform Extend Capacity | kg | Free Set | |
| Platform Size | mm | 1000×700×1150 | |
| Platform Extend Length | mm | Free Set | |
| Max. Drive Speed (Platform Stowed) | km/h | 3/4 | |
| Max. Drive Speed (Platform Elevated) | km/h | 0.6-1 | |
| Min. Turning Radius | mm | 1500 | |
| Max. Travel Grade | % | 15-20 | |
| Caster Size | in | 8 | |
| Driving Wheel Size | mm | ф230-250×80 | |
| Driving Motor | v/kw | 2×24/0.4-0.5 | |
| Lifting Motor | v/kw | 24/ 2 | |
| Aneroid Battery | v/Ah | 2×12/120 | |
| Charger | v/A | 24/ 12 | |
| Pothole Protection System | v/A | Automechanism | |
| Overall Length | mm | 1500 | |
| Overall Width | mm | 1000 | |
| Overall Height | mm | 1980 | |
| Overall Net Weight | kg | 1100 | 1250 |
