Sinolift CPCD40L 4-ton diesel counterbalance forklift with Tier-4 engine

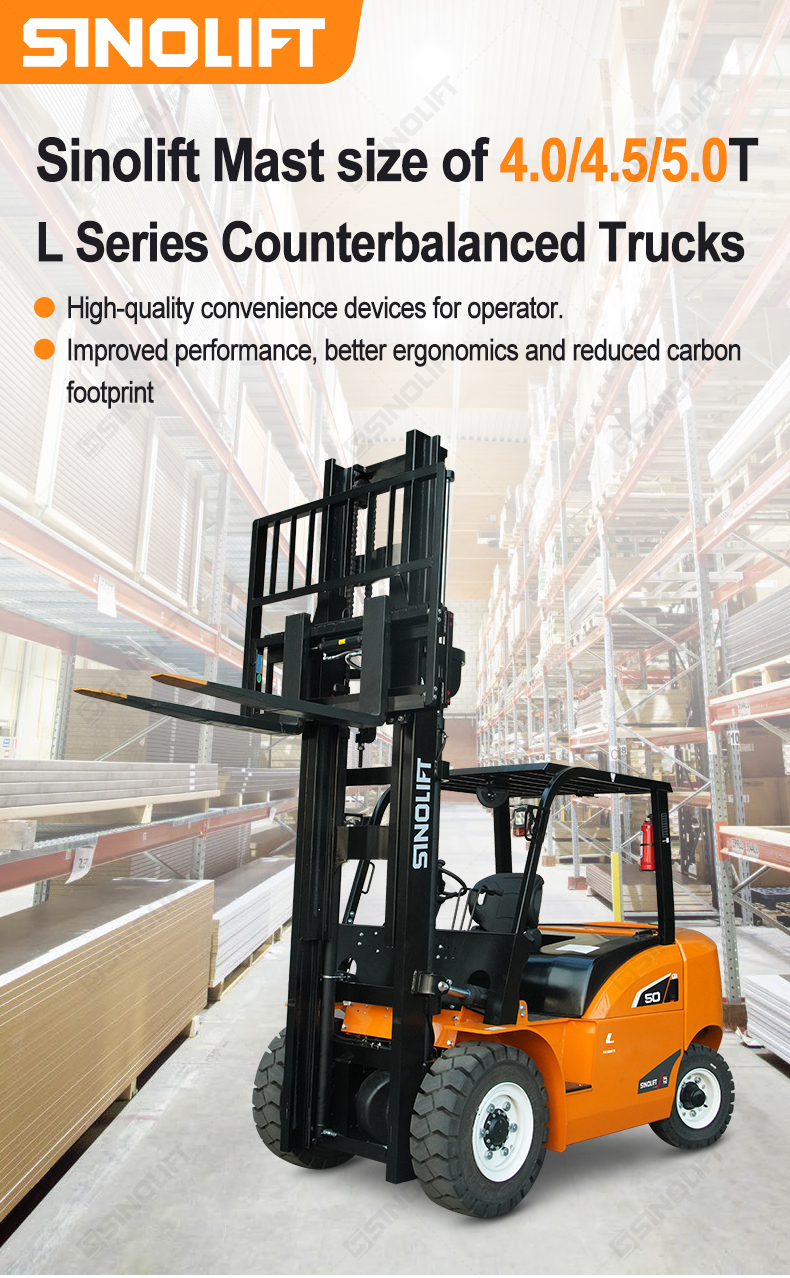

L Series CPCD40L/45L/50L Counterbalance Forklift Trucks – 4.0/4.5/5.0T Diesel Forklift

CPCD40L CPCD45L CPCD50L

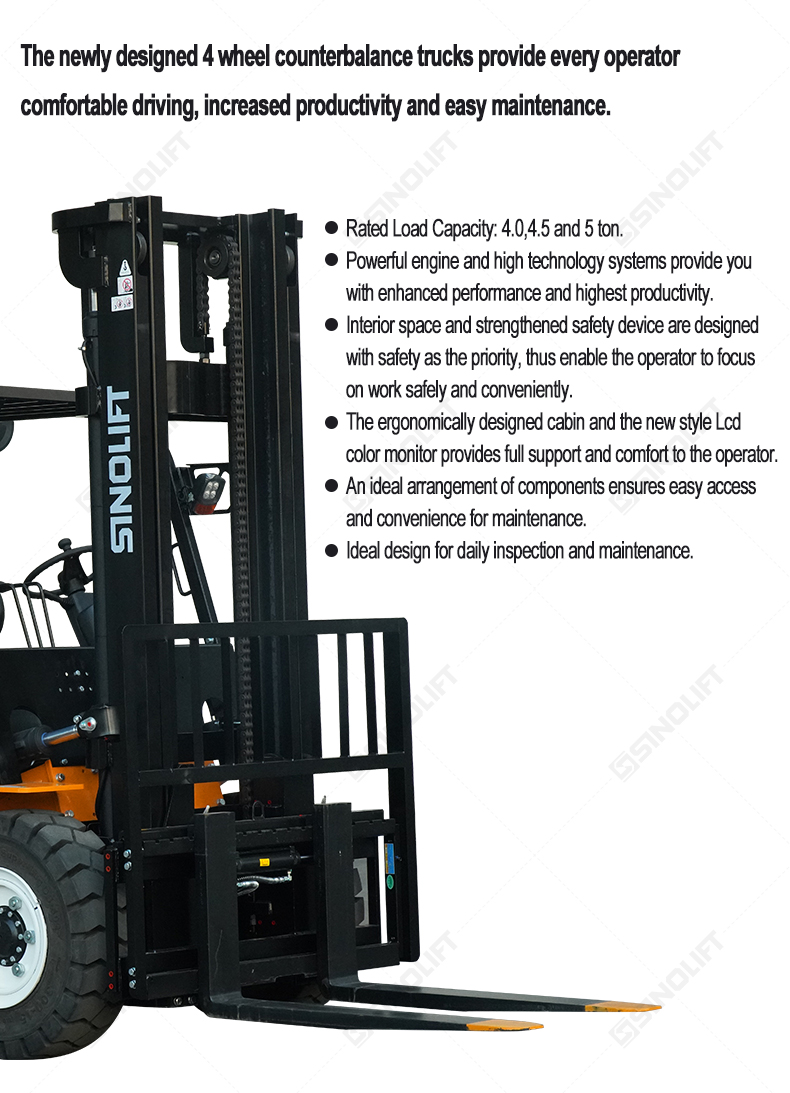

The Sinolift L Series CPCD40L/45L/50L Counterbalanced Trucks are designed for heavy-duty material handling in warehouses, ports, and industrial sites. Featuring a powerful Tier-4 engine, hydrostatic steering, and optimized mast visibility, they ensure high productivity, operator comfort, and low emissions. Robust construction, easy maintenance, and optional safety accessories make them ideal for demanding environments.

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

Key Features of Sinolift L Series CPCD40L/45L/50L Counterbalance Forklift Trucks

1. Powerful & Eco-Friendly Performance

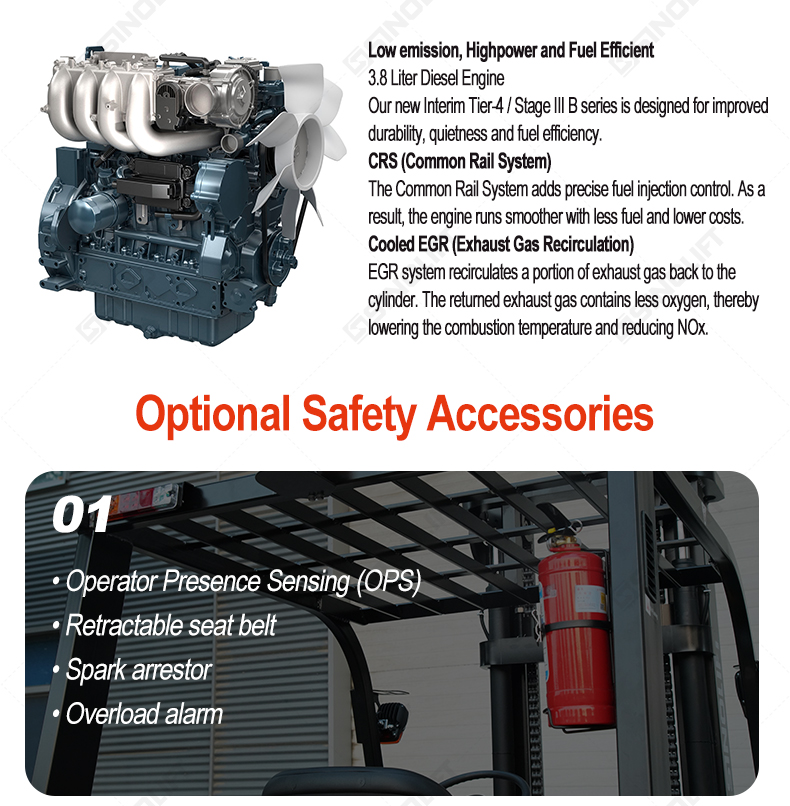

3.8L Tier-4/Stage IIIB low-emission diesel engine – High power with fuel efficiency.
CRS (Common Rail System) + Cooled EGR – Reduces NOx emissions for cleaner operation.
DPF+DOC aftertreatment – Captures and burns particulate matter (PM) for compliance with strict emission standards.

2. Operator-Focused Design

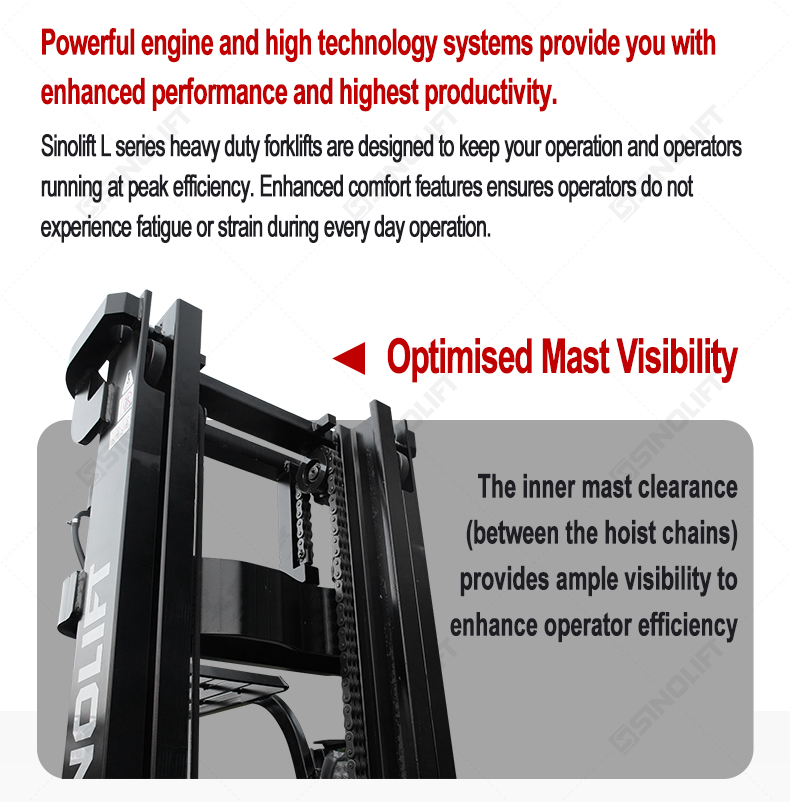

Optimized mast visibility (wide chain clearance) for precise load handling.

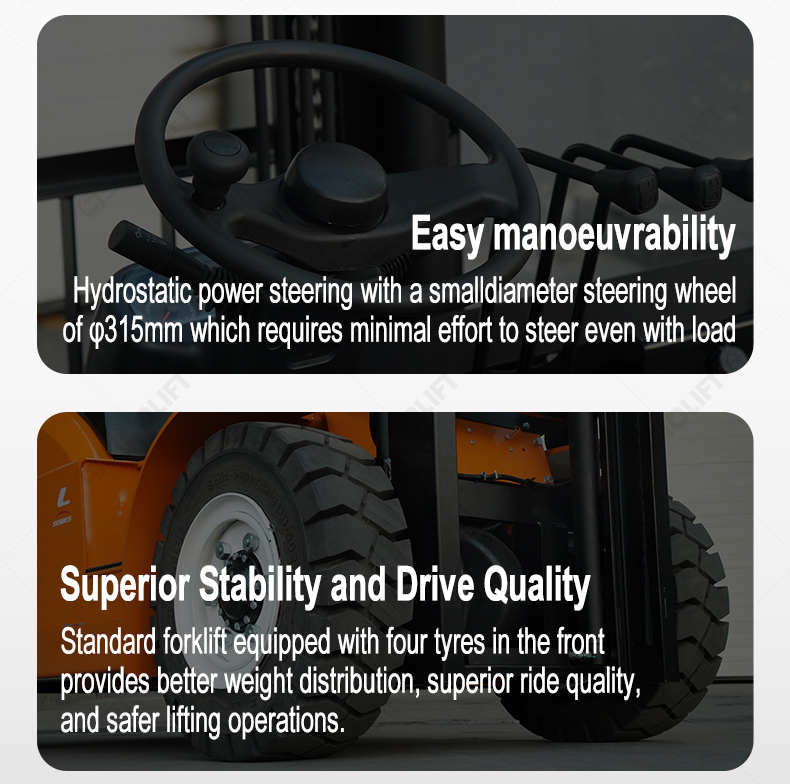

φ315mm hydrostatic power steering – Effortless control, even under heavy loads.

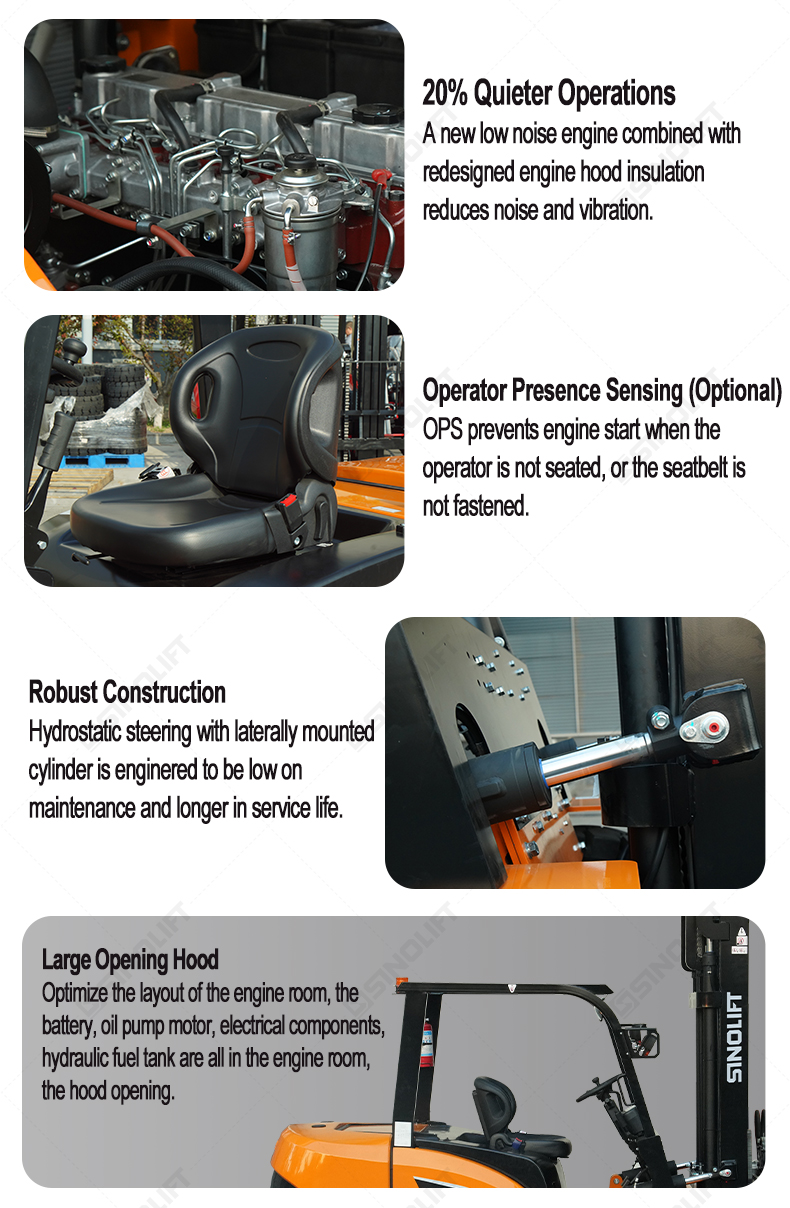

20% quieter operation with LCD color display for reduced fatigue.

3. Superior Stability & Safety

4-wheel front configuration – Enhances load distribution and stability.

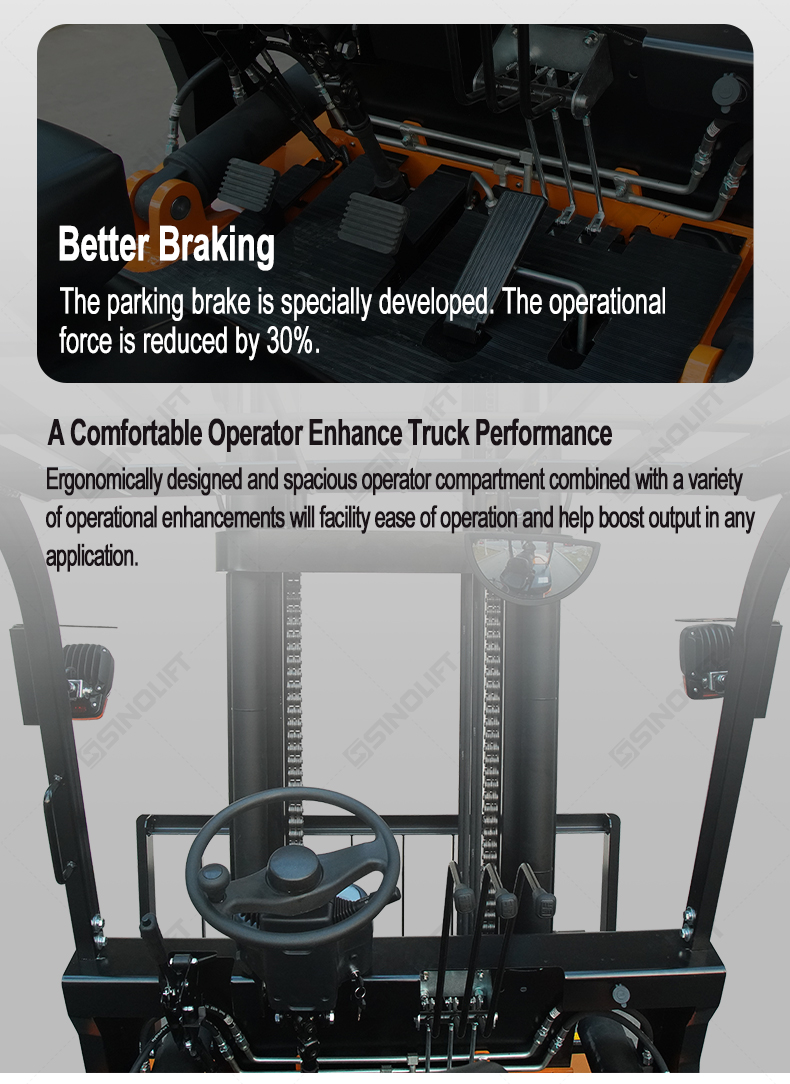

30% reduced parking brake effort – Quick response and secure stopping.

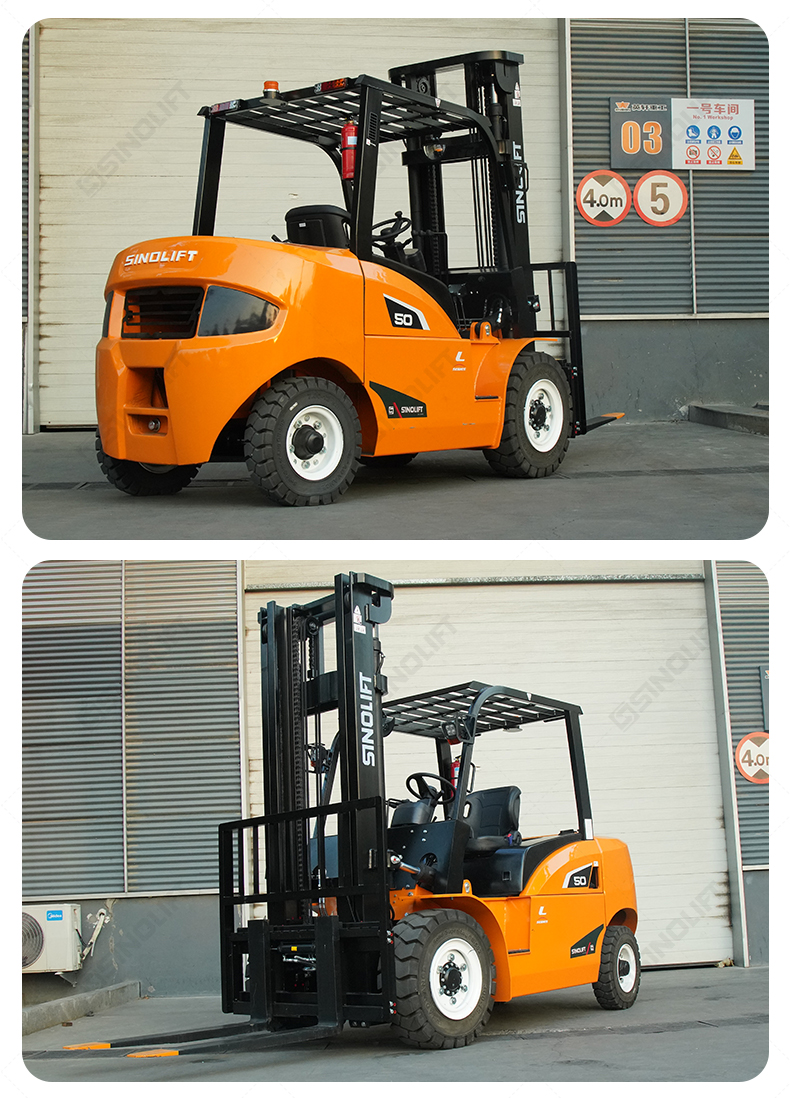

Optional safety features: OPS (Operator Presence Sensing), spark arrestor, overload alarm.

4. Easy Maintenance & Durability

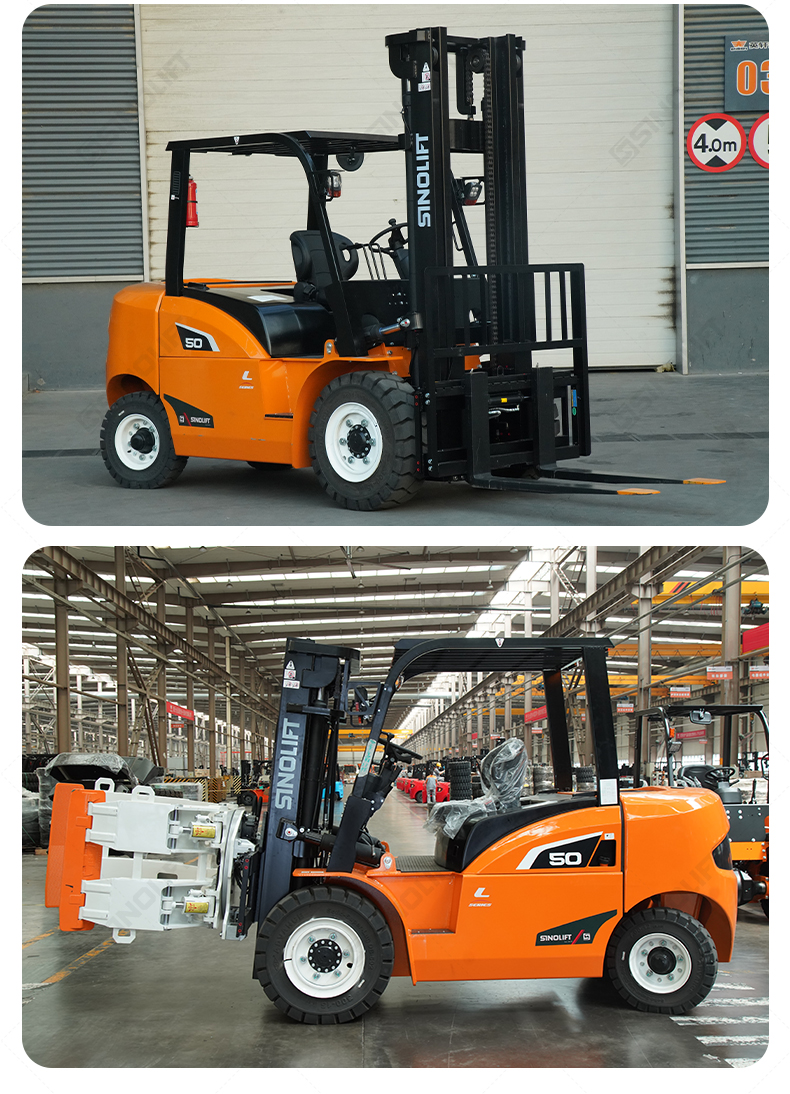

Large hood opening – Easy access to engine, battery, and hydraulic components.
Modular design – Simplifies inspections and reduces downtime.
Laterally mounted hydrostatic cylinder – Longer service life with minimal maintenance.

5. Versatile Applications

Ideal for: Ports, logistics hubs, heavy manufacturing, and high-intensity operations.

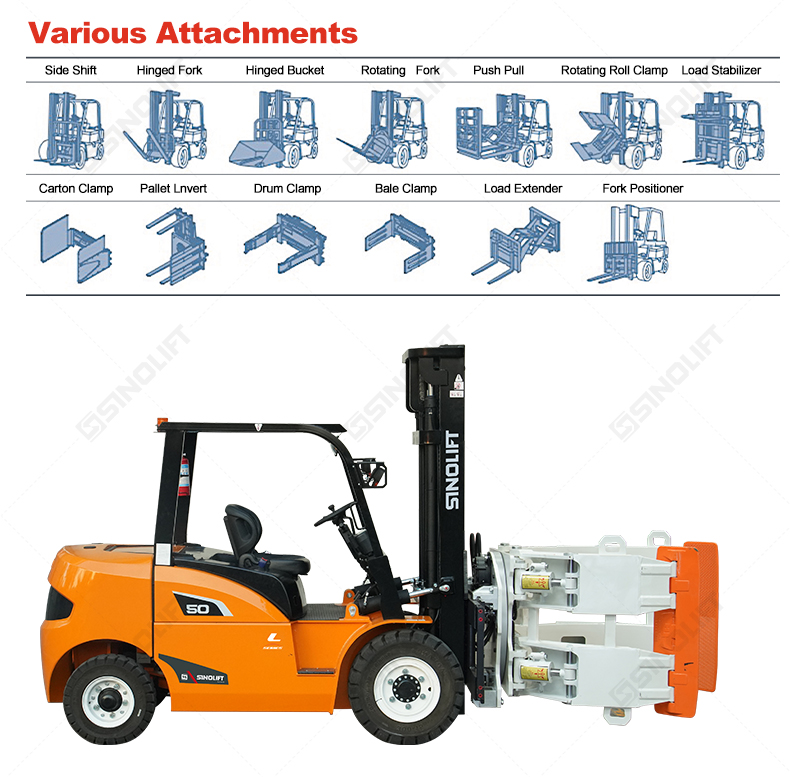

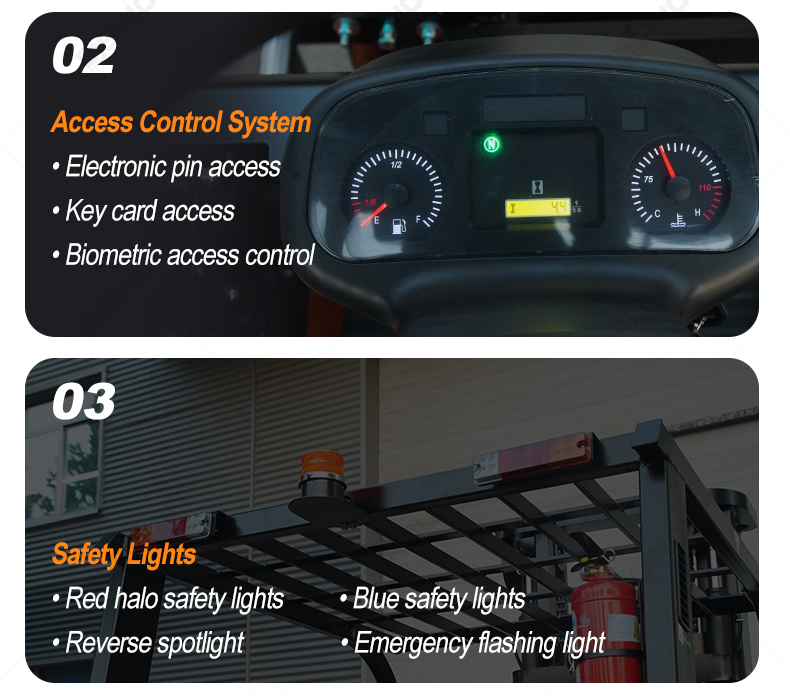

Optional attachments: Custom mast heights, access control (PIN/biometric), safety warning lights.

Core Value: Combines low emissions, high reliability, and operator comfort to meet modern logistics demands for efficiency and sustainability.

General	Manufacture						SINOLIFT
	Model						CPCD40L	CPCD45L	CPCD50L	CP(Q)YD40L	CP(Q)YD45L	CP(Q)YD50L	CPYD40L	CPYD45L	CPYD50L
	Power type						Diesel			Gas/LPG			LPG
	Rated capacity				Q	kg	4000	4500	5000	4000	4500	5000	4000	4500	5000
	Load center				C	mm	500			500			500
Dimensions	Lift height				H	mm	3000			3000			3000
	Free lift height				H3	mm	160			160			160
	Fork size				LxWxT	mm	1070×150×50			1070×150×50			1070×150×50
	Fork spread outside			Min./Max.	W5	mm	300/1200	300/1370	300/1370	300/1200	300/1370	300/1370	300/1200	300/1370	300/1370
	Mast tilt angle				α/β	deg	6°/12°			6°/12°			6°/12°
	Front overhang				L2	mm	500	560	560	500	560	560	500	560	560
	Rear overhang					mm	580	560	560	580	560	560	580	560	560
	Overall dimensions	Length to face of fork			L'	mm	2960	3220	3220	2960	3220	3220	2960	3220	3220
		Length with fork				mm	4030	4290	4290	4030	4290	4290	4030	4290	4290
		Overall width			W1	mm	1400	1500	1500	1400	1500	1500	1400	1500	1500
		Height of load backrest			H6	mm	1350	1280	1280	1350	1280	1280	1350	1280	1280
		Mast lowered height			H1	mm	2130	2275	2275	2130	2275	2275	2130	2275	2275
		Mast extended height			H2	mm	4230	4230	4230	4230	4230	4230	4230	4230	4230
		Overhead guard height			H4	mm	2160	2280	2280	2160	2280	2280	2160	2280	2280
	Turning radius				r	mm	2730	2930	2930	2730	2930	2930	2730	2930	2930
	Min. right angle aisle width					mm	3415	3460	3460	3415	3460	3460	3415	3415	3460
Performance	No load/full load		Travel speed	Forward Ⅰ		km/h	15/14			15/14			15/14
				Forward Ⅱ			22/20			22/20			22/20
				Backward Ⅰ			15/14			15/14			15/14
			Lift speed			mm/sec	440/420	510/450	500/440	440/420	510/450	500/440	440/420	510/450	500/440
			Lowering speed			mm/sec	310/330	350/420	350/430	310/330	350/420	350/430	310/330	350/420	350/430
	Max. gradeability (full load /no load)					%	15/20	20/21	20/21	15/20	20/21	20/21	15/20	20/21	20/21
	Max. drawbar pull					KN	25	29	29	25	29	29	25	29	29
	Self weight					kg	5200	6600	6850	5200	6600	6850	5200	6600	6850
Wheel & Tire	Tires		Front				250-15-16PR	300-15-18PR	300-15-18PR	250-15-16PR	300-15-18PR	300-15-18PR	250-15-16PR	300-15-18PR	300-15-18PR
	Tires		Rear				7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR	7.00-12-12PR
	Tread		Front		W3	mm	1150	1195	1195	1150	1195	1195	1150	1195	1195
	Tread		Rear		W2	mm	1170	1195	1195	1170	1195	1195	1170	1195	1195
	Wheelbase				L1	mm	1900	2100	2100	1900	2100	2100	1900	2100	2100
	Min.ground clearance			Mast	H5	mm	175/145			175/145			175/145
	(no load/full load)			Frame	H6	mm	190/180			190/180			190/180
	Operating pressure					Mpa	17	17	18	17	17	18	17	17	18
Drive units & control	Battery					V/AH	2-12V/80AH			2-12V/80AH			2-12V/80AH
	Engine		Model				Mitsubishi S6S-228			Kubota WG3800-GL-E3C			Kubota WG3800-L-E5C
			Rated output			kw/rpm	52/2300			Gas: 54.4/2300 LPG: 54.6/2400			61.6/2300
			Rated torque			N.m/rpm	248/1400～1700			Gas: 248.8/1400 LPG: 271.4/1400			282.4/1200
			No.of cylinder				6			4			4
			Bore×stroke			mm	94×120			100×120			100×120
			Displacement			cc	4996			3770			3770
			Fuel tank capacity			L	90			90			90
	Transmissions		Type				Hydraulic			Hydraulic			Hydraulic
	Transmissions		Shift	FWD/RWD			2/1			2/1			2/1
