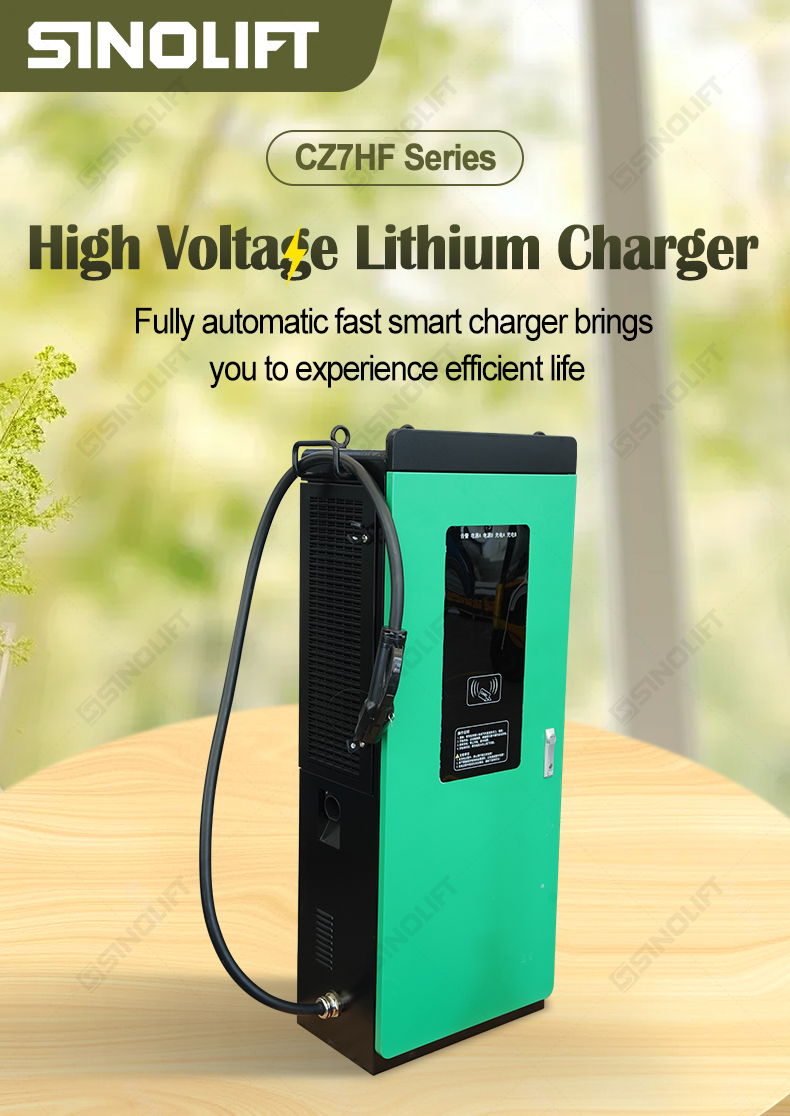

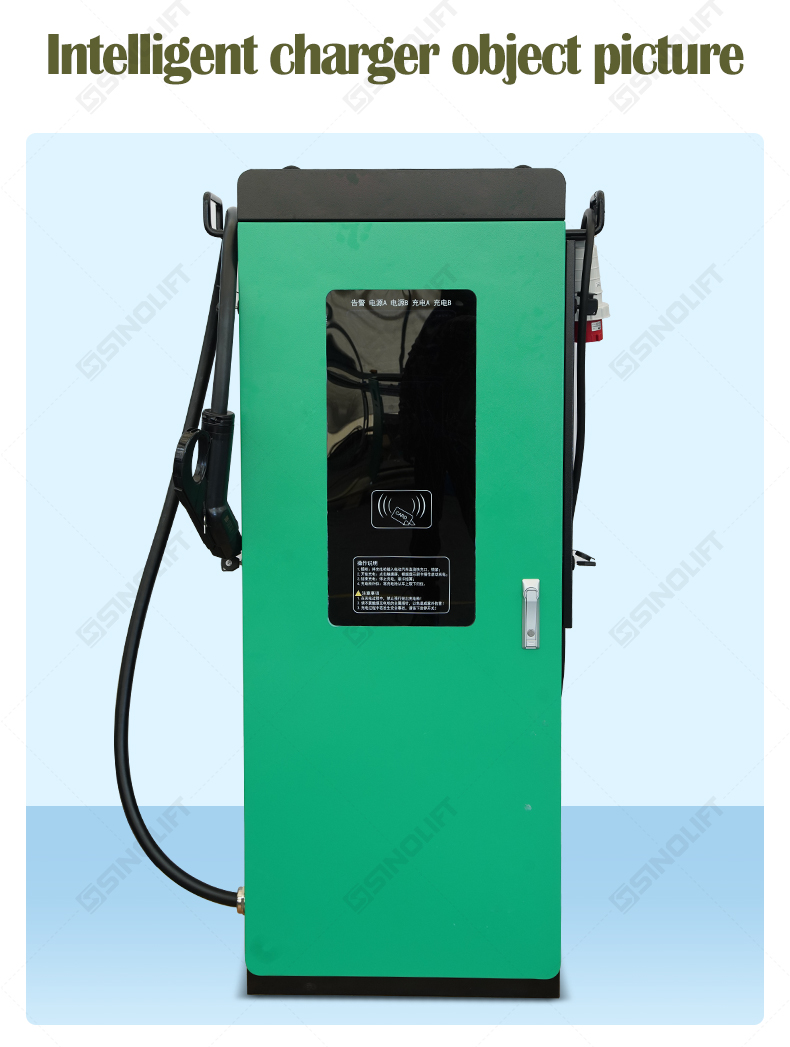

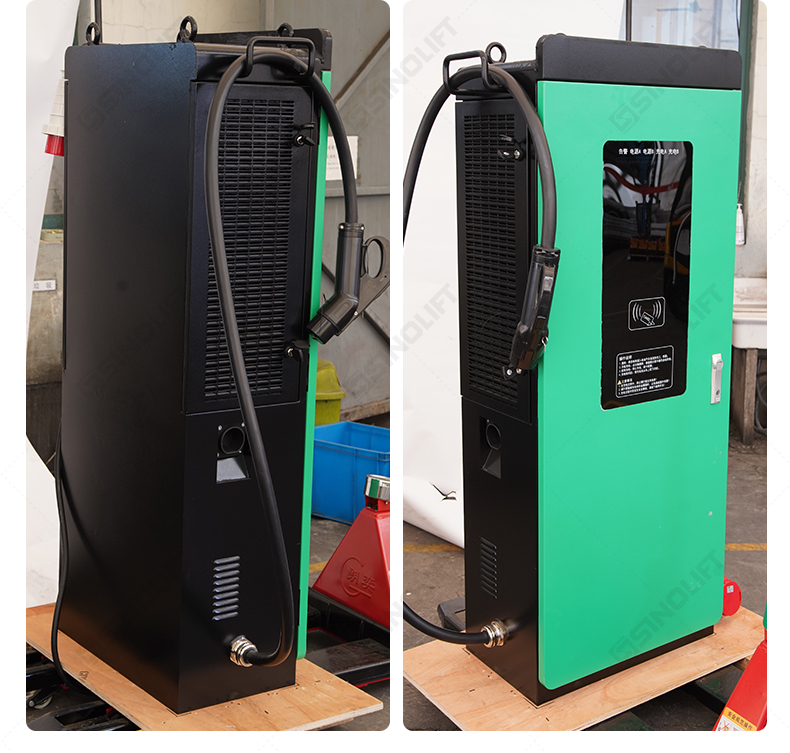

CZC7HF Series High-Voltage Lithium Battery Charger

Product Name

CZC7HF Series High-Voltage Lithium Battery Charger

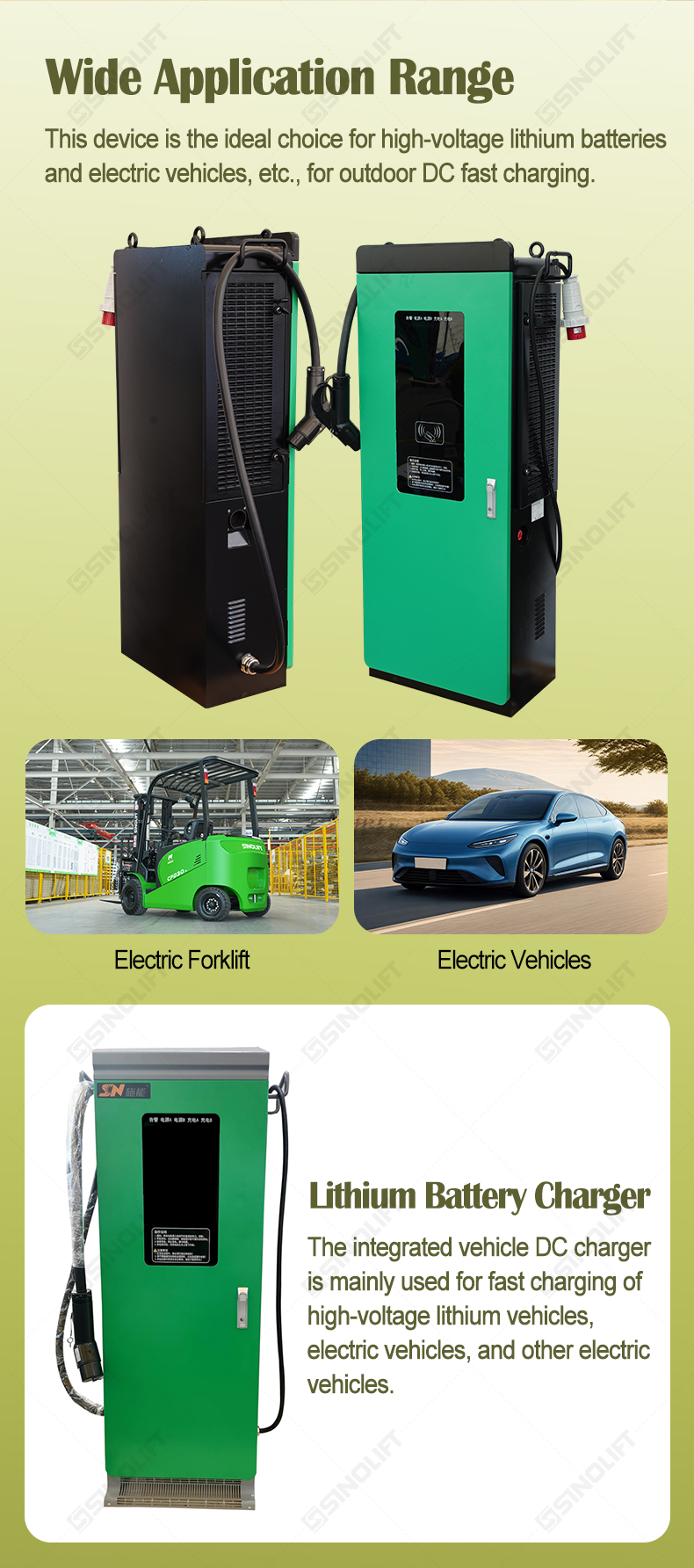

1. This device is the ideal choice for high-voltage lithium batteries and electric vehicles, etc., for outdoor DC fast charging.
2. The integrated vehicle DC charger is mainly used for fast charging of high-voltage lithium vehicles, electric vehicles, and other electric vehicles.

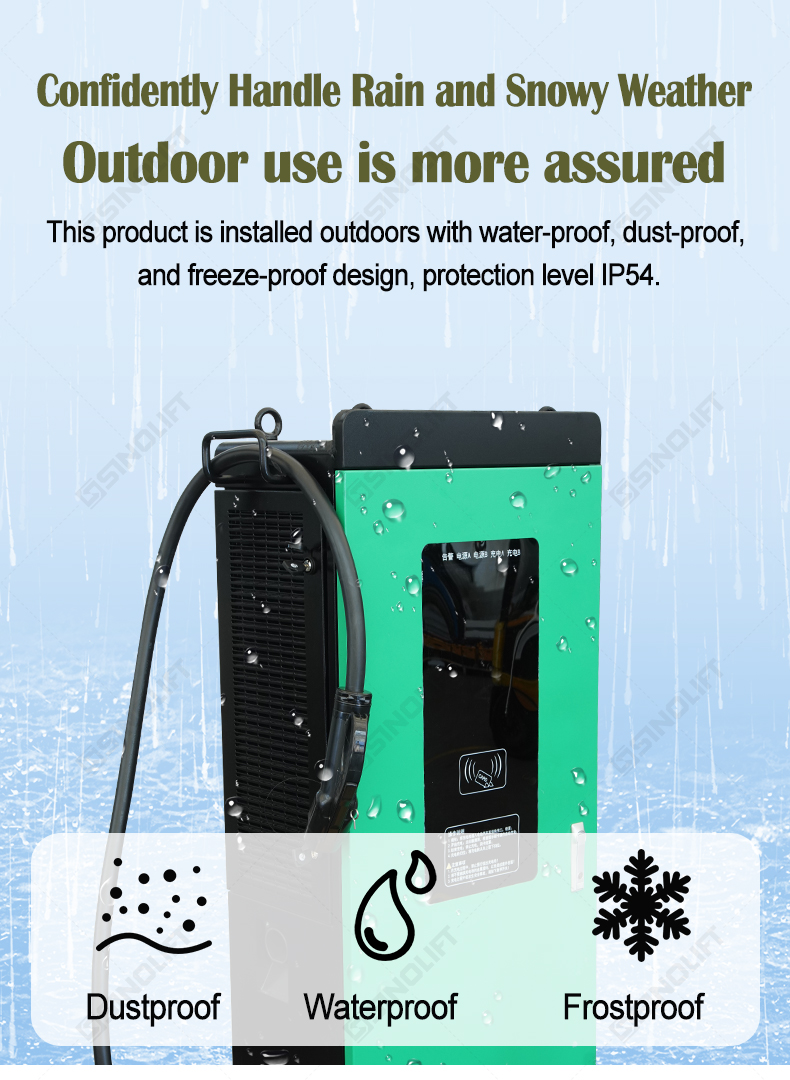

3. This product is installed outdoors with water-proof, dust-proof, and freeze-proof design, protection level IP54.

Normal Working Conditions

(1) Altitude does not exceed 1000 meters;

(2) Ambient temperature is not higher than + 45℃ and not lower than - 10℃;

(3) Air relative humidity is not greater than 95% (when the ambient temperature is 20±5℃);

(4) Environment free from rain and snow, conductive dust, and explosion hazards;

(5) Environment containing gases or vapors that can corrode metals and damage insulation;

(6) Place without severe vibration and impact;

(7) This machine should be placed in a ventilated and dry place, away from high temperature, dust, and corrosive gases;

(8) To ensure the normal operation of this machine, the surrounding area should be well-ventilated with a certain distance kept from other objects, and the ventilation opening should be checked for blockage.

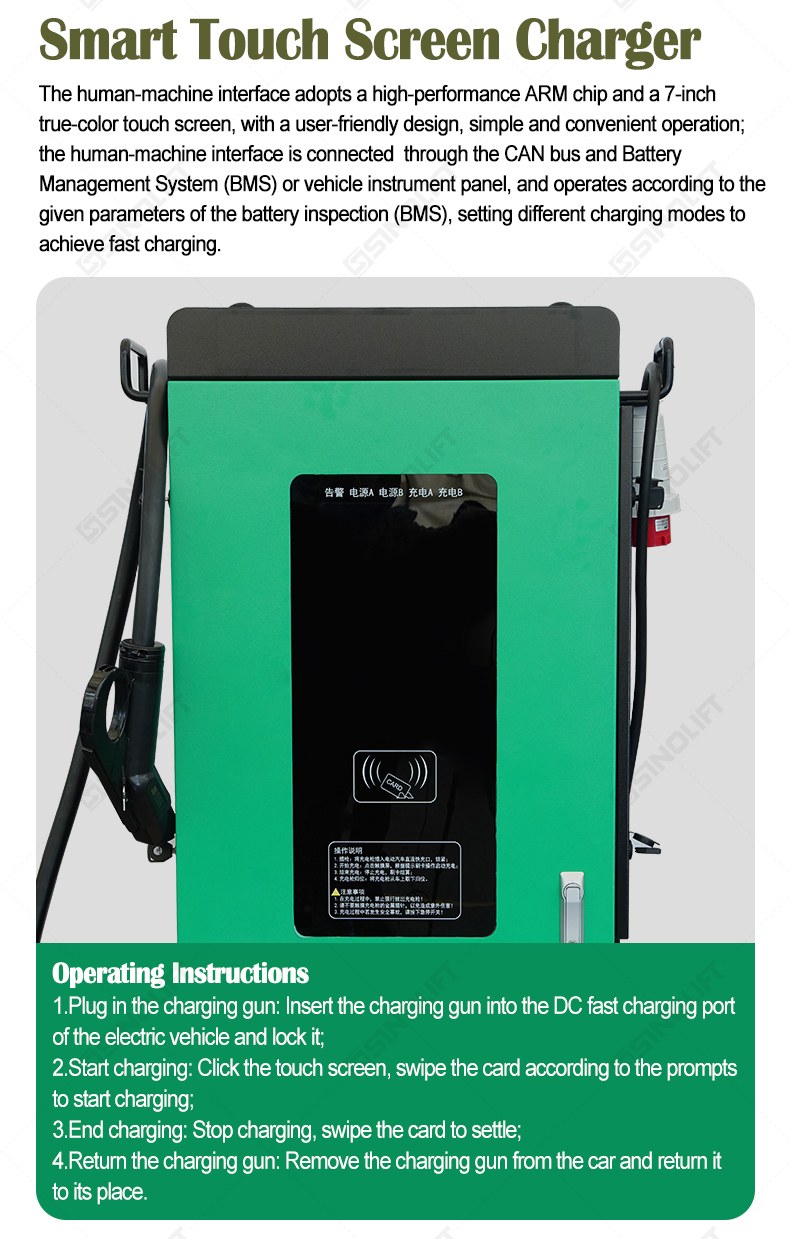

Operating Instructions

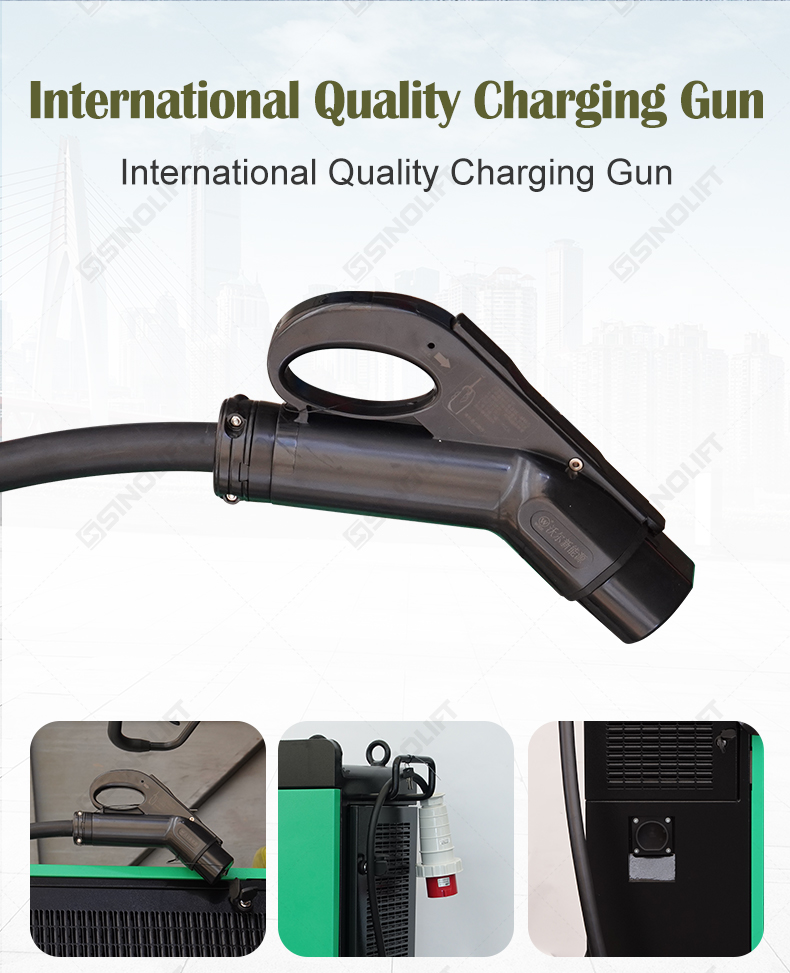

1.Plug in the charging gun: Insert the charging gun into the DC fast charging port of the electric vehicle and lock it;

2.Start charging: Click the touch screen, swipe the card according to the prompts to start charging;

3.End charging: Stop charging, swipe the card to settle;

4.Return the charging gun: Remove the charging gun from the car and return it to its place.

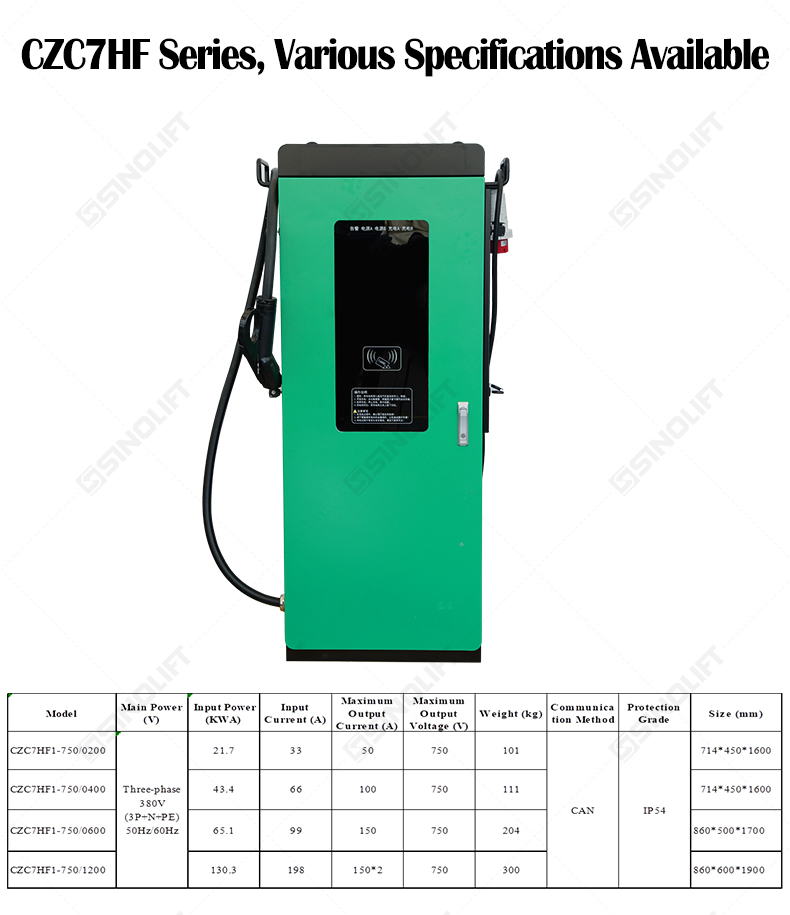

Product Specifications
