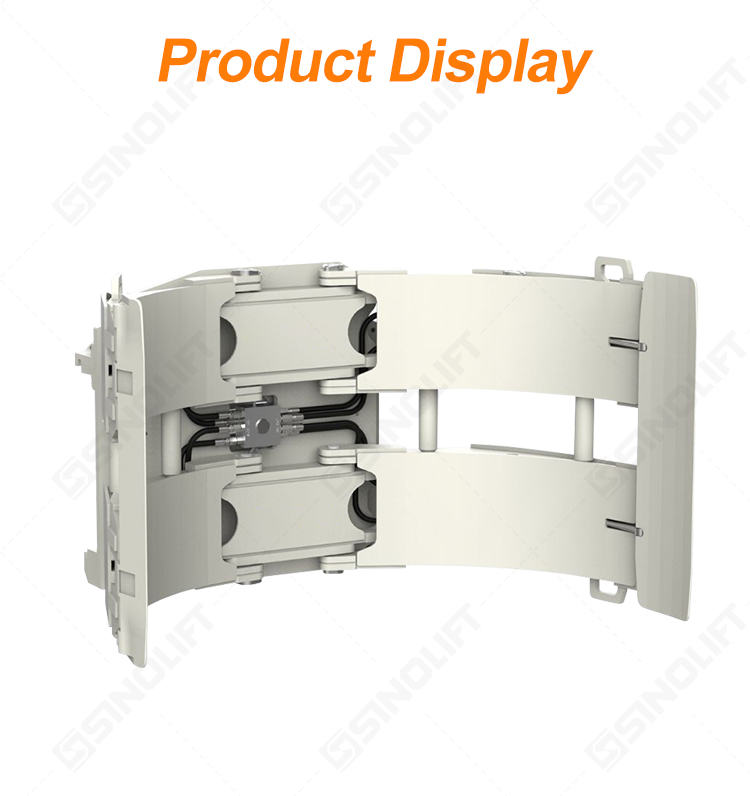

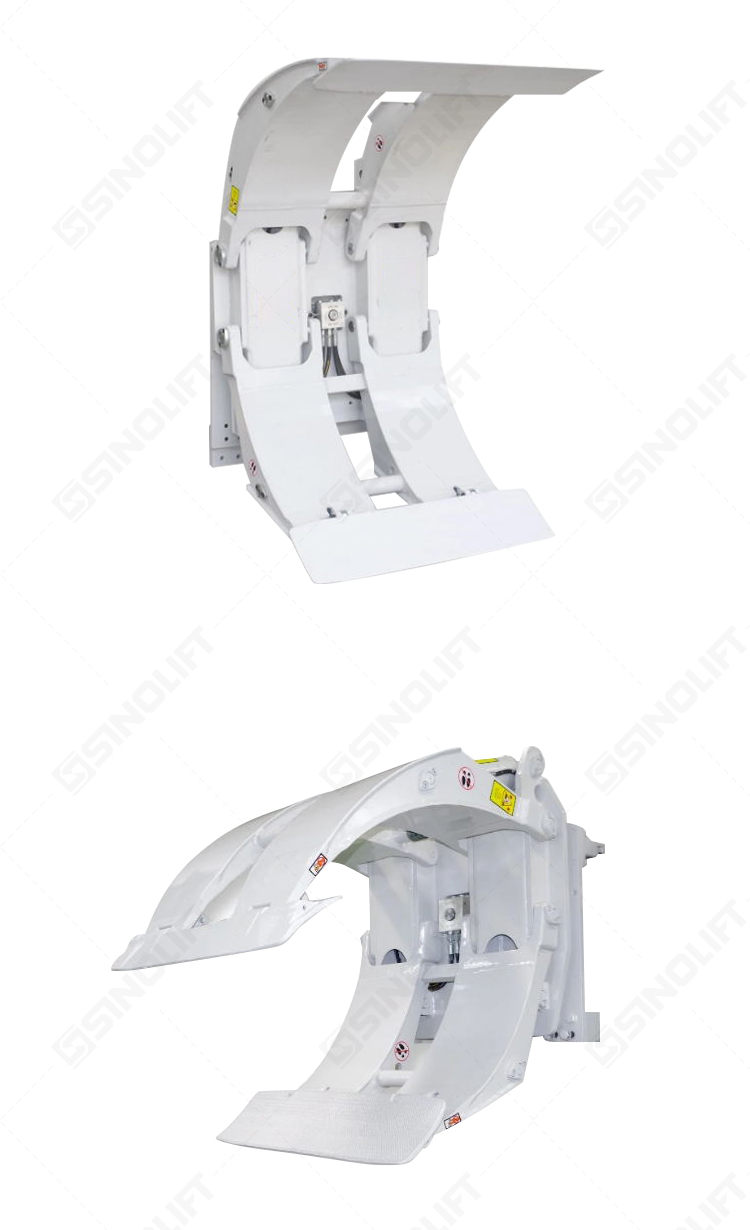

D SERIES TISSUE PAPER ROLL CLAMP
ZJJ25D-C104RA ZJJ70D-D001RD ZJJ50D-D011RB

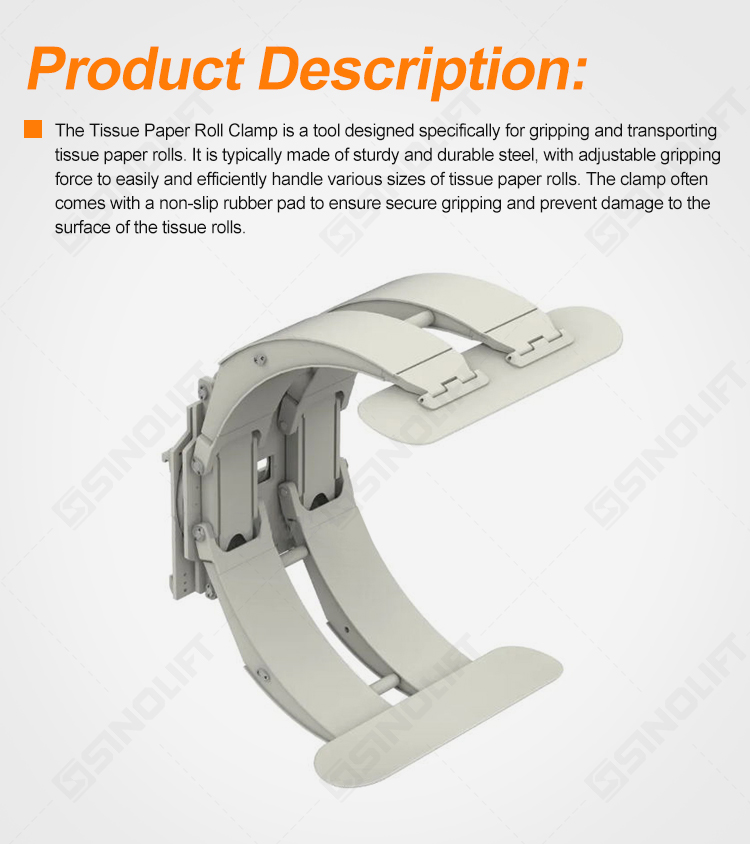

The Tissue Paper Roll Clamp is a tool designed specifically for gripping and transporting tissue paper rolls. It is typically made of sturdy and durable steel, with adjustable gripping force to easily and efficiently handle various sizes of tissue paper rolls. The clamp often comes with a non-slip rubber pad to ensure secure gripping and prevent damage to the surface of the tissue rolls.
Quantity:
The Tissue Paper Roll Clamp is a tool designed specifically for gripping and transporting tissue paper rolls. It is typically made of sturdy and durable steel, with adjustable gripping force to easily and efficiently handle various sizes of tissue paper rolls. The clamp often comes with a non-slip rubber pad to ensure secure gripping and prevent damage to the surface of the tissue rolls.
Features:
Using advanced technology to easily grip paper rolls of various sizes.
Suitable for various cargo handling scenarios, enhancing operational flexibility and efficiency.
Simple to operate, reducing labor intensity for operators.
Suitable for various cargo handling scenarios, enhancing operational flexibility and efficiency.
Simple to operate, reducing labor intensity for operators.

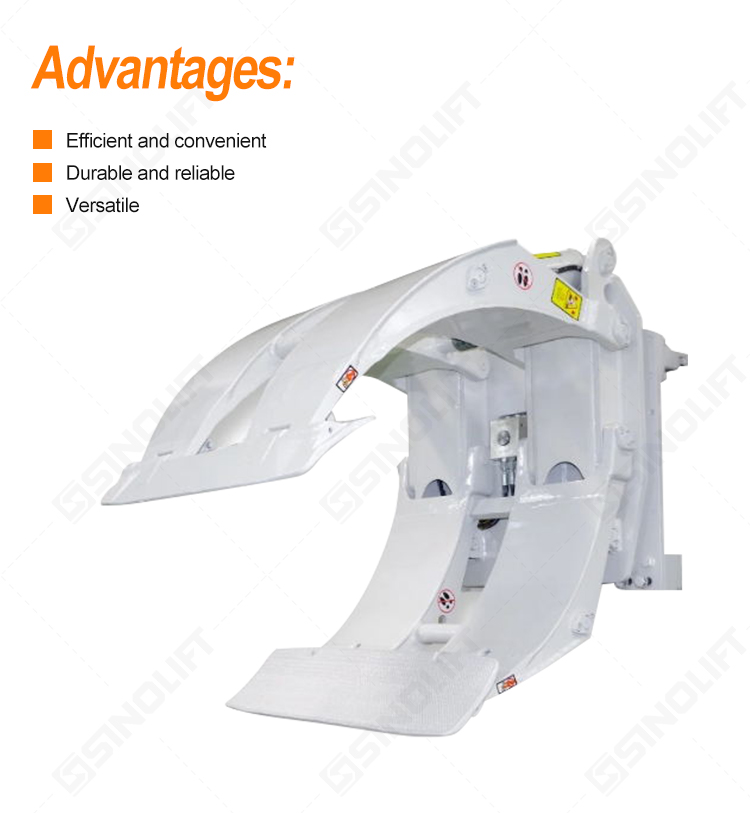

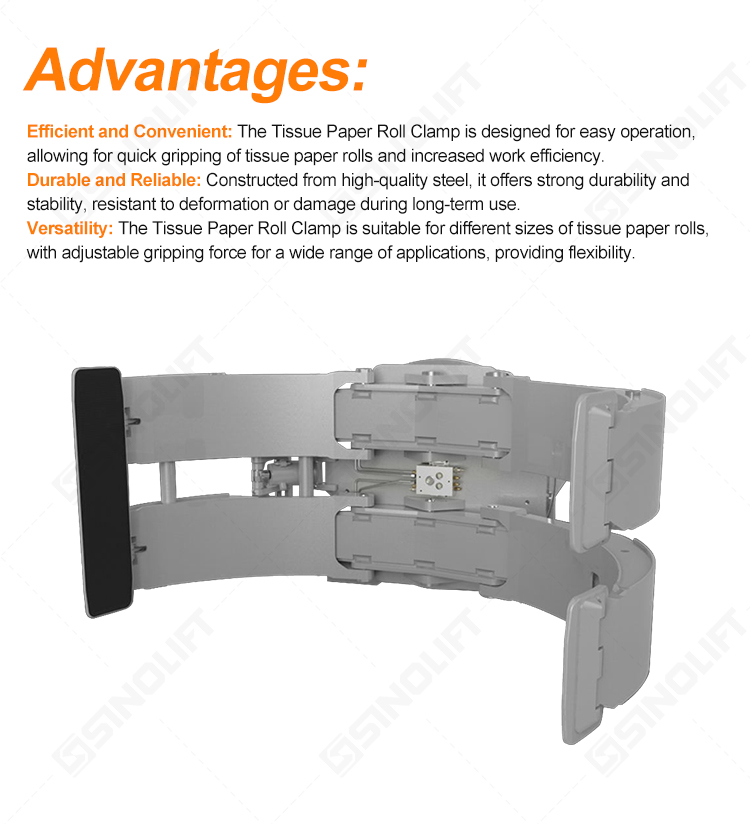

Advantages:
Efficient and Convenient: The Tissue Paper Roll Clamp is designed for easy operation, allowing for quick gripping of tissue paper rolls and increased work efficiency.
Durable and Reliable: Constructed from high-quality steel, it offers strong durability and stability, resistant to deformation or damage during long-term use.
Versatility:The Tissue Paper Roll Clamp is suitable for different sizes of tissue paper rolls, with adjustable gripping force for a wide range of applications, providing flexibility.
Durable and Reliable: Constructed from high-quality steel, it offers strong durability and stability, resistant to deformation or damage during long-term use.
Versatility:The Tissue Paper Roll Clamp is suitable for different sizes of tissue paper rolls, with adjustable gripping force for a wide range of applications, providing flexibility.
Parameters:

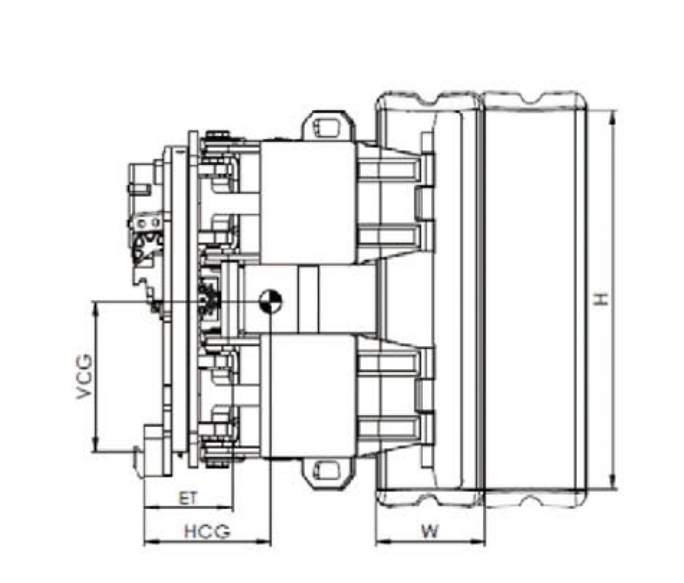

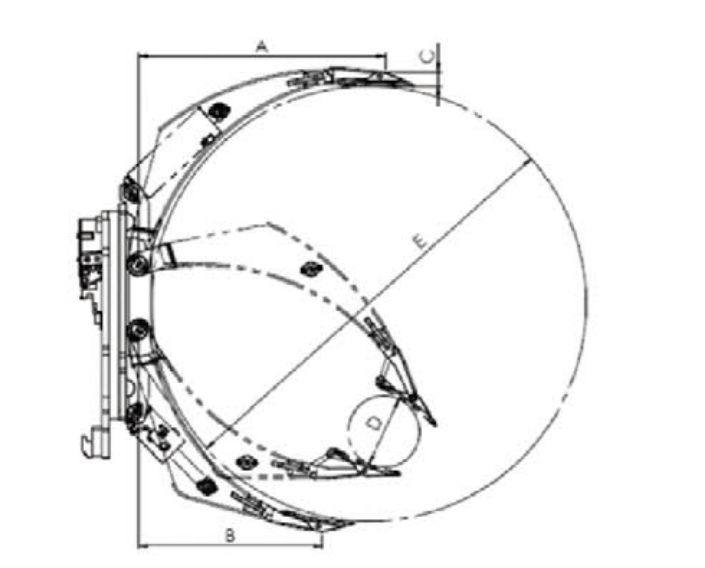

| RATED | MODEL | PAPER | TYPE | MOUNTING CLASS | CONTACT | LONG ARM | SHORTARM | LONG ARM | VERTICAL | WEIGHT | EFFECTIVE | HORIZONTAL |
| CAPACITY@ | ROLL RANGE | PAD SIZE | LENGTH | LENGTH | THICKNESS | CENTER OF | THICKNESS | CENTER OF | ||||
| LOAD CENTER | GRAVITY | GRAVITY | ||||||||||
| (kg@mm) | ∅(mm) | WxH (mm) | A (mm) | B(mm) | C (mm) | VCG(mm) | (kg) | ET(mm) | HCG(@mm) | |||
| 2000@750 | ZJJ25D-C104RA | 530-1500 | A | III | 260x900 | 1003 | 714 | 40 | 353 | 724 | 256 | 367 |
| 2300@650 | ZJJ25D-B125RA | 600-1300 | A | II | 260x900 | 878 | 634 | 40 | 357 | 680 | 205 | 293 |
| 1700@900 | ZJJ25D-C028RC | 750-1800 | A | III | 260x1500 | 1237 | 846 | 40 | 401 | 916 | 256 | 465 |
| 3500@1550 | ZJJ70D-D001RD | 1070-3100 | B | IV | 700x1800 | 2276 | 1741 | 104 | 517 | 2560 | 287 | 721 |
| 2600@1250 | ZJJ50D-D011RB | 1200-2500 | A | IV | 500x1200 | 1700 | 1290 | 61 | 471 | 1850 | 237 | 574 |
