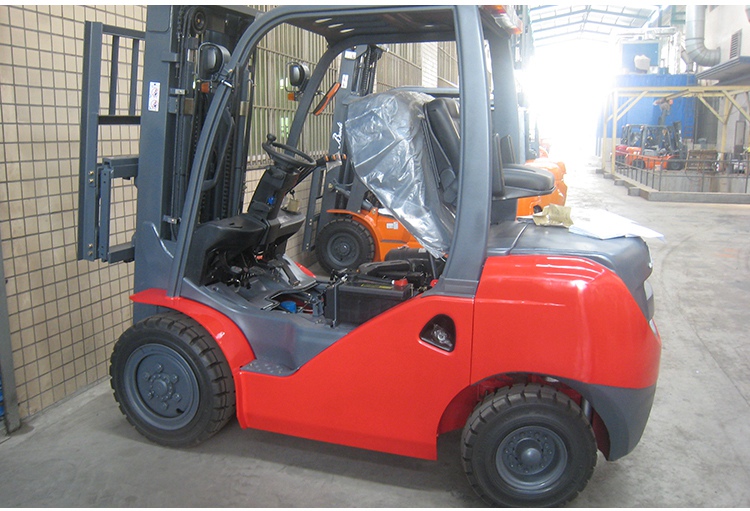

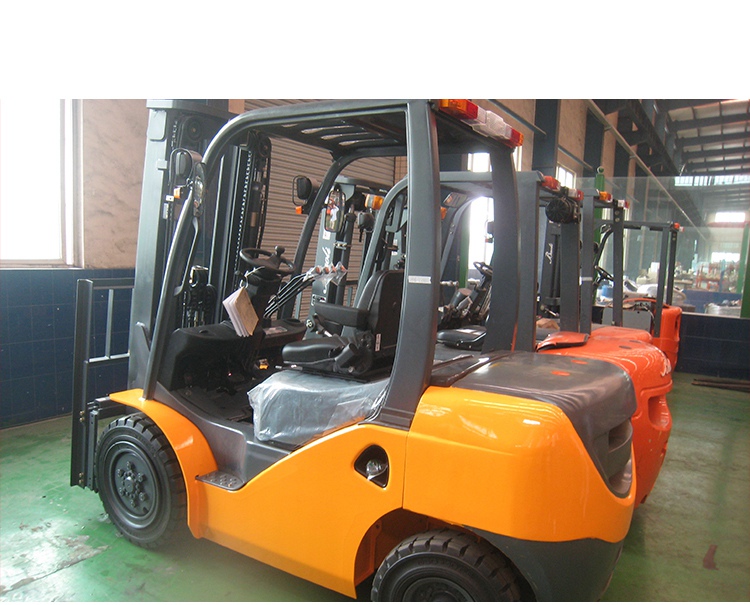

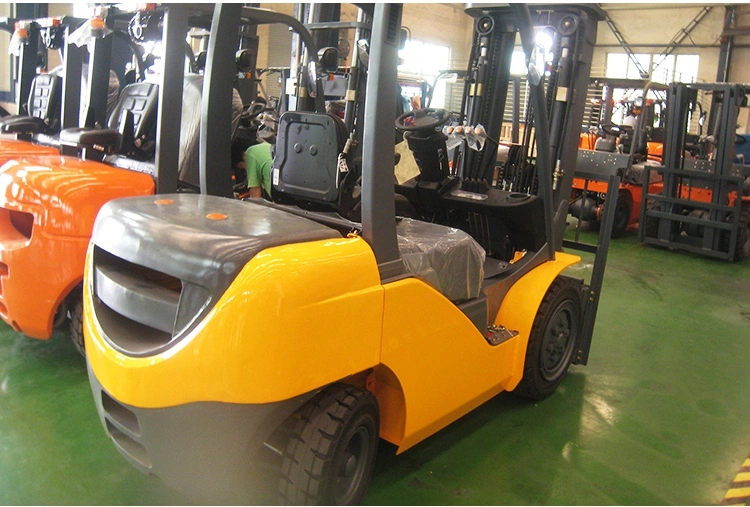

High-level 2.5T Diesel Forklift Truck

CPCD25G-Y1

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

Awarded with the innovation by the economic affairs for its exquisite design and super performance.

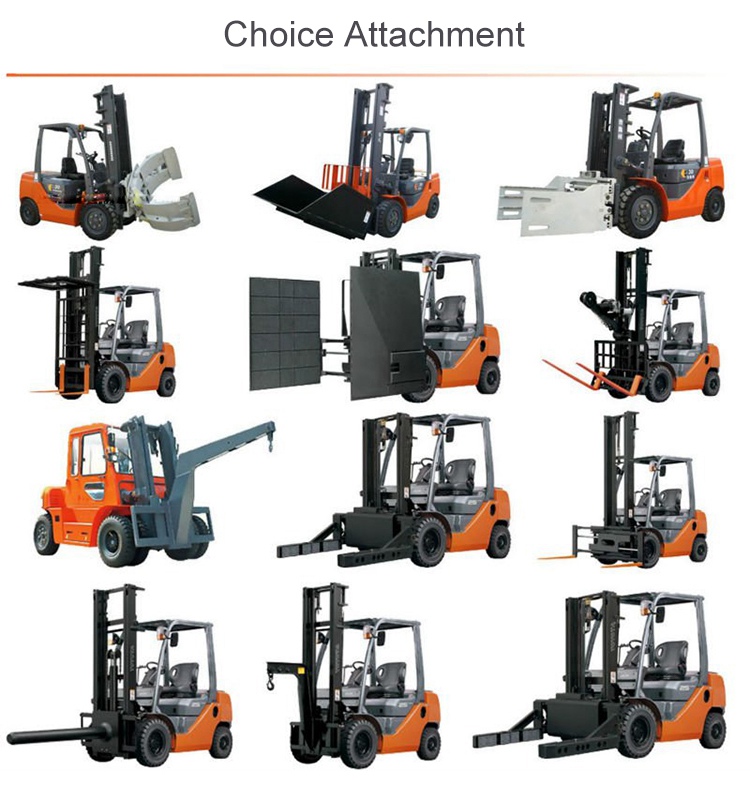

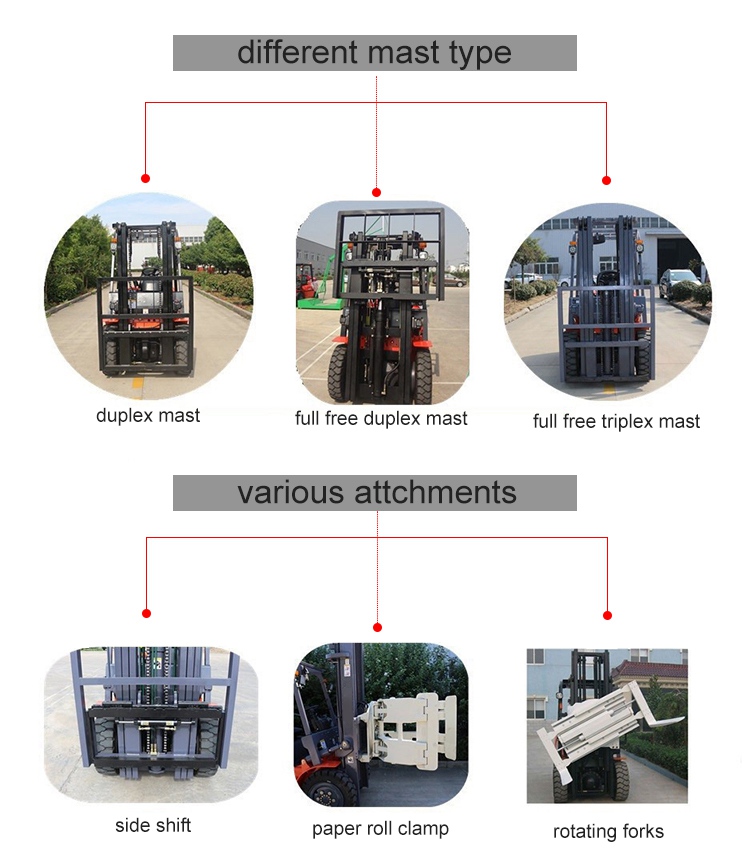

Providing different accessory to satisfy the customer's need.

The attachments come out differently due to the different need for the different operation places.

Special equipment like vertically standing exhaust pipe, warning light, rear light, wet-type air filter and fork attachment , etc.

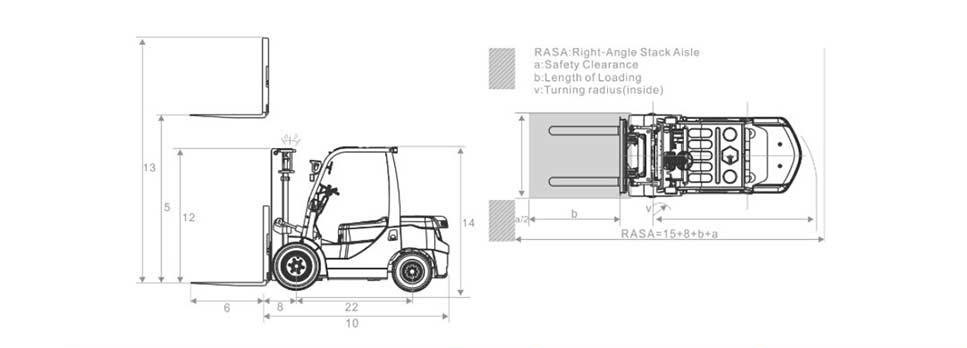

Model				CPCD25G-Y1	CPCD25G-W1
1	Power Type			Diesel	Diesel
2	Rated Capacity		kg	2500	2500
3	Load Centre		mm	500	500
4	Lift Height		mm	3000	3000
5	Fork Size (L×W×T )		mm	1070×120×40	1070×120×40
6	Mast Tilt Angle (F/R)		Deg	6°/12°	6°/12°
7	Front Overhang (Wheel center to fork face)		mm	470	470
8	Ground Clearance(Bottom of mast)		mm	120	120
9	Turning Radius (outside)		mm	2240	2240
10	Min. Intersecting aisle		mm	1920	2010
11	Max.Gradeability (No load/Full load)		%	20	20
12	Wheelbase		mm	1600	1600
13	Service weight		kg	3750	3750
14	Battery (Voltage/Capacity)		V/Ah	12/90	12/80
15	Overall Dimension	Length to face of fork(Without fork)	mm	2530	2530
16		Overall Width	mm	1150	1150
17		Mast Lowered Height	mm	1985	1985
18		Mast Extended Height(With backrest)	mm	4030	4030
19		Overhead Guard Height	mm	2070	2070
20	Speed	Travel (No load)	km/h	19	19
21	Speed	Lifting(Full load)	mm/s	490	490
22	Tire	Front	mm	7.00-12-12PR	7.00-12-12PR
23	Tire	Rear	mm	6.00-9-10PR	6.00-9-10PR
24	Engine	Model		4TNE92	C240 PKJ
25		Manufacture		Yanmar	ISUZU
26		Rated output/r.p.m.	kw	35.4/2500	35.4/2500
27		Rated torque/r.p.m.	N·m	139/1800	139/1800
28		No.of Cylinder		4	4
29		Bore×Stroke	mm	86×102	86×102
30		Displacement	cc	2369	2369
31		Fuel Tank Capacity	L	60	60
32	Transmission	Type		Powershift	Powershift
33	Transmission	Stage FWD/RVS		1/1	1/1
34	Operating Pressure for Attachment		Mpa	17.5	17.5
