robust performance forklift

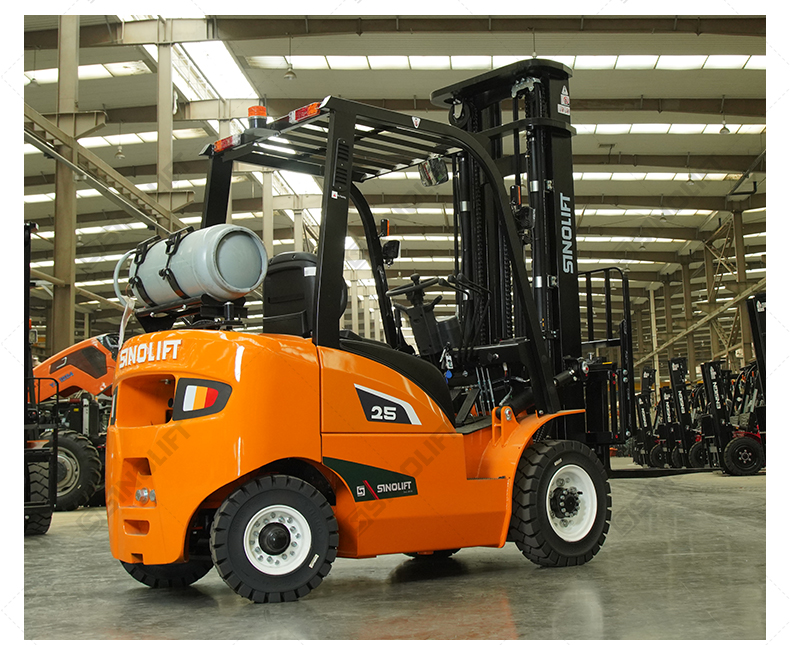

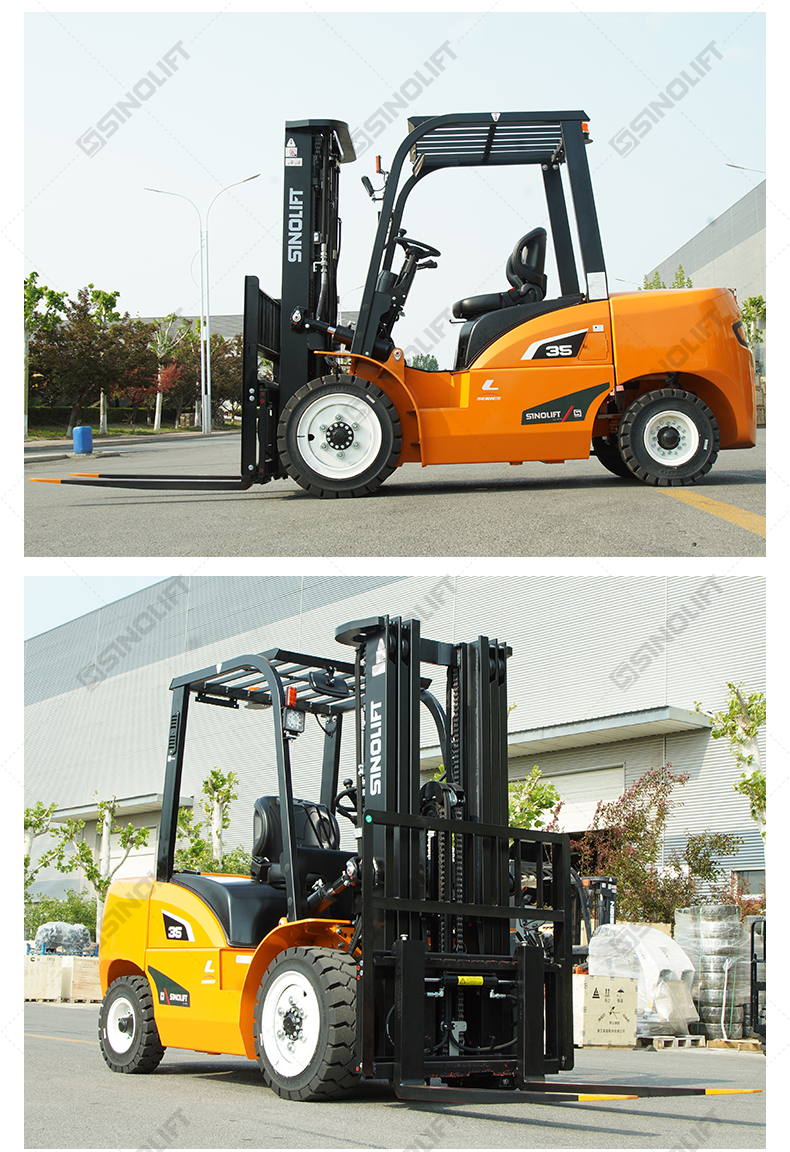

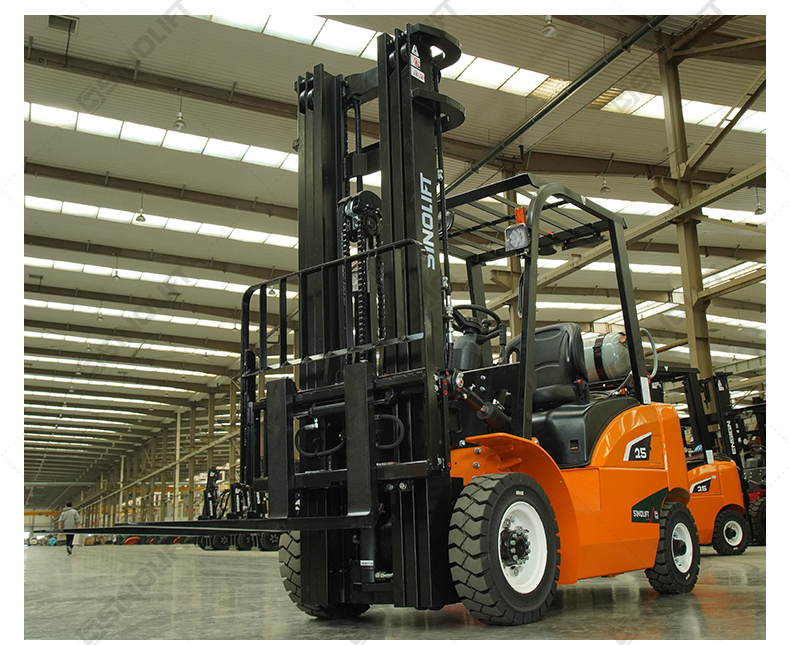

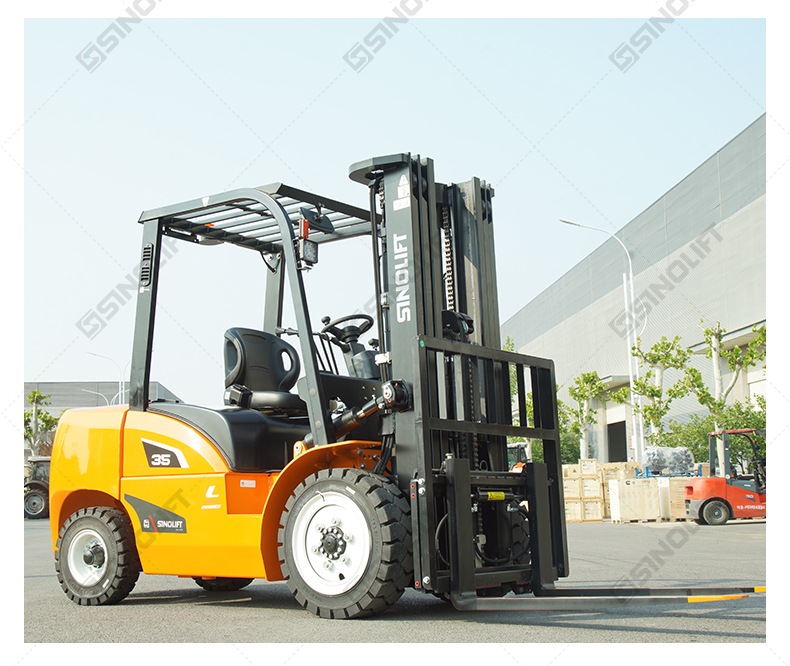

L SERIES PRO 2.0-3.8T Internal-Combustion Counter Balanced Forklift

CPCD20L-CPCD38L
The SINOLIFT L-Series PRO 2.0-3.8T internal-combustion forklift delivers robust performance for intensive material handling in warehouses, ports, and industrial plants. Building on the acclaimed performance of its predecessor, this series incorporates not only eco-friendly design but also human-centric operational flexibility—features highly praised in the forklift market. Designed for operational excellence, it combines advanced stability systems, EU Stage V certified engines, and ergonomic controls to ensure productivity and operator comfort in demanding environments.
Quantity:
Contact Now
add to cart
All Products

Key Features of the SINOLIFT L-Series PRO

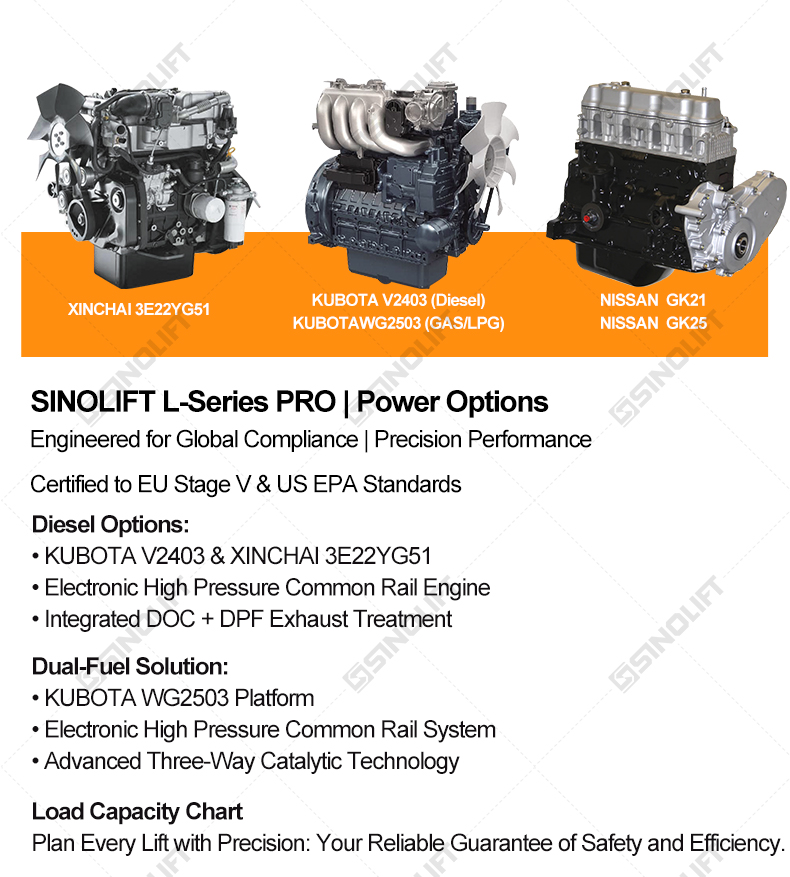

Advanced Power Options: Equipped with EU Stage V certified engines including Kubota V2403 diesel and WG2503 dual-fuel systems, featuring electronic high-pressure common rail technology for optimal fuel efficiency and reduced emissions.

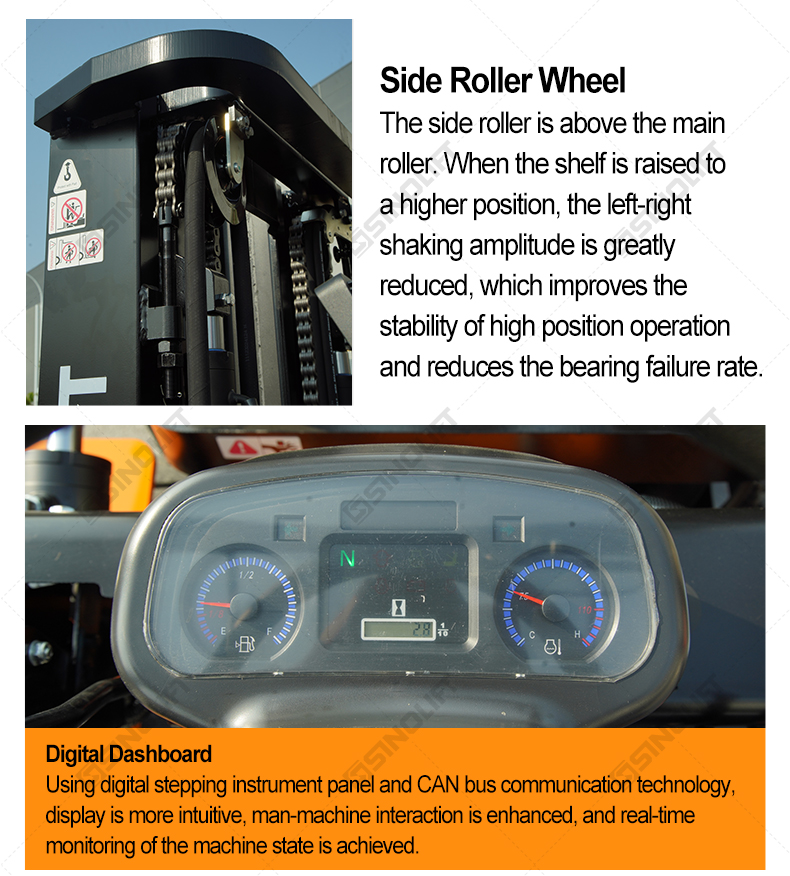

Enhanced Stability Control: Incorporates an active stability system combined with low center of gravity design and side roller positioning to minimize load sway and ensure superior handling during high-level operations.

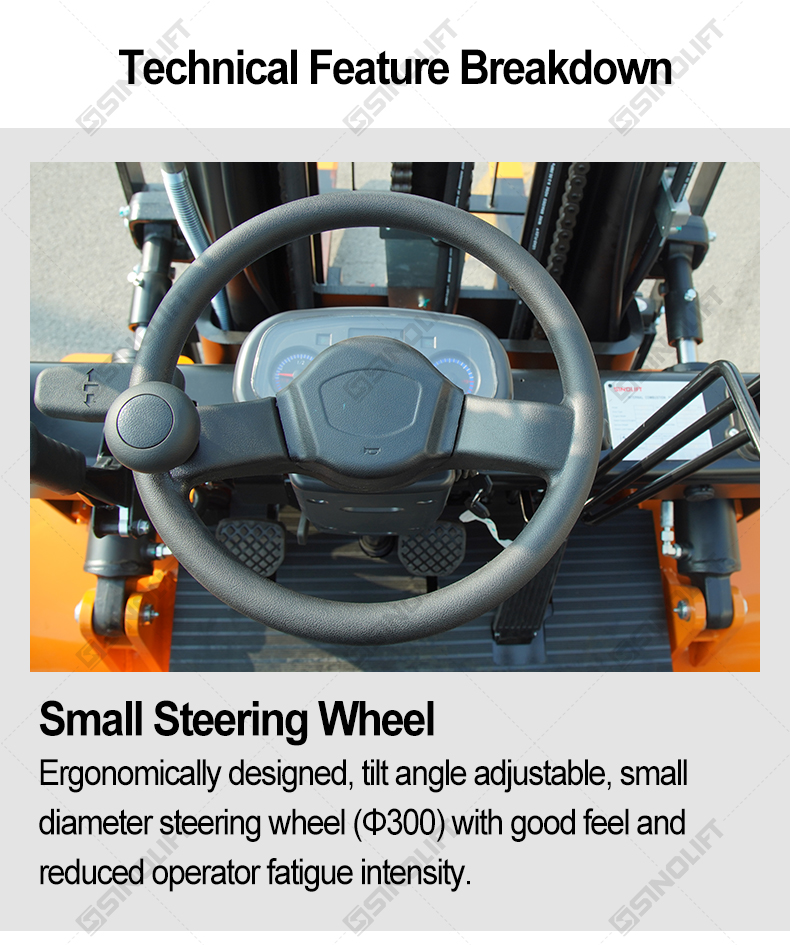

Operator-Focused Ergonomics: Features a scientifically designed cabin with φ300 tilt-adjustable steering wheel, reduced vibration transmission, multifunctional LCD display, and enlarged legroom for extended comfort.

Intelligent Safety Systems: Integrated safety package includes advanced braking, comprehensive monitoring systems, and DOC+DPF aftertreatment technology for environmentally compliant operation.

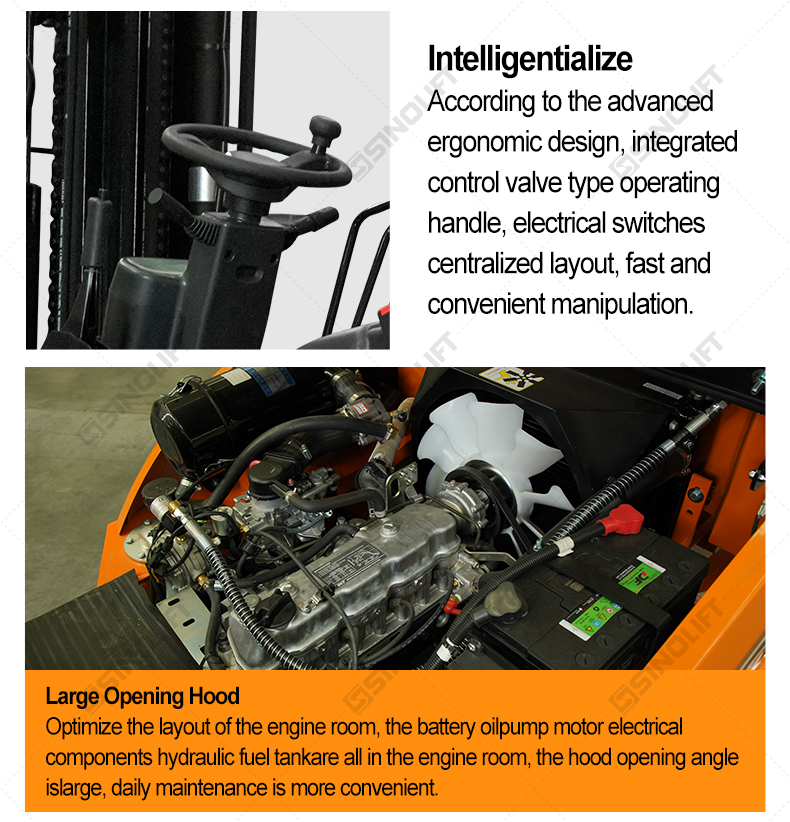

Superior Serviceability: Engineered with quick-access maintenance points, modular components, and simplified service procedures to minimize downtime and reduce lifecycle costs.

Precision Performance: Delivers faster lifting speeds, smoother acceleration, and precise steering response through optimized hydraulic systems and advanced control technologies.

Application Versatility
The L-Series PRO demonstrates exceptional adaptability across multiple demanding environments. Its robust construction and advanced features make it ideal for intensive warehouse operations, manufacturing facilities, logistics centers, and port terminal applications. The forklift maintains reliable performance in both indoor and outdoor settings, handling everything from pallet stacking to container loading with equal efficiency.

ManufactureSINOLIFT
ModelCPCD20L+CP(C)D25L+CP(C)D30L+CP(C)D35L+CP(C)D38L+CP(Q)YD20L+CP(Q)YD25L+CP(Q)YD30L+CP(Q)YD35L+CP(Q)YD38L+
Power typeDieselGas/LPG

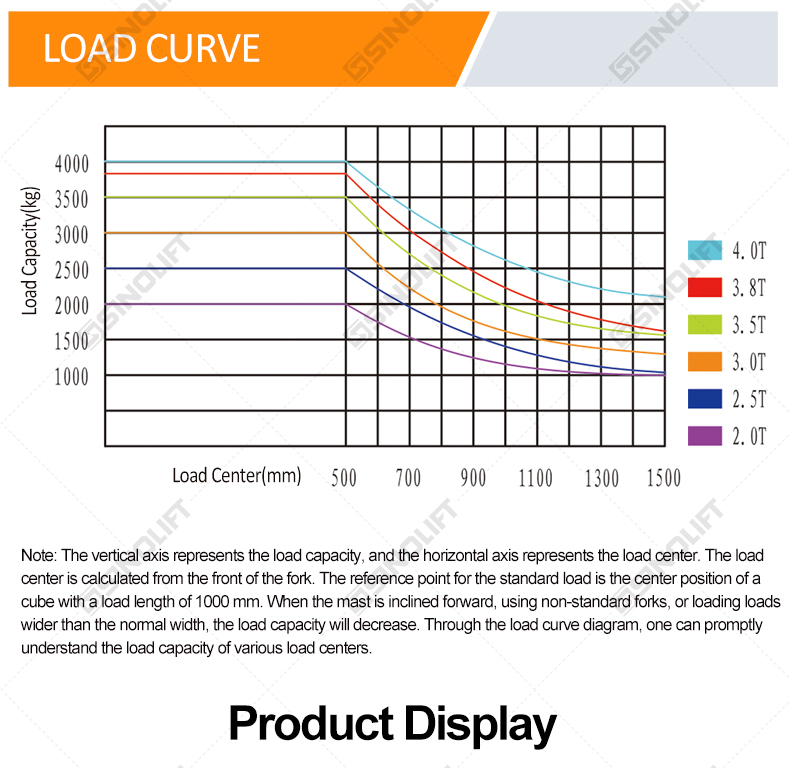

Rated capacitykg2000250030003500380020002500300035003800
Load centermm500500
Lift heightmm30003000
Free lift heightmm130130
Fork sizemm1070x120x401070x120x401070x122x451070x122x501070x120x401070x120x401070x122x451070x122x50
Fork spread outside (Min./Max.)mm240/1024240/1024244/1060244/1060244/1060240/1024240/1024244/1060244/1060244/1060
Mast tilt angledeg6°/12°6°/12°
Front overhangmm462462475480490462462475480490
Rear overhangmm408408600600600408408600600600
Length to face
of fork 		mm2520252028252880299025202520282528802990
Overall widthmm1170117012301230123011701170123012301230
Height of load backrestmm965965122512251225965965122512251225
Mast lowered heightmm2000200021302130213020002000213021302130
Mast extended heightmm4035403542304230423040354035423042304230
Overhead guard heightmm2110211021452145214521102110214521452145
Turning radiusmm2290229025602620272022902290256026202720
Travel speedkm/h17/1917/1918.5/1918.5/1918.5/1917/1917/1918.5/1918.5/1918.5/19
Lift speedmm/sec540/450540/450450/410450/410330/310540/450540/450450/410450/410330/310
Lowering speedmm/sec560/600560/600455/480455/480370/400560/600560/600455/480455/480370/400
Max. gradeability
(full load /no load)		%15/2015/2015/2015/2015/2015/2015/2015/2015/2015/20
Max. drawbar pullKN1616.52020201616.5202020
Self weightkg3400370043004600480034003700430046004800
Front Tires7.00-12-12PR7.00-12-12PR28x9-15-14PR28x9-15-14PR28x9-15-14PR7.00-12-12PR7.00-12-12PR28x9-15-14PR28x9-15-14PR28x9-15-14PR
Rear Tires6.00-9-10PR6.00-9-10PR6.50-10-10PR6.50-10-10PR6.50-10-10PR6.00-9-10PR6.00-9-10PR6.50-10-10PR6.50-10-10PR6.50-10-10PR
Front Treadmm970970100010001000970970100010001000
Rear Treadmm980980970970970980980970970970
Wheelbasemm1650165017501800190016501650175018001900
Min.ground clearancemm110110130130130110110130130130
Operating pressureMpa17.517.517.517.517.517.517.517.517.517.5
BatteryV/Ah12/8012/80
ModelXinchai
C490BPG		Quanchai
V29-50C43		Isuzu
C240PKJ-30		Xinchai
A495BPG		Isuzu
4JG2PE-01		Guangqing
GQ-4Y		Nissan
GK21		Nissan
GK25		PSI 2.4Kubota
WG2503-GL-3
Rated outputkw/rpm36.8/265036.8/250034.6/250042/250046/245046/2800 (GAS)      39/2800 (LPG)31.2/2250 (GAS)      29/2250 (LPG)37.4/2300 (GAS)      35/2300 (LPG)48/2700 (GAS)      46/2700 (LPG)42.8/2600 (GAS)      43.5/2600 (LPG)
Rated torqueN.m/rpm156
/1700-1900		190
/1500-1850		139.2/1800174
/1800-2000		186
/1700-1800		168/1800 (GAS) 156/1800 (LPG)143.7/1600 (GAS) 143/1600 (LPG)176.5/1600 (GAS) 176/1600 (LPG)170/2400 (GAS) 168/1600 (LPG)163.3/1800 (GAS) 173.7/1400 (LPG)
No.of cylinder4444444444
Bore×strokemm90x10593x10586x10295x10595.4x10791x8689x8389x10086.5x10088x102.4
Displacementcc2670285023692977305922372065248823512491
Emission StandardStage II
/EUR III		Stage IV Stage II
/ EURO IIIA		Stage IIStage II
/ EURO IIIA		Stage IIStage IIStage IIEPA T4EPA T3
/ EURO V
Transmissions TypeMechanical
/Hydraulic		Mechanical
/Hydraulic		Mechanical
/Hydraulic		Mechanical
/Hydraulic		Mechanical
/Hydraulic		Mechanical
/Hydraulic		Mechanical
/Hydraulic		Mechanical
/Hydraulic		Mechanical
/Hydraulic		Mechanical
/Hydraulic
Hydraulic System Working PressureMpA17.517.517.517.517.517.517.517.517.517.5
