LOAD STABILIZER
WDQ16D
The LOAD STABILIZER is a device used on engineering machinery and vehicles.
Quantity:
Product Introduction:
The payload stabilizer is a device used on engineering machinery and vehicles, and its main function is to stabilize and balance the load during transportation to ensure safe and efficient transport.

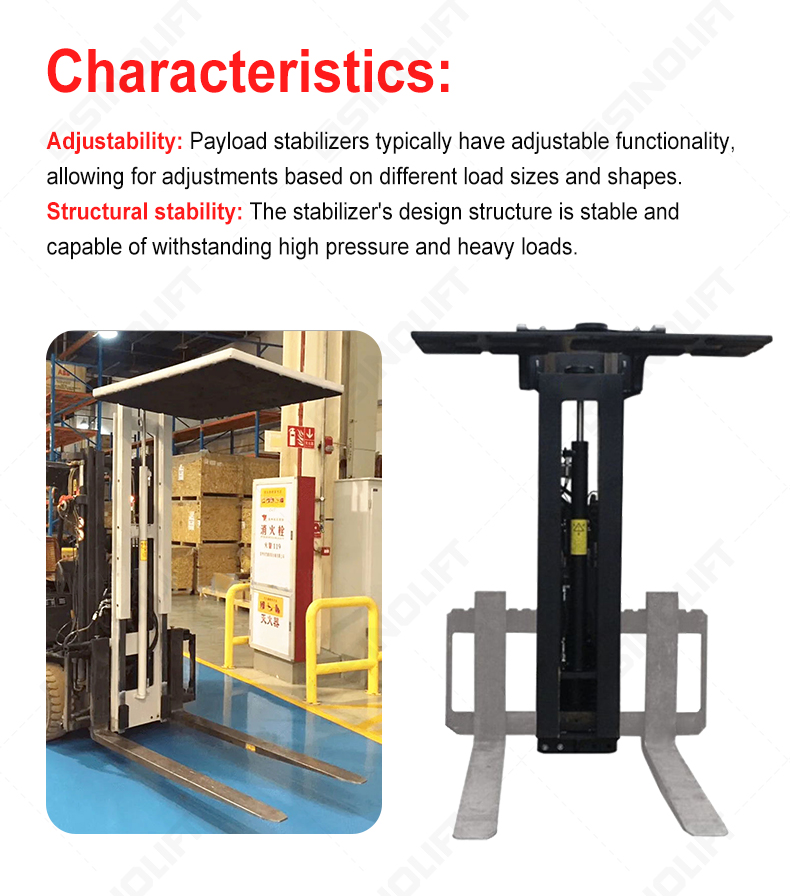

Fetures:
- Adjustability: Payload stabilizers typically have adjustable functionality, allowing for adjustments based on different load sizes and shapes.
Structural stability: The stabilizer's design structure is stable and capable of withstanding high pressure and heavy loads.

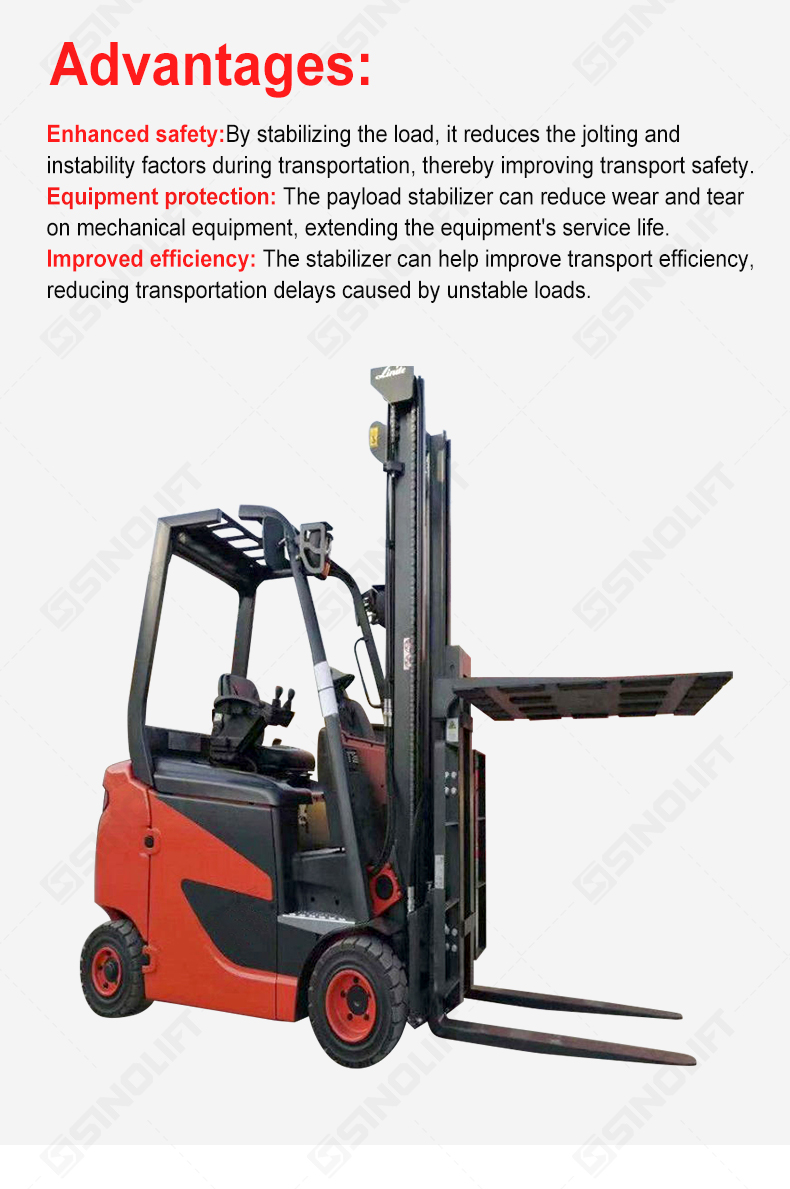

Advantages:
- Enhanced safety: By stabilizing the load, it reduces the jolting and instability factors during transportation, thereby improving transport safety.
Equipment protection: The payload stabilizer can reduce wear and tear on mechanical equipment, extending the equipment's service life.
Improved efficiency: The stabilizer can help improve transport efficiency, reducing transportation delays caused by unstable loads.

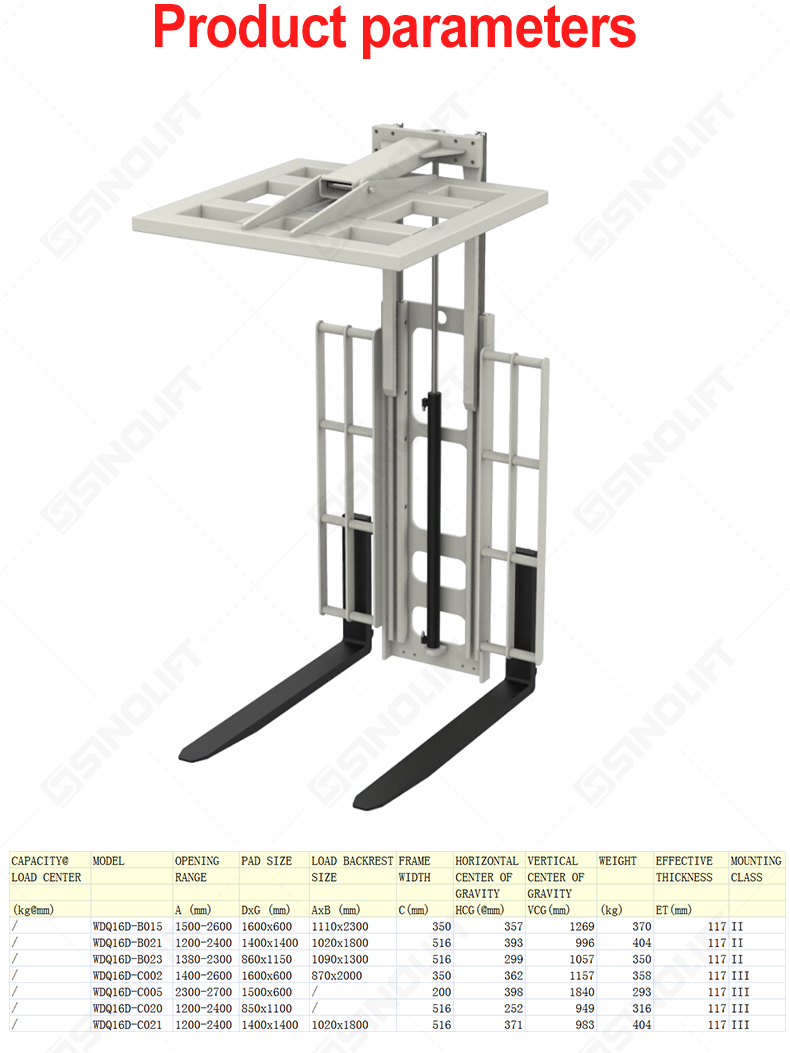

Parameters:

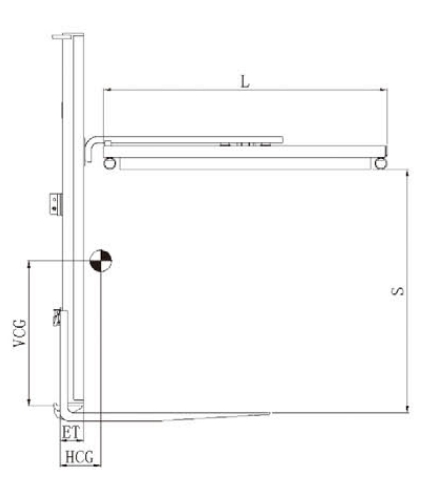

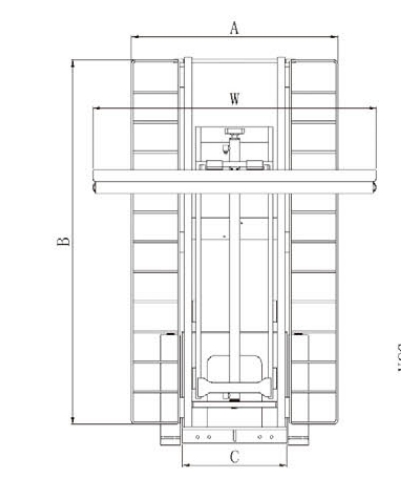

| CAPACITY@ | MODEL | OPENING | PAD SIZE | LOAD BACKREST | FRAME | HORIZONTAL | VERTICAL | WEIGHT | EFFECTIVE | MOUNTING |
| LOAD CENTER | RANGE | SIZE | WIDTH | CENTER OF | CENTER OF | THICKNESS | CLASS | |||
| GRAVITY | GRAVITY | |||||||||
| (kg@mm) | A (mm) | DxG (mm) | AxB (mm) | C(mm) | HCG(@mm) | VCG(mm) | (kg) | ET(mm) | ||
| / | WDQ16D-B015 | 1500-2600 | 1600x600 | 1110x2300 | 350 | 357 | 1269 | 370 | 117 | II |
| / | WDQ16D-B021 | 1200-2400 | 1400x1400 | 1020x1800 | 516 | 393 | 996 | 404 | 117 | II |
| / | WDQ16D-B023 | 1380-2300 | 860x1150 | 1090x1300 | 516 | 299 | 1057 | 350 | 117 | II |
| / | WDQ16D-C002 | 1400-2600 | 1600x600 | 870x2000 | 350 | 362 | 1157 | 358 | 117 | III |
| / | WDQ16D-C005 | 2300-2700 | 1500x600 | / | 200 | 398 | 1840 | 293 | 117 | III |
| / | WDQ16D-C020 | 1200-2400 | 850x1100 | / | 516 | 252 | 949 | 316 | 117 | III |
| / | WDQ16D-C021 | 1200-2400 | 1400x1400 | 1020x1800 | 516 | 371 | 983 | 404 | 117 | III |
