Multi-purpose Block Clamp
ZKC

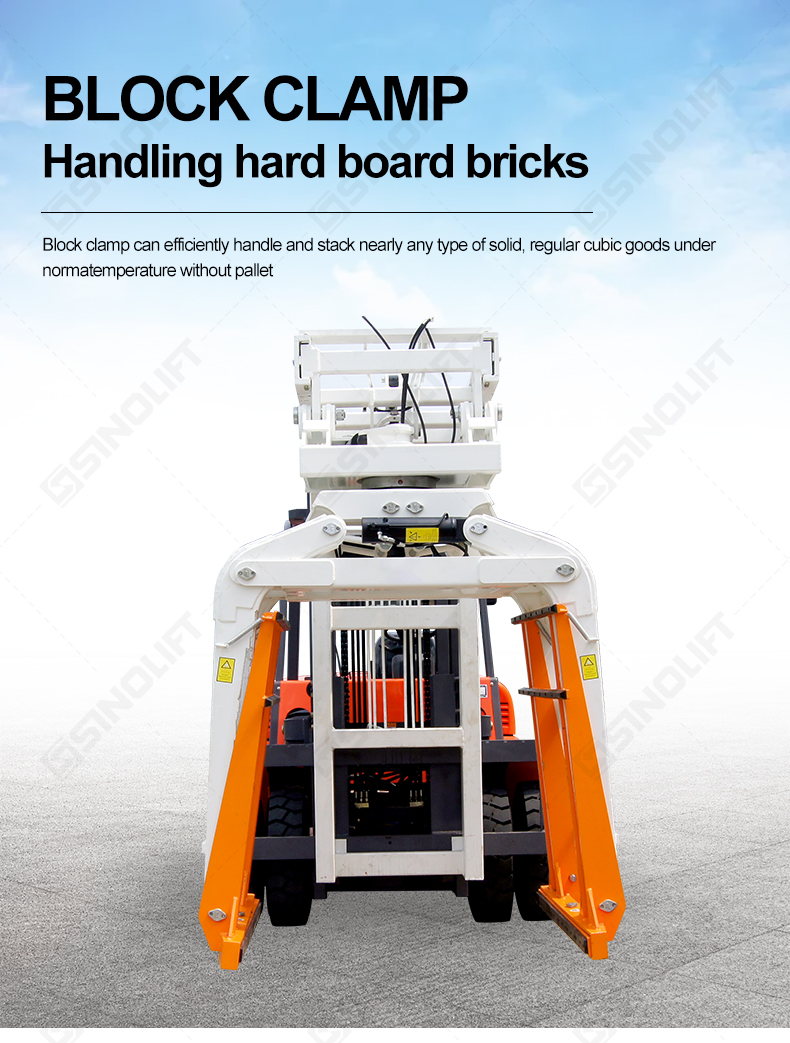

This multi-purpose block clamp efficiently handles and stacks solid, regular cubic materials without pallets, featuring a lateral sliding arm design for smooth clamping and sideshifting. Ideal for construction and metallurgy industries, it is widely used for concrete blocks, cement bricks, carbon cubes, and more. Its high structural strength ensures safe, productive operations and long-term durability.
Quantity:
Highlights of the Multi-purpose Block Clamp:
Versatile Handling: Expertly grips and moves solid, cubic materials—no pallet needed.

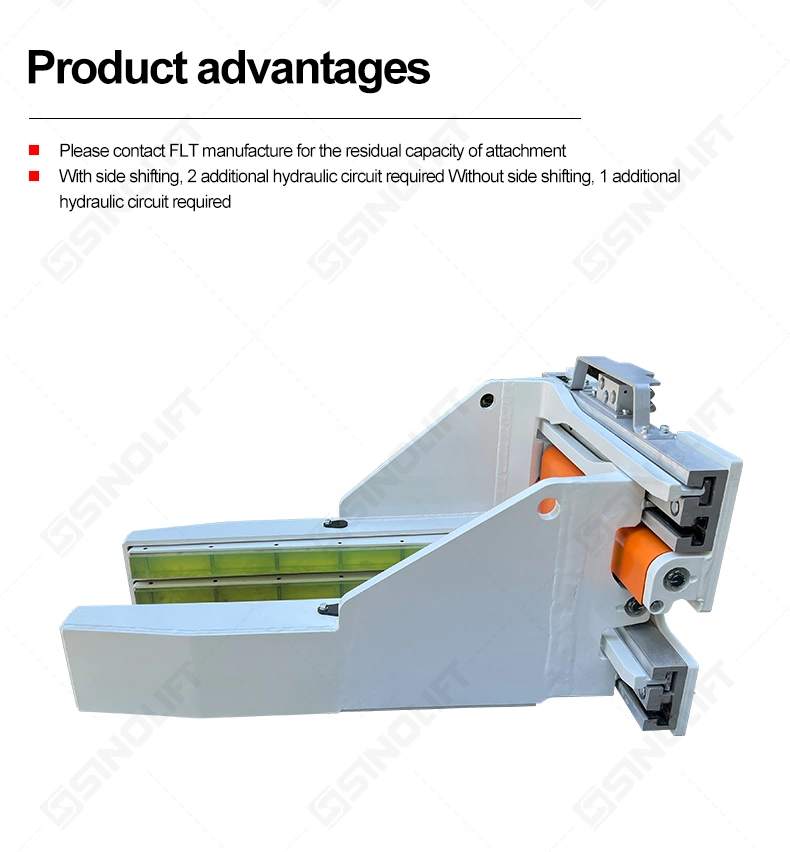

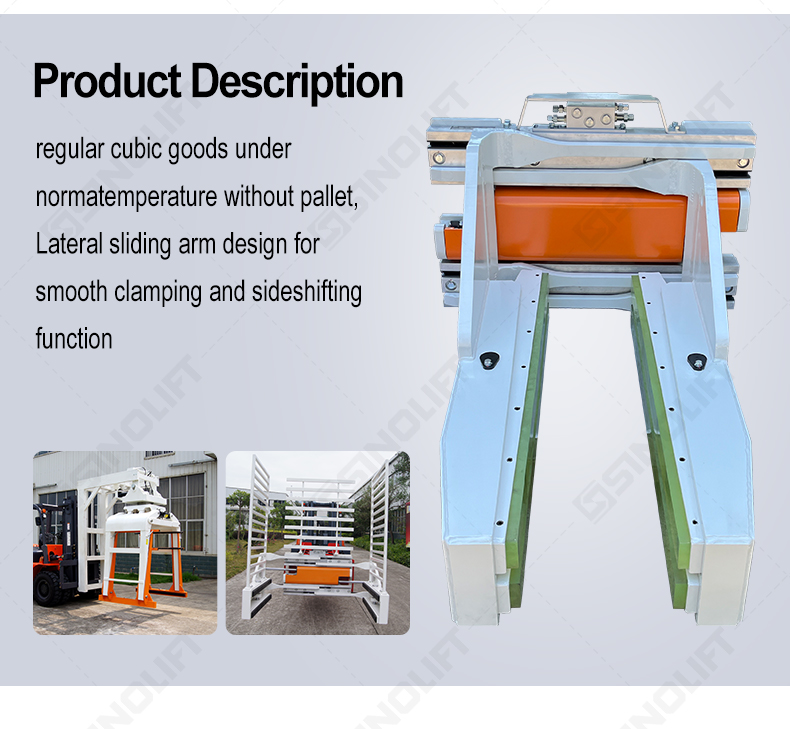

Innovative Arm Design: Lateral sliding mechanism ensures smooth clamping and side-shifting.

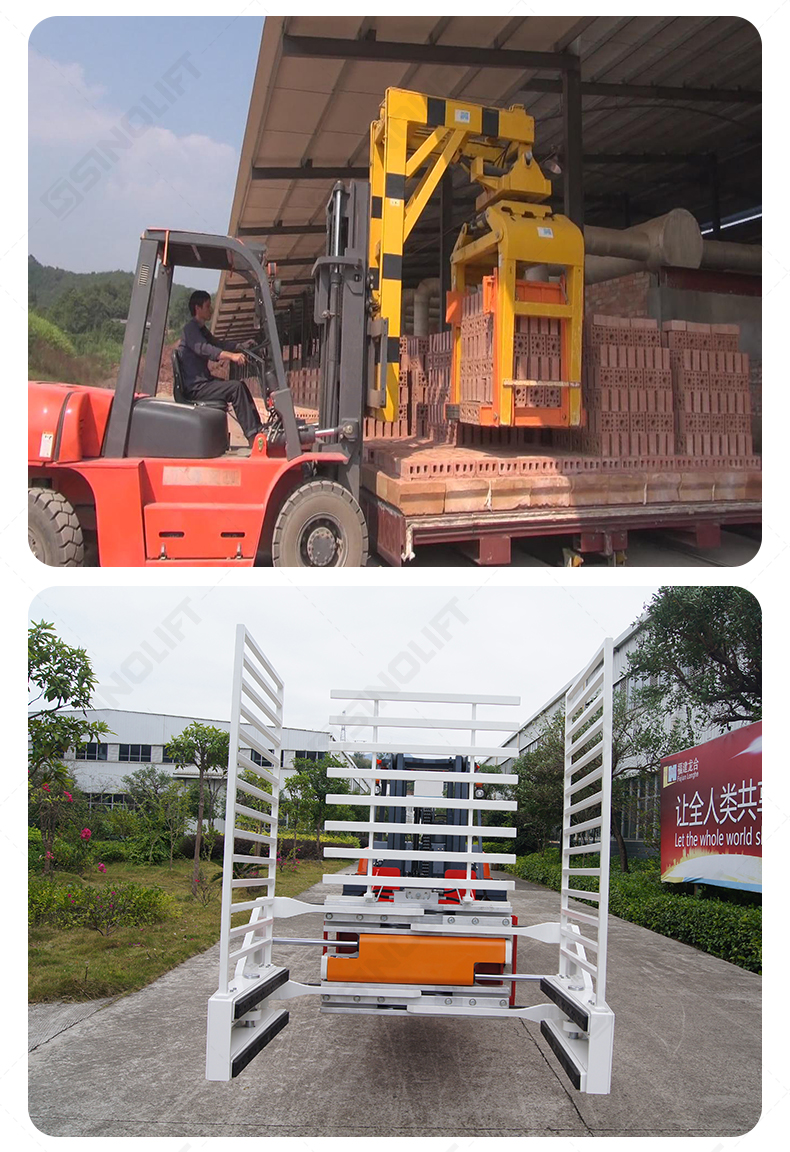

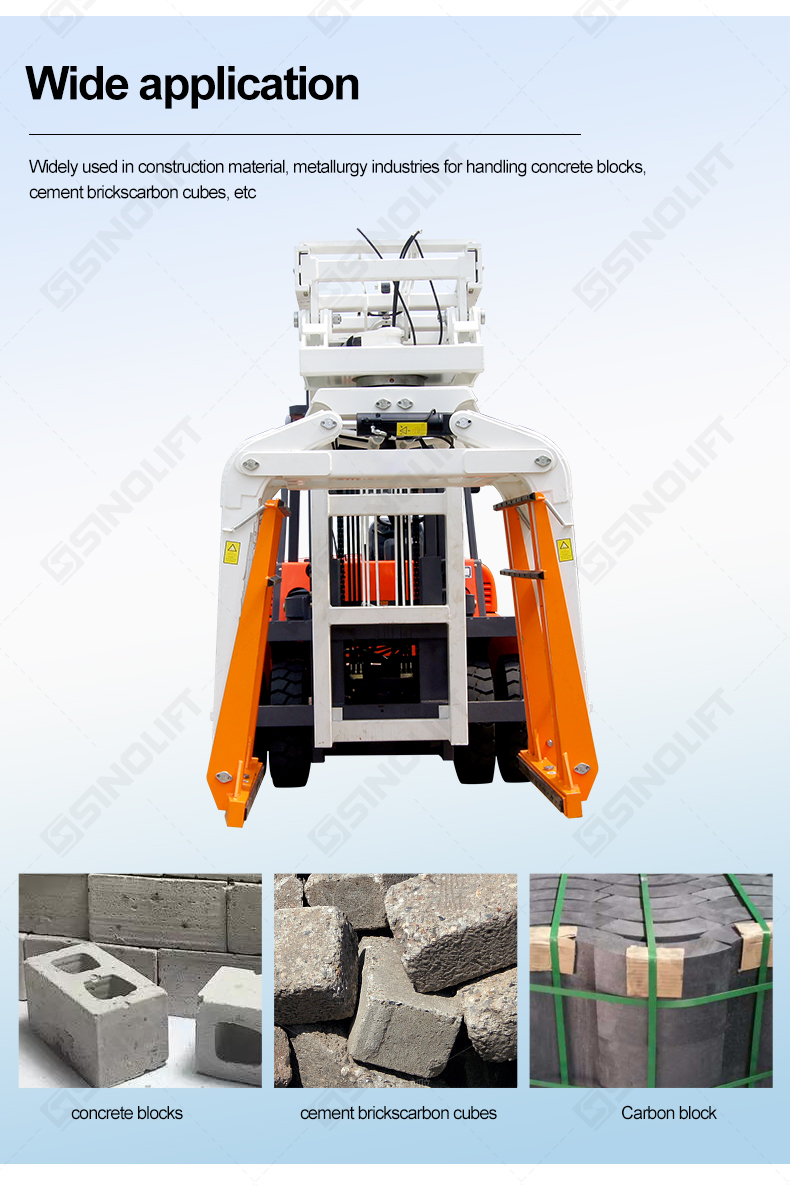

Industry Adaptability: Perfect for construction and metallurgy sectors; handles concrete, cement bricks, carbon cubes, and more.

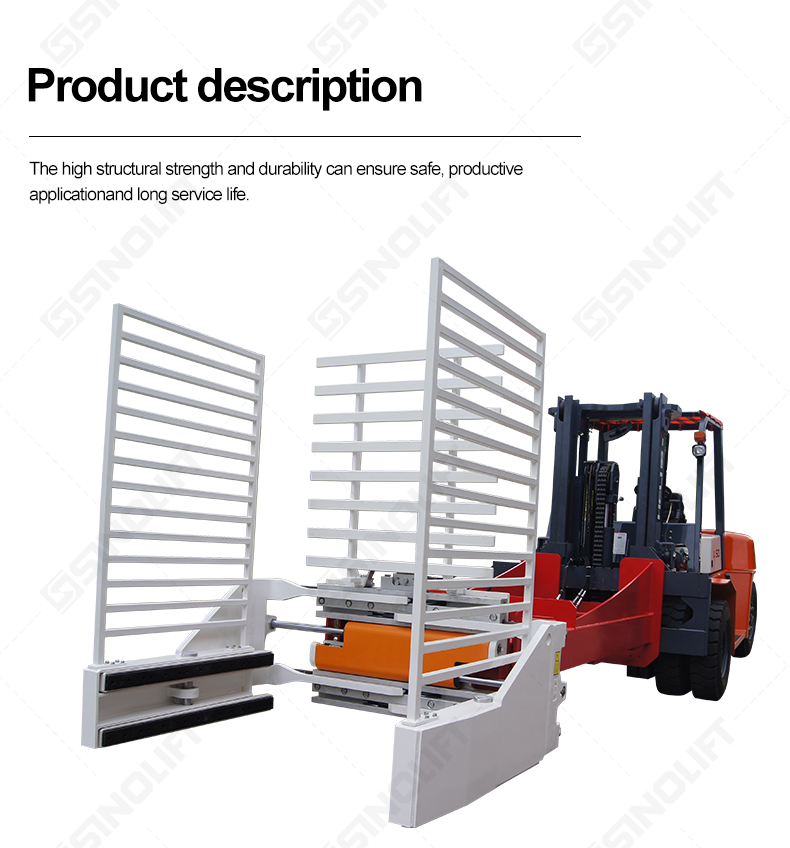

Robust & Durable: High-strength structure guarantees safety, productivity, and long service life.

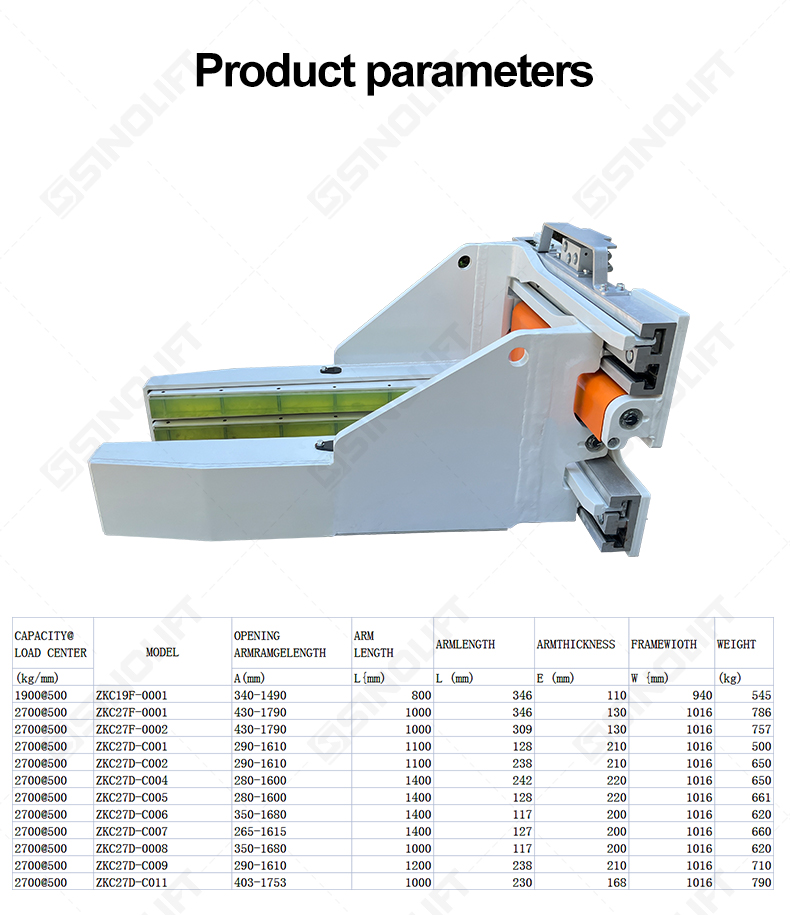

Specifications of the Multi-purpose Block Clamp:
CAPACITY@ LOAD CENTER | MODEL | OPENING ARMRAMGELENGTH | ARM LENGTH | ARMLENGTH | ARMTHICKNESS | FRAMEWIOTH | WEIGHT |
| (kg/mm) | A(mm) | L{mm) | L (mm) | E (mm) | W {mm) | (kg) | |
| 1900@500 | ZKC19F-0001 | 340-1490 | 800 | 346 | 110 | 940 | 545 |
| 2700@500 | ZKC27F-0001 | 430-1790 | 1000 | 346 | 130 | 1016 | 786 |
| 2700@500 | ZKC27F-0002 | 430-1790 | 1000 | 309 | 130 | 1016 | 757 |
| 2700@500 | ZKC27D-C001 | 290-1610 | 1100 | 128 | 210 | 1016 | 500 |
| 2700@500 | ZKC27D-C002 | 290-1610 | 1100 | 238 | 210 | 1016 | 650 |
| 2700@500 | ZKC27D-C004 | 280-1600 | 1400 | 242 | 220 | 1016 | 650 |
| 2700@500 | ZKC27D-C005 | 280-1600 | 1400 | 128 | 220 | 1016 | 661 |
| 2700@500 | ZKC27D-C006 | 350-1680 | 1400 | 117 | 200 | 1016 | 620 |
| 2700@500 | ZKC27D-C007 | 265-1615 | 1400 | 127 | 200 | 1016 | 660 |
| 2700@500 | ZKC27D-0008 | 350-1680 | 1000 | 117 | 200 | 1016 | 620 |
| 2700@500 | ZKC27D-C009 | 290-1610 | 1200 | 238 | 210 | 1016 | 710 |
| 2700@500 | ZKC27D-C011 | 403-1753 | 1000 | 230 | 168 | 1016 | 790 |
