NA Hand pallet Jack
NA
The NA pallet jack is designed for efficient material handling in warehouses, factories, and logistics centers, featuring a fully sealed hydraulic system with a load limiter to prevent overloading and ensure durability. Its specially engineered lowering valve provides smooth and controlled operation for heavy loads, while the leak-proof design protects against moisture and extends service life. Ideal for industrial environments, this pallet jack combines reliability and ease of use to enhance productivity.
Quantity:
NA Hand pallet Jack Product Description:

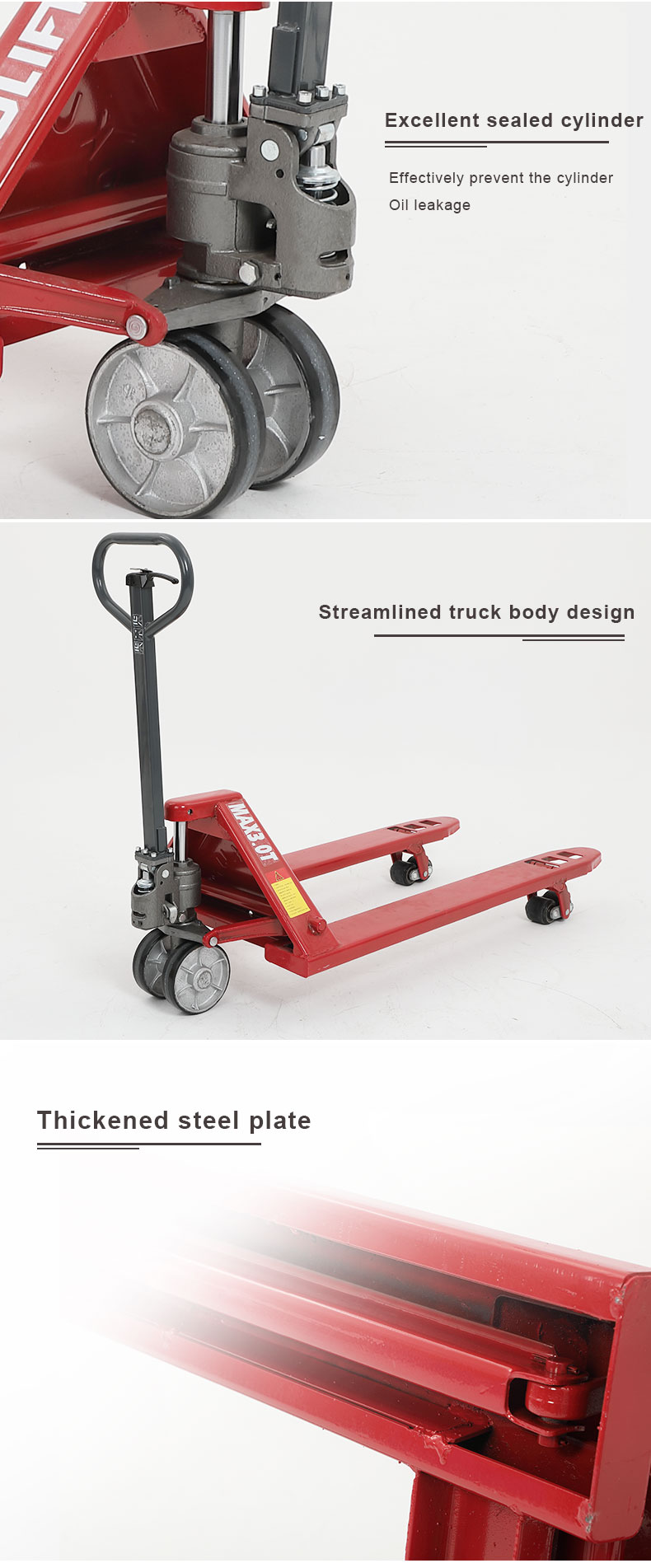

The hydraulic system of this pallet jack is the result of years of research and development and includes a load limiter that prevents premature wear due to overload. A specially designed lowering valve allows gentle lowering of heavy loads. No moisture can enter the unit and it is leak-proof.

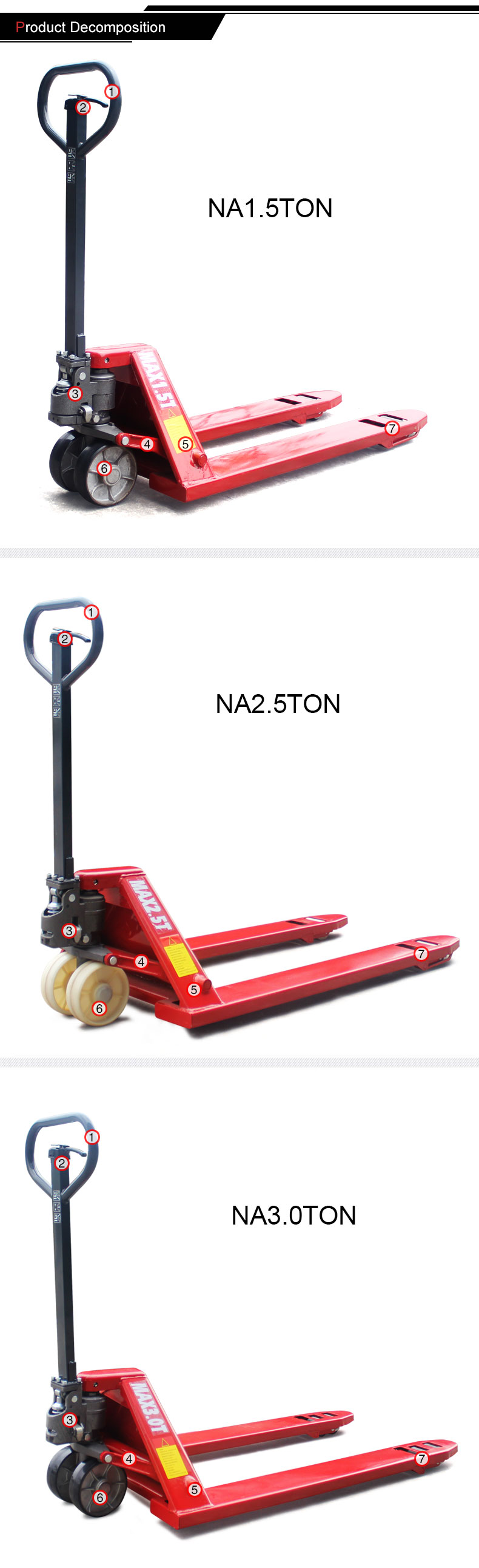

| Model | NA15/NA20/NA25/NA30 pallet jack | |||
| Capacity | kg | 1500/2000/ 2500/3000 | ||
| Max.Fork Height (H) | mm | 95/121/165/195/200 | ||
| Min.Fork Height (S) | mm | 35/51/65/75/80 | ||

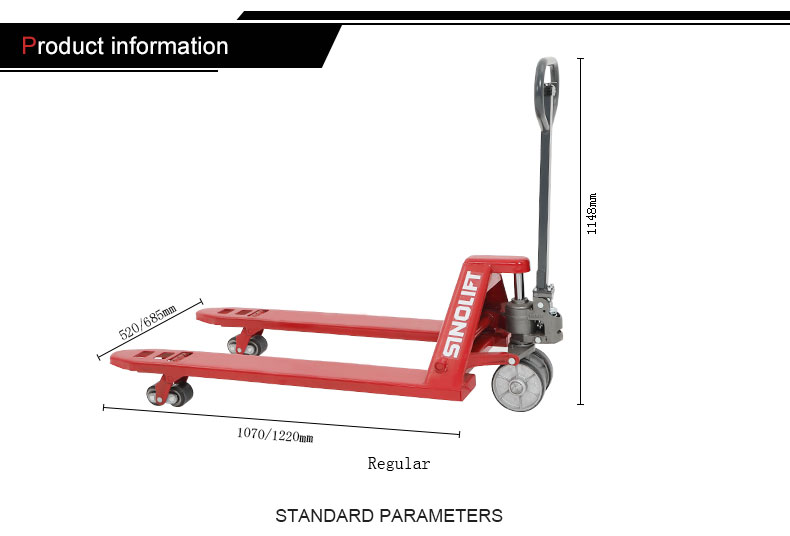

| Fork Length (L) | mm | 1150/1220 | ||
| Overall Fork Width (B) | mm | 460 | 520 | 685 |
| Every Fork Width (E) | mm | 153 | ||

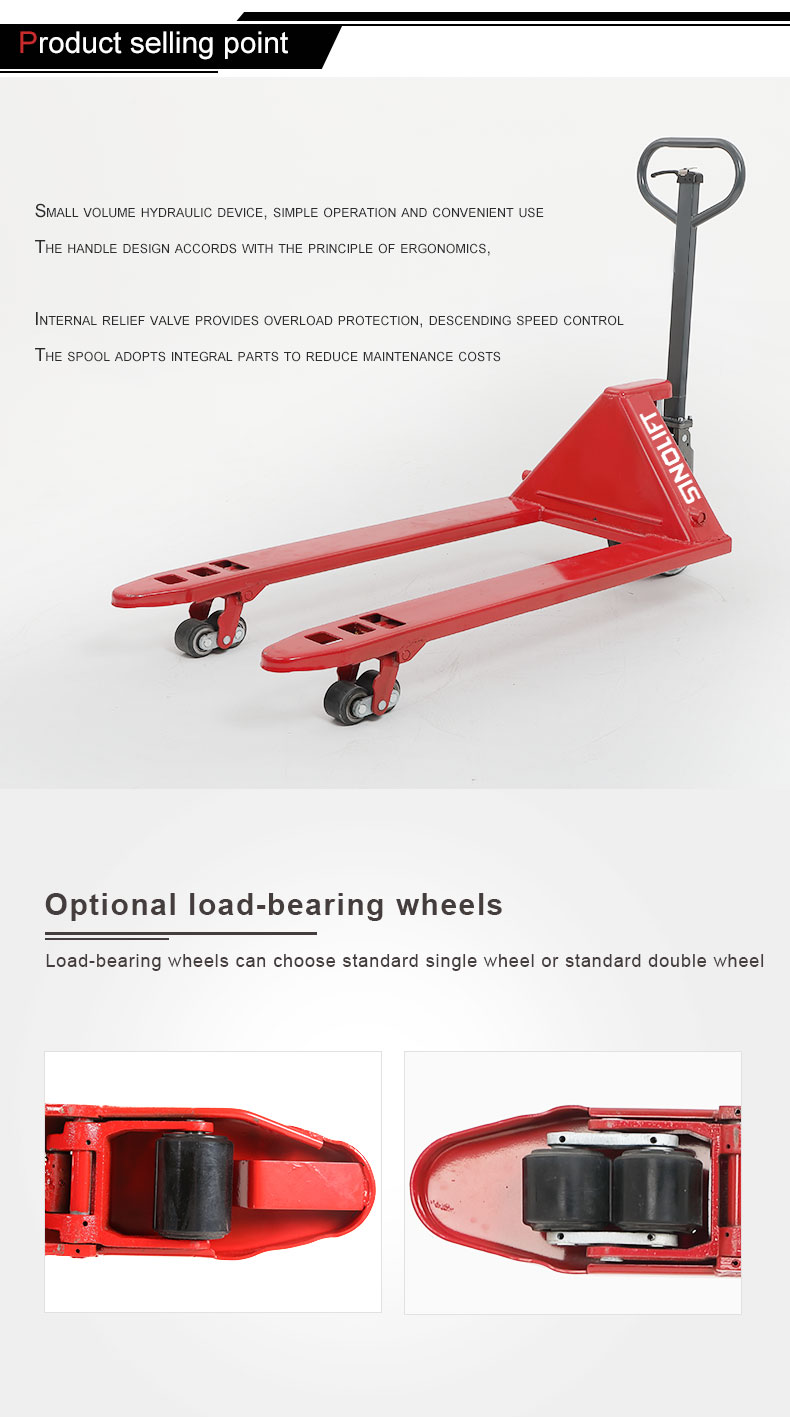

| Load Roller Diameter | mm | Φ78×70/Φ78×100 | ||
| Nylon/Polyurethane | ||||
| Steering Wheel Diameter | mm | Φ200/Φ180 | ||
| Nylon/Polyurethane/Rubber | ||||
| Net.Weight | kg | 84 | 89 | 92 |
| Quantities/20ft Container | pcs | 180 | 174 | |
| Remark: 3500kg(NA35)/5000kg(NA50) available on request | ||||
