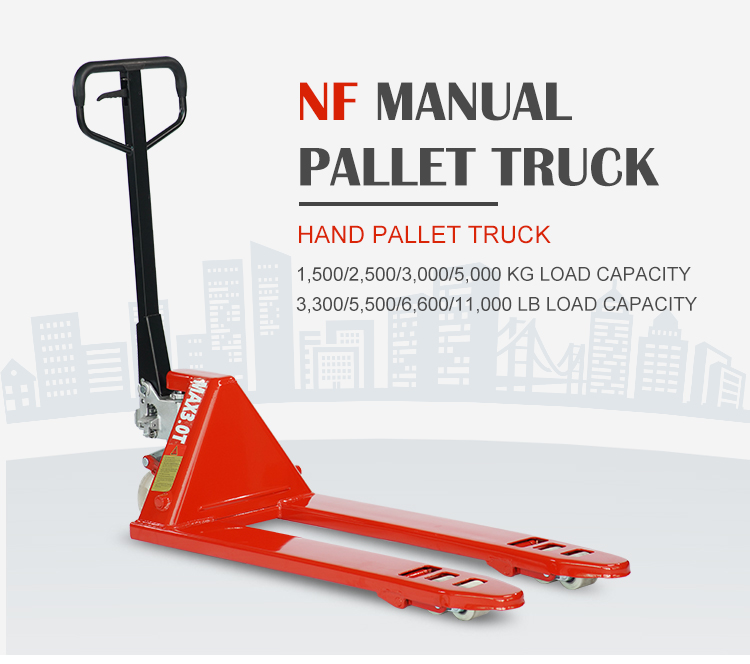

NF Hand Pallet Truck
NF Hand Pallet Truck
• Load 2000kg or 3000kg, lifting lightweight, high hydraulic cylinders, durable non-oil
• High texture paint the entire Hand Pallet Truck.

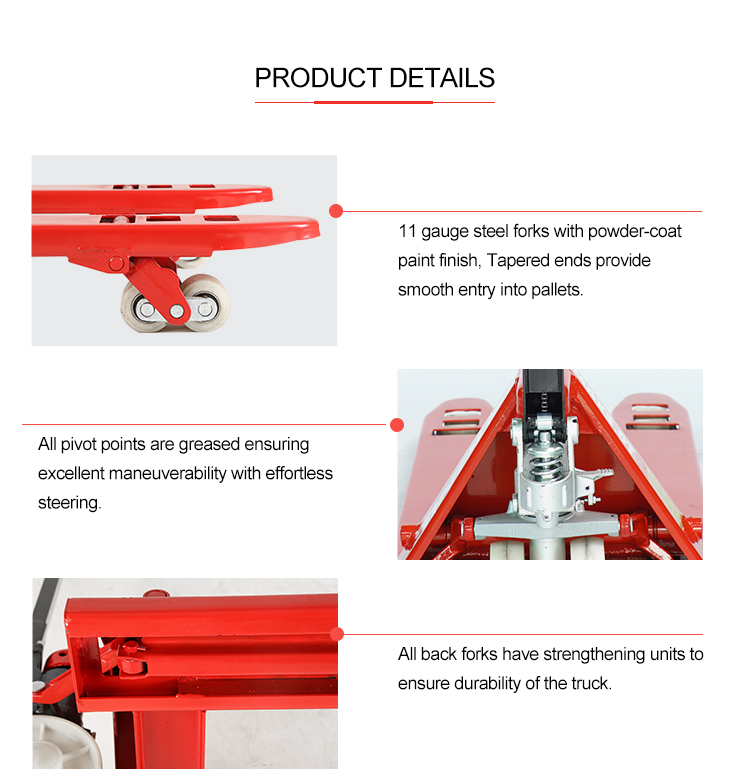

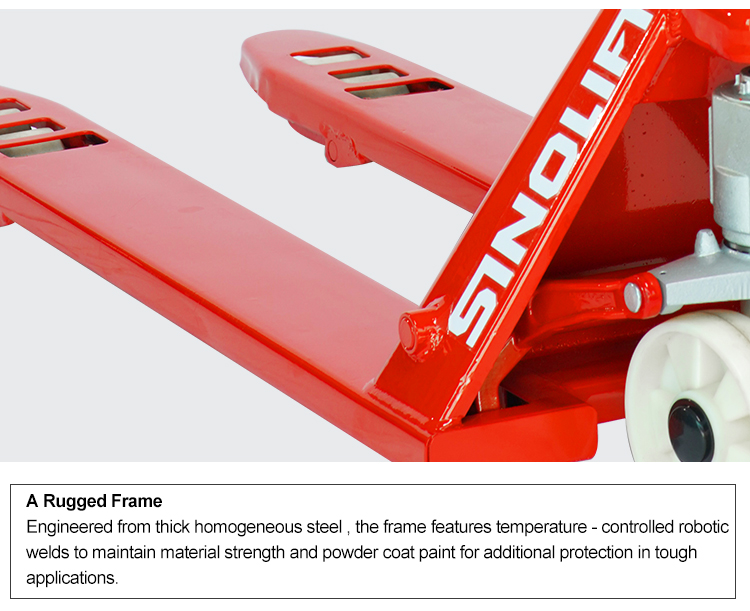

• The use of one piece fork, durable without bending, the tough ductile iron wheel frame, axis of rotation at a self-lubricating effect, high-quality PU wheel fork, so that Hand Pallet Truck starting resistance is small, light and quiet to walk, injury floor, double wheel design is more suitable for high load and uneven pavement.

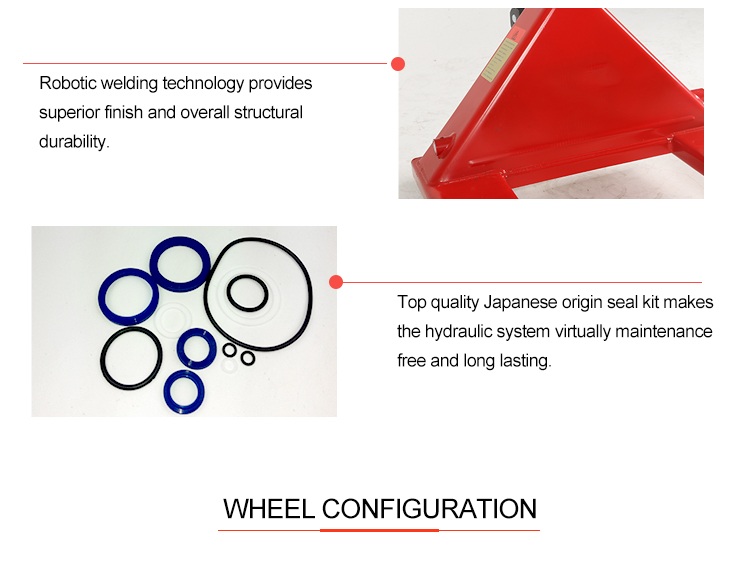

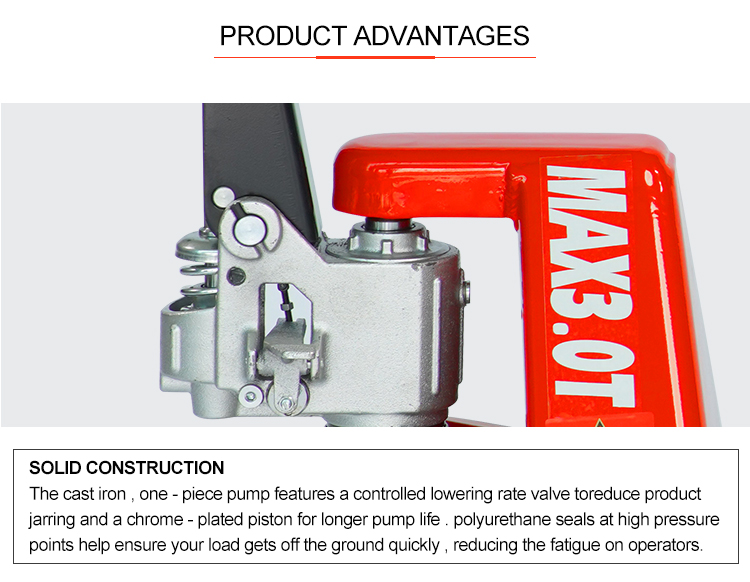

• Hydraulic system features a unique circuit and structure, so that hydraulic pump even more robust, and durable. While the fixed seal design, can be completely closed to prevent leakage and to achieve the effect, coupled with specific buffer design, the user can freely control the degree of decline.

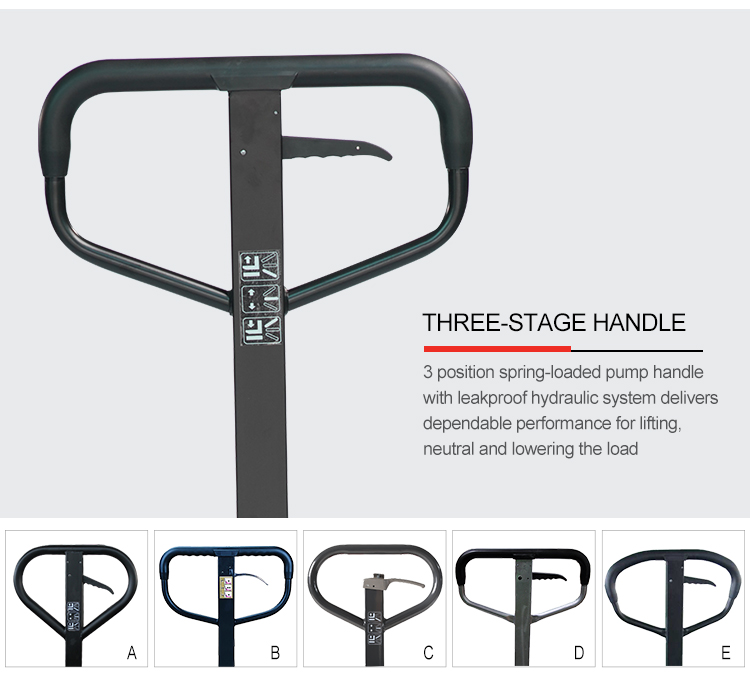

• Safe operation of a simple lever eliminating the trouble of training, this
Hand Pallet Truck has a rose design, positioning, decreased function device.
| Standard Model | NF Hand Pallet Truck | |||||
| Model | NF25-510 | N25-712 | NF30-510 | NF30-712 | ||
| Rated Capacity | Q | kg | 2500 | 3000 | ||
| Fork Width | W | mm | 520 | 685 | 520 | 685 |
| Fork Length | L | mm | 1070 | 1220 | 1070 | 1220 |
| Min. Fork Height | H1 | mm | 80 | 80 | ||
| Max.Fork Height | H2 | mm | 200 | 200 | ||

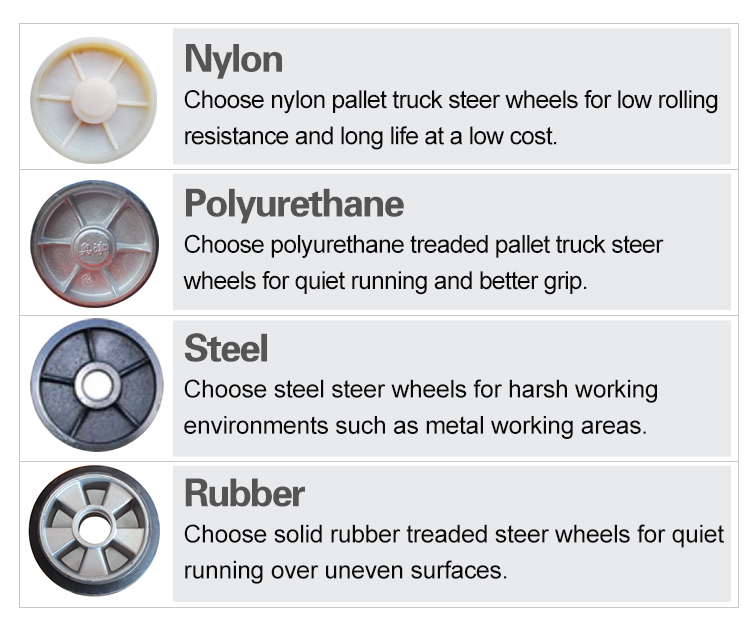

| Wheel | Steering Wheel A | mm | Ø180×50 | Ø180×50 | ||

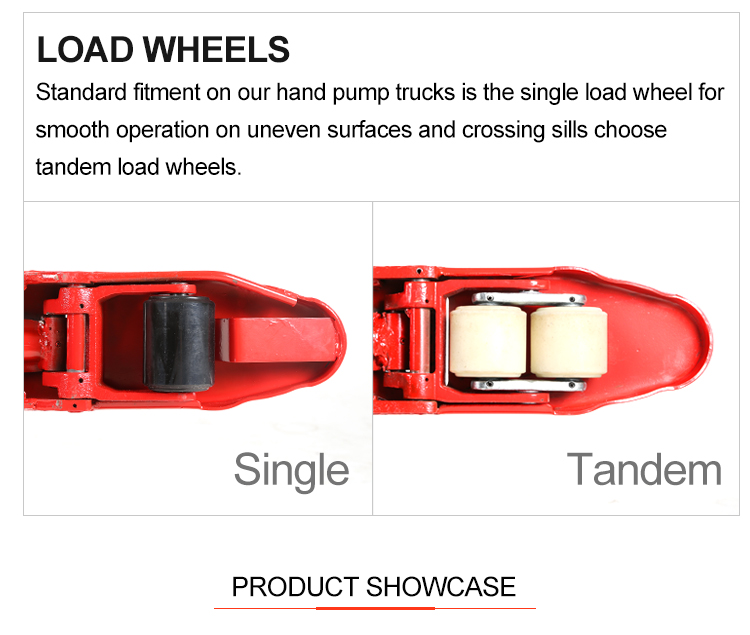

| Single Load Wheel B | mm | Ø78×100 | Ø78×100 | |||
| Tandem Load Wheel B | mm | Ø78×70 | Ø78×70 | |||
| Service Weight | Q | kg | 62 | 70 | 70 | 75 |
