NAG Galvanized Hand Pallet Truck
NAG
The galvanized and stainless steel hand pallet trucks are designed for excellent corrosion resistance, making them ideal for use in humid environments or areas where high hygiene standards are required.
Quantity:
Hand Pallet Truck
Galvanized and stainless steel Hand Pallet Truck are characterized by their high resistance to corrosion and are ideal for working in wet environments or where high hygiene standards must be observed.
Galvanized and stainless steel Hand Pallet Truck are characterized by their high resistance to corrosion and are ideal for working in wet environments or where high hygiene standards must be observed.

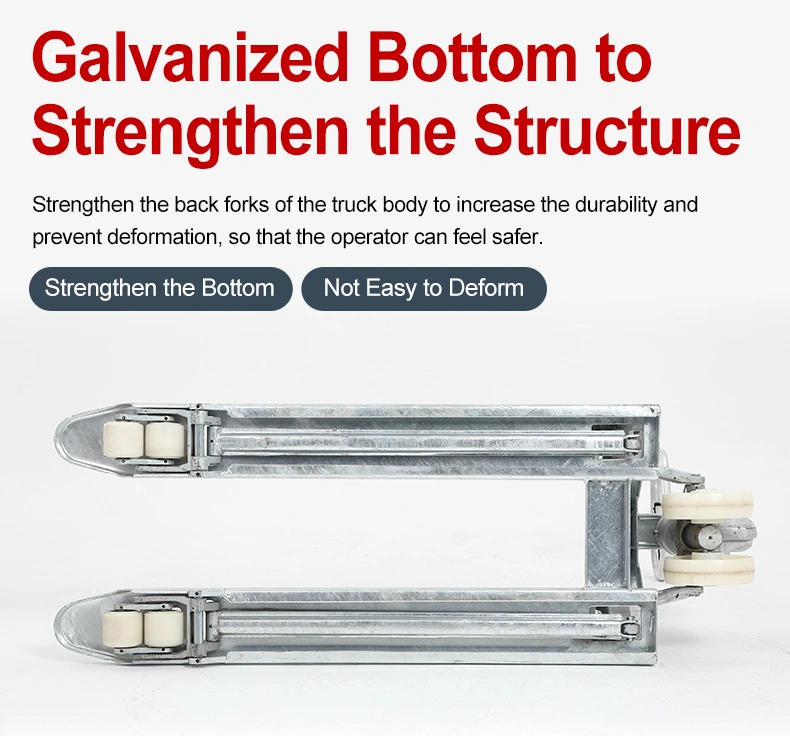

-Sturdy Hand Pallet Truck with pallet head and reinforced sill.

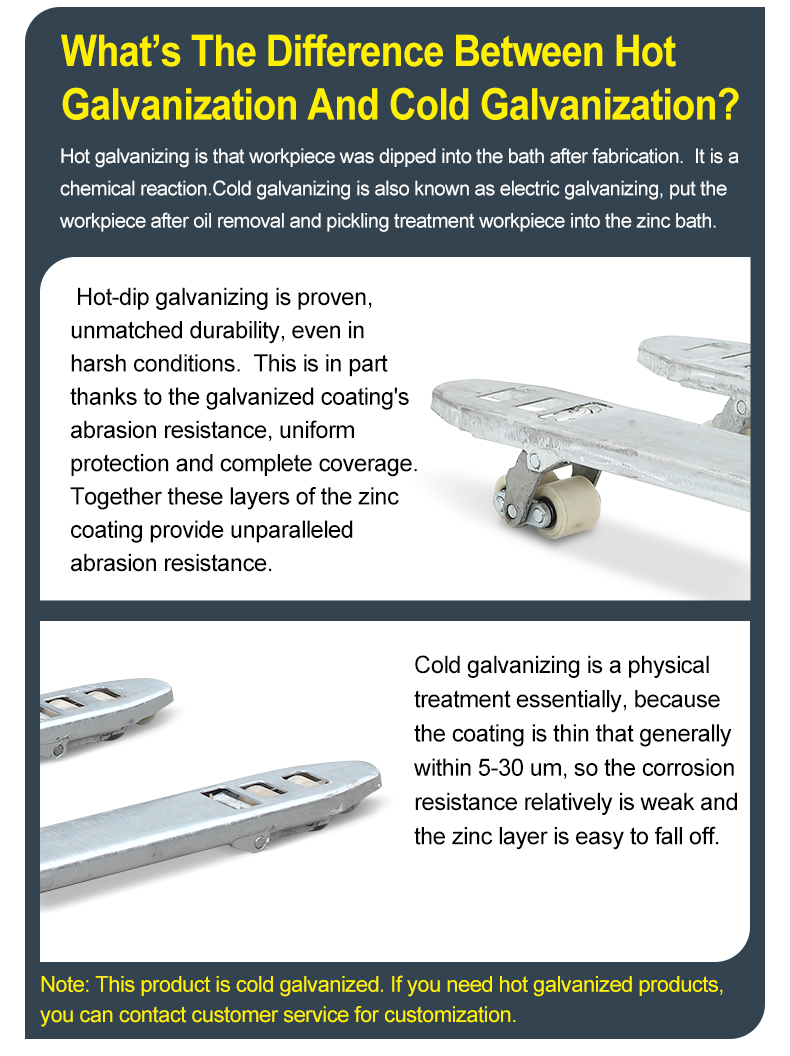

-Hot-dipped galvanized for better resistance over time.

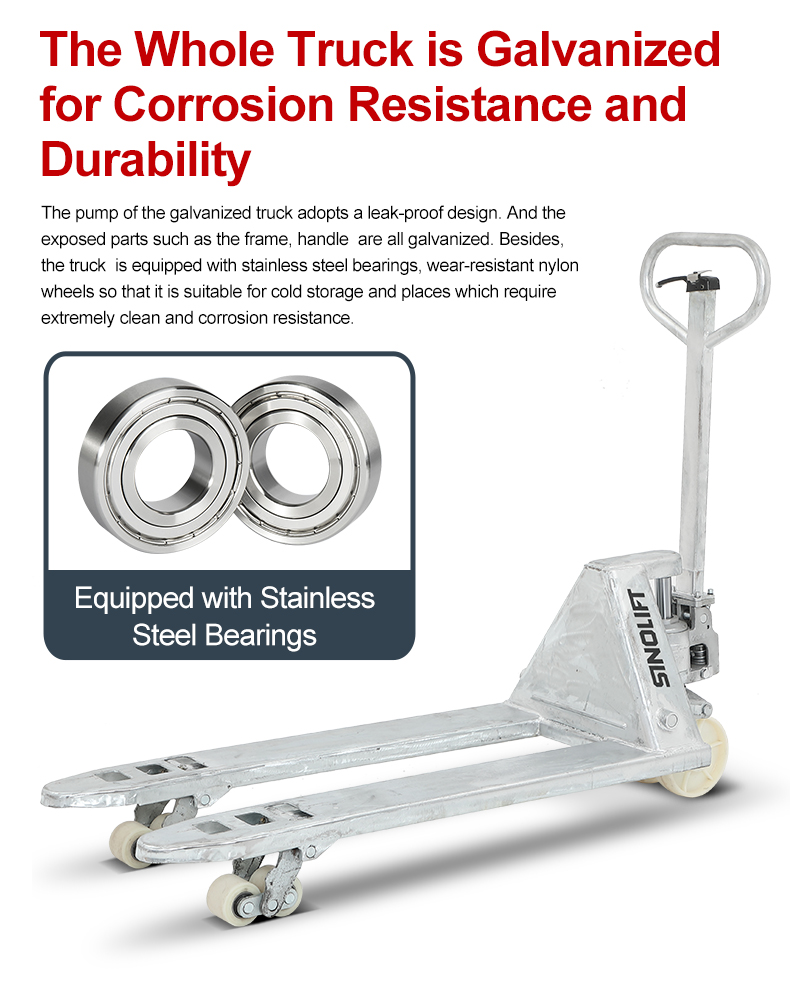

-Bearings, axles, screws and bolts are stainless steel.
-Hot-dipped galvanized for better resistance over time.
-Bearings, axles, screws and bolts are stainless steel.
| Model | NAG Hand Pallet Truck | |
| Rated Capacity(kg) | 1500/2000/2500/3000/5000 | |
| Width over forks(mm)*1 | W1 | 460/520/540/550/680/685 |
| Fork length(mm)*1 | L1 | 810/ 980/1070/1150/1220 |
| Min. Fork Height(mm) | H2 | 80 |
| Max. Fork Height(mm) | H1 | 200 |

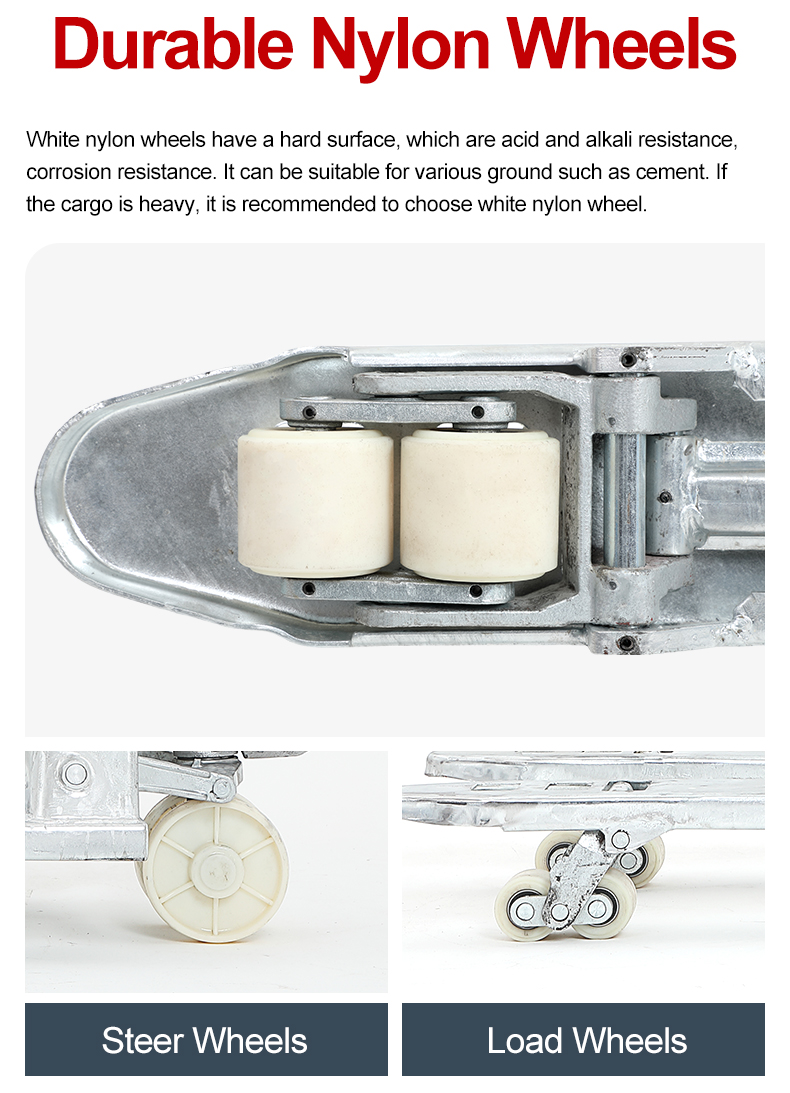

| Steering Wheel(mm) | A | 180x62 NYLON or PU |
| Load Wheel(mm)*2 | B | 78x70 (Tandem) |
| Weight(kg) | 78 | |
| Under Clearance(mm) | 40 | |
| Fork width(mm) | W2 | 150 |
| Width inside forks(mm) | 160,220,240,250 | |
| Strokes | 50 | |
| Overall Height(mm) | C | 1200 |
| Overall Length(mm) | 1500 | |
| Steer Angle | 230 deg | |
| Drive Unit Length(mm) | 370 | |
| *1 W1 and L1 with over width and over length can be made according to customer's requirement. | ||
| *2 78*100 single wheels are options | ||
