Forklift attachment bale clamp securely gripping and lifting irregular-shaped cargo for transport.

RBC Series Bale Clamp

RBC-
This RBC Series Bale Clamp requires two additional hydraulic functions from the forklift truck, ensuring steady and firm handling of irregularly shaped cargo by integrating them into unified loads. For safe stacking at risky heights, a load backrest is compulsory, enhancing stability and security in industrial material handling applications.
Quantity:
Contact Now
add to cart
All Products

Key Features of RBC Series Bale Clamp:

  1. Dual Hydraulic Integration: Designed to operate using two additional hydraulic functions from the forklift, providing enhanced control and versatility for handling non-uniform loads.

  2. Stabilized Load Management: Effectually secures irregularly shaped or loosely packed materials by compacting them into steady, unified units, minimizing shift during transport.

  3. Safety-Driven Design: Incorporates a mandatory load backrest feature when stacking at elevated heights, preventing falls and ensuring operator and cargo safety.

  4. Robust Application Focus: Ideal for industrial and warehouse settings, particularly suited for baled goods, textiles, paper, or other compressible commodities requiring secure clamping and vertical stacking.

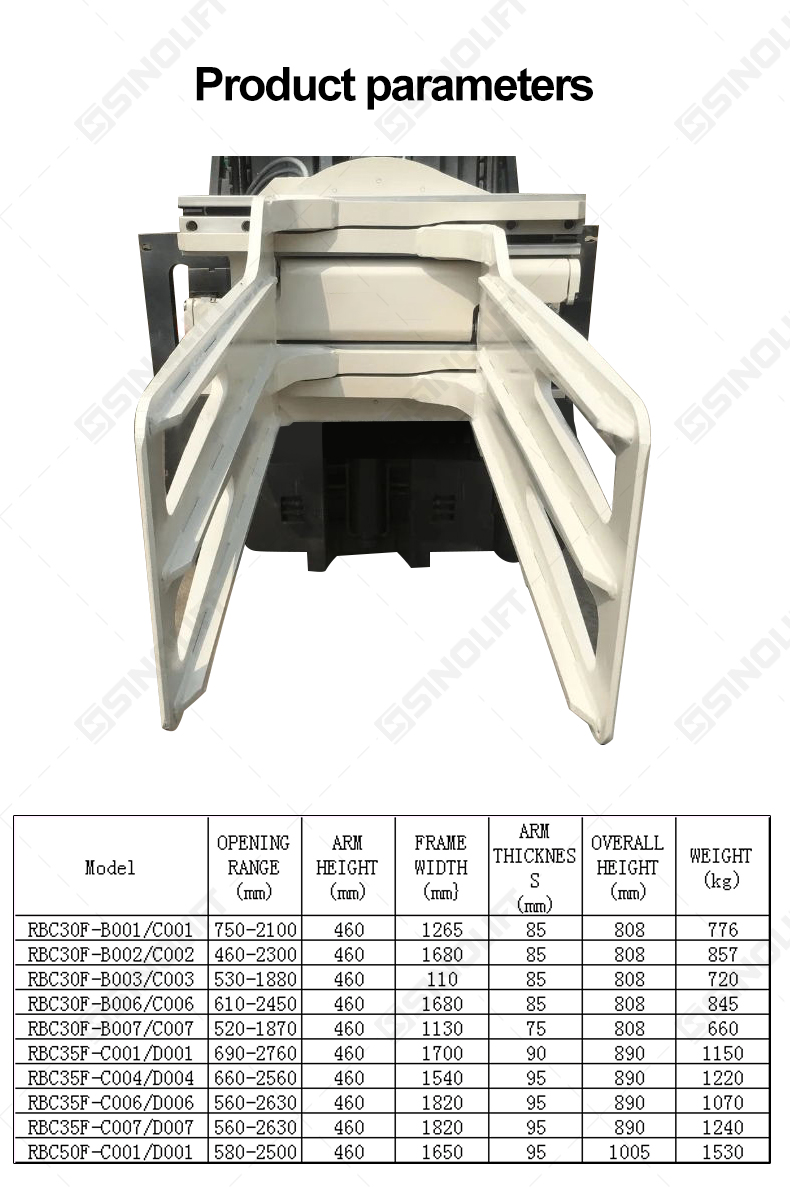

Specifications of the Bale Clamp

Model
OPENING
RANGE
(mm)
ARM
HEIGHT
(mm)
FRAME
WIDTH
(mm}
ARM
THICKNESS
(mm)
OVERALL
HEIGHT
(mm)
WEIGHT
(kg)
RBC30F-B001/C001750-2100460126585808776
RBC30F-B002/C002460-2300460168085808857
RBC30F-B003/C003530-188046011085808720
RBC30F-B006/C006610-2450460168085808845
RBC30F-B007/C007520-1870460113075808660
RBC35F-C001/D001690-27604601700908901150
RBC35F-C004/D004660-25604601540958901220
RBC35F-C006/D006560-26304601820958901070
RBC35F-C007/D007560-26304601820958901240
RBC50F-C001/D001580-250046016509510051530

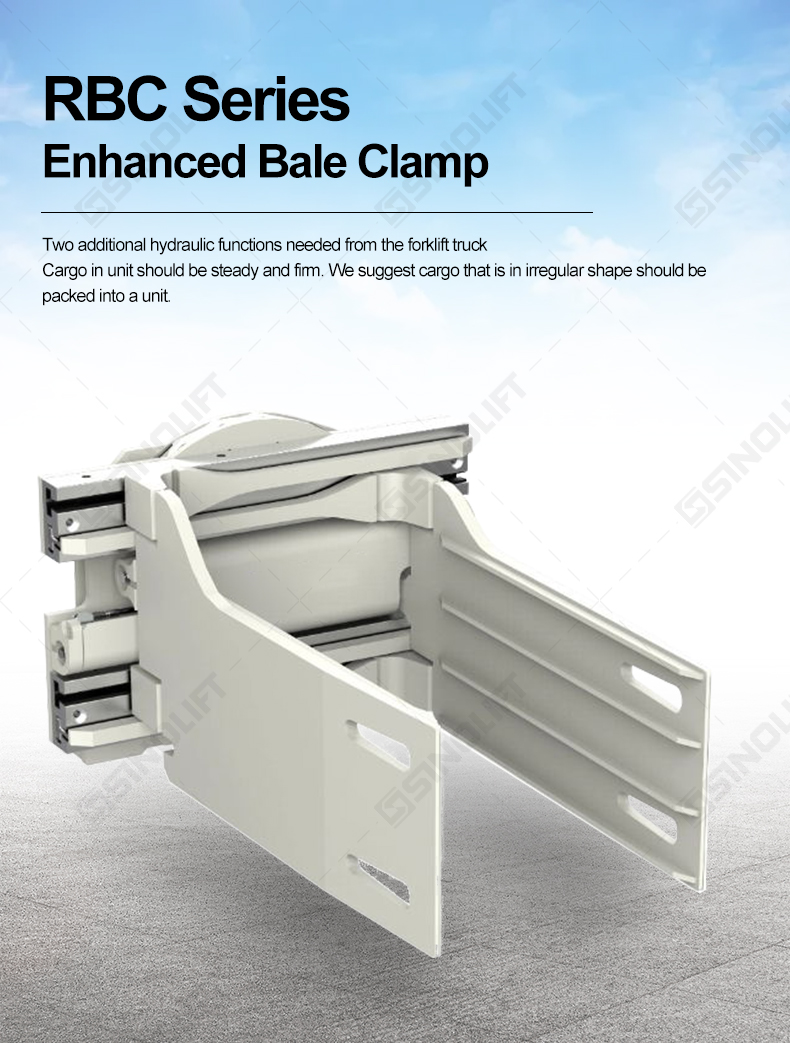

Heavy-duty forklift bale clamp designed for waste management, recycling, and textile industries.

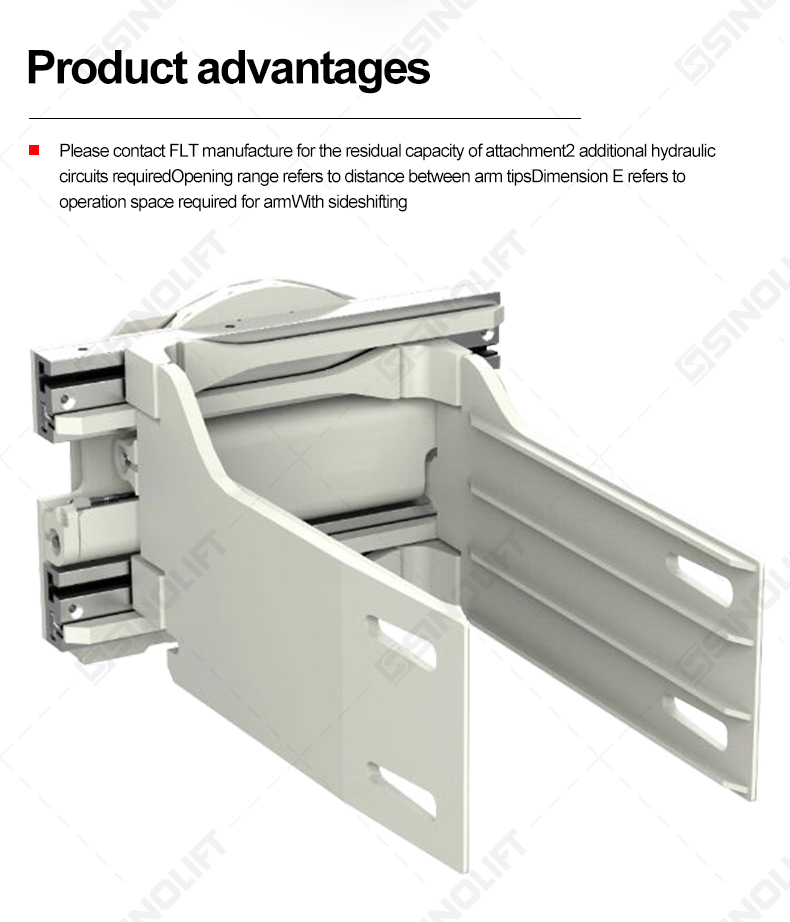

Heavy-duty forklift bale clamp designed for waste management, recycling, and textile industries.

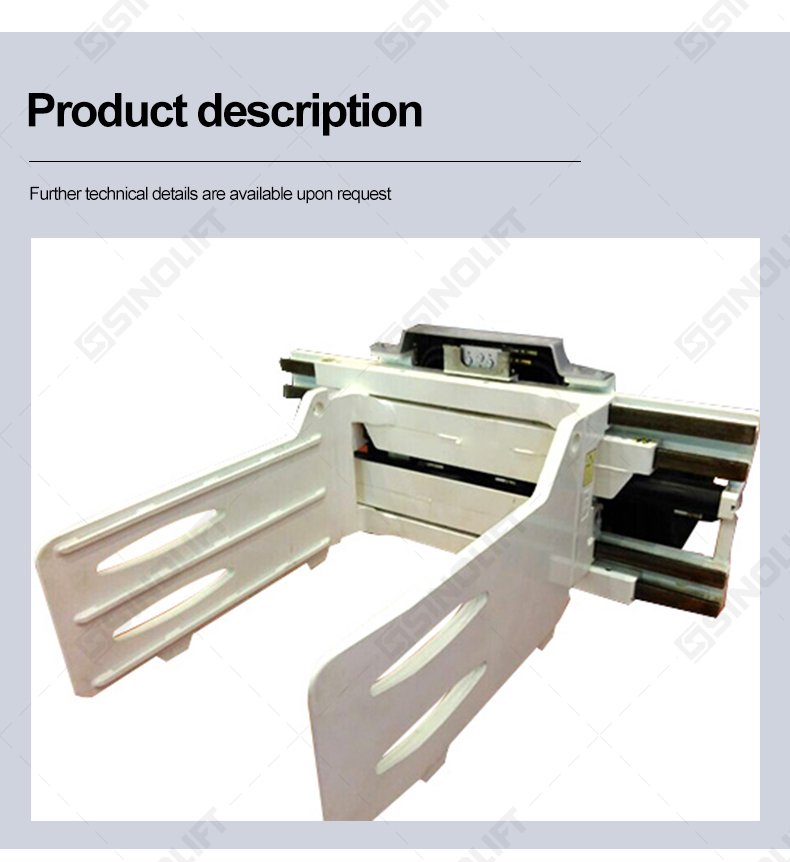

Operator using a bale handling clamp to move and stack compressed cargo safely and efficiently.

Close-up detail of the bale clamp's arms and hydraulic cylinders, showing its robust construction.

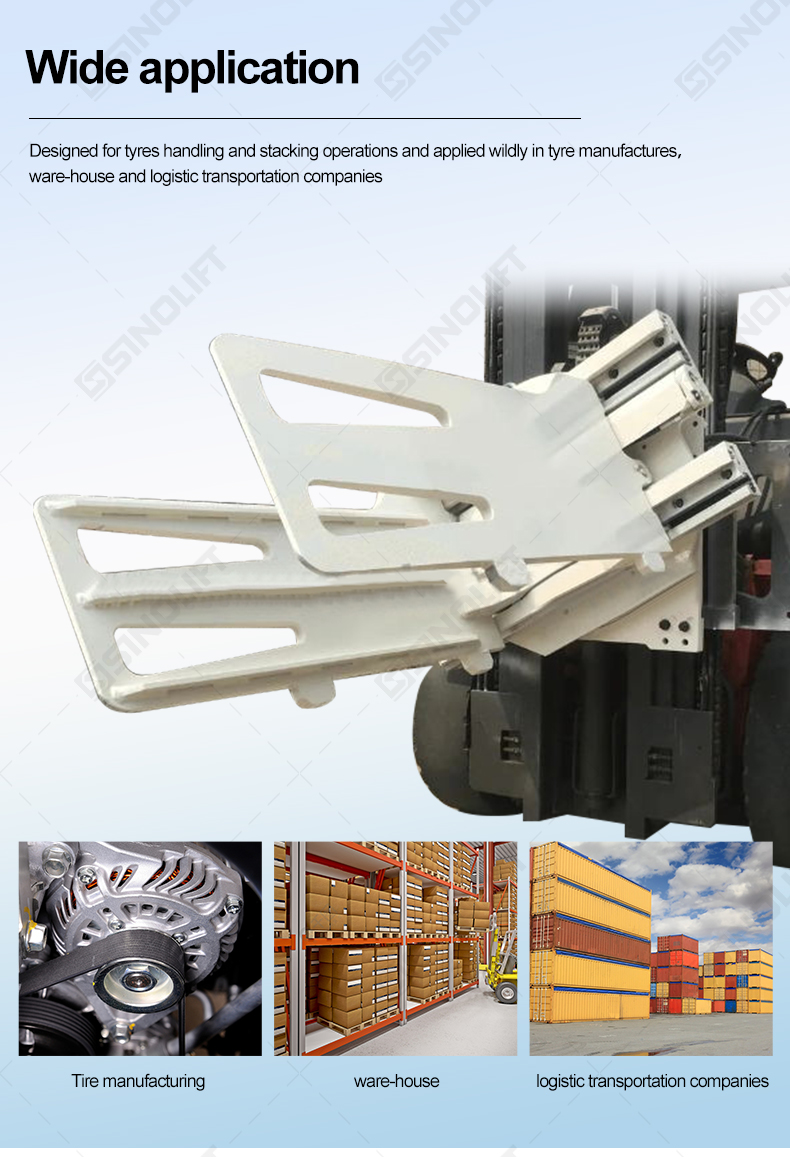

Close-up detail of the bale clamp's arms and hydraulic cylinders, showing its robust construction.

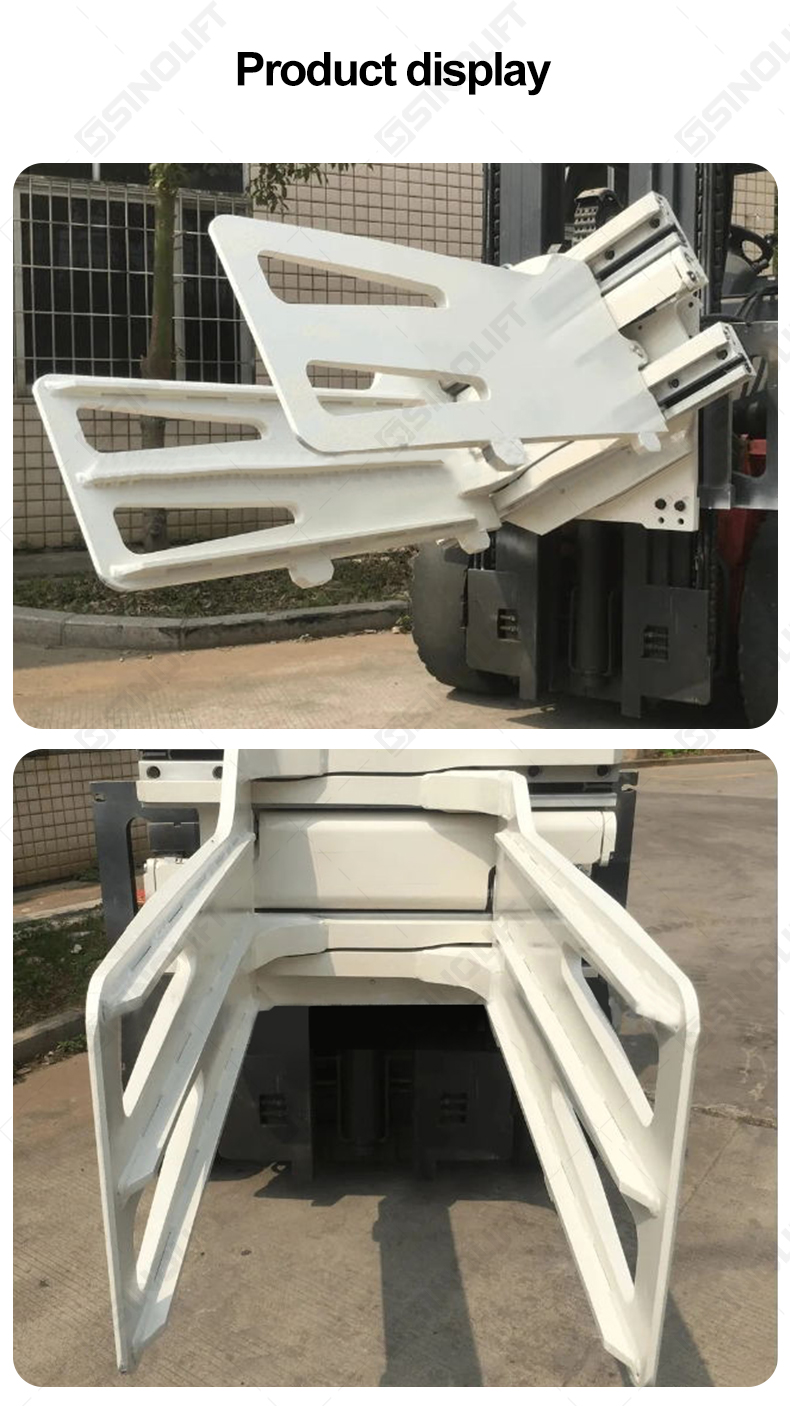

Warehouse safety solution: a forklift clamp with a load backrest for secure high-level stacking.

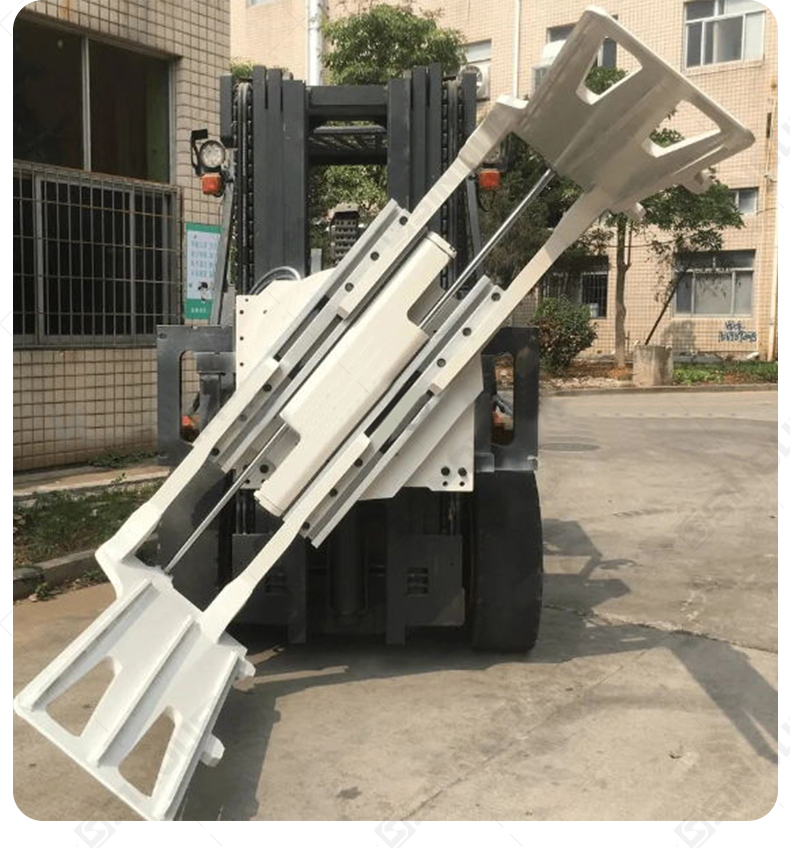

Bale clamp for forklift gripping a large, irregular-shaped bale of recycled cardboard, emphasizing its compression capability.
