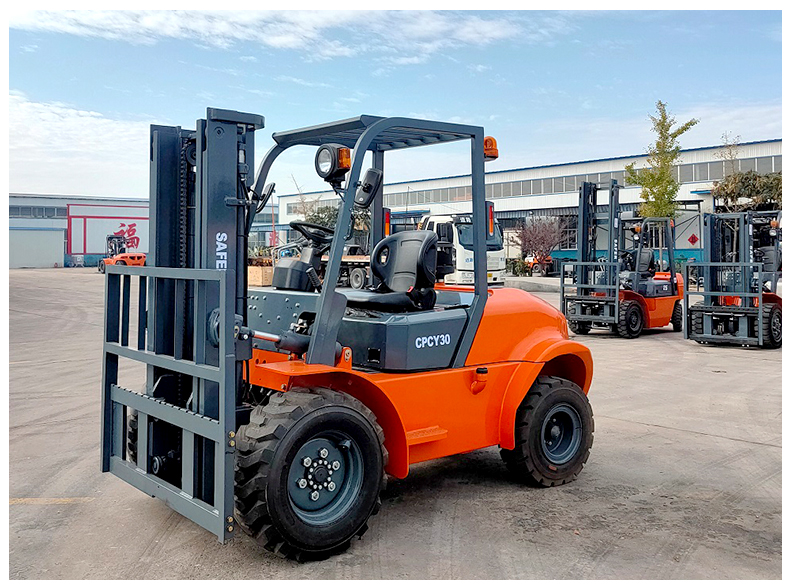

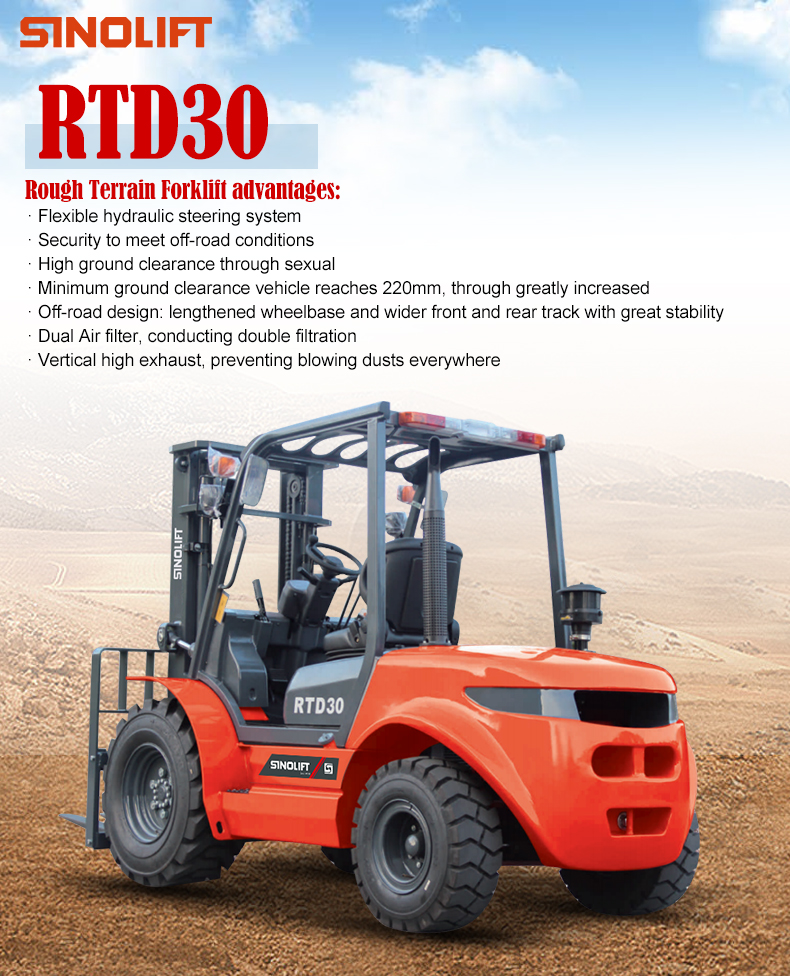

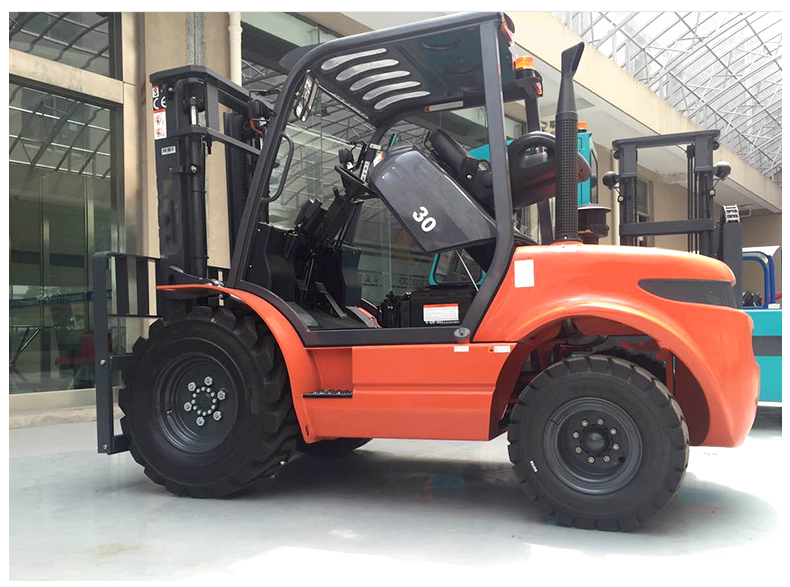

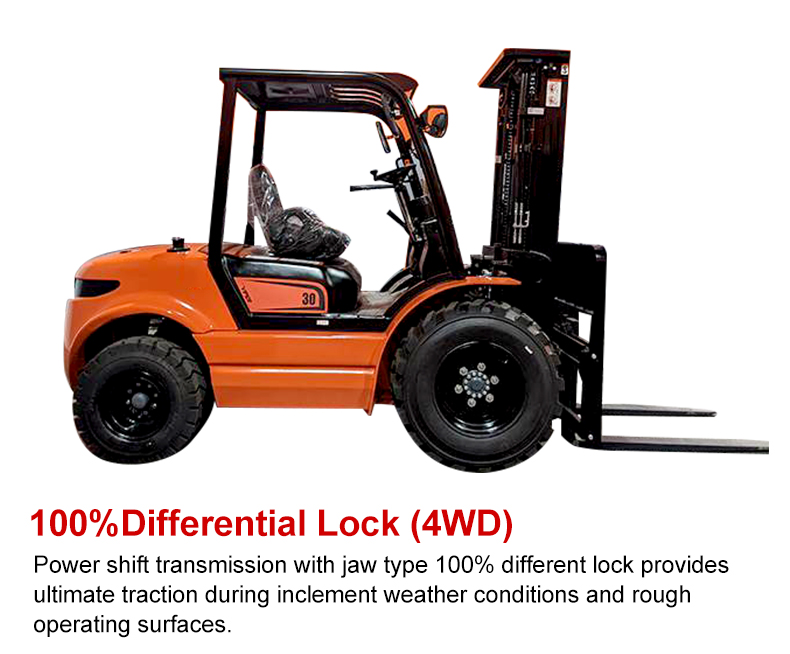

RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklift for Cost Effective and Powerful Performance on Uneven Ground

RTD30-X35 RTD35-X35
The SINOLIFT RTD30-X35 and RTD35-X35 2WD Rough Terrain Forklifts are engineered for heavy-duty lifting and transporting on challenging, uneven outdoor sites. Designed for reliability and operator comfort, they feature powerful engines, high ground clearance, and excellent stability to ensure maximum productivity and safety in the toughest environments.
Quantity:
Contact Now
add to cart
All Products

Product Highlights:

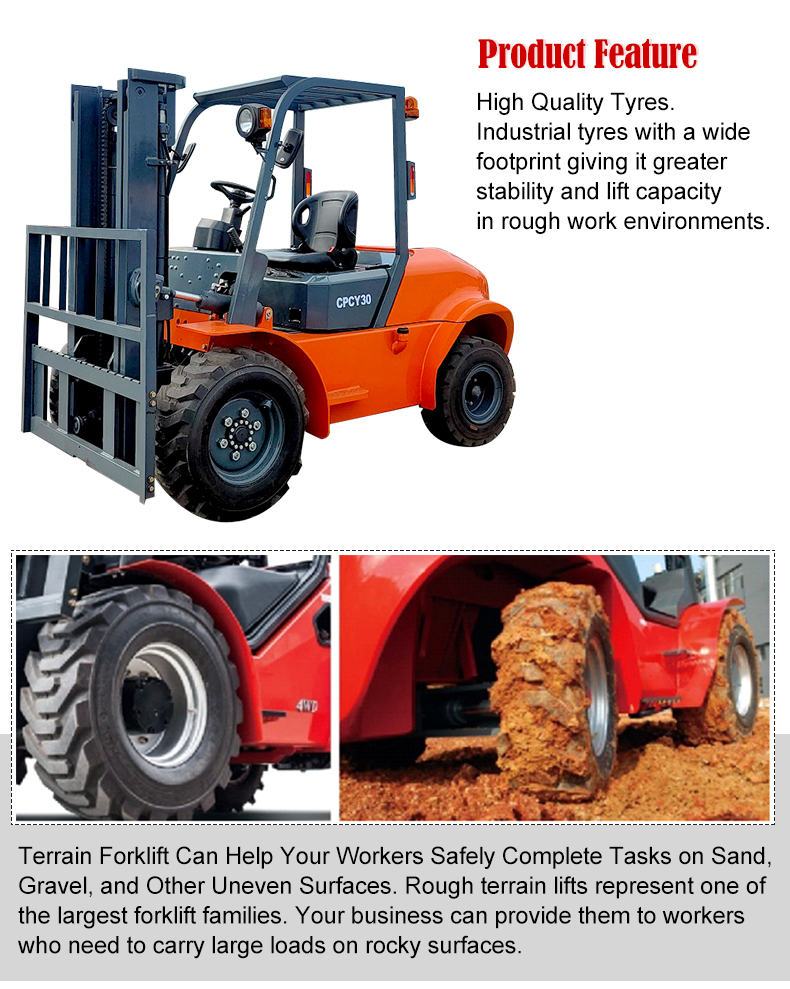

Rugged Terrain Performance: Built with heavy-duty frames, high ground clearance, and industrial pneumatic tires for superior traction and stability on the toughest outdoor surfaces.

Powerful & Reliable Engine: Equipped with a high-torque, 4-cylinder diesel engine (YANMAR 4TNE98) that meets stringent emission regulations, delivering consistent power for demanding tasks.

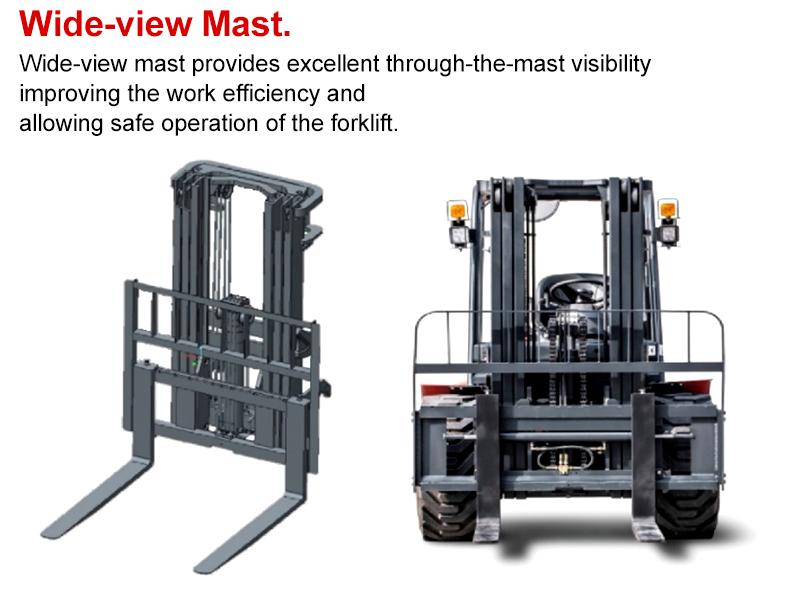

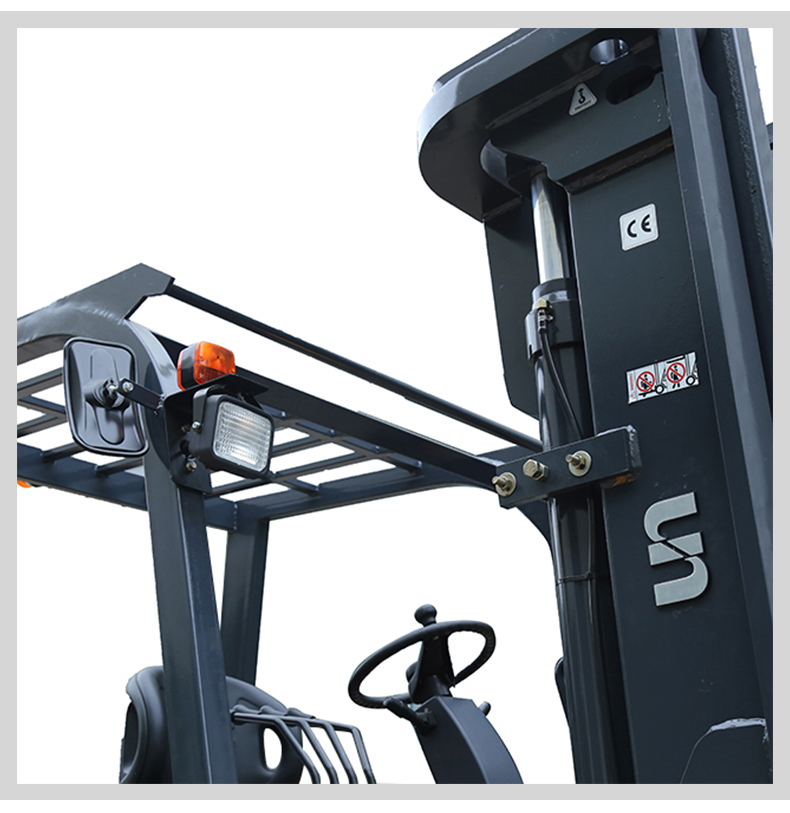

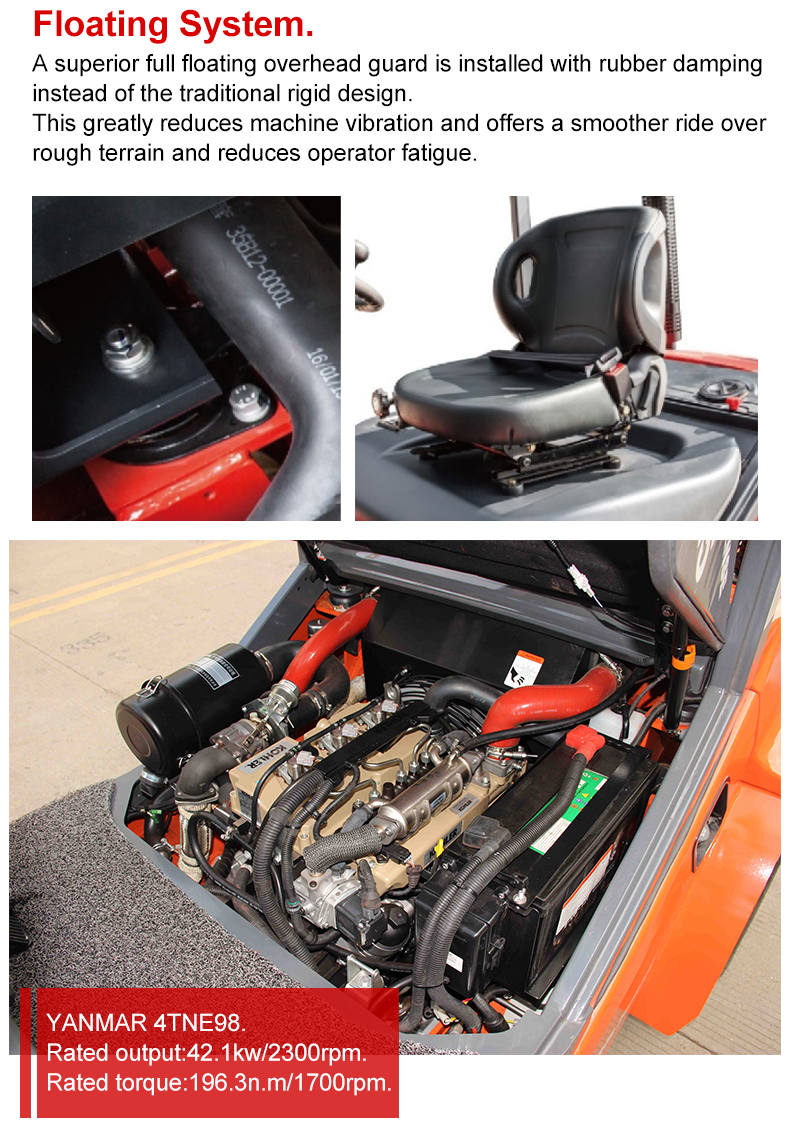

Operator-Focused Design: Features like the wide-view mast for enhanced visibility, a spacious cab, a floating overhead guard, and shock absorbers significantly reduce operator fatigue and improve safety.

Enhanced Maneuverability & Serviceability: The upward steering cylinder ensures a compact turning radius, while the near 90-degree opening engine hood and tilting overhead guard simplify daily maintenance and repairs.

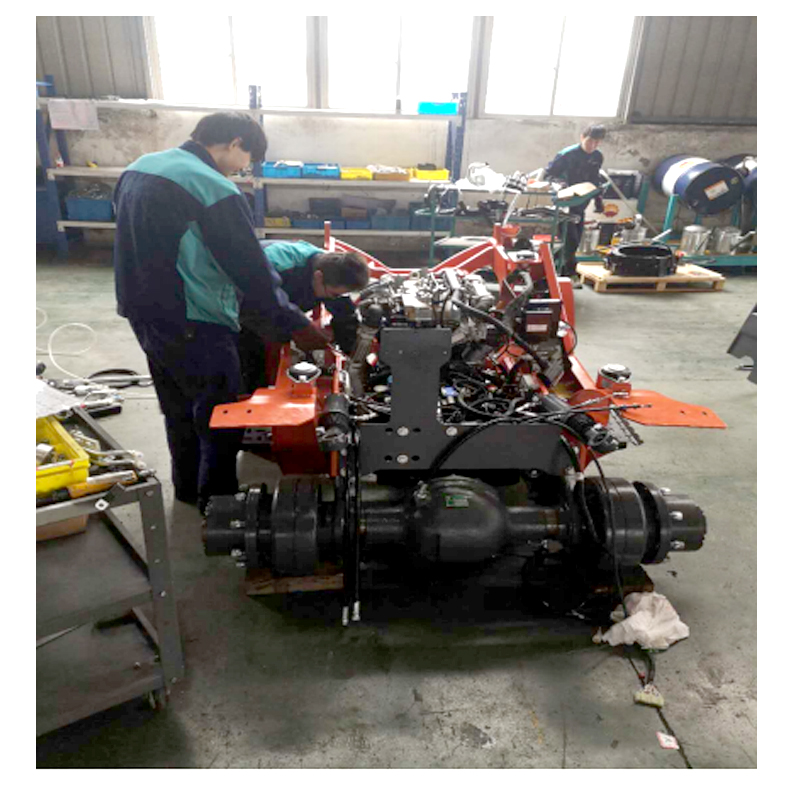

Built for Harsh Environments: The double core straight air filter provides strong air purification, and the robust drive axle with enhanced brakes offers ultimate traction in adverse conditions.

Cost-Effective Solution: Offering the power and performance of more expensive models at a significantly lower cost, this series represents exceptional value without compromising on capability or reliability.

Application Places:

The SINOLIFT 2WD Rough Terrain Forklift is the ideal solution for material handling in demanding outdoor and semi-outdoor environments. It excels in sectors such as construction sites, lumber yards, steel mills, agricultural settings, and freight/logistics terminals. Its ability to navigate uneven ground and handle heavy loads safely makes it perfect for applications where paved surfaces are absent or unstable, ensuring operational continuity and efficiency across various rugged industries.

ModelRTD30-X35RTD35-X35
Power TypeDieselDiesel
Rated Capacitykg/lbs3000/66003500/7700
Load Centremm/inch600/23.6"600/23.6"
Service Weightkg/lbs4800/105805100/11350
Tyre Type (Front/Rear)PneumaticPneumatic
Wheel number X=Drive Wheel (Front/Rear)2X/22X/2
Vacuum TyreFront14-17.5-14PR14-17.5-14PR
Rear27x10-12-12PR27x10-12-12PR
TreadFrontmm/inch1250/49"1250/49"
Rearmm/inch1205/47.4"1205/47.4"
Wheel Basemm/inch1835/72.2"1835/72.2"
Fork SizeL×W×Tmm/inch1220*125*45/48"*5"*2"1220*125*45/48"x5"x2"
Mast Tilt AngleF/RDeg10°/12°10°/12°
Lift Heightmm/inch3000/118"3000/118"
Mast Lowered Heightmm/inch2205/86"2240/88"
Free Lift Heightmm/inch125/4.9"90/3.54"
Mast Extended Heightmm/inch4180/164.5"4180/164.5"
Length to Face of Fork (without Fork)mm/inch3046/120"3116/120"
Overall Widthmm/inch1605/63"1605/63"
Overhead Guard Heightmm/inch2150/84.6"2150/84.6"
Front Overhangmm/inch591/23.2"606/23.8"
Rear Overhangmm/inch620/24.4"675/26.5"
Turning Radius(outside)mm/inch2750/108.2"2810/110.6"
Ground Clearance (Bottom of chassis)mm/inch230/9"230/9"
Min. Insecting Aislemm/inch2900/114"2960/116.5"
Min. Right Angle Stacking Aisle Widthmm/inch4550/179"4610/181.5"
SpeedTravel (Unloaded/Loaded)km/h(mph)17(11.3/18(12)17(11.3/18(12)
Lifting (Unloaded/Loaded)mm/s (inch/s)430(17")/500(19.7")400(15.7")/500(19.7")
Lowing (Unloaded/Loaded)mm/s (inch/s)≤600(23.6") / ≥300(11.8")≤600(23.6") / ≥300(11.8")
Max. Gradeability%2020
Engine CodeY2Y2
Engine Model TypeYANMAR 4TNE98-BQFLC
Rated  outputKw/r.p.m42.1/230042.1/2300
Rated TorqueNm/r.p.m206/1700206/1700
No. of Cylinder44
Bore x Strokemm98 x11098 x110
Displacementcc33183318
Emission StandardEURO IIIAEURO IIIA
Fuel Tank CapacityLitre5555
Battery (Voltage/Capacity)V/Ah12/8012/80
Transmission TypeHydraulicHydraulic
Shift Stage FWD/RVS1/11/1
Operating  PressureMpa1818
