SINOLIFT J Series 1.0T-3.0T Battery Forklift

CPD25J

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

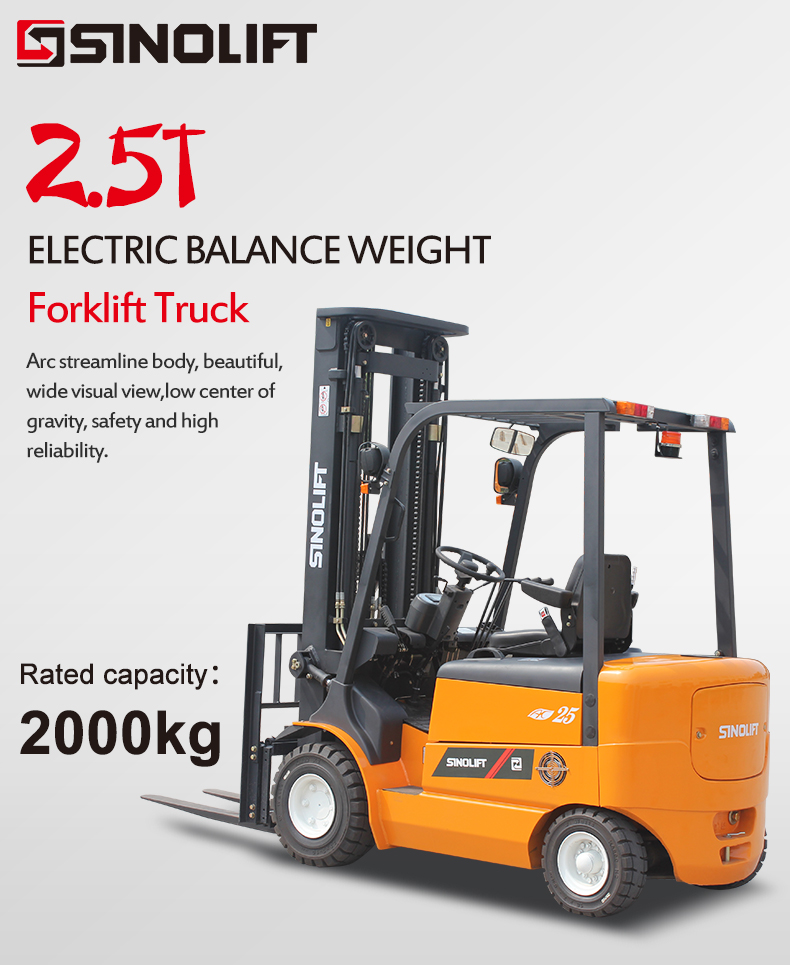

1-3T Electric Balance Weight Forklift Truck

(1)Arc streamline body, beautiful, wide visual view,low center of gravity, safety and high reliability.

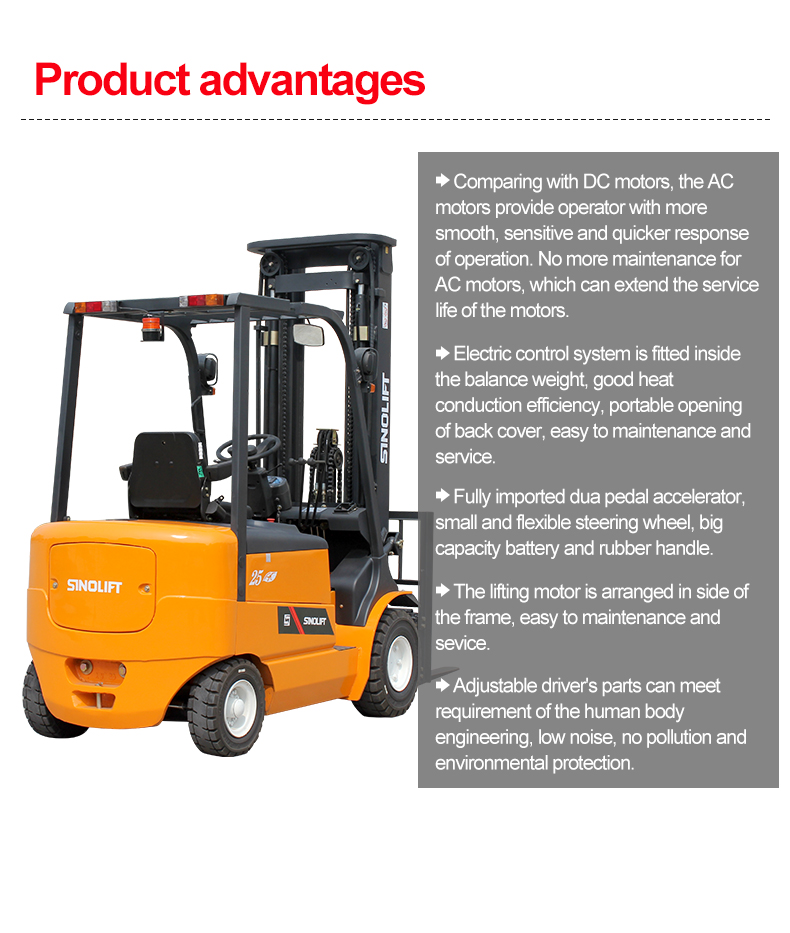

(2)Comparing with DC motors, the AC motors provide operator with more smooth, sensitive and quicker response of operation. No more maintenance for AC motors, which can extend the service life of the motors.

(3)Electric control system is fitted inside the balance weight, good heat conduction efficiency, portable opening of back cover, easy to maintenance and service.

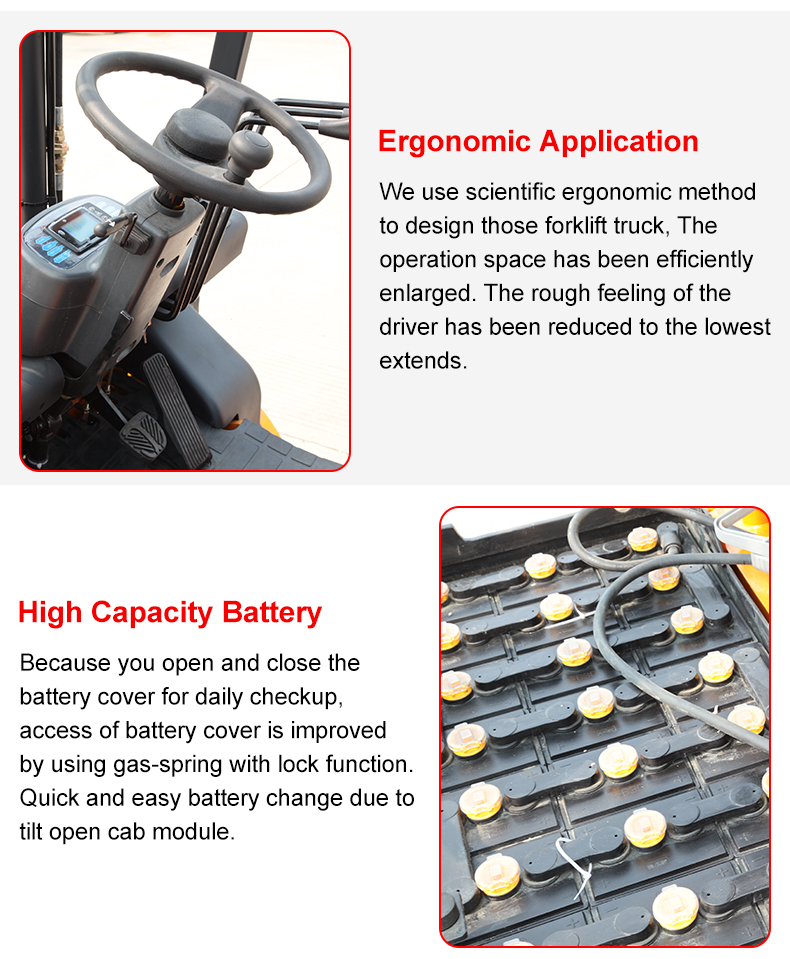

(4)Fully imported dua pedal accelerator, small and flexible steering wheel, big capacity battery and rubber handle.

(5)The lifting motor is arranged in side of the frame, easy to maintenance and sevice.

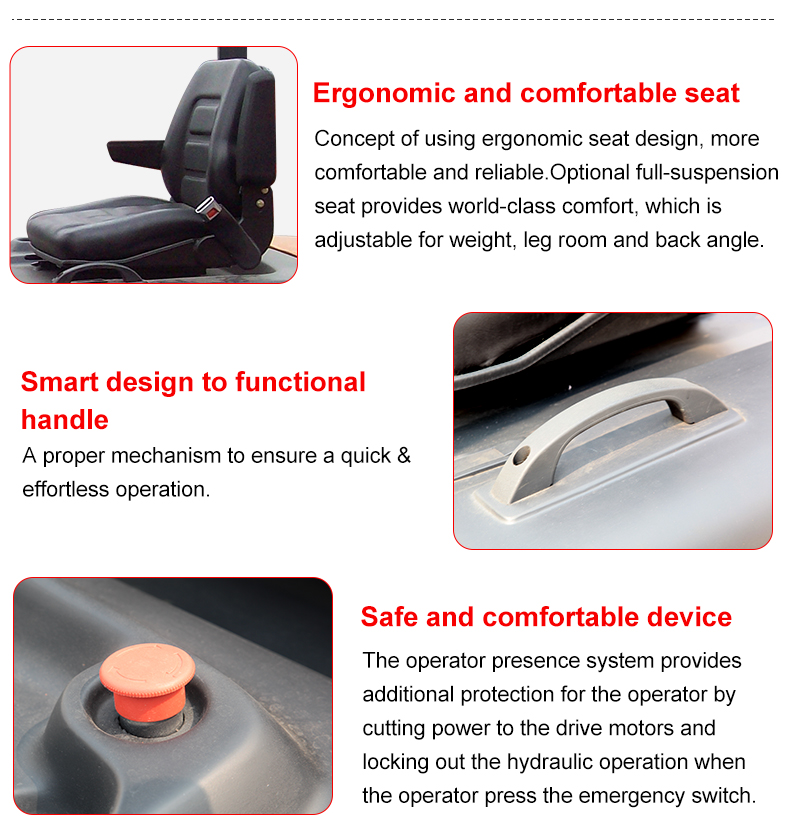

(6)Adjustable driver's parts can meet requirement of the human body engineering, low noise, no pollution and environmental protection.

General	Manufacturer					SINOLIFT J Series 1.0T-3.0T Battery Forklift Specifications
	Model					CPD15J	CPD20J	CPD25J	CPD30J
	Power type					Battery
	Rated capacity				kg	1500	2000	2500	3000
	Load center				mm	500	500	500	500
Dimensions	Lift height H				mm	3000	3000	3000	3000
	Free lift E				mm	162	140	140	145
	Fork size N×U×L				mm	920×120×40	1070×120×40	1070×120×45	1070×125×45
	Fork outside spread (Min./Max.)				mm	200/968	240/1040	240/1040	250/1100
	Mast tilt angle (forward/backward) α / β				deg	6/12	6/10	6/10	6/10
	Front ovehang A2				mm	429	459	464	454
	Overall dimensions	Length to face of fork A1			mm	2056	2349	2381	2481
		Overall width B1			mm	1090	1265	1265	1265
		Mast lowered height H1			mm	1995	2040	2040	2040
		Mast extended height H3			mm	4042	4240	4240	4273
		Overhead guard height H2			mm	2162	2125	2125	2125
	Turning radius R				mm	1820	2050	2100	2230
	Min. right angle aisle width X				mm	1810	2110	2150	2280
	Min. right angle stacking aisle width RASA				mm	3370	3715	3755	3915
Performance	Travel speed (no load / full load)				km/h	15/13	12/14	12/14	14.5/12
	Lifting speed (no load / full load)				mm/sec	400/300	420/310	420/300	420/280
	Max. pull force (full load)				KN	6.5	8	8	10
	Services weight				kg	3120	4160	4360	4850
	Max. gradebility				%	15	10	10	10
Wheel & Tire	Tyre			Front		6.50-10-10PR	23×9-10-18PR	23×9-10-18PR	23×9-10
				Rear		5.00-8-8PR	18×7-8-14PR	18×7-8-14PR	18×7-8
	Tread			Ront B2	mm	890	1040	1040	1040
				Rear B3	mm	920	950	950	980
	Wheelbase A3				mm	1250	1500	1500	1630
	Ground clearance (no load / full load)			Mast M	mm	110/95	105/85	105/85	105/85
				Fram F		105/95	140/120	140/120	140/120
Power & Control	Battery		Model			D-440B	D-630(7DB700 option)		D-500(D-600 option)
			Voltage		v/Ah	48/440	48/630 (700)		80/500(600)
			Battery Weight		kg	760	1180(1340)		1390(1520)
	Motor		Drive motor	Model		MT708B	MT754B	MT754B	MT776B
				Rated power	kw/rpm	8/1600	8/1300	8/1300	13/1500
			Lifting Motor	Model		MT719B	MT325B	MT325B	MT800B
				Rated power	kw/rpm	10/2450	15/2200	15/2200	22/2100

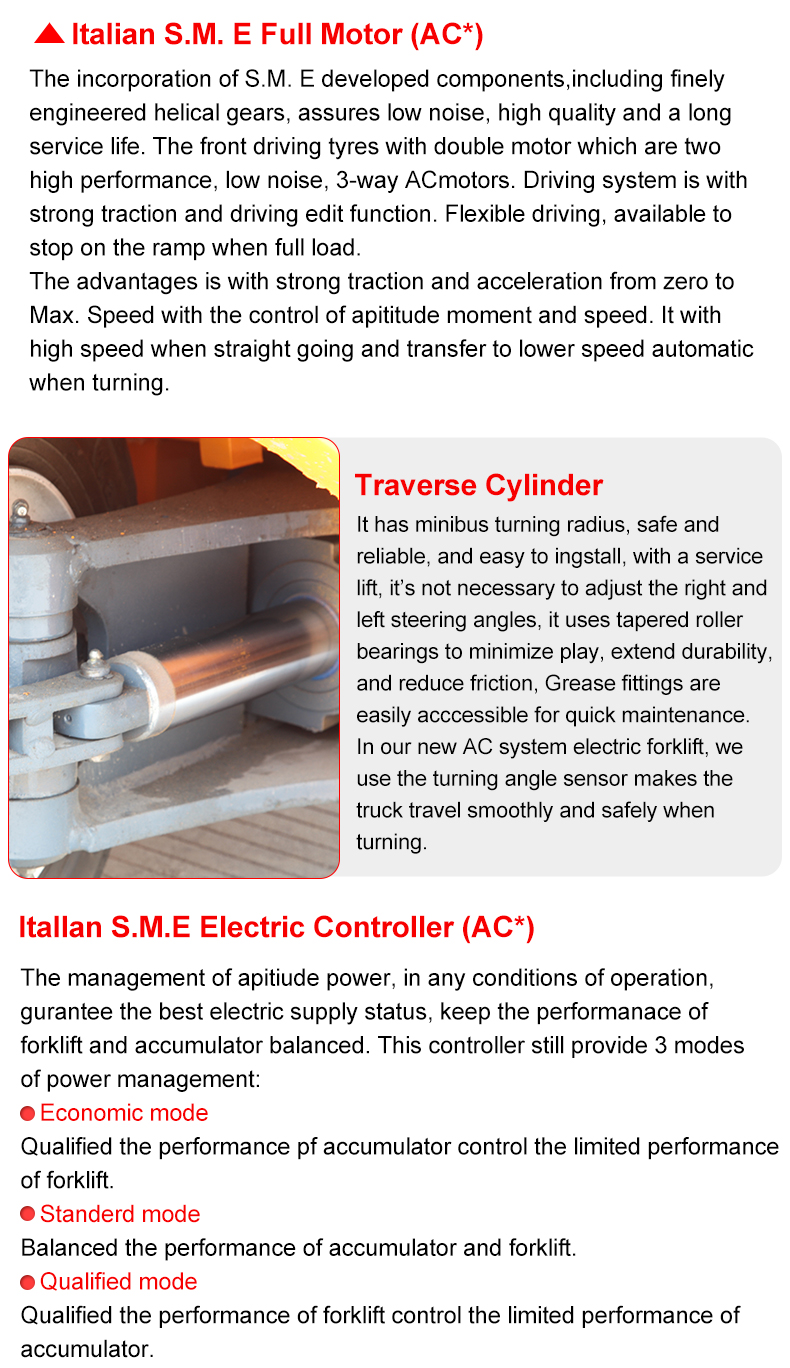

	Controller				J	Italian SME AC controller
