four wheels ac drive forklift

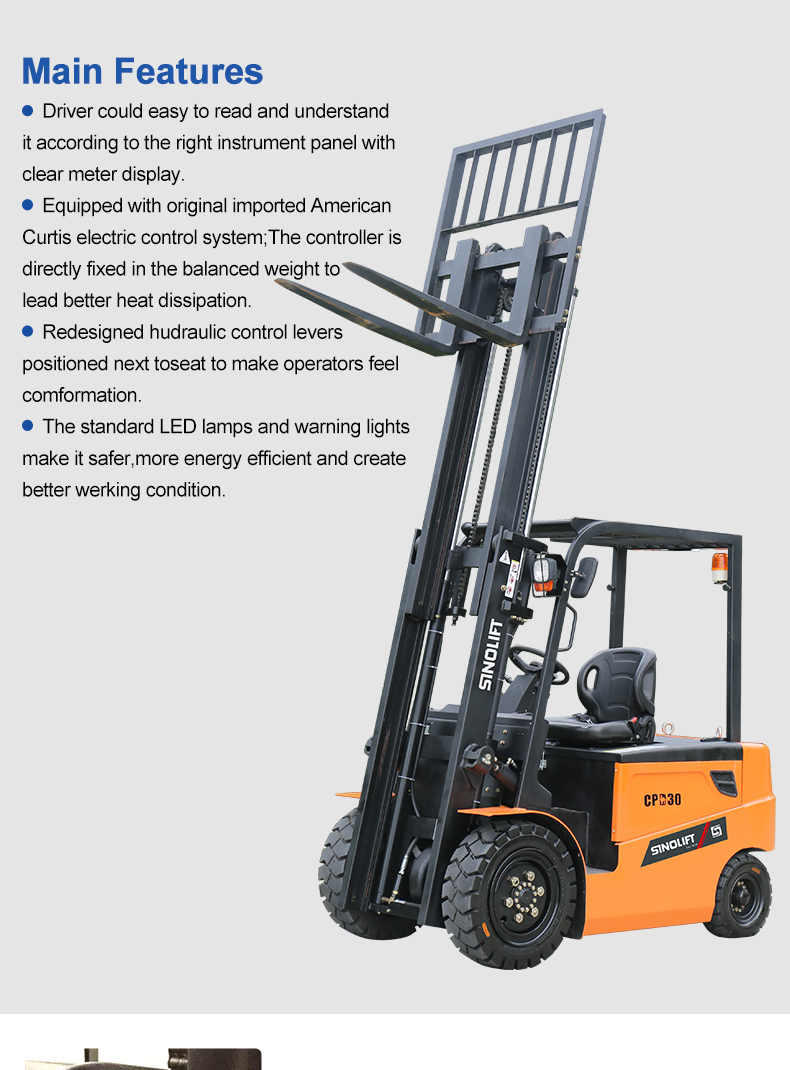

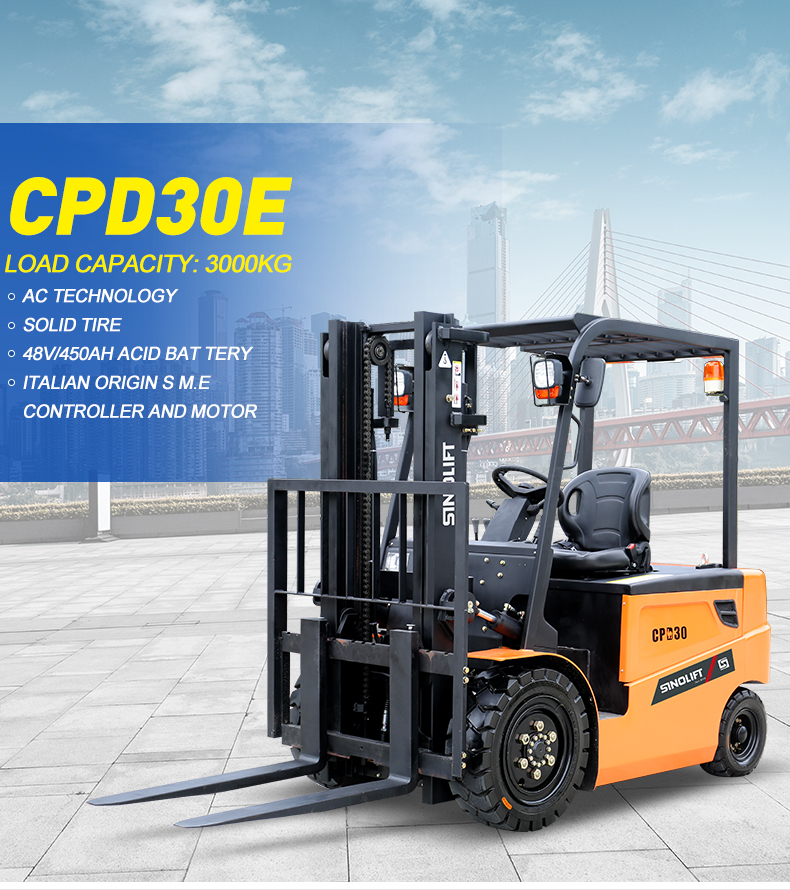

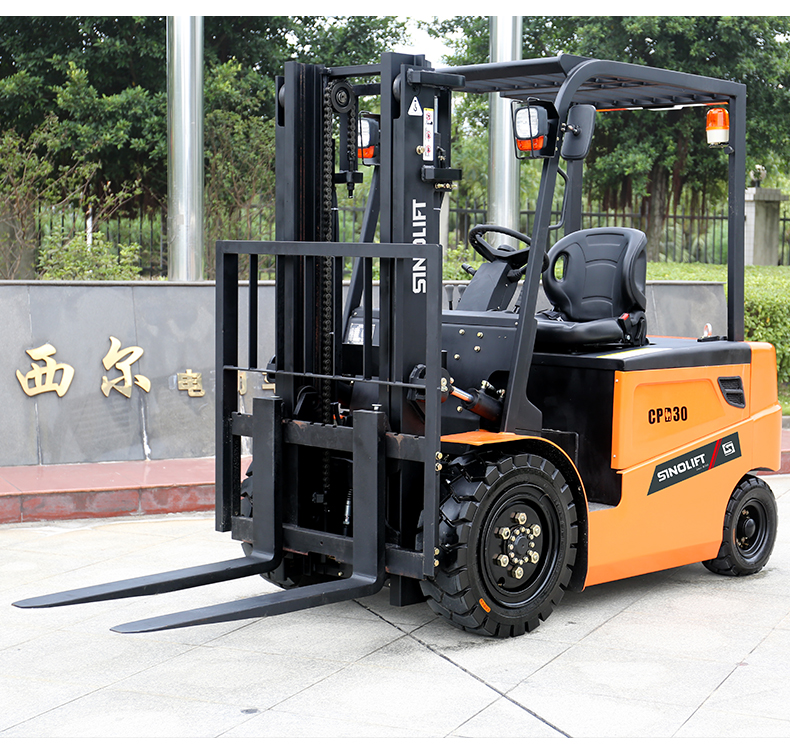

Sinolift E series 3 ton Counter Balanced Four Wheels AC Drive Forklifts Electric Forklift Truck

CPD30E
Quantity:
Contact Now
add to cart
All Products

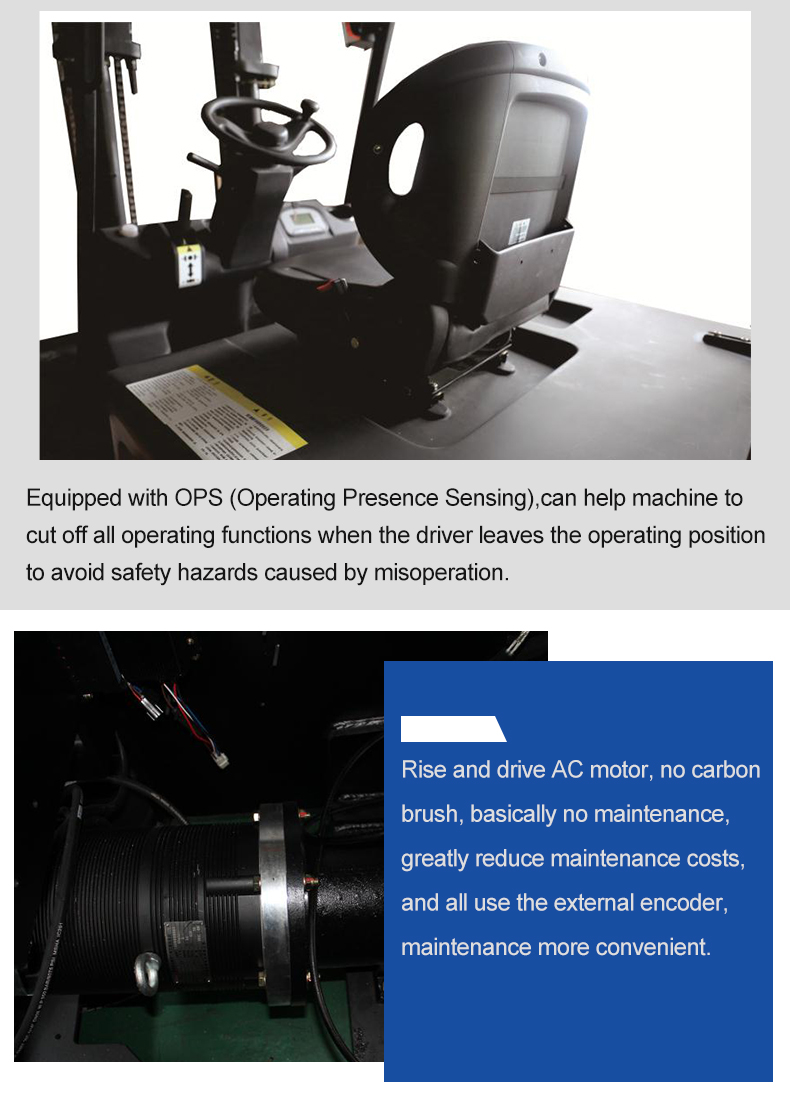

1. The AC system is controlled accurately and runs smoothly;

2. The roof guard frame is welded with the vehicle body in an integral structure, with high overall strength;

3. Low noise gear pump, motor multi-stage speed control, lowering protection solenoid valve, lift cylinder built-in safety valve;

4. Load sensing full hydraulic steering system, light, low noise, more labor-saving;

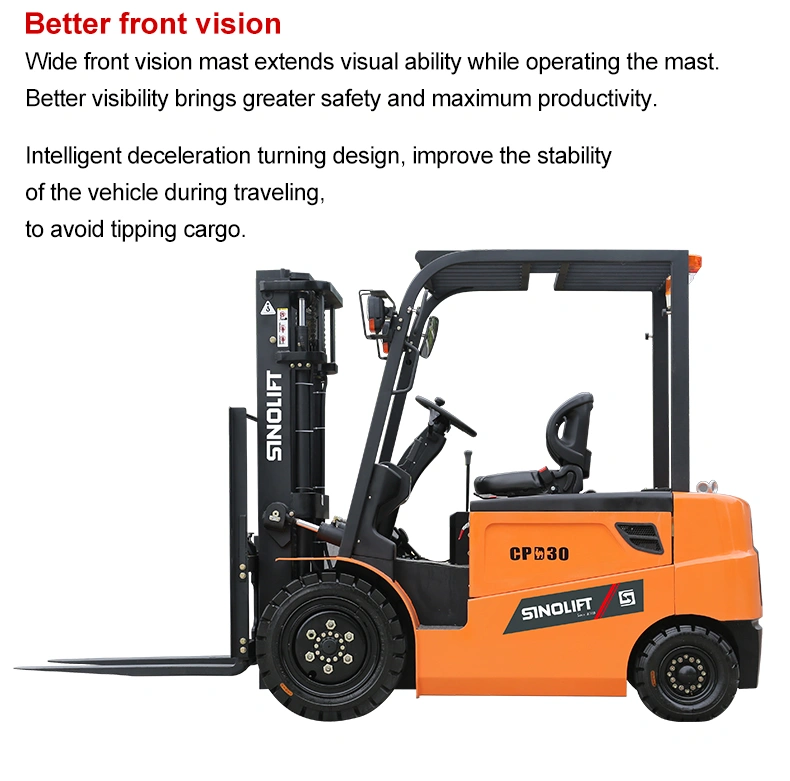

5. Wide view gantry design, clear vision, lifting height of 3-6M;

6. Good regenerative braking function to avoid damage to goods during use;

7. An explosion-proof valve is installed at the bottom of the lifting cylinder to avoid the rapid lowering of the gantry when the cylinder breaks;

MODEL NO.CPD30E
Maximum load capacityQkg3000
Overall length ( No fork)L'mm2495
Overall widthWmm1200
Height, mast loweredH1mm2085
Height of overhead guard(cabin)H4mm2160
Height, mast extendedH2mm4225
Ground clearance, laden, below mastH5mm110
Ground clearance,unladen/laden,centre of wheelbaseH7mm125
Front treadW3mm955
Rear treadW2mm955
WheelbaseL1mm1545
Front overhangL2mm455
Lift heightHmm3000
Mast tilt angle, front/rearα/β°6/12
Max.lift speedunladenmm/s370
ladenmm/s200
Max. travel speedunladenkm/h14
ladenkm/h12
Turning radiusRmm2155
Max. gradability,laden%15
Load centre distanceCmm500
Curb weight(with battery)kg4500
TyreFront23*9-10
Rear18*7-8
MotorDrivekw11
Liftkw12

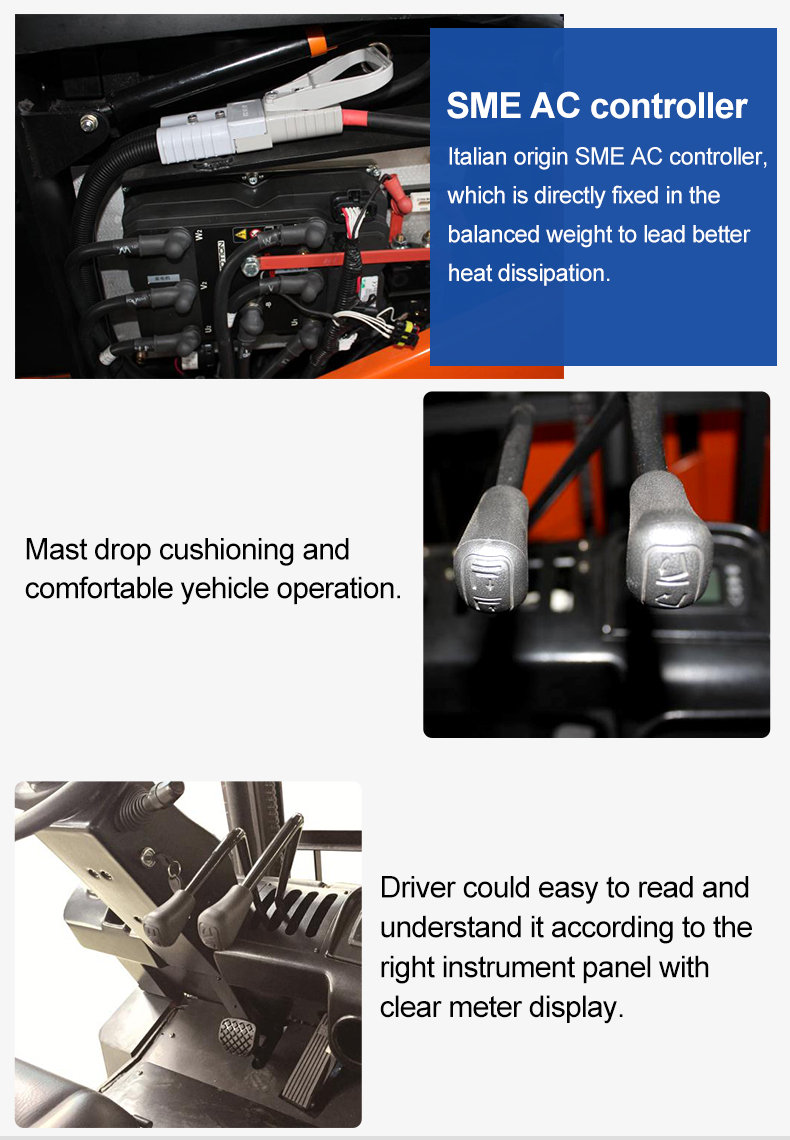

ControllerBrandSME

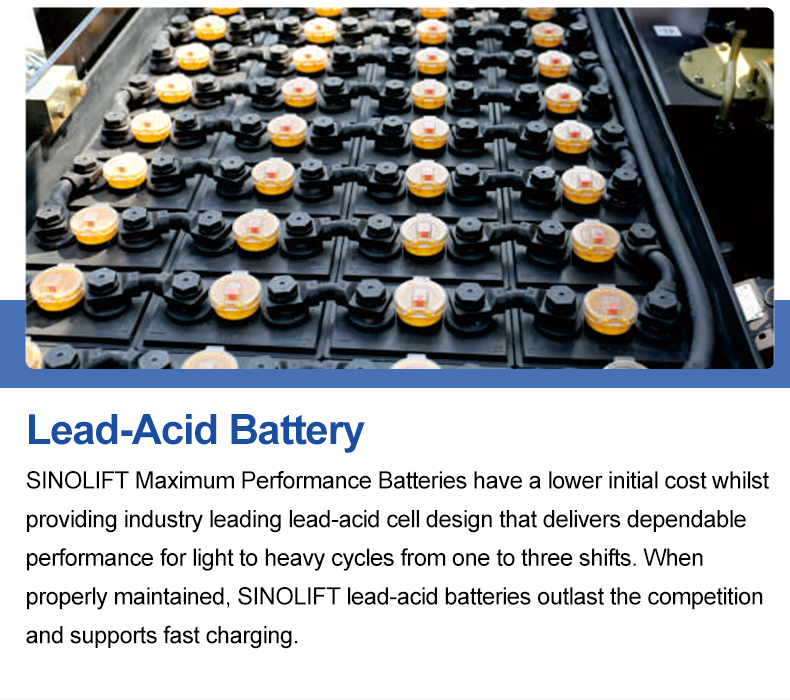

BatteryV/Ah48/550
Aisle width for lengthways800*1000mm4300
Aisle width for lengthways1000*1200mm4157
