counter balanced electrical forklift truck

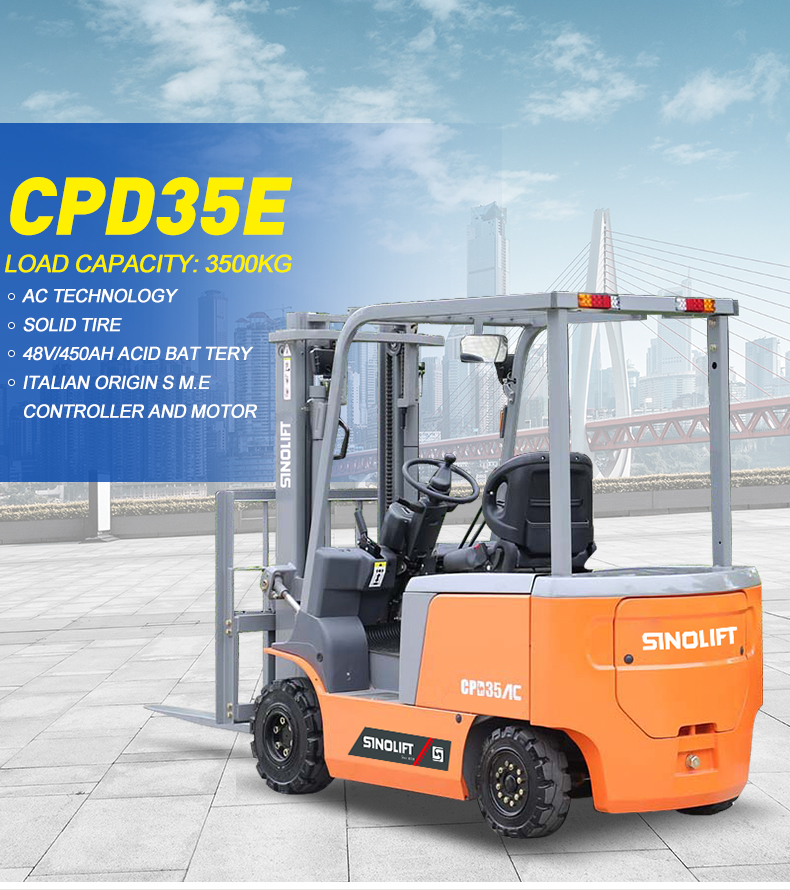

Sinolift E series 3.5 ton Counter Balanced Electrical Forklift Truck

CPD35E
Quantity:
Contact Now
add to cart
All Products

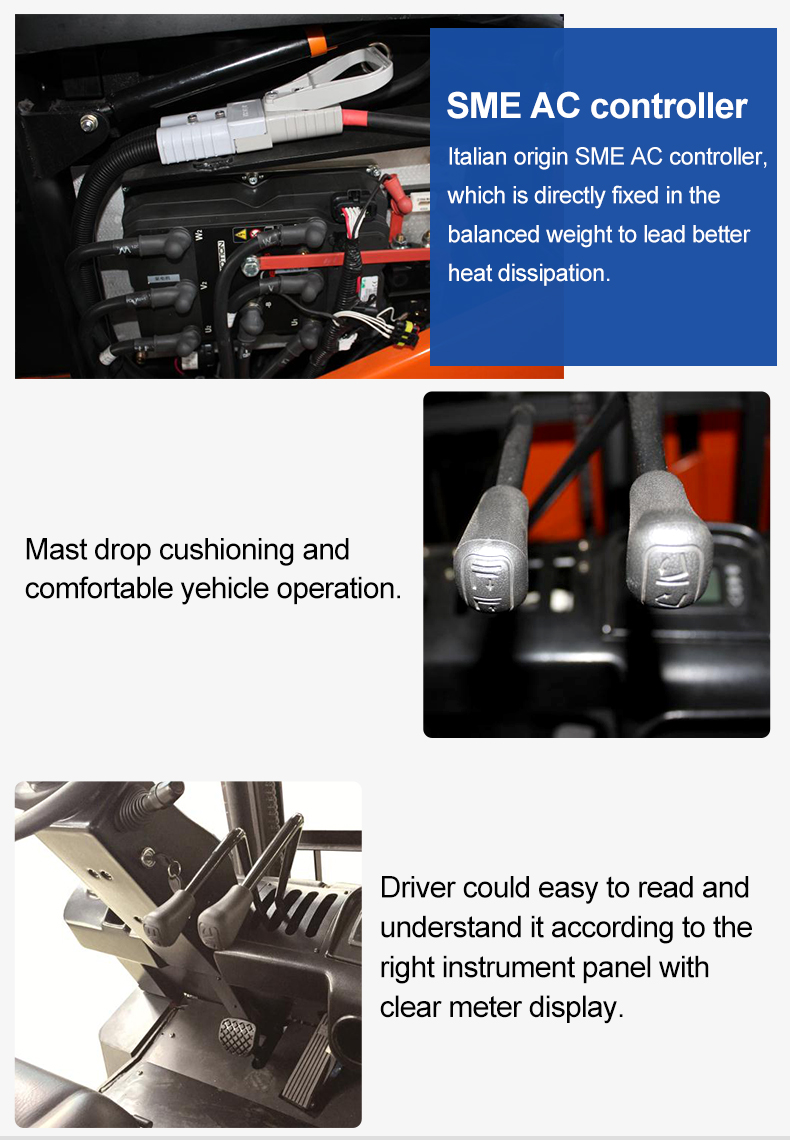

1. The AC system is controlled accurately and runs smoothly;

2. The roof guard frame is welded with the vehicle body in an integral structure, with high overall strength;

3. Low noise gear pump, motor multi-stage speed control, lowering protection solenoid valve, lift cylinder built-in safety valve;

4. Load sensing full hydraulic steering system, light, low noise, more labor-saving;

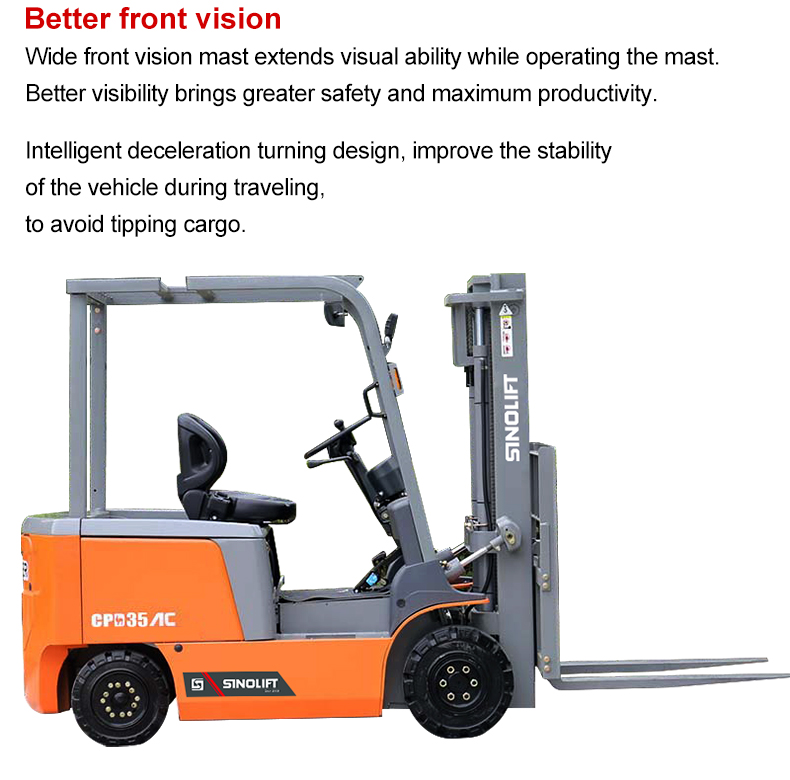

5. Wide view gantry design, clear vision, lifting height of 3-6M;

6. Good regenerative braking function to avoid damage to goods during use;

7. An explosion-proof valve is installed at the bottom of the lifting cylinder to avoid the rapid lowering of the gantry when the cylinder breaks;

MODEL NO.CPD35E
Maximum load capacityQkg3500
Overall length ( No fork)L'mm2660
Overall widthWmm1220
Height, mast loweredH1mm2085
Height of overhead guard(cabin)H4mm2250
Height, mast extendedH2mm4225
Ground clearance, laden, below mastH5mm145
Ground clearance,unladen/laden,centre of wheelbaseH7mm135
Front treadW3mm1005
Rear treadW2mm990
WheelbaseL1mm1690
Front overhangL2mm500
Lift heightHmm3000
Mast tilt angle, front/rearα/β°6/12
Max.lift speedunladenmm/s340
ladenmm/s220
Max. travel speedunladenkm/h14
ladenkm/h13
Turning radiusRmm2355
Max. gradability,laden%15
Load centre distanceCmm500
Curb weight(with battery)kg5130
TyreFront28×9-15-14PR
Rear18*7-8
MotorDrivekw11
Liftkw14
ControllerBrandCURTIS
BatteryV/Ah72/550
Aisle width for lengthways800*1000mm4255
Aisle width for lengthways1000*1200mm4125
