four wheel electric forklift truck

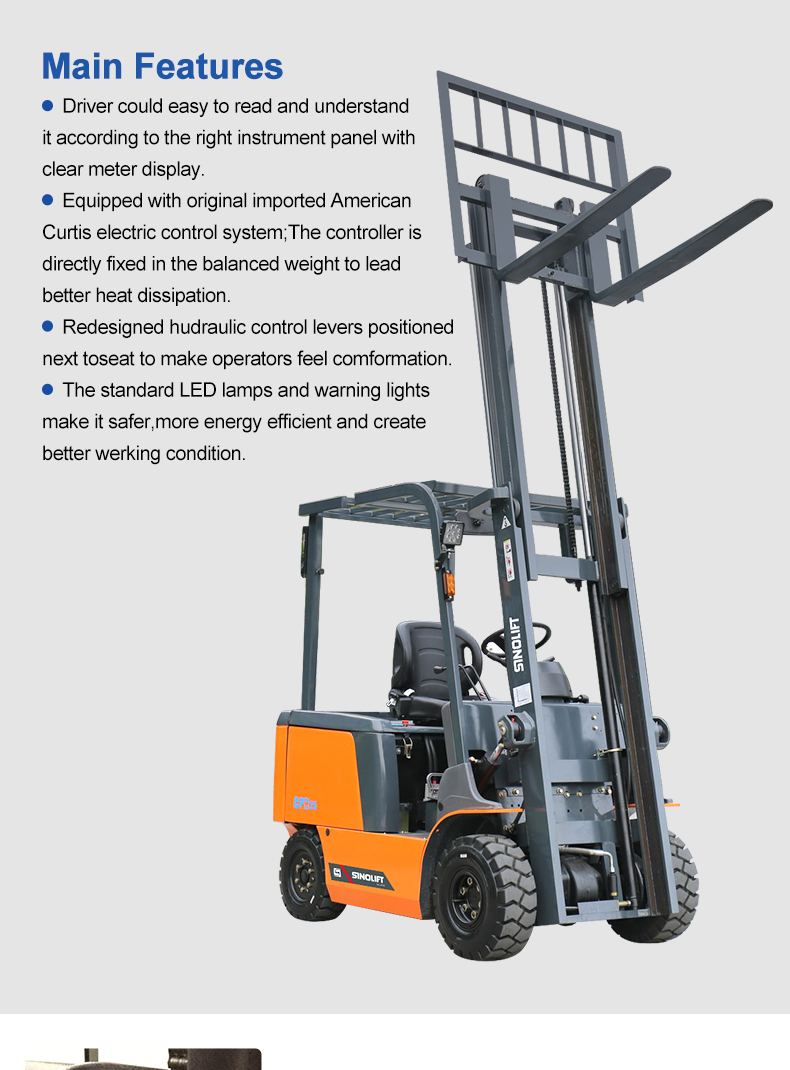

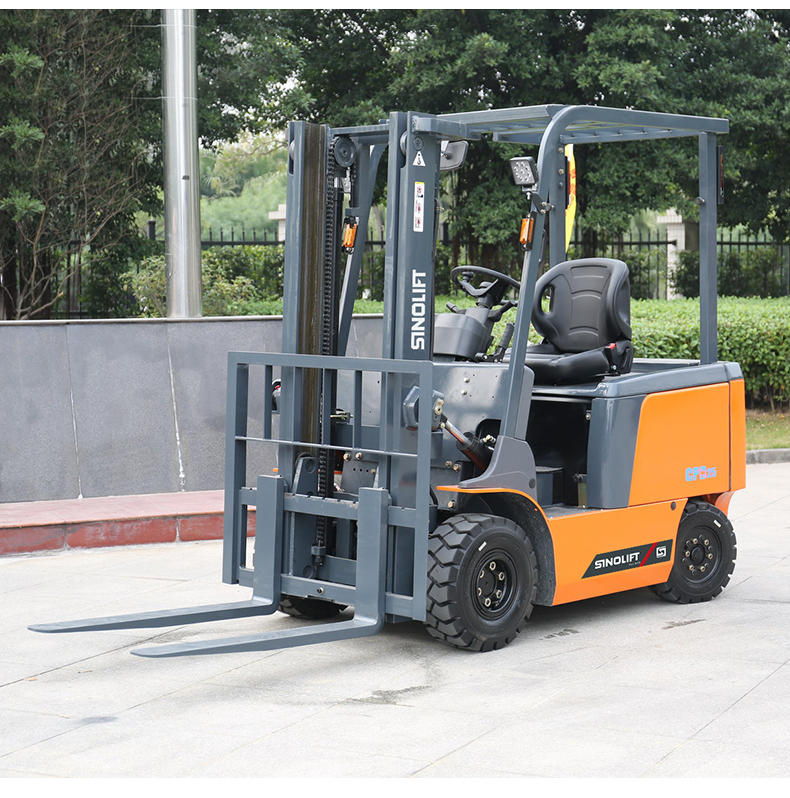

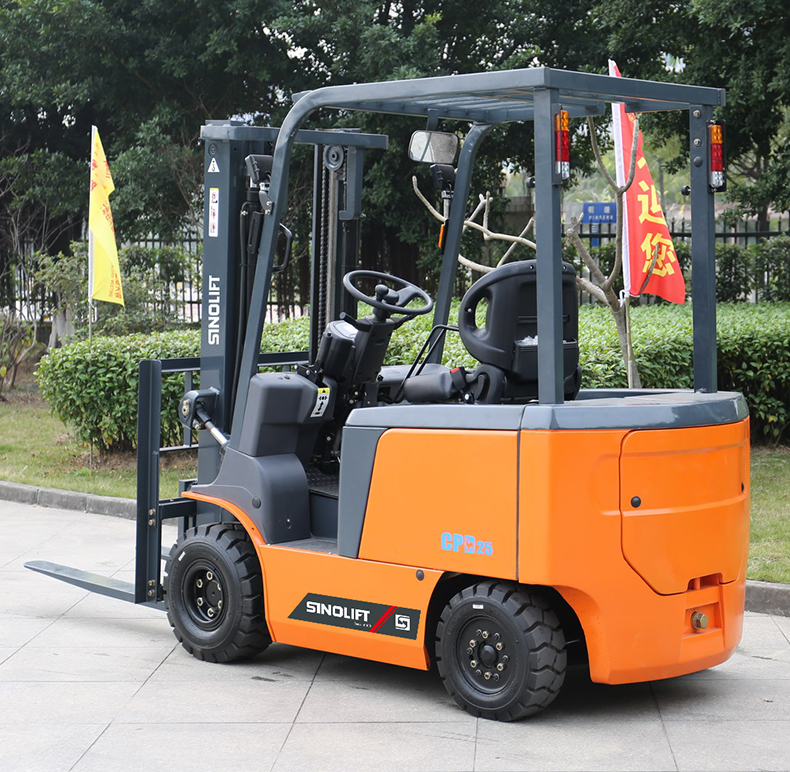

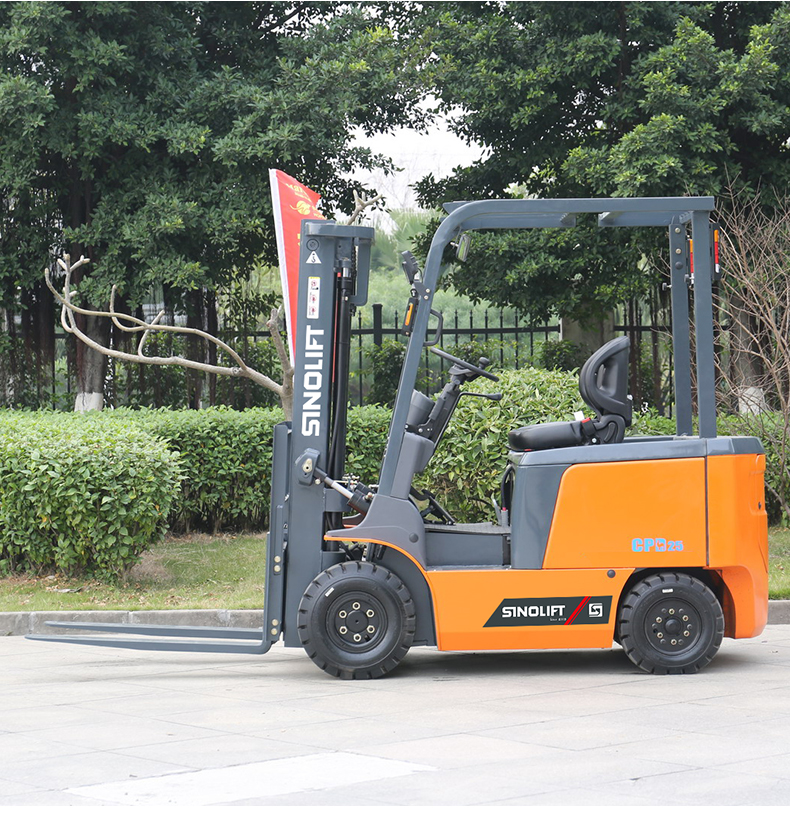

Sinolift E series Four Wheel Electric Forklift Truck 2.5 ton Counter Balanced Forklifts with AC Motor

CPD25E
Quantity:
Contact Now
add to cart
All Products

1. The AC system is controlled accurately and runs smoothly;

2. The roof guard frame is welded with the vehicle body in an integral structure, with high overall strength;

3. Low noise gear pump, motor multi-stage speed control, lowering protection solenoid valve, lift cylinder built-in safety valve;

4. Load sensing full hydraulic steering system, light, low noise, more labor-saving;

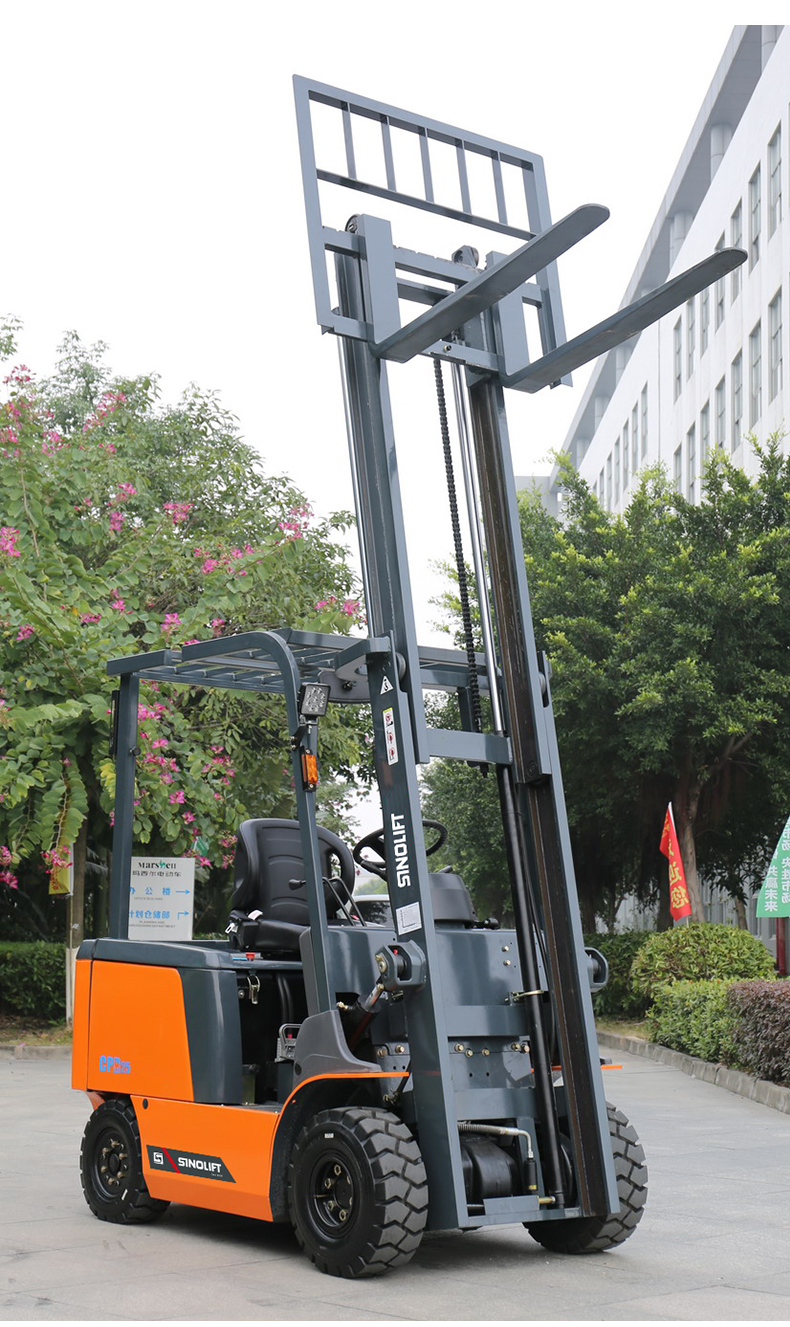

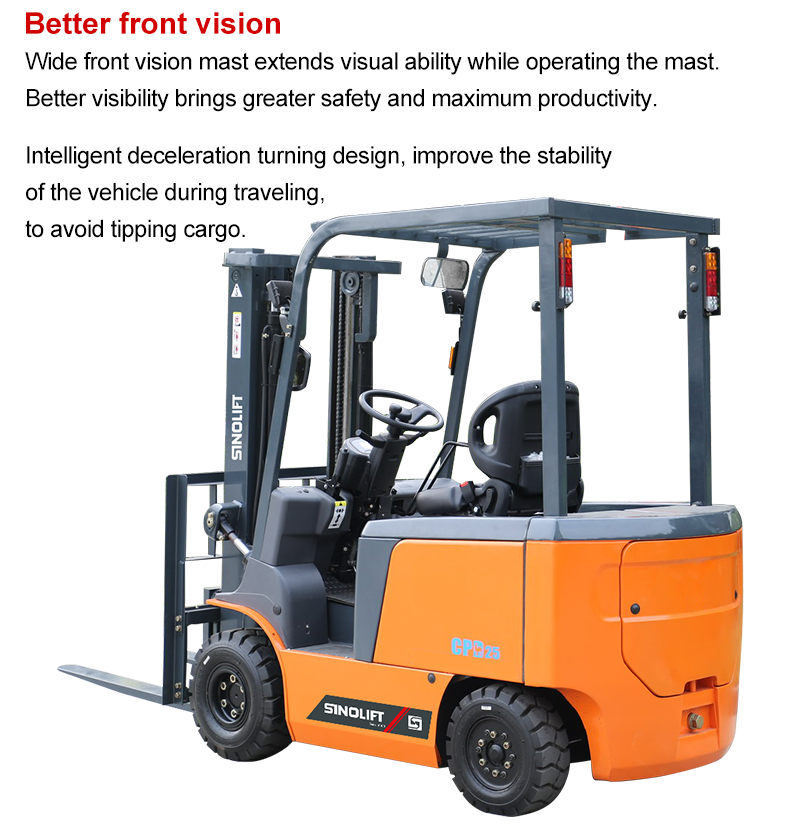

5. Wide view gantry design, clear vision, lifting height of 3-6M;

6. Good regenerative braking function to avoid damage to goods during use;

7. An explosion-proof valve is installed at the bottom of the lifting cylinder to avoid the rapid lowering of the gantry when the cylinder breaks;

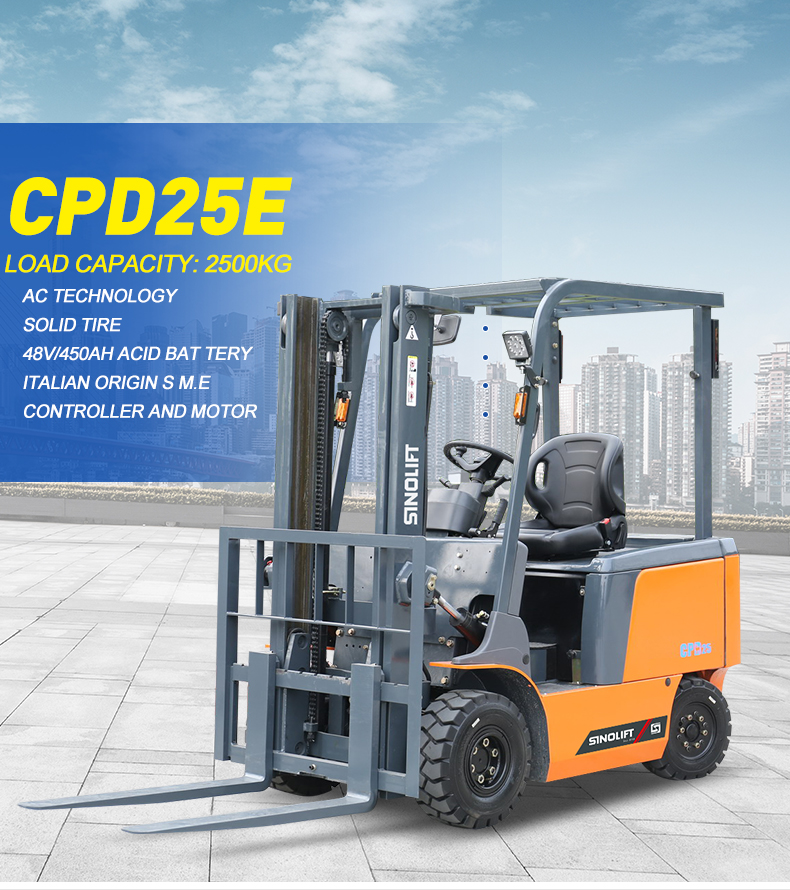

MODEL NO.CPD25E
Maximum load capacityQkg2500
Overall length ( No fork)L'mm2245
Overall widthWmm1150
Height, mast loweredH1mm2085
Height of overhead guard(cabin)H4mm2160
Height, mast extendedH2mm4225
Ground clearance, laden, below mastH5mm110
Ground clearance,unladen/laden,centre of wheelbaseH7mm125
Front treadW3mm955
Rear treadW2mm955
WheelbaseL1mm1400
Front overhangL2mm425
Lift heightHmm3000
Mast tilt angle, front/rearα/β°6/12
Max.lift speedunladenmm/s430
ladenmm/s240
Max. travel speedunladenkm/h14
ladenkm/h13
Turning radiusRmm2000
Max. gradability,laden%15
Load centre distanceCmm500
Curb weight(with battery)kg3820
TyreFront21*8-9 16PR
Rear18*7-8 14PR

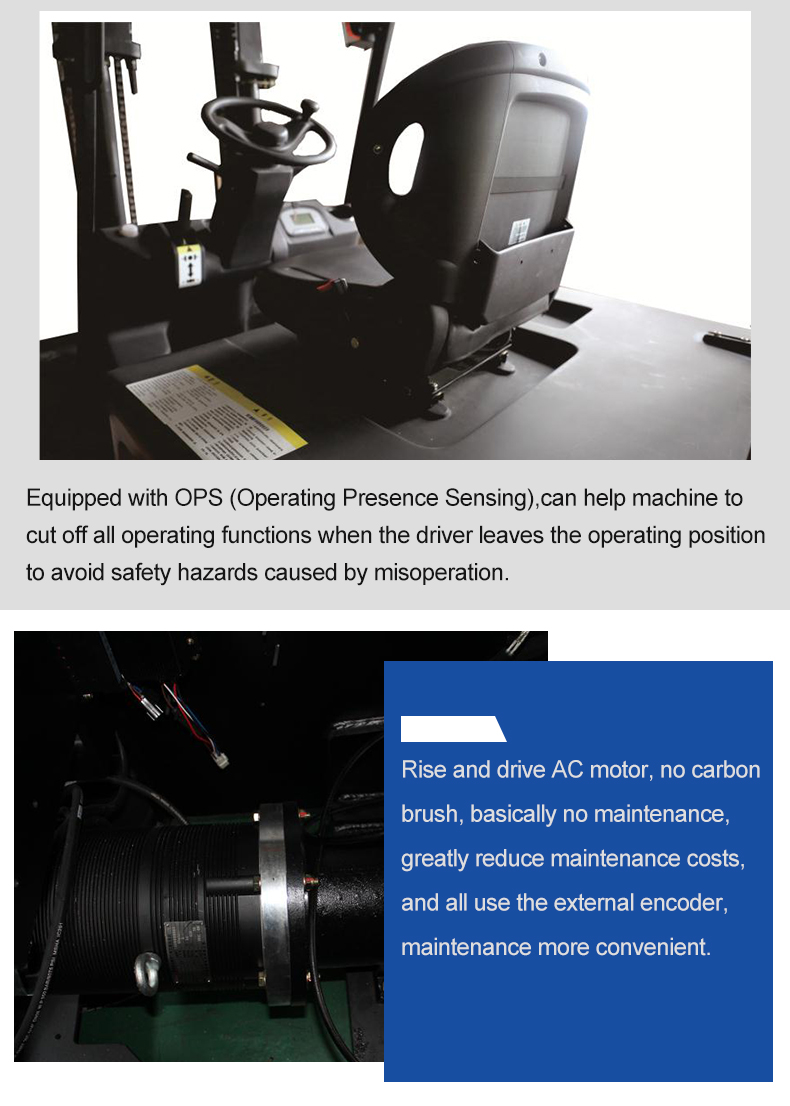

MotorDrivekw8.5
Liftkw8.6

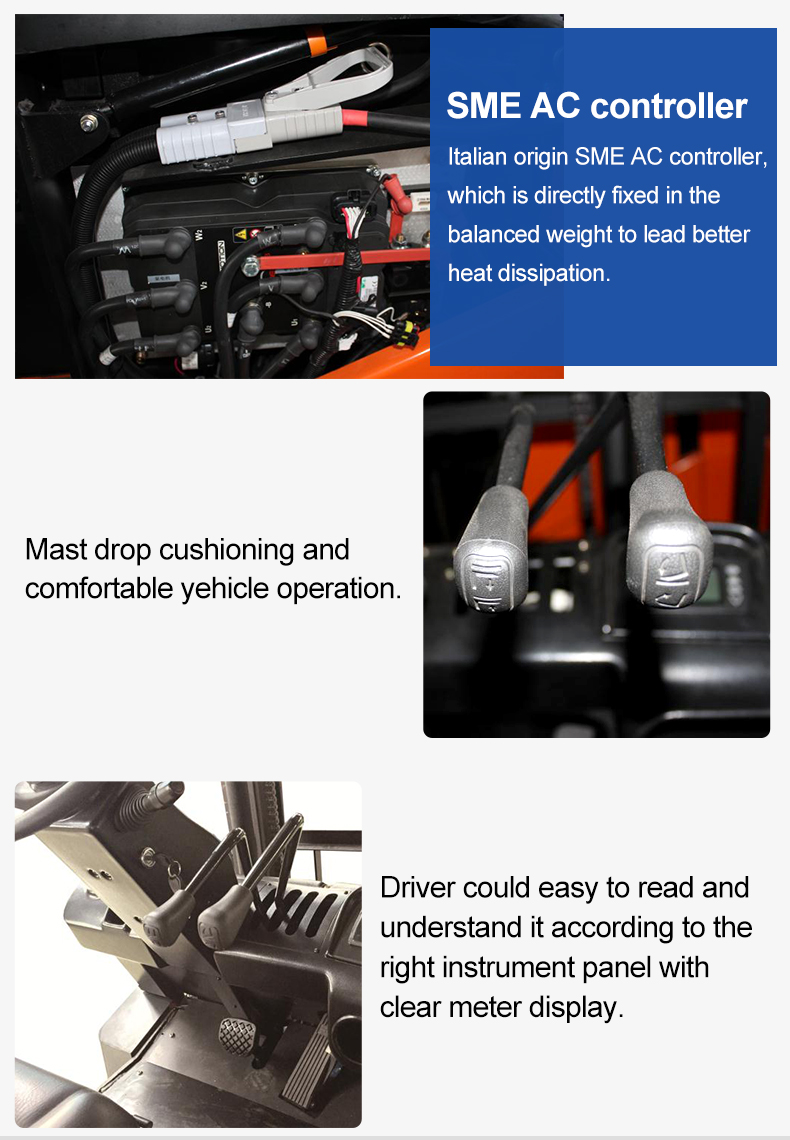

ControllerBrandCURTIS

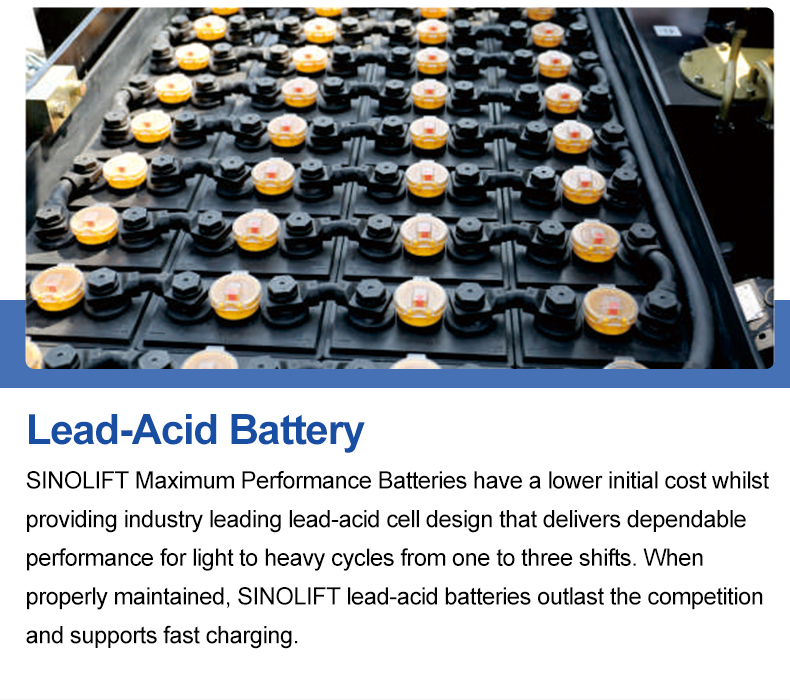

BatteryV/Ah48/550
Aisle width for lengthways800*1000mm4156
Aisle width for lengthways1000*1200mm4012
