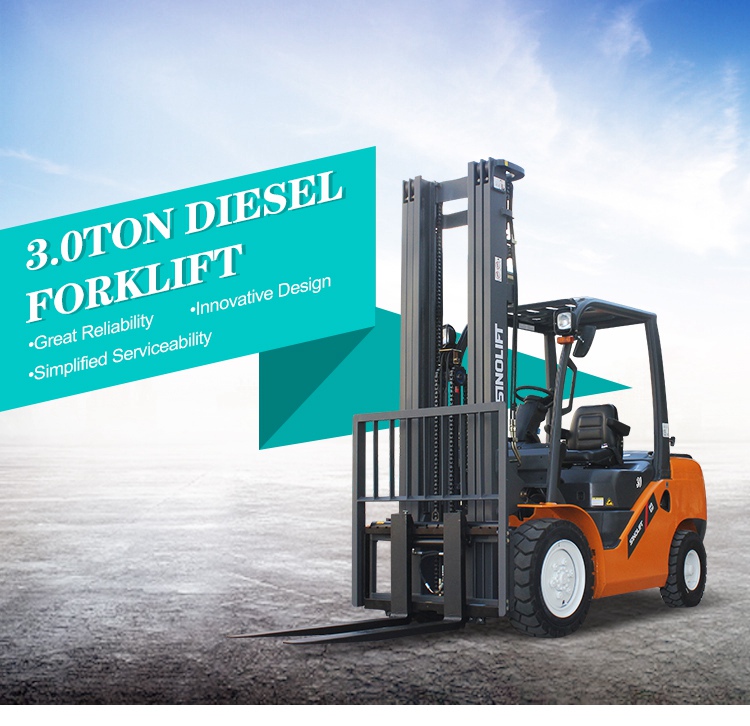

3.0 Ton Diesel Forklift

CPCD30G

Quantity:

Contact Now

add to cart

Message Content

Country

Phone

Name

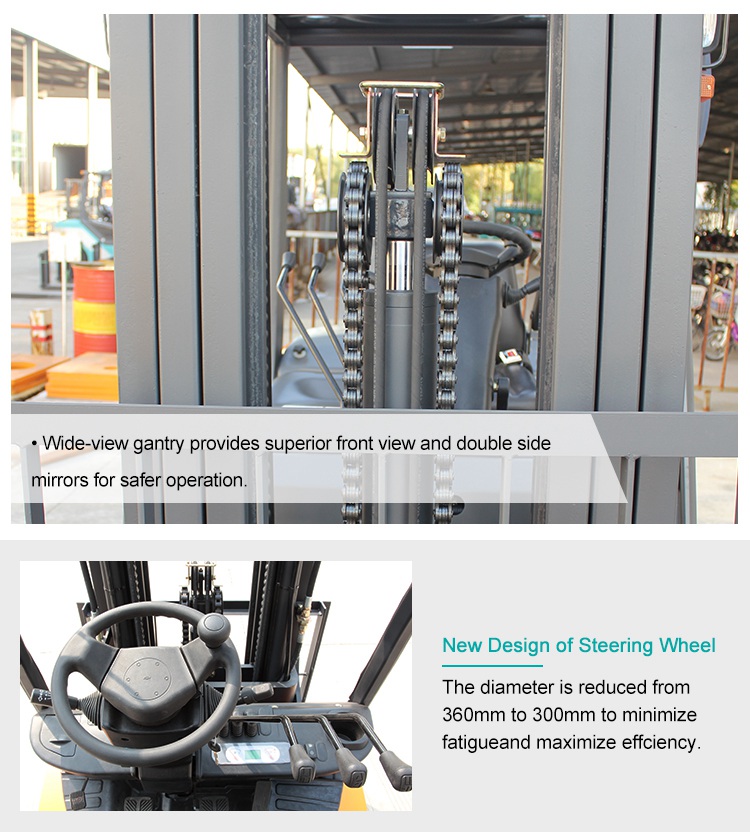

1.Wide-view gantry provides superior front view and double side mirrors for safer operation.

2.The ground clearance of the body is 200mm, and the balance weight is 220mm away from the ground.

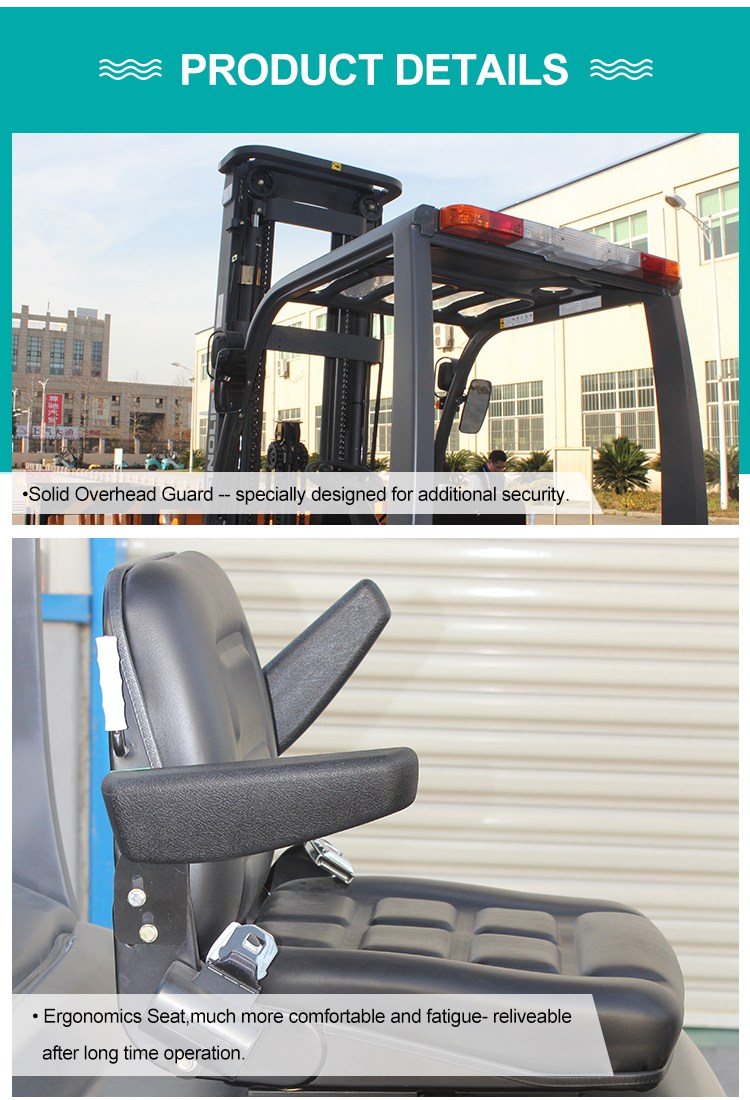

3.High-strength integrated stamping roof for more effective driver safety.

4.Iron stamping tank cover provides safety for the tank.

Our High quality fork lift diesel 3 ton forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.

Model				CPCD30G-W1	CPCD30G-W2	CPCD30G-Y3	CPCD30G-M1
1	Power Type			Diesel	Diesel	Diesel	Diesel
2	Rated Capacity		kg	3000	3000	3000	3000
3	Load Centre		mm	500	500	500	500

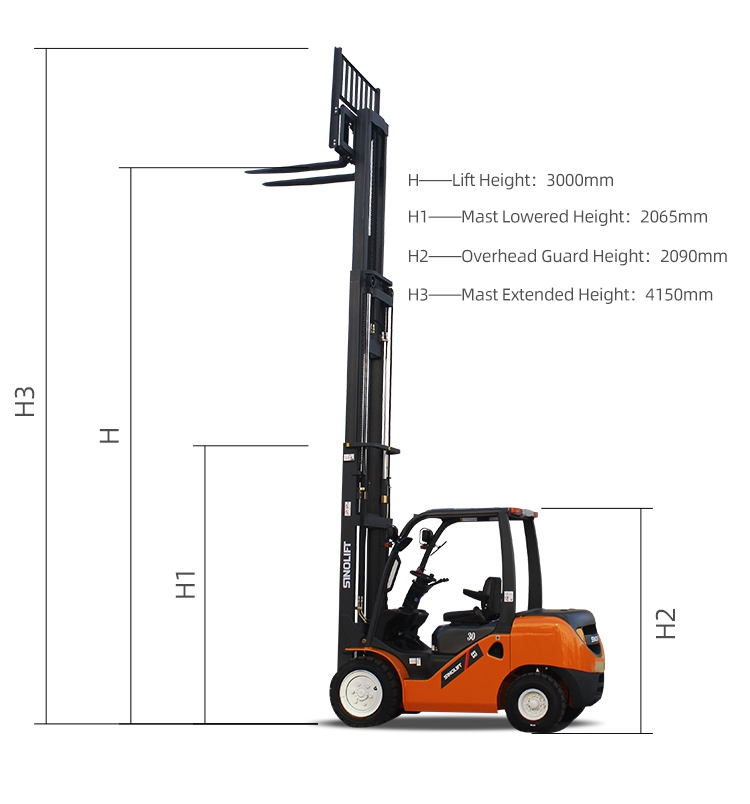

4	Lift Height		mm	3000	3000	3000	3000
5	Fork Size (L×W×T )		mm	1070×125×45	1070×125×45	1070×125×45	1070×125×45
6	Mast Tilt Angle (F/R)		Deg	6°/12°	6°/12°	6°/12°	6°/12°
7	Front Overhang (Wheel center to fork face)		mm	475	475	475	475
8	Ground Clearance(Bottom of mast)		mm	120	120	120	120
9	Turning Radius (outside)		mm	2400	2400	2400	2400
10	Min. Intersecting aisle		mm	2110	2110	2110	2110
11	Max.Gradeability (No load/Full load)		%	19	19	19	19
12	Wheelbase		mm	1700	1700	1700	1700
13	Service weight		kg	4390	4390	4390	4390
14	Battery (Voltage/Capacity)		V/Ah	12/90	12/90	12/90	12/90
15	Overall Dimension	Length to face of fork(Without fork)	mm	2670	2670	2670	2670
16		Overall Width	mm	1225	1225	1225	1225
17		Mast Lowered Height	mm	2065	2065	2065	2065
18		Mast Extended Height(With backrest)	mm	4150	4150	4150	4150
19		Overhead Guard Height	mm	2090	2090	2090	2090
20	Speed	Travel (No load)	km/h	19	19	19	19
21	Speed	Lifting(Full load)	mm/s	440	440	440	440
22	Tire	Front	mm	28x9-15-12PR	28x9-15-12PR	28x9-15-12PR	28x9-15-12PR
23	Tire	Rear	mm	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR	6.50-10-10PR
24	Engine	Model		C240 PKJ30	4JG2PE-01	4TNE98	S4S
25		Manufacture		ISUZU	ISUZU	YANMAR	MITSUBISHI
26		Rated output/r.p.m.	kw	35.4/2500	46/2300	42.1/2300	38/2300
27		Rated torque/r.p.m.	N·m	139/1800	186.3/1800	187-207/1700	176/1700
28		No.of Cylinder		4	4	4	4
29		Bore×Stroke	mm	86×102	95.4×107	98×110	94×120
30		Displacement	cc	2369	3059	3318	3331
31		Fuel Tank Capacity	L	60	60	60	70
32	Transmission	Type		Powershift	Powershift	Powershift	Powershift
33	Transmission	Stage FWD/RVS		1/1	1/1	1/1	1/1
34	Operating Pressure for Attachment		Mpa	17.5	17.5	17.5	17.5
