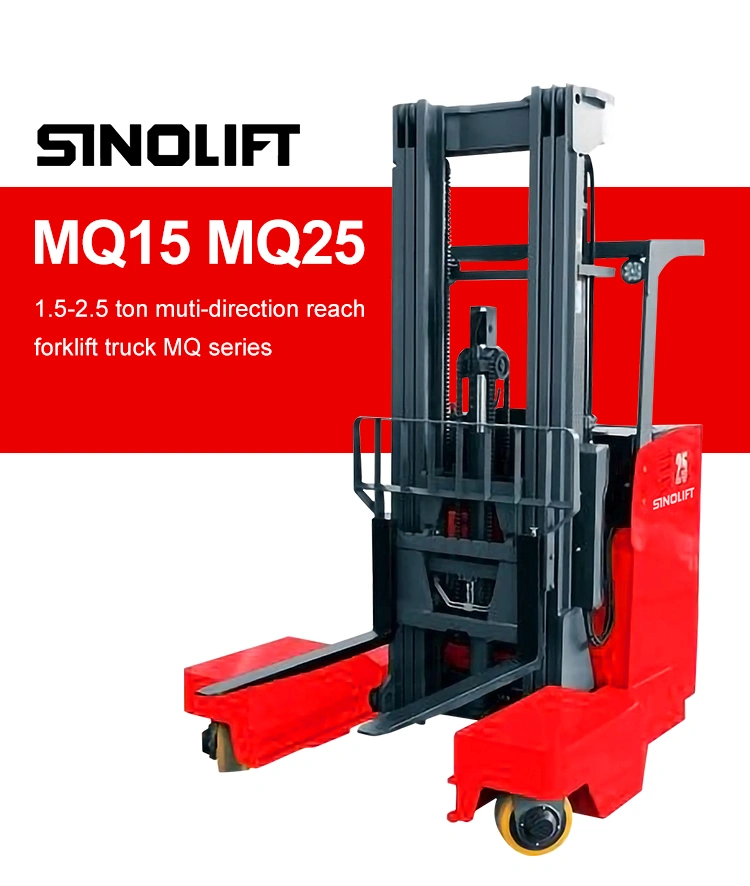

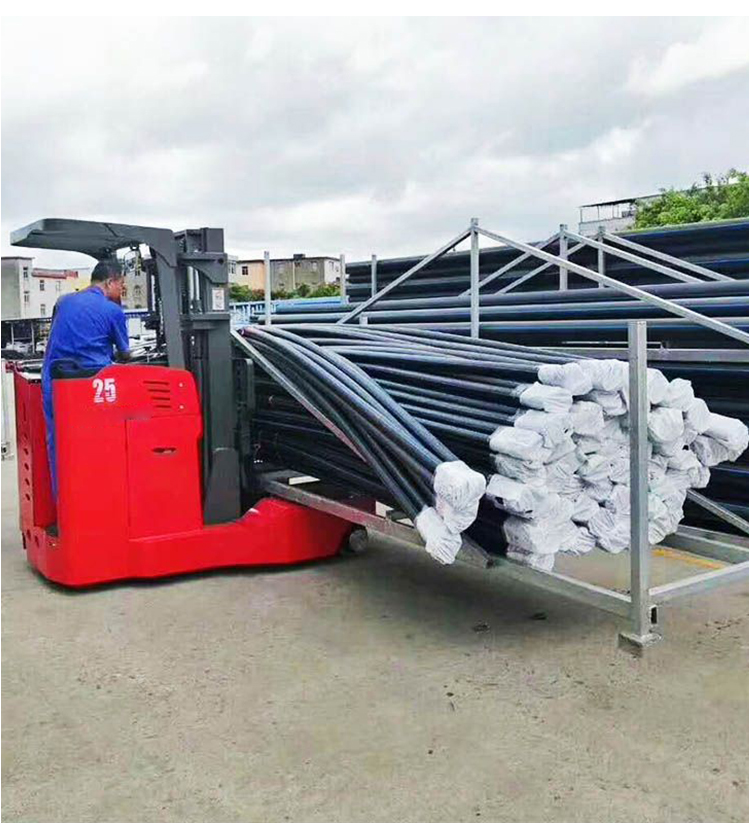

Sinolift MQ Series Electric Reach Truck Lithium Battery Side Loader Forklift 4 Way for Long Material Handling

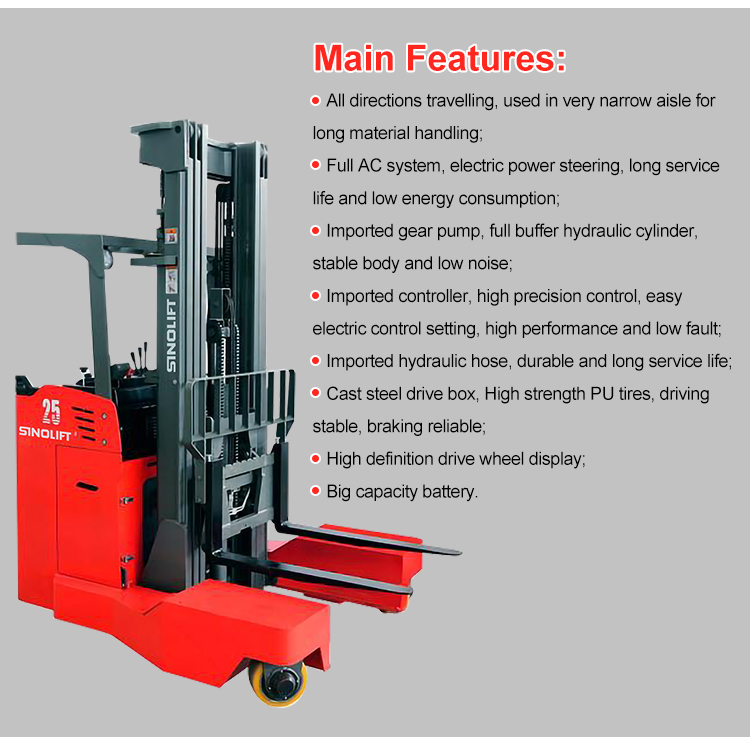

Main Features:

1.Electric powering steering and one key switch function, with switch shortcut key of straight travelling and side travelling, high stacking efficiency.

2.Imported gear pump, full buffer hydraulic cylinder, working stable and low noise.

3.Imported controller, high precision controlling, easy electric control setting, high performance and low fault.

4.Imported hydraulic hose, long service life.

5.Cast steel drive box and high strength polyurethane tires.

Brand		SINOLIFT	SINOLIFT	SINOLIFT	SINOLIFT
Model		MQ1530	MQ1545	MQ2530	MQ2545
Power Type		Battery	Battery	Battery	Battery
Operation Type		Stand on	Stand on	Stand on	Stand on
Service weight(incl. battery)	kg	2530	2600	3700	3900
Rated Capacity	Q(kg)	1500	1500	2500	2500
Load Center	C(mm)	500	500	500	500
Lifting height	h3(mm)	3000	4500	3000	4500
Forks size	l/e/s(mm)	920/100/35	920/100/35	920/100/45	920/100/45
Front Overhang	x(mm)	140	140	175	175
Turning radius	Wa(mm)	1610	1610	1975	1975
Max. climbing ability	%(tanθ )	≤8	≤8	≤10	≤10
Driving speed(load/unload)	km/h	7/8	7/8	7.8/9	7.8/9
Lifting speed(load/unload)	mm/s	120/190	100/190	220/300	220/300
Lowering speed(load/unload)	mm/s	190/170	170/130	310/260	310/260
