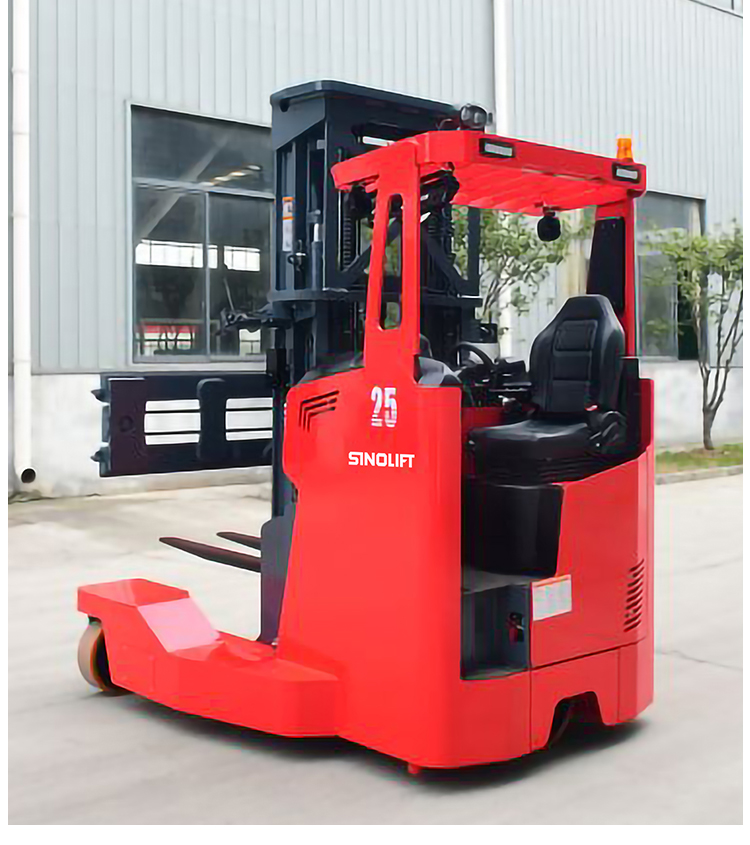

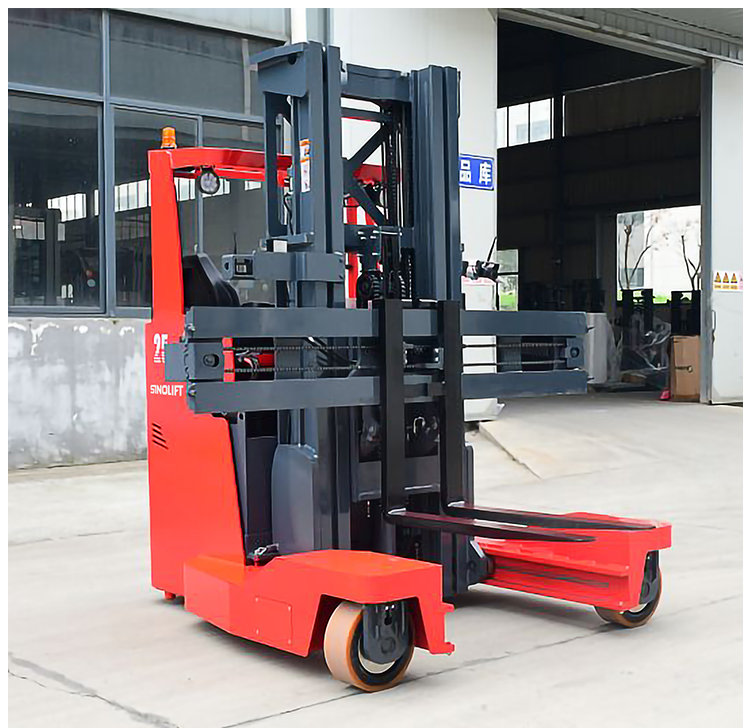

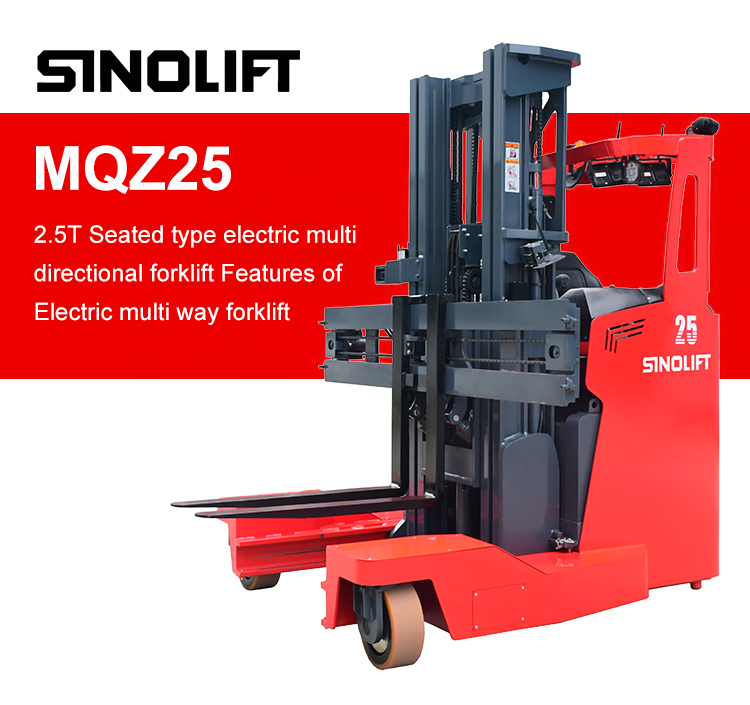

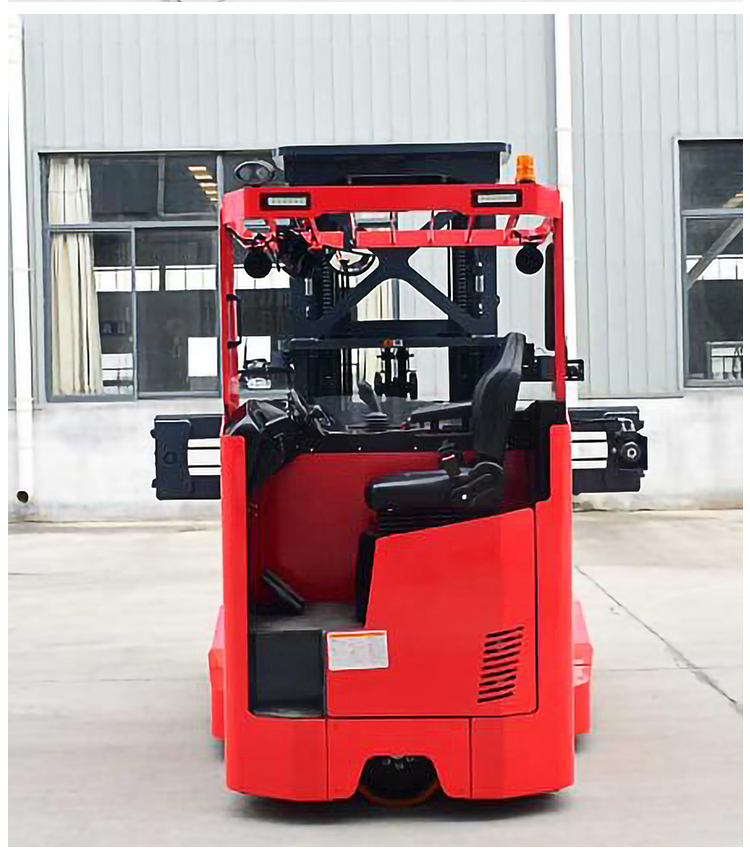

Sinolift MQZ Series Seated Multi-directional Electric Reach Truck
MQZ
Quantity:

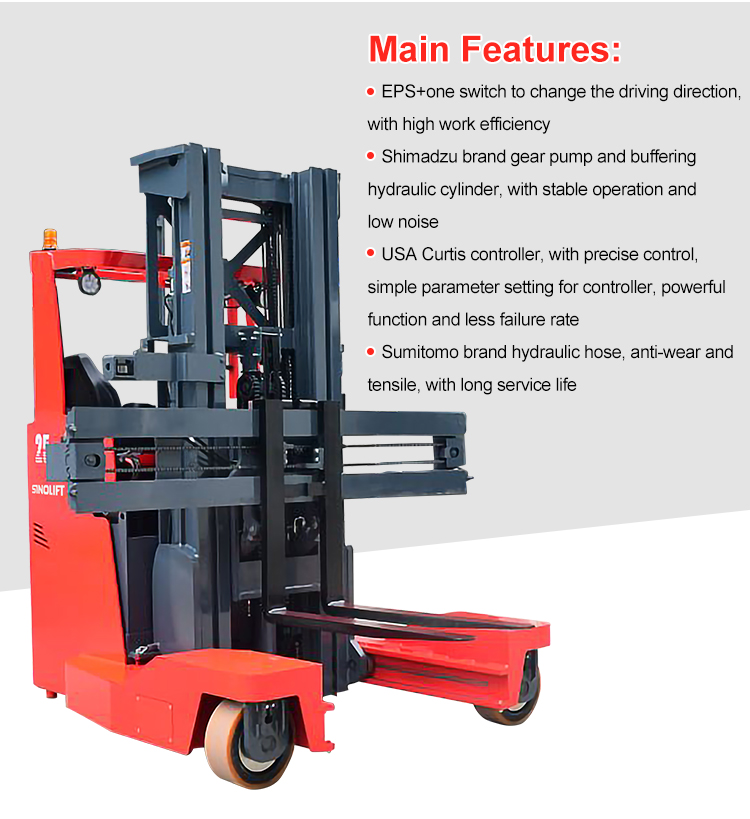

1. EPS+one swith to change the driving direction,with high work efficiency
2. Shimadzu brand gear pump and buffering hydraulic cylinder, with stable operation and low noise
3. USA Curtis controller, with precise control, simple parameter setting for controller, powerful function and less failure rate
4. Sumitomo brand hydraulic hose, anti-wear and tensile, with long service life.
| Brand | SINOLIFT | |
| Model | MQZ25 | |
| Power type | Battery | |
| Operation type | Seated | |
| Service weight(incl. battery) | kg | 5050 |
| Rated capacity | kg | 2500 |
| Load center | C(mm) | 600 |
| Lifting height | h3(mm) | 10000 |
| Overall length | l1(mm) | 2500 |
| Overall width | b1/b2(mm) | 1820/1270 |
| Fork size | l/e/s(mm) | 1070/122/40 |
| Front overhang | x1(mm) | 220 |
| Turning radius | Wa(mm) | 1988 |
| Driving speed(load/unload) | km/h | 8.5/10 |
| Lifting speed(load/unload) | mm/s | 260/360 |
| Lowering speed(load/unload) | mm/s | 300/250 |
| Steering type | EPS | |
| Battery voltage/capacity | V/Ah | 48/560 |
| Battery weight | kg | 821 |
