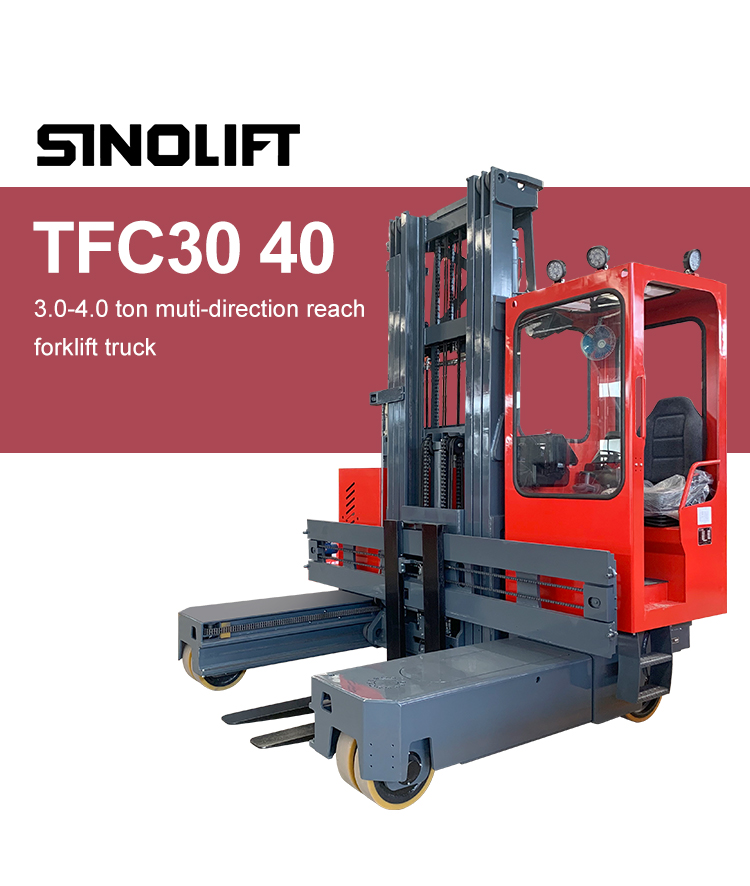

Sinolift TFC Series Narrow Aisle Multi-directional Long Material Handling
TFC
Quantity:

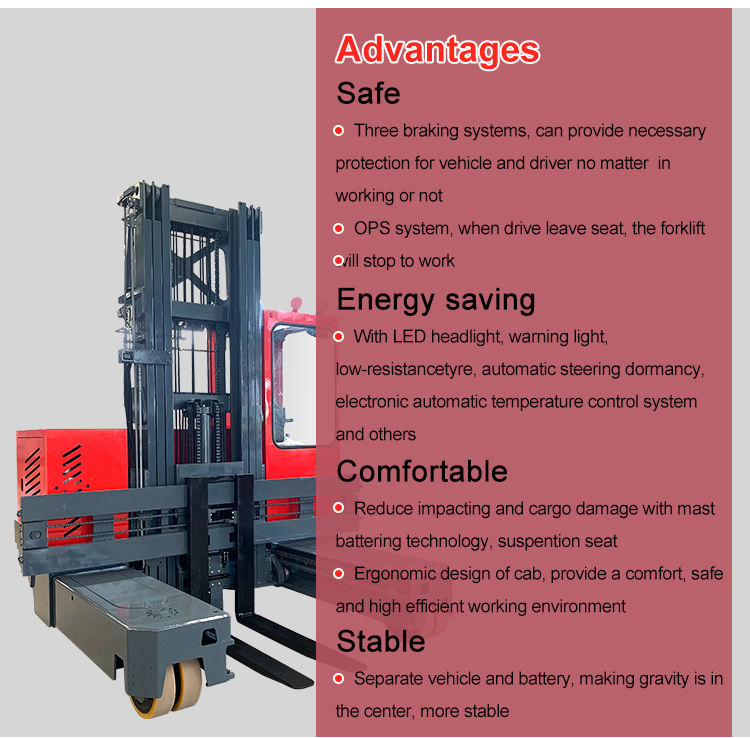

Safe

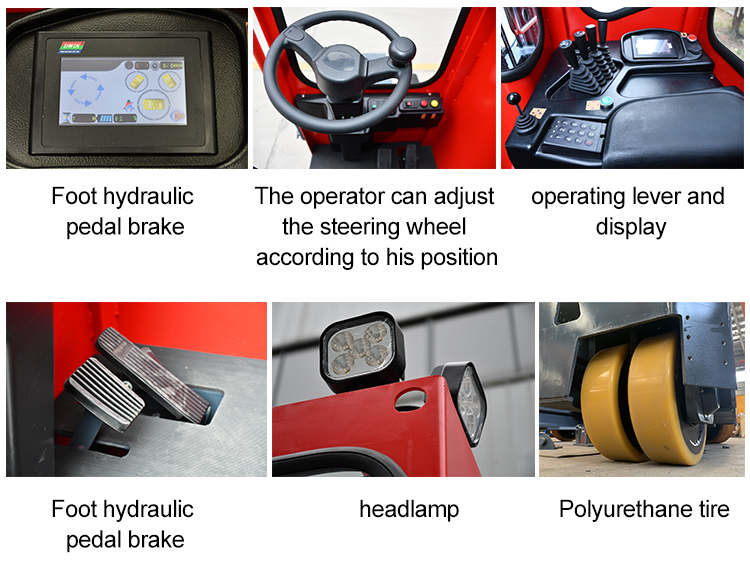

●Three braking systems, can provide necessary protection for vehicle and driver no matter in working or not
●OPS system, when drive leave seat, the forklift will stop to work
Energy saving
●With LED headlight, warning light, low-resistancetyre, automatic steering dormancy, electronic automatic temperature control system and others
Comfortable
●Reduce impacting and cargo damage with mast battering technology, suspention seat
●Ergonomic design of cab, provide a comfort, safe and high efficient working environment
Stable
●Separate vehicle and battery, making gravity is in the center, more stable
| Brand | SINOLIFT | SINOLIFT | |
| Model | TFC30 | TFC40 | |
| Power Type | Battery | Battery | |
| Operation Type | Seated | Seated | |
| Service weight(incl. battery) | kg | 5480 | 7750 |
| Rated Capacity | Q(kg) | 3000 | 4000 |
| Load Center | C(mm) | 600 | 600 |
| Lifting height | h3(mm) | 3000 | 3000 |
| Forks size | l/e/s(mm) | 1200/150/50 | 1200/150/50 |
| Front Overhang | x(mm) | 305 | 318 |
| Mast ground clearance | ml(mm) | 150 | 150 |
| Driving speed(load/unload) | km/h | 7.8/9 | 7.8/9 |
| Lifting speed(load/unload) | mm/s | 230/350 | 230/350 |
| Lowering speed(load/unload) | mm/s | 170/150 | 170/150 |
