A Custom 5-Meter Manual Winch Solution for Cleanroom Operations
In the world of specialized manufacturing, "standard" equipment often falls short of meeting unique environmental and spatial requirements. At Sinolift, we pride ourselves on bridging the gap between standard material handling and high-precision engineering. Recently, a long-term partner in the high-tech electronics sector approached us with a challenge that required a complete rethink of the traditional manual stacker.
The result was the development of a Custom Manual High-Lift Winch Stacker, a machine designed to operate at extreme heights within the confines of a strictly regulated dust-free environment.
The Challenge: Vertical Reach Meets Stringent Sanitation
Our client faced a dual-layered problem. First, their assembly process required lifting sensitive components—weighing up to 150kg—to a height exceeding 5 meters. Most manual stackers on the market reach their limit at 2 or 3 meters. Secondly, the work took place in a Class 100 cleanroom.
Traditional hydraulic systems were out of the question due to the risk of oil leaks, which would contaminate the sterile environment. Furthermore, the components being lifted were extremely fragile; even a slight tilt during the 5,000mm ascent could lead to catastrophic equipment failure or safety risks. The client needed a solution that was tall, stable, clean, and incredibly precise.
The Sinolift Engineering Response

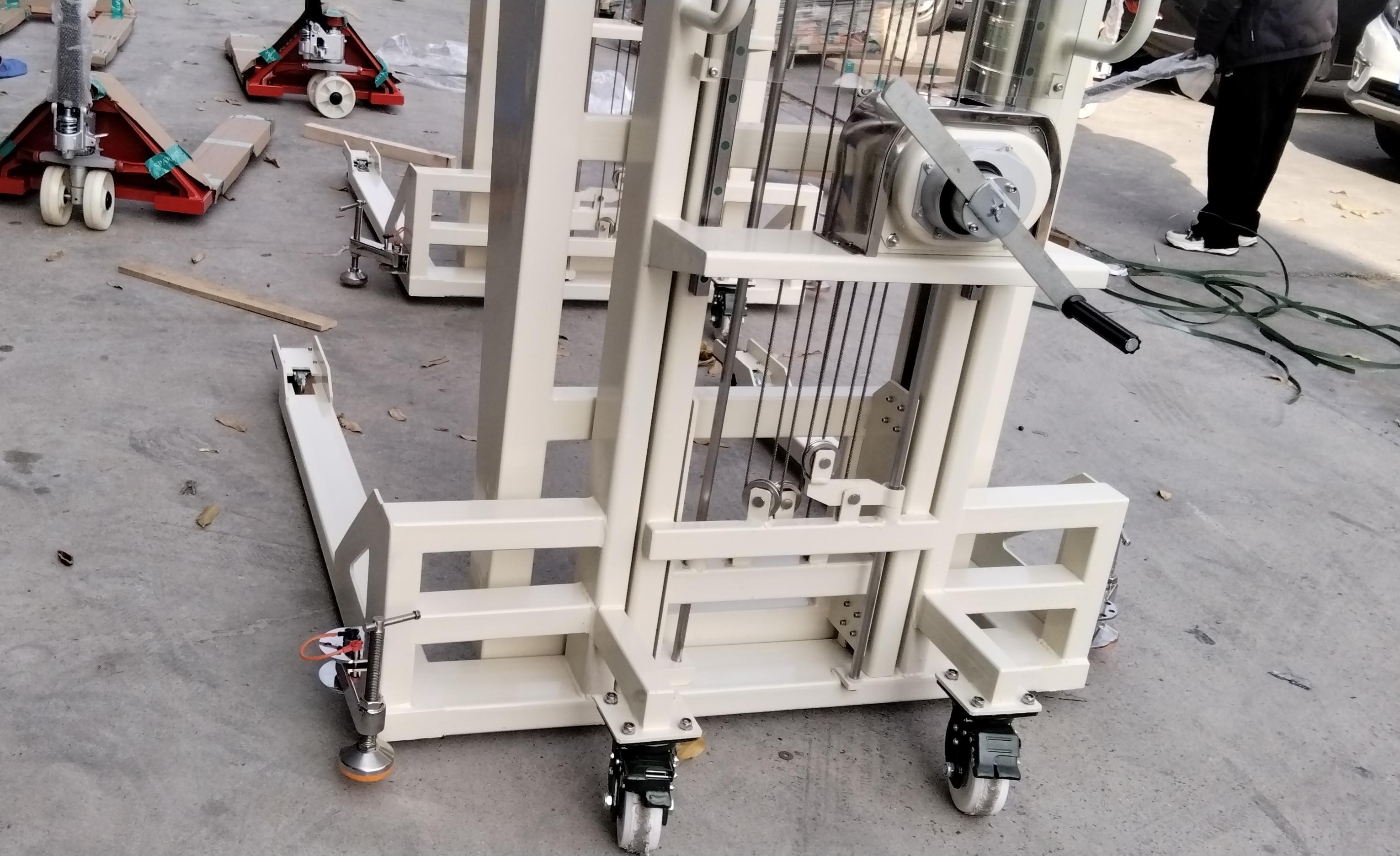

To meet these demanding specifications, our engineering team moved away from hydraulic lifting in favor of a heavy-duty hand winch and wire rope system. This eliminated the risk of fluid leaks entirely.

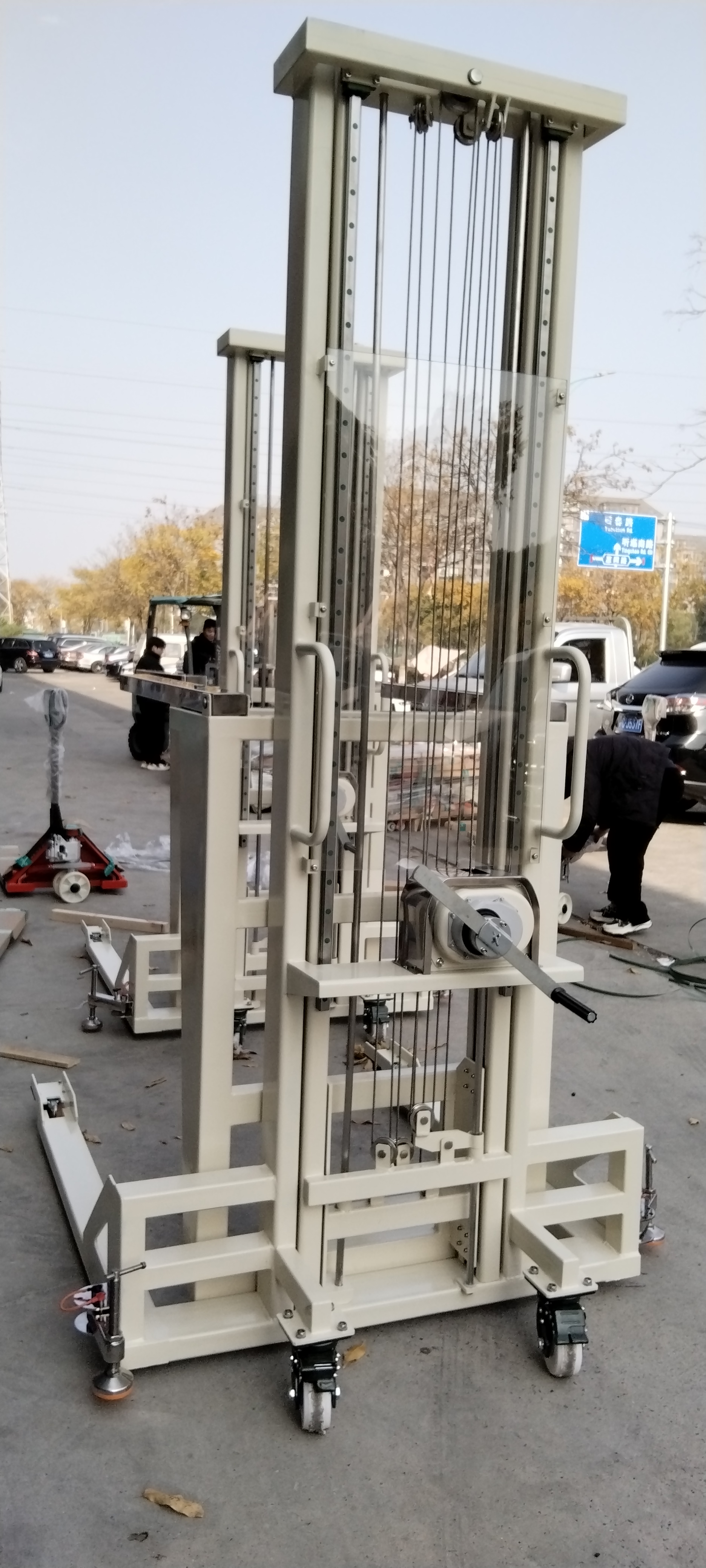

We designed a multi-stage mast system consisting of an outer and inner mast, reinforced with specialized support rods to maintain structural integrity at full extension. To ensure the load remained perfectly balanced, we implemented a unique fine-tuning mechanism for the forks. This allows operators to adjust the pitch and angle of the assembly rods, ensuring the workpiece stays perfectly level regardless of the height.
Versatility Across Specialized Scenarios
While this custom stacker was built for a specific assembly line, its design makes it ideal for several high-stakes industrial environments:
- Aerospace Assembly: Perfect for lifting sensors or small panels into position on high-clearance fuselages without the risk of electrical sparks or hydraulic spray.
- Pharmaceutical Laboratories: Its stainless steel components and oil-free operation make it suitable for moving chemical batches into high-altitude storage or processing vats.
- Data Center Maintenance: Used for installing heavy server blades or cooling units into the upper sections of tall rack systems where space is tight and floors must remain pristine.
- Semiconductor Manufacturing: The dust-free design and linear guide rails ensure that no metallic shavings or grease particles interfere with wafer production.
Distinctive Advantages of the Custom High-Lift Stacker
This wasn't just a modification of a base model; it was a ground-up customization. Here are the specific features that set this unit apart:
- Exceptional Lift-to-Weight Ratio: Despite a compact footprint of 1700mm x 1380mm, the unit safely reaches heights over 5000mm, providing a vertical range rarely seen in manual equipment.
- Cleanroom-Ready Construction: We utilized stainless steel for all fasteners and critical moving parts. The "off-white" (beige) paint finish is not just aesthetic; it is a specialized coating that resists flaking and is easy to sanitize.
- Precision Leveling System: The fork assembly features a micro-adjustment capability. This ensures that even at a 5-meter elevation, the workpiece remains at a 0° horizontal angle.
- Advanced Safety Redundancy: Safety is paramount when lifting high. This model includes an anti-fall assembly for both the movable frame and the inner mast, utilizing dedicated anti-fall rods to lock the load in place in the unlikely event of wire rope tension loss.
- Low-Clearance Agility: With a leg ground clearance of only 40mm, the stacker can slide under low-profile racking and machinery, maximizing floor space efficiency.
- Ultra-Smooth Travel: By integrating linear guide rails into the sliding mechanism, we reduced the physical effort required to move the load, ensuring "jitter-free" vertical movement.
- High-Stability Wheel Configuration: Equipped with a mix of directional and universal casters (swivel wheels), the unit can be maneuvered into tight corners and then locked securely into place using the support rods for high-altitude lifts.
Moving Forward with Sinolift
The success of this 5-meter manual winch stacker highlights our commitment to solving the "impossible" for our clients. Whether you are dealing with strict sanitation protocols or need a lift height that defies standard catalog specs, our team is ready to design a tool that fits your workflow.
