Case Study: Revolutionizing Small-Scale Logistics with the Sinolift Portable Self-Loading Cart
The Customer's Challenge: A Need for Nimble Power
Our client’s core business model hinged on the efficient and safe transport of goods weighing up to 300kg. Their teams frequently handled deliveries to retail outlets and maintenance supplies for office buildings. A critical part of their workflow involved loading and unloading from a mini-van, often with only a single operator. Relying on manual labor for heavy lifting was not only slow and inefficient but also posed a significant risk of workplace injury.
They needed a solution that could do the following:
- Empower a single operator: The device had to be easy for one person to use, eliminating the need for a second set of hands or a forklift.
- Load itself into a vehicle: It had to lift goods from the ground and elevate itself and the load into the back of a mini-van, a feat that is impossible with a standard hand trolley.
- Be highly portable: The unit needed a compact, lightweight design that could be easily stored in the vehicle when not in use.
- Operate in diverse environments: The device had to be quiet for use in sensitive areas like hospitals and offices, and agile enough to navigate through doorways and tight spaces.
- Ensure safety and reliability: It was crucial to have a machine that was both stable when lifting and secure during transport.
The Sinolift Solution: The Portable Self-Loading Cart
Sinolift's engineers collaborated closely with the client, leveraging our extensive experience in hydraulic and lifting systems. The result was a purpose-built, purple-colored Portable Self-Loading Cart—a mobile hydraulic lift that perfectly addressed every one of the client’s requirements. This innovative product combined the lifting power of a small scissor lift with the portability and maneuverability of a hand trolley, creating a truly unique and efficient tool.
The core of the solution was its hydraulic system, powered by a robust 12V/300W pumping station and a powerful 12V/40AH lithium battery. This provided ample power to lift a substantial load of up to 300kg effortlessly. Its intuitive controls, including a simple up/down knob switch and a key-operated power switch, made it incredibly easy for any operator to use with minimal training. The push handle, positioned at a comfortable 1100mm above the ground, provided excellent leverage and control.
Product Advantages and Features
The final design of the Portable Self-Loading Cart was meticulously engineered to deliver on every promise. It offered a suite of features that not only solved the client’s immediate challenges but also provided long-term operational benefits.
Unmatched Versatility and Portability

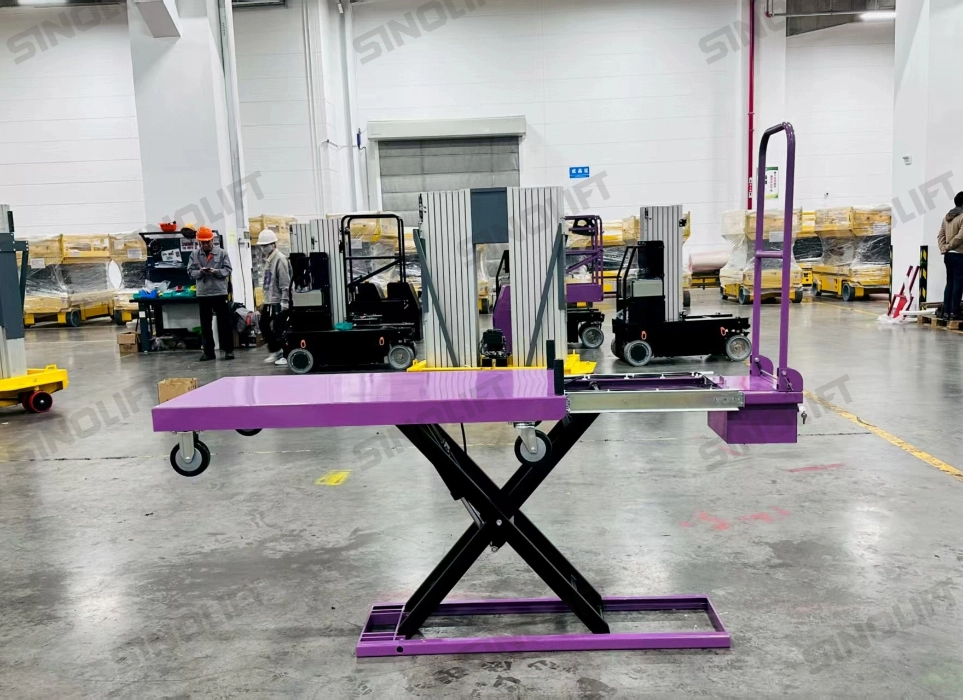

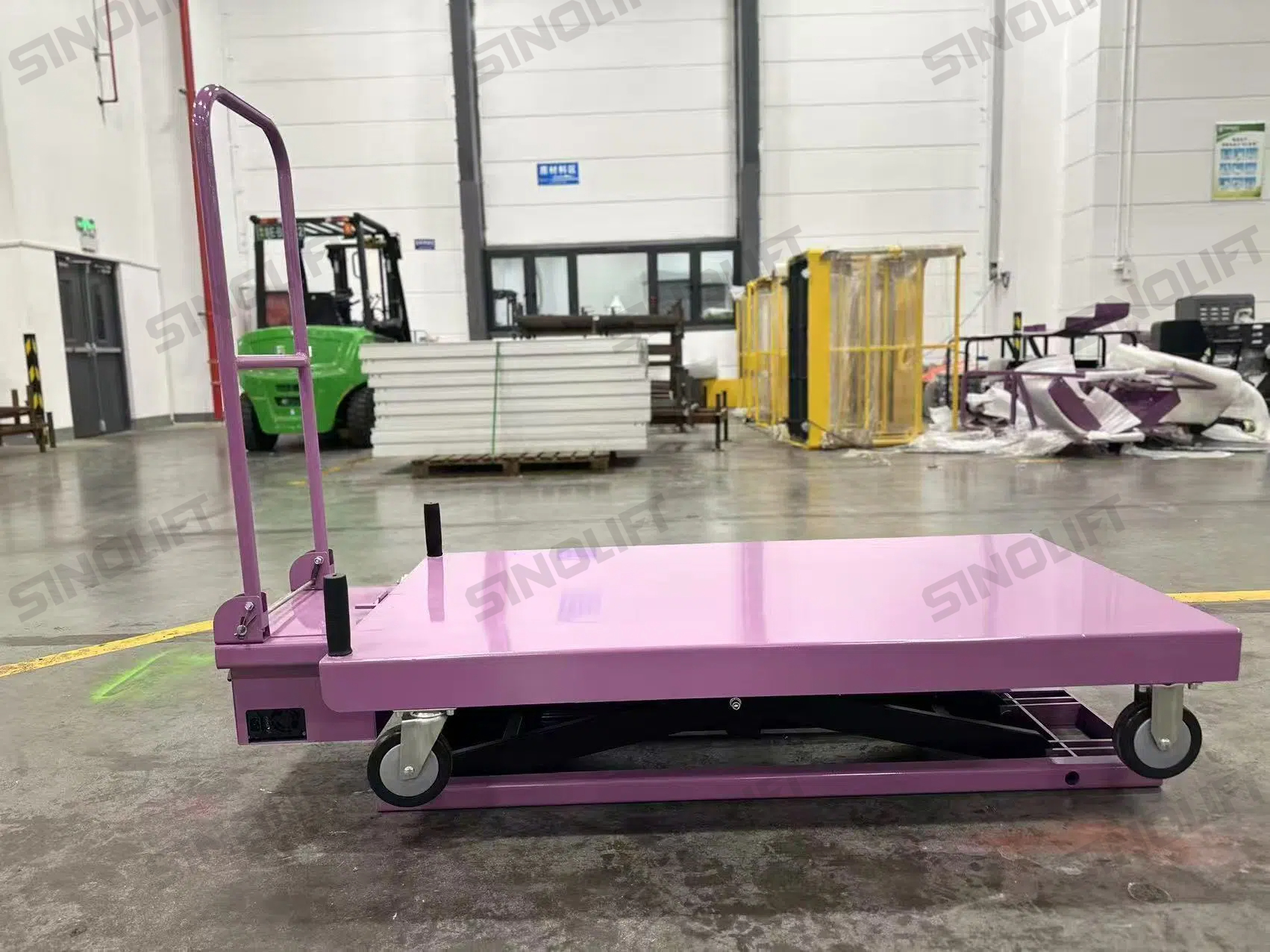

The cart’s clever design is its greatest strength. At its base, the unit boasts a scissor-style lift mechanism, powered by a single oil cylinder, that can elevate its platform from the ground. Its retracted height is compact, allowing it to be easily stowed in the back of a vehicle. A critical, custom-designed feature is its telescopic stroke of ≤1600mm, which is what allows it to lift itself—and its load—into the back of a mini-van. Once retracted, the platform is automatically locked, ensuring the load and the cart are secure during transit. The 1480mm x 700mm table size provides a generous surface for various types of cargo. The cart also has a robust chassis with a ground clearance of ≥30mm when traveling, enabling it to clear small obstacles and uneven surfaces.
Powerful Performance, Reliable Operation
With a 300kg load capacity, this cart is a true workhorse, capable of handling far more than what can be safely lifted by a single person. The powerful 12V/300W pumping station ensures swift and smooth lifts, while the 12V/40AH lithium battery provides a reliable and long-lasting power source for a full day's work. The lift height of the wheels from the ground when fully raised is ≥810mm, a key parameter that allows it to easily clear the lip of a mini-van's cargo area. This high lift capability is essential for the self-loading function, turning a two-person job into an easy task for one.
Prioritizing Safety and Intuitive Control
Safety was a paramount concern. The cart is equipped with an emergency stop button for immediate power cutoff in any situation. A reliable limit switch prevents the cart from over-extending, adding a layer of protection to the hydraulic system and the load. Its maneuverability is excellent, with two swivel wheels and two directional wheels that provide a stable yet highly controllable platform for navigating tight turns and long, straight paths. The retractable push handle makes it easy to store and transport.
The Results: Enhanced Efficiency and Safety
By implementing the Sinolift Portable Self-Loading Cart, our client completely transformed their material handling operations. The cart’s ability to "board" a vehicle on its own meant that a single operator could now efficiently manage pickups and deliveries of heavy items, a task that previously required a two-person team or complex equipment. This not only significantly reduced labor costs but also enhanced workplace safety by eliminating the need for risky manual lifting. The client was particularly impressed with the cart's reliability and the thoughtful inclusion of features like the automatic locking mechanism, which demonstrated Sinolift's expertise in custom design.
This case study is a testament to Sinolift's commitment to solving specific, real-world customer problems through innovative engineering. The Portable Self-Loading Cart is more than just a piece of equipment; it is a specialized solution that provides a significant competitive advantage for businesses that need powerful lifting capabilities without the logistical constraints of larger machinery.
