Precision Engineered for Unique Challenges: A Case Study in Custom Material Handling Solutions

In the world of material handling, one-size-fits-all solutions don’t always cut it. While standard equipment like forklifts and work positioners handle the majority of tasks, some operations demand a level of precision and specialization that only a custom-engineered machine can provide. When a customer came to us with a unique and complex lifting challenge, we at Sinolift didn't just offer a product; we created a tailored solution that was precise, robust, and perfectly suited to their needs.

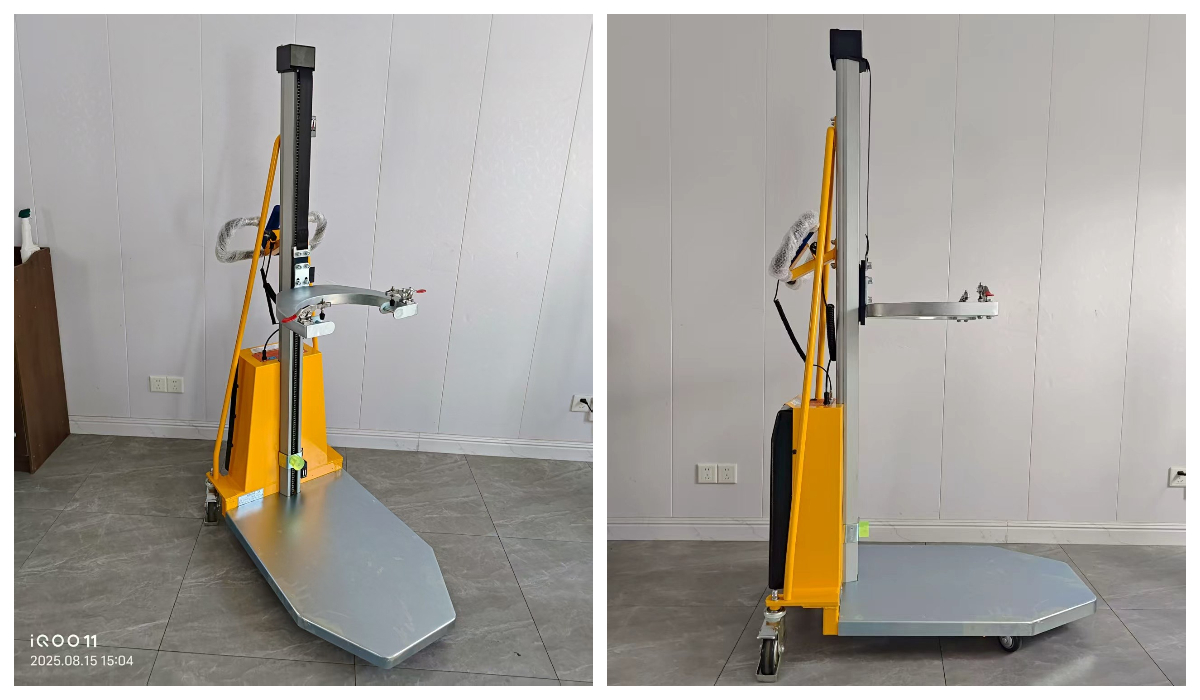

This case study highlights how our team leveraged the advanced platform of our E-Series Electric Work Positioner to design and build a custom elevating solution specifically for handling drums and barrels with unparalleled accuracy. The result was a new machine we call the Electric Work Positioner with Drum Clamp, a testament to our engineering capabilities and commitment to solving our clients' most difficult problems.

The Challenge: Precision, Control, and Safety

The customer's core requirement was to lift and position heavy drums with an extreme degree of accuracy within a controlled environment. The task required an electric-powered unit that could ascend and descend with a heavy load, but the standard platform of a typical work positioner would not suffice. The technical specifications were rigorous and left no room for error:

• Electric Single-Pillar Design: The unit needed a single-pillar mast capable of a 1.5-meter lift stroke. It had to be able to handle a maximum load of 100 kg.
• Absolute Verticality: The lifting mast's guide rail had to maintain a strict perpendicularity to the horizontal plane, with a precision tolerance of less than 0.5 mm. This was a critical requirement for ensuring the load was always perfectly level.
• Custom Drum Clamping: The most significant challenge was the need for a specialized attachment. A custom drum clamp was required to securely grip and lift the barrels. This clamp needed to handle a minimum load of 20 kg and feature a quick-locking mechanism with a powerful locking pressure of no less than 2,352 N. Furthermore, the clamp had to be fully adjustable in all directions—forward, backward, left, and right—once mounted on the carriage.
• Precise Horizontal Guidance: The lifting carriage, or "little car," needed more than just a vertical lift. It required custom guide plates and a pair of guide rails on either side to ensure precise and stable horizontal movement. This feature was crucial for aligning the drum with its final destination without any lateral drift.
• Enhanced Mobility and Stability: While the unit needed to be mobile, it was crucial that it could be locked into place once it reached its target. The design specified front directional wheels and rear swivel casters, with a locking mechanism that would completely prevent the unit from moving in any direction—forward, backward, or sideways.
• Repeatable Positioning: For tasks that required a consistent lifting height, the machine needed both upper and lower adjustable limiters. To fine-tune positions along the mast, adjustable, wear-resistant positioning blocks were also required. These blocks could be moved up and down the guide rail to provide a precise and repeatable stopping point without causing any damage to the equipment.

These technical demands went far beyond the capabilities of a standard lifting platform. It was a clear call for a custom-engineered solution.

The Sinolift Solution: A Custom-Engineered Work Positioner

Drawing on the robust and reliable base of our standard E-Series Electric Work Positioner, our engineering team went to work. We didn't just modify a machine; we built a new one from the ground up to meet every one of the client's specifications.

The core of the solution was the custom-designed drum clamp. Unlike a V-shaped tray or a simple platform, this custom accessory was built to provide a secure and precise grip on barrels. The quick-locking clamp with its immense locking force ensured that once a drum was secured, it would not shift or slip during the lifting process. Its unique multi-axis adjustability allowed the operator to fine-tune the clamp’s position on the carriage, ensuring perfect alignment with the load.

To meet the high-precision demands, the lifting carriage was equipped with specialized guide plates that were attached with screws for easy removal and customization. These plates, combined with the two guide rails on the mast, ensured that the carriage moved with minimal friction and maximum stability. The result was a smooth, precise vertical lift that consistently maintained its horizontal position.

The mobile base was also custom-built for stability. The combination of front directional wheels and rear swivel casters provided excellent maneuverability when in transit. Most importantly, the integrated locking mechanism effectively immobilized the entire unit once it was in place, providing a rock-solid platform for lifting and positioning.

Finally, the inclusion of both upper and lower limiters and the custom positioning blocks on the mast transformed the machine into a highly repeatable lifting tool. Operators could set their desired lifting height for a specific task and know that the machine would stop at that exact point every time, reducing guesswork and increasing operational consistency.

The Impact: From Blueprint to Breakthrough

The final product was a complete success. The custom Electric Work Positioner with Drum Clamp was not merely a lifting device; it was a precision instrument. It allowed the client to safely and efficiently handle a challenging workload, eliminating the risks associated with manual handling and improving the overall efficiency of their process.

This case study is a perfect example of how Sinolift's commitment to innovation and customer-focused engineering can turn complex requirements into a practical, reliable, and highly effective solution. While our standard E-Series provides a powerful and versatile tool for a wide range of applications, our ability to customize and re-engineer our products for unique challenges truly sets us apart in the material handling industry.

If your operation faces a unique lifting or positioning challenge that standard equipment can’t solve, contact us. We thrive on the opportunity to design and build a solution that is perfectly tailored to your needs.
